StarTech.com MSA Compliant SFP Transceiver Module – 1000BASE-TX~MSA Uncoded SFP Module – 1000BASE-TX – SFP to RJ45 Cat6/Cat5e –
StarTech.com MSA Uncoded Compatible SFP Module – 1000BASE-TX – SFP to RJ45 Cat6/Cat5e – 1GE Gigabit Ethernet SFP – RJ-45 100m -(SFP1000TXST)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
1000 Mbps (1 Gbps) | Copper | RJ45 | 100 m (328 ft) | Lifetime Warranty

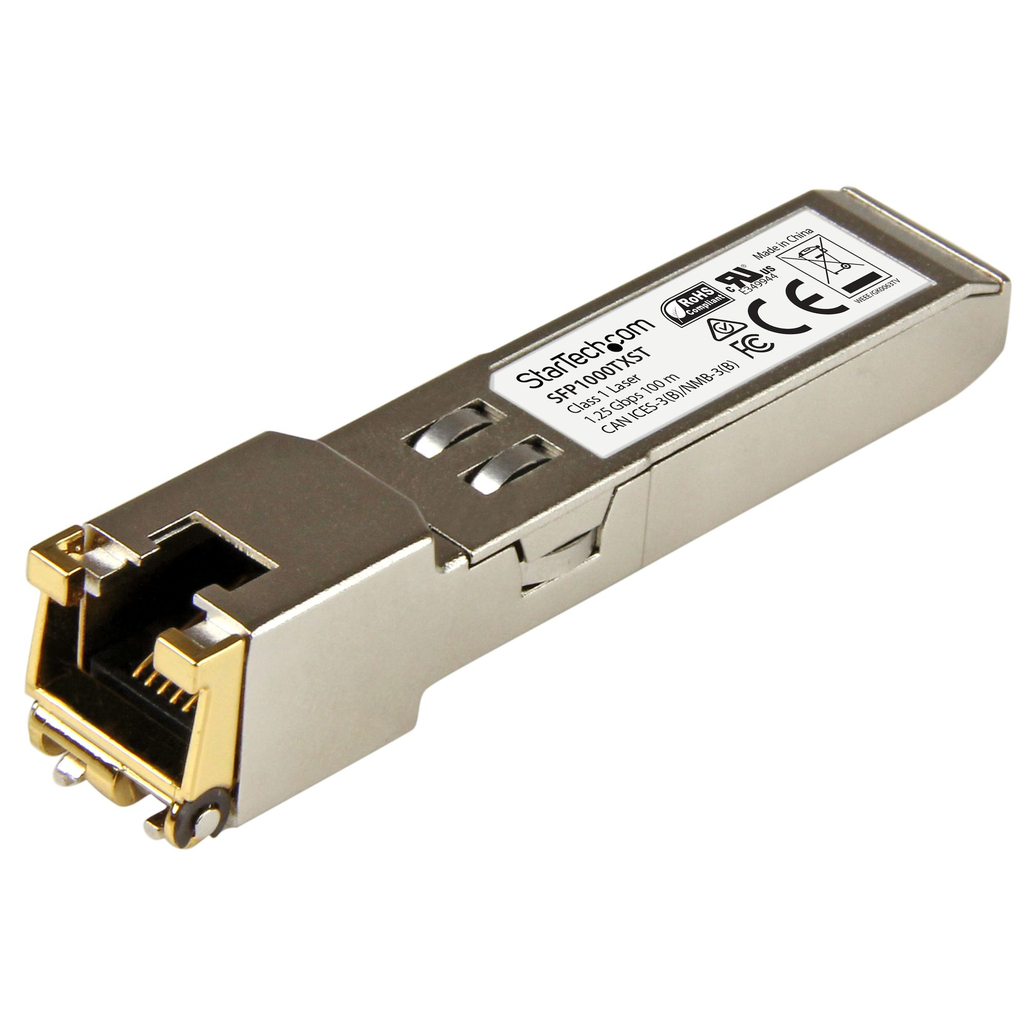

The SFP1000TXST is an MSA compliant copper SFP transceiver that’s designed, programmed and tested to work with 1000BASE-TX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 100 m (328 ft) and delivers dependable 1 GbE connectivity over copper cabling.
Technical Specifications:
• Maximum Data Transfer Rate: 1000 Mbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 100 m (328 ft)
• Power Consumption: Less than 1.3 Watt
• DDM: No
This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Additional information
| Weight | 0.04 lbs |
|---|---|
| SFP transceiver type | Copper |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP+ |
| SFP transceiver standard | TX |
| Maximum transfer distance | 100 m |
| Networking standards | IEEE 802.3z |
| Duplex system | Full |
| Product colour | Silver |
| Hot-Plug support | Yes |
| Certification | CE, FCC, UR |
| Operating temperature (T-T) | 0 – 70 °C |
| Storage temperature (T-T) | -40 – 85 °C |
| Package width | 90 mm |
| Package depth | 120 mm |
| Package height | 30 mm |
| Package weight | 52 g |
| Harmonized System (HS) code | 85369010 |
| Quantity per pack | 1 pc(s) |
| Digital Diagnostics Monitoring (DDM) | No |
| Power consumption (typical) | 1.3 W |
| Compliance certificates | RoHS |
| Width | 13.9 mm |
| Depth | 58.4 mm |
| Height | 12.6 mm |
| Weight | 25 g |
| Master (outer) case width | 310 mm |
| Master (outer) case length | 400 mm |
| Master (outer) case height | 320 mm |
| Products per master (outer) case | 70 pc(s) |
| Housing material | Aluminium |
| Operating relative humidity (H-H) | 5 – 95% |
| Ethernet LAN | Yes |
| Country of origin | China |
| Ethernet LAN (RJ-45) ports | 1 |
