StarTech.com Multi-Input HDBaseT Extender Kit with Built-In Switch and Video Scaler
StarTech.com Multi-Input HDBaseT Extender Kit – Built-In Switch and Video Scaler – DisplayPort HDMI and VGA Over CAT6 or CAT5e (ST121HDBTSC)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Connect four video sources to a remote HDMI display over CAT5e/CAT6 cabling, and easily scale and switch between HDMI, DP or VGA video sources

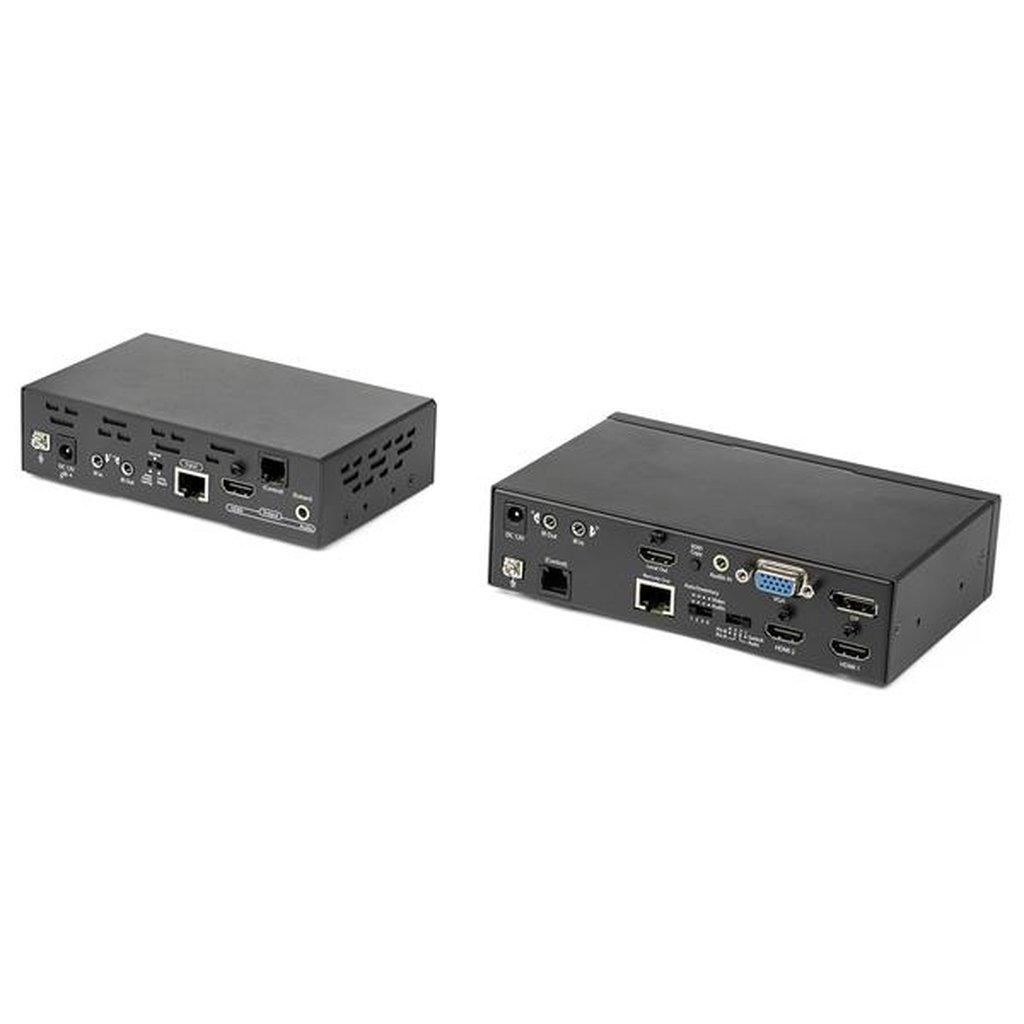

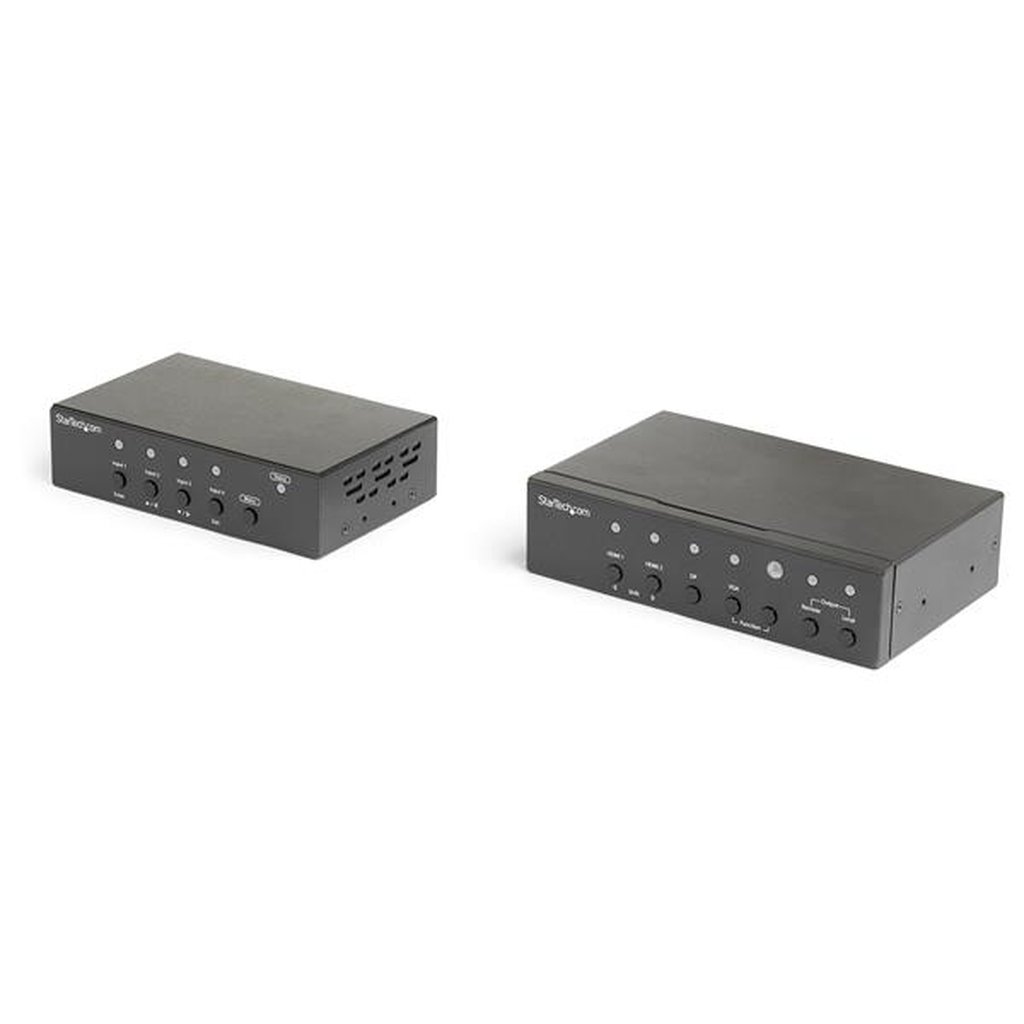

This multi-input HDBaseT™ extender kit extends your A/V signals to a remote location up to 230 ft. (70 m) away. It features a built-in switch and scaler, so you can choose which video source is output from four independent video sources (2 x HDMI, 1 x VGA and 1 x DisplayPort).
Seamless Integration and Operation

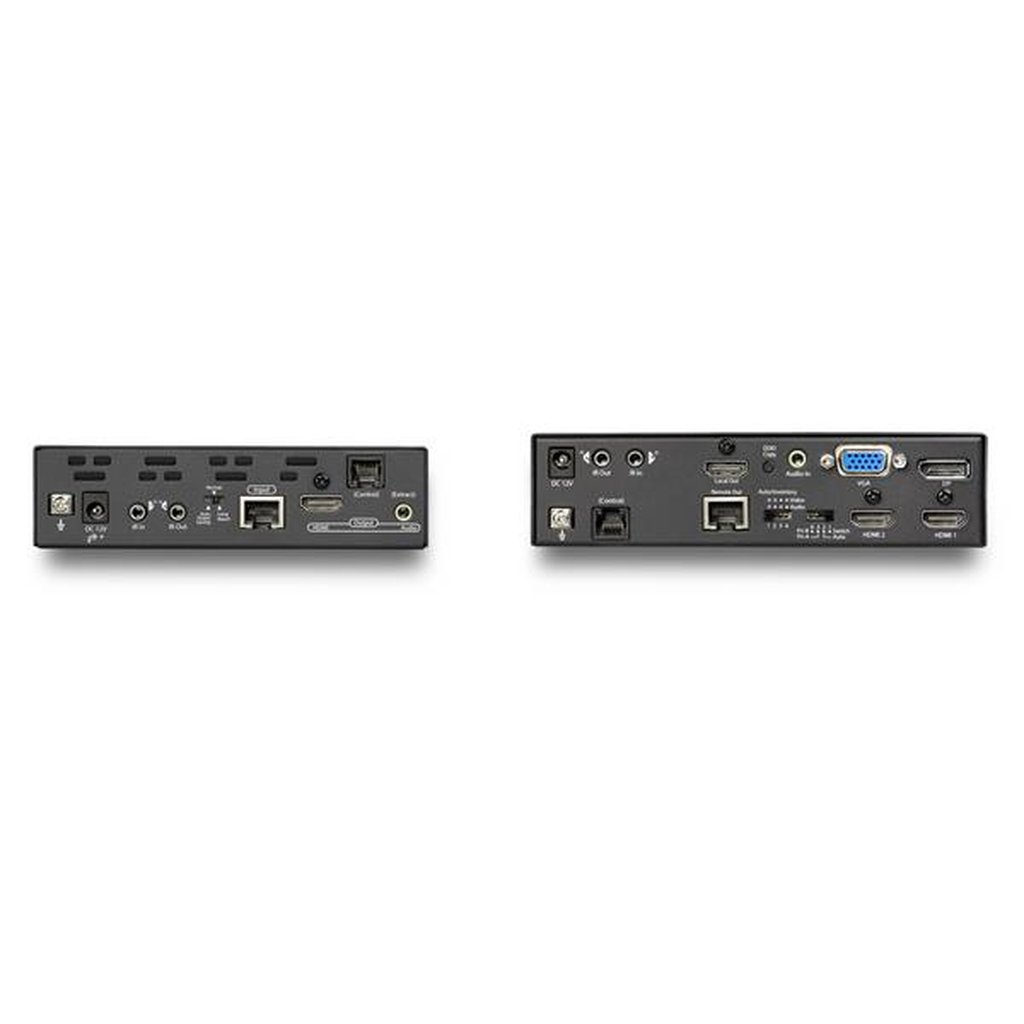

The HDBaseT extender’s built-in converter switch lets you connect two HDMI sources, a VGA source, and a DP source to the same remote and local HDMI display. You don’t need adapters or scalers, or a video switch.

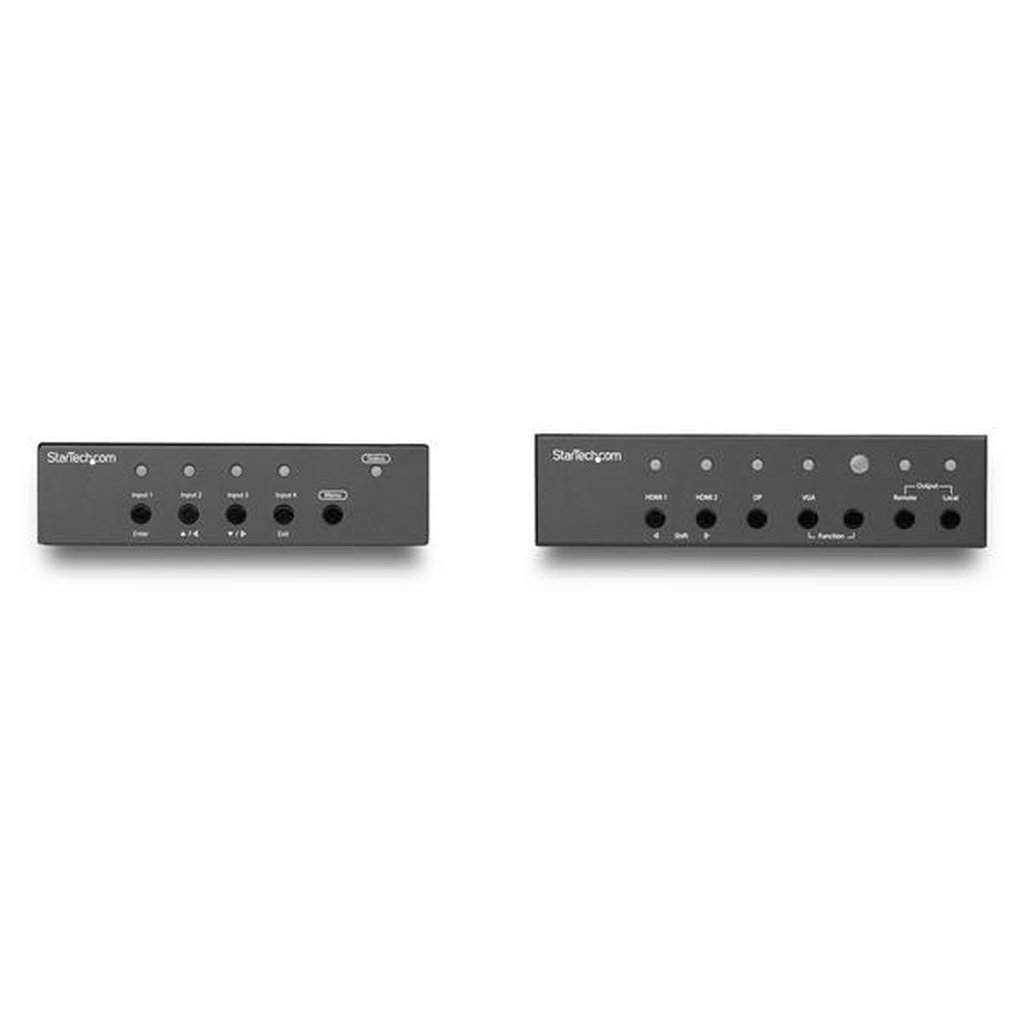

Along with manually switching your video source with easy-to-use buttons, the video extender ensures hassle-free operation with two auto-switching modes: auto-detect switching, which detects and selects a newly connected device, and priority selection, which lets you choose which port is activated by default, for automatic switching.
Built-In Video Scaling
This HDBaseT extender features a built-in scaler that scales the image to 1080p, so you can rest assured your HDMI display will intuitively work with any source that’s connected through it. Scaling is easy to do, with an intuitive OSD that’s accessible using buttons on the remote receiver. Newer HDMI displays no longer support legacy resolution video signals. Without support for these common VGA resolutions, your source may not work with your new HDMI display.
High-Definition 1080p Video at 230 Feet (70 Meters)
The extender kit maintains your HD picture quality, even at 230 ft. (70 m) away from your video source, ensuring you can provide the best possible viewing experience.
The ST121HDBTSC is backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
Additional information
| Weight | 2.1 lbs |
|---|---|
| Type | AV transmitter & receiver |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 70 m |
| LED indicators | Yes |
| Material | Aluminium |
| Product colour | Black |
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| DC-in jack | Yes |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -10 – 60 °C |
| Operating relative humidity (H-H) | 0 – 80% |
| Compliance certificates | RoHS |
| Maximum resolution | 1920 x 1200 pixels |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800, 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900, 1600 x 1200 (UXGA), 1680 x 105 |
| Input current | 0.6 A |
| Mounting brackets included | Yes |
| VGA (D-Sub) input ports | 1 |
| AC input voltage | 100 – 240 V |
| Operating voltage | 12 V |
| Weight | 2 kg |
| Package width | 98 mm |
| Package depth | 160 mm |
| Package height | 40 mm |
| AC adapter included | Yes |
| Cables included | LAN (RJ-45), Phone (RJ-11) |
| Maximum refresh rate | 60 Hz |
| Certification | CE, FCC, TAA |
| HDMI in | 2 |
| Number of HDMI outputs | 2 |
| Remote (IR) input | 2 |
| Remote (IR) output | 2 |
| Output current | 1.5 A |
| Width | 61 mm |
| Depth | 106 mm |
| Height | 67 mm |
| External power adapter | Yes |
| Included power plug types | ANZ, EU, JP, NA, UK |
| Audio output channels | 2.0 channels |
| Rack mounting | Yes |
| Daisy chain | No |
| Quick start guide | Yes |
| Master (outer) case width | 385 mm |
| Master (outer) case length | 495 mm |
| Master (outer) case height | 270 mm |
| Products per master (outer) case | 6 pc(s) |
| Power plug type | Type M |
| IR blaster included | Yes |
| IR receiver included | Yes |
| Rubber feet | Yes |
| Power consumption (typical) | 18 W |
| RJ-11 ports quantity | 2 |
| Remote control included | Yes |
| 3.5 mm (1/8-inch) in | Yes |
| DisplayPorts in | 1 |
| HDCP & EDID bypass | Yes |
| VGA (D-Sub) ports quantity | 1 |
| AUX in | Yes |
