StarTech.com PCI Serial Parallel Combo Card with Dual Serial RS232 Ports (DB9) & 1x Parallel LPT Port (DB25) – PCI Combo Adapte
StarTech.com PCI Serial Parallel Combo Card with Dual Serial RS232 Ports (DB9) & 1x Parallel LPT Port (DB25) – PCI Combo Adapter Card – PCI Expansion Card Controller – PCI to Printer Card (PCI2S1P2)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
PCI | RS-232 Serial | IEEE 1284 Parallel | Lifetime Warranty

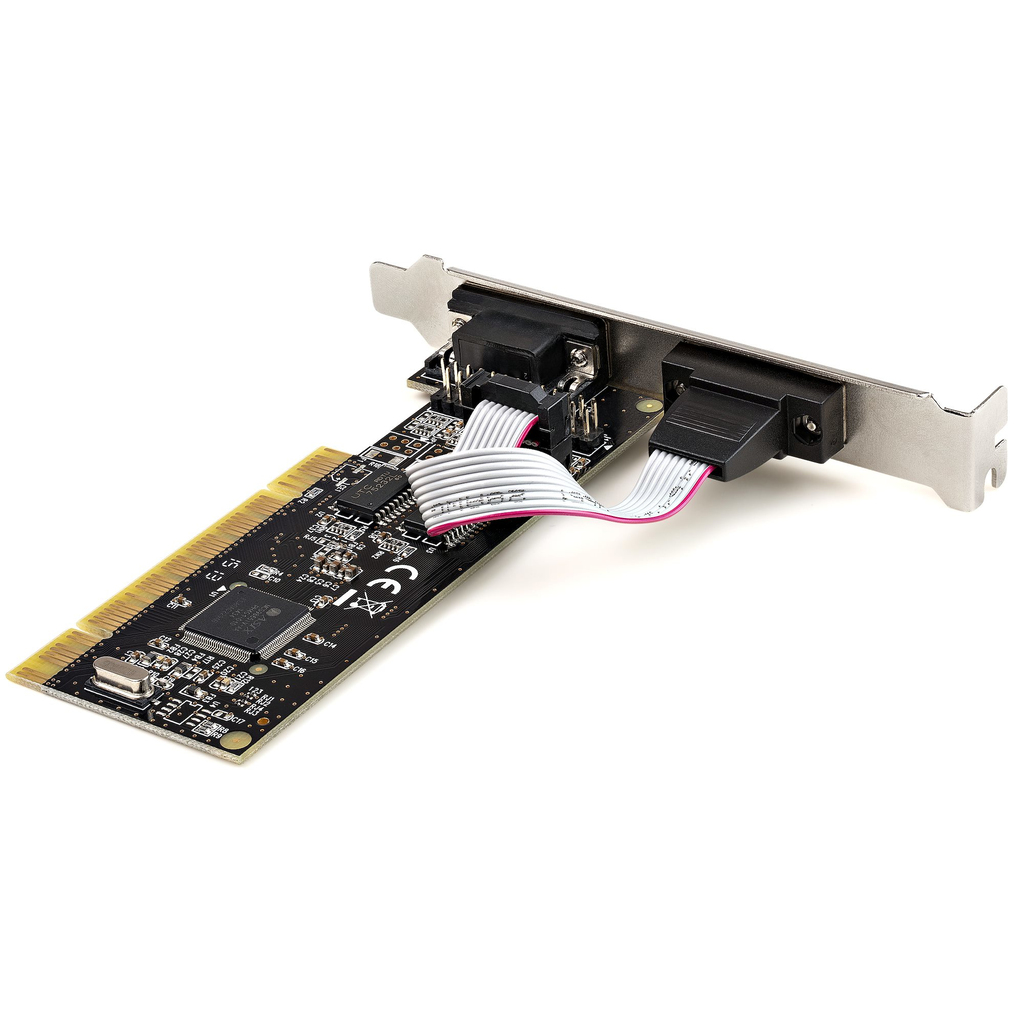

This PCI 1x Parallel and 2x Serial Combo Card installs into a single PCI slot in your computer (occupying 2 to 3 expansion slots, depending on profile), and adds a DB25 IEEE 1284 parallel port and two DB9 RS 232 serial ports to your system.
Adds an LPT Parallel Port
The controller card features an Asix MCS9865 chip and enables you to connect a DB25 parallel device to your desktop computer. The parallel port is ideal for connecting printers, scanners, plotters, point-of-sale terminals, PLCs, scientific sensors, medical equipment or oscilloscopes. The parallel (LPT) port supports SPP/Byte/Nibble/ECP/EPP modes and IEEE 1284 for speeds up to 1.5Mbps.

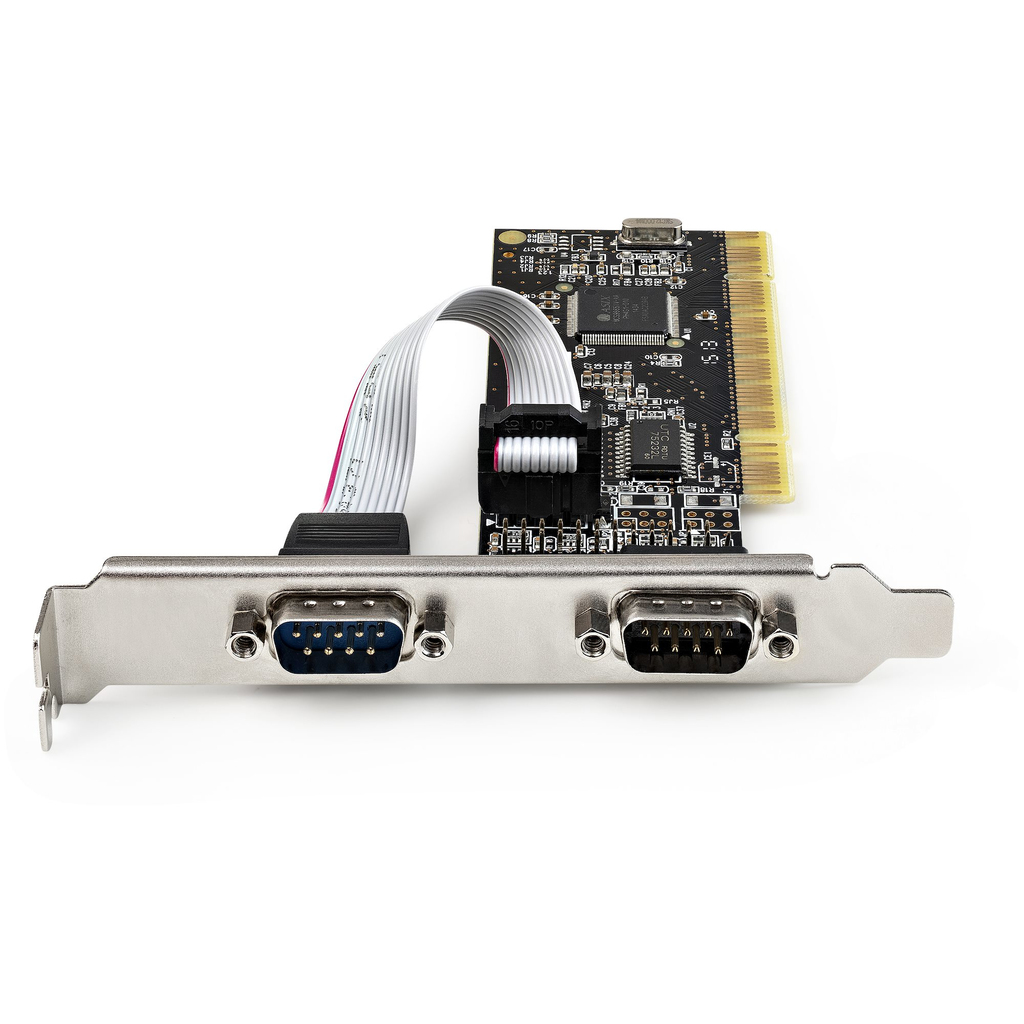

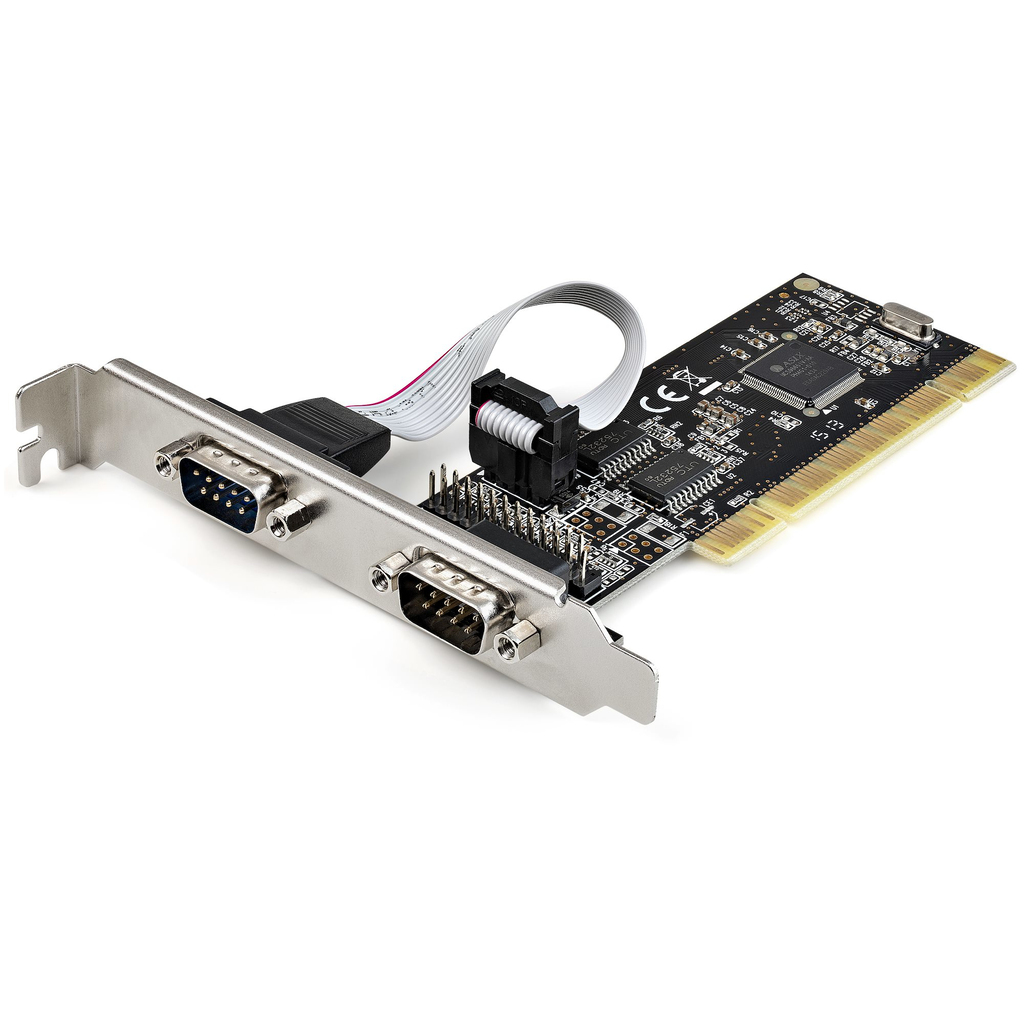

Adds a COM Serial Port
The Asix MCS9865 chip also enables you to connect two DB9 devices using the same controller card, compatible with industry standard 16C550 UART. The serial ports are ideal for connecting point of sale terminals, serial printers, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners and oscilloscopes. The serial (COM) ports support bi-directional RS232 speeds up to 115.2Kbps per port, available 256 byte FIFO buffer & 9th data bit.
Wide Installation Compatibility

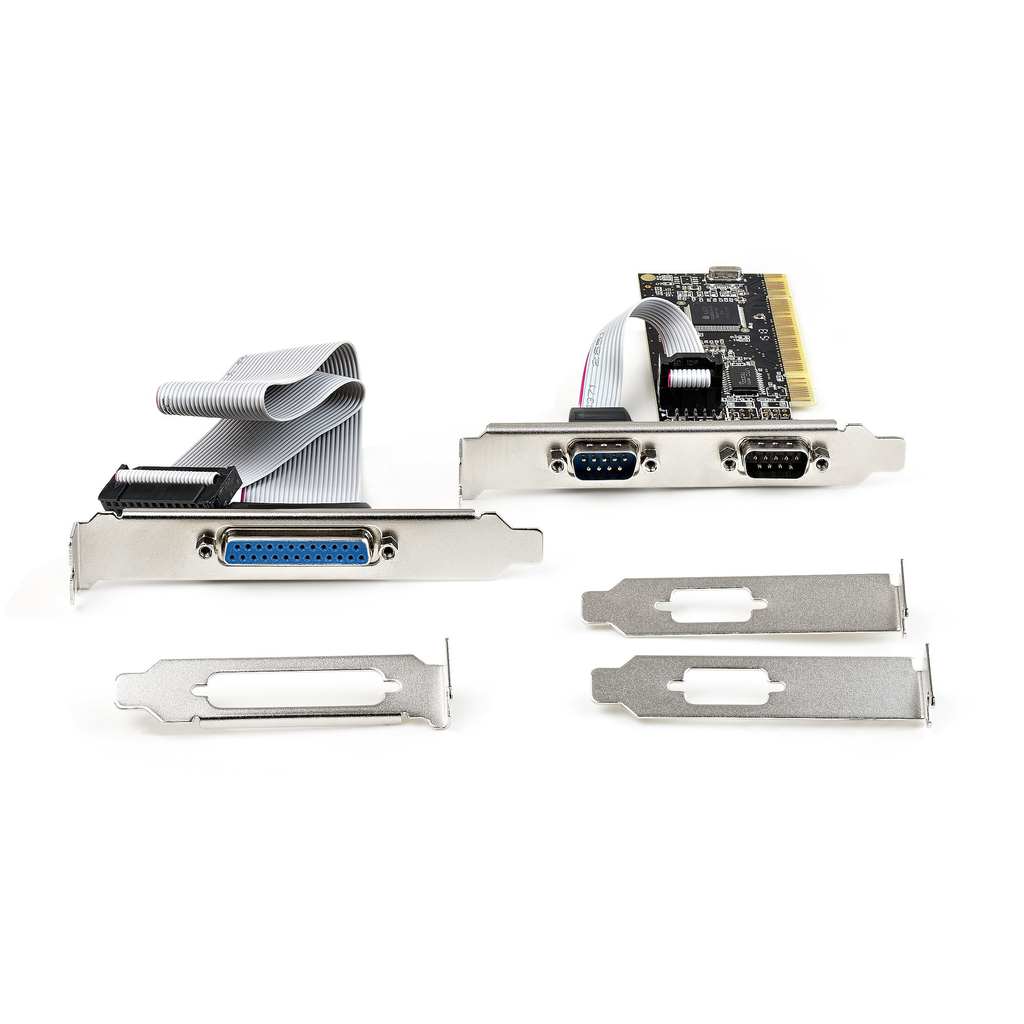

With broad OS support, including for Windows (7 and up), and Linux (2.6.x to 5.x LTS versions only), this PCI serial/parallel card is easy to integrate into mixed environments. The card comes pre-configured with 2x full-profile brackets, and includes optional 3x low-profile brackets, so installation is easy regardless of the case form factor.
PCI2S1P2 is backed by a StarTech.com lifetime warranty with free 24/5 multi-lingual North American based technical support. StarTech.com has been the IT professionals’ choice for over 30 years.
The StarTech.com Advantage
Additional information
| Weight | 0.14 lbs |
|---|---|
| Product colour | Black |
| Operating temperature (T-T) | 0 – 70 °C |
| Storage temperature (T-T) | -20 – 85 °C |
| Weight | 141 g |
| Chipset | Asix – MCS9865 |
| Host interface | PCI/PCI-X |
| Output interface | Serial |
| Data transfer rate (max) | 0.0015 Gbit/s |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Wind |
| Compliance certificates | CE, RoHS |
| Depth | 134 mm |
| Expansion card form factor | Full-height / Low-profile |
| Internal | Yes |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Width | 21.6 mm |
| Height | 120 mm |
| Harmonized System (HS) code | 84733020 |
| Mounting brackets included | Yes |
| Serial interface type | RS-232 |
| Operating relative humidity (H-H) | 10 – 90% |
| Package width | 142 mm |
| Package depth | 170 mm |
| Package height | 30 mm |
| Package weight | 190 g |
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 360 mm |
| Master (outer) case length | 385 mm |
| Master (outer) case height | 340 mm |
| User guide | Yes |
| Serial ports quantity | 2 |
| FIFO (First In, First Out) | 256 B |
| Baud rate | 115.2 Kbit/s |
| Data bits | 5, 6, 7, 8, 9 |
| Stop bits | 1, 1.5, 2 |
| Parity bit | Even, Mark, No, Odd, Space |
| Flow Control type | No, RTS/CTS, XON/XOFF |
