Description
PCI-Express USB-C Card | 10Gbps | PCIe Gen3 x4 | 2-Year Warranty

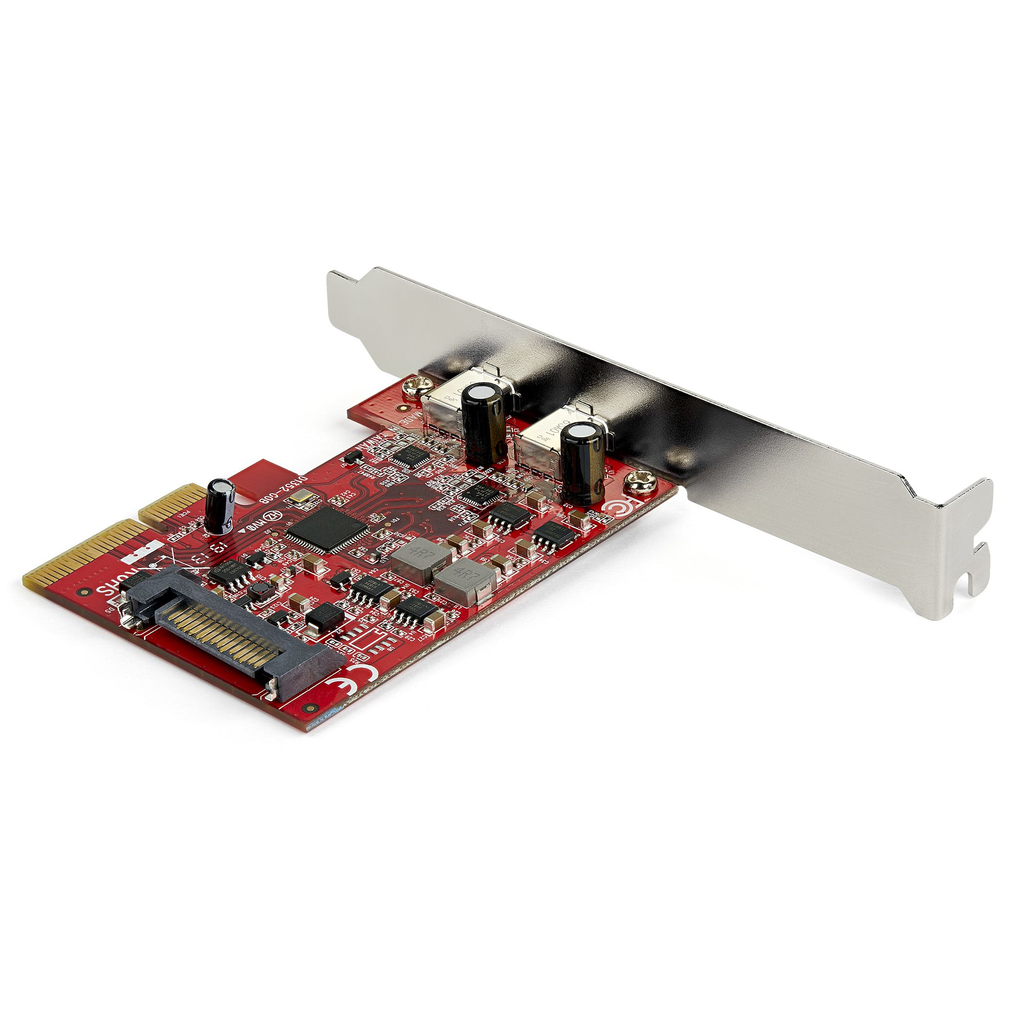

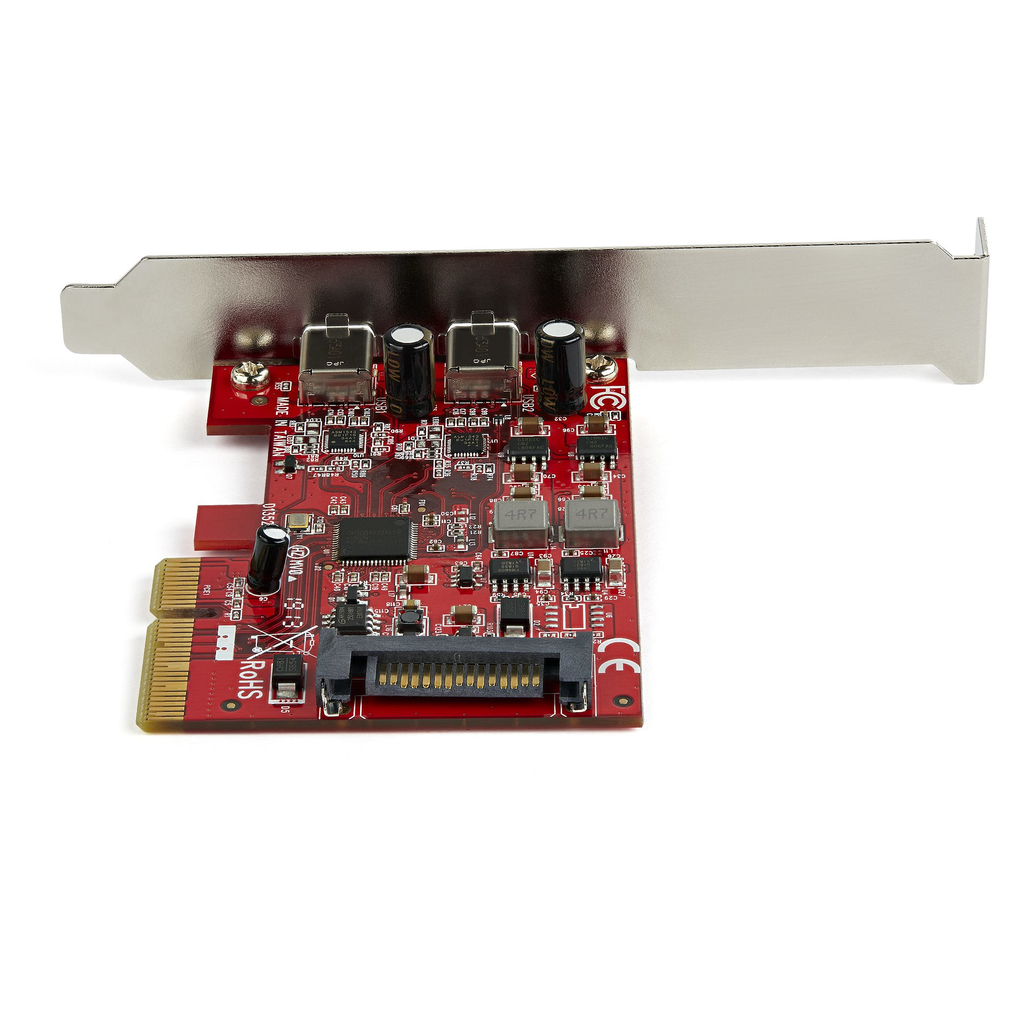

This PCIe USB 3.2 Gen 2 card installs into an available PCI-Express slot in your computer and enables you to upgrade your current system by adding two USB-C™ (10Gbps) ports.
Faster USB Performance
Also known as USB 3.1 Gen 2, this USB 3.2 Gen 2 card adds two 10Gbps USB Type-C™ ports to your computer.
Utilizing an ASMedia ASM3142 chipset, this card harnesses the speed of USB 3.2 Gen 2. With higher data throughput support, this USB 3.2 Gen 2 PCIe expansion card is a necessity for external drives and many other USB 3.2 Gen 2 peripherals and includes an optional SATA power connector for high power devices.
The card is backward compatible with USB 3.2 Gen 1 (5Gbps) and USB 2.0 (480mbps) devices. The card works with newer USB-C devices, but can easily support your existing USB-A peripherals using inexpensive USB Type C cables and adapters. See our Accessories Tab for supported options.
Easy Installation

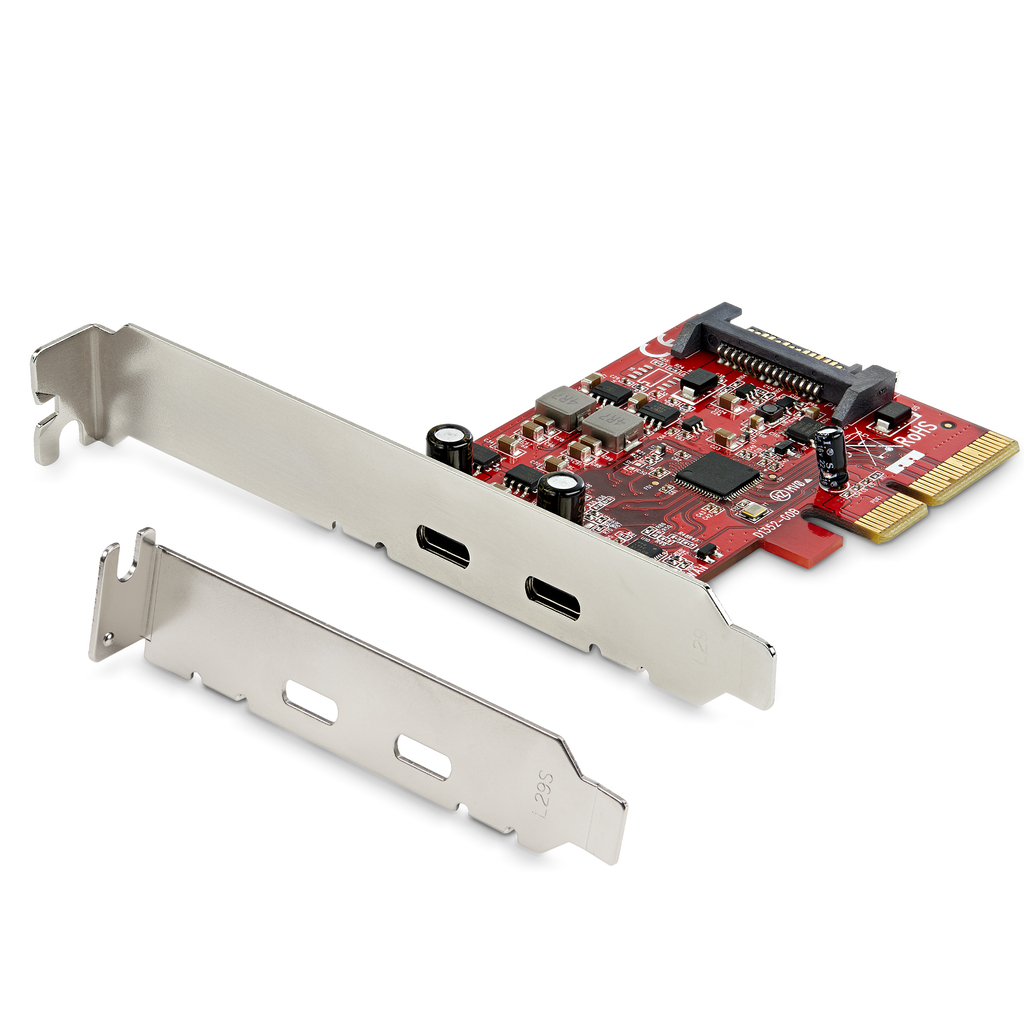

The USB 3.2 card is compatible with Windows®, Linux® and macOS® operating systems. The card includes both standard-profile and low-profile brackets to install in various form-factor PCs and servers.
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
The PEXUSB312C3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Additional information
| Weight | 0.1 lbs |
|---|---|
| Product colour | Red |
| Operating temperature (T-T) | 0 – 70 °C |
| Storage temperature (T-T) | -20 – 85 °C |
| Weight | 45 g |
| Chipset | ASMedia – ASM3142 |
| Host interface | PCIe |
| Output interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| Certification | CE, FCC, REACH |
| Data transfer rate (max) | 10 Gbit/s |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro |
| Mac operating systems supported | Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Compliance certificates | CE, RoHS |
| Depth | 122 mm |
| Expansion card form factor | Full-height / Low-profile |
| Expansion card standard | PCIe 3.0 |
| Internal | Yes |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019 |
| Width | 80 mm |
| Height | 18 mm |
| Harmonized System (HS) code | 84733020 |
| Mounting brackets included | Yes |
| Operating relative humidity (H-H) | 20 – 80% |
| UASP support | Yes |
| Package width | 142 mm |
| Package depth | 173 mm |
| Package height | 30 mm |
| Package weight | 120 g |
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case width | 380 mm |
| Master (outer) case length | 490 mm |
| Master (outer) case height | 320 mm |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| User guide | Yes |
| Sustainability compliance | Yes |
