StarTech.com Rackmount KVM Console – Single Port VGA KVM with 17″ LCD Monitor for Server Rack – Fully Featured Universal 1U LCD
StarTech.com Rackmount KVM Console – Single Port VGA KVM with 17″ LCD Monitor for Server Rack – Fully Featured Universal 1U LCD KVM Drawer w/Cables & Hardware – USB Support – 50,000 MTBF (RKCONS1701)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
KVM Console | 1U | VGA | 1280×1024 | Cable & Mounting Hardware Included
Providing centralized control of your PC, server, or KVM switch, this single-port rackmount KVM console gives you easy access to your connected system. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.
An All-Inclusive Solution

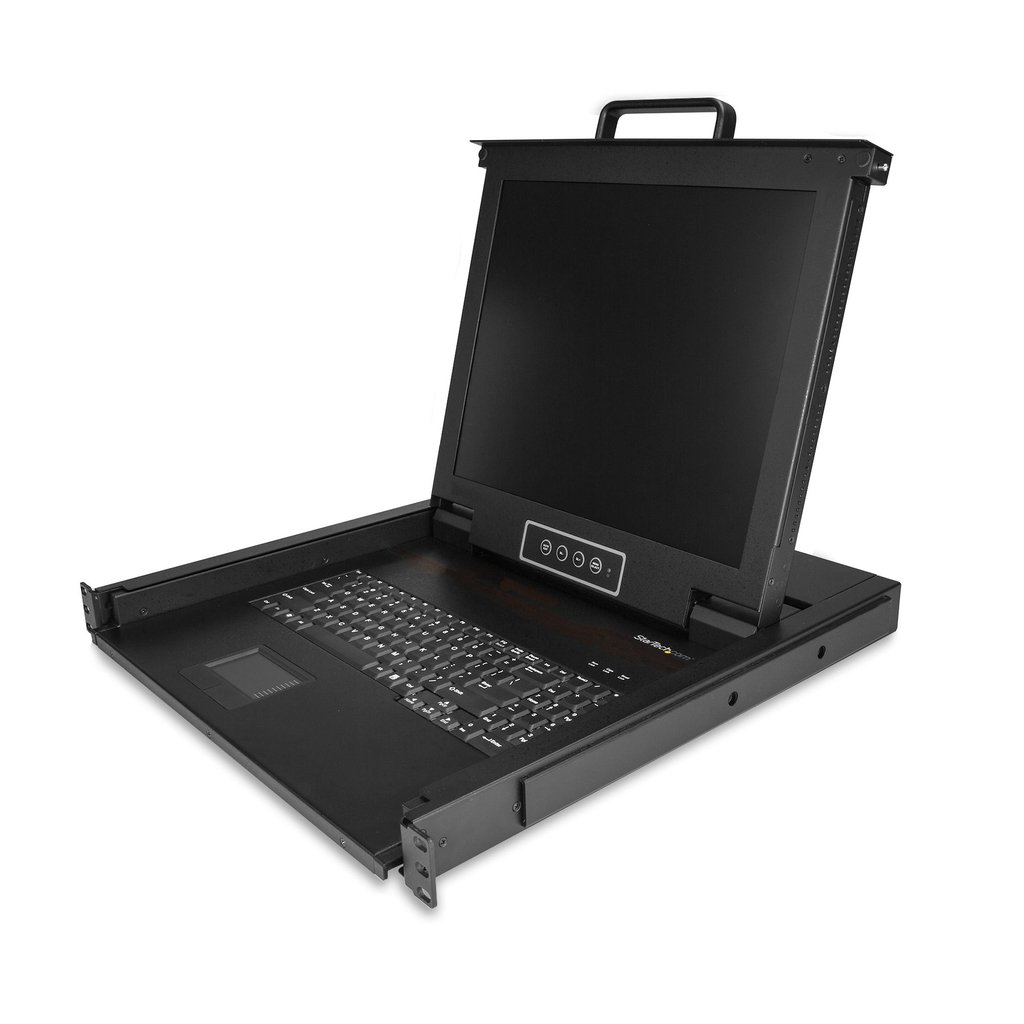

The 1U rackmount console features a built-in keyboard (QWERTY), a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280×1024.

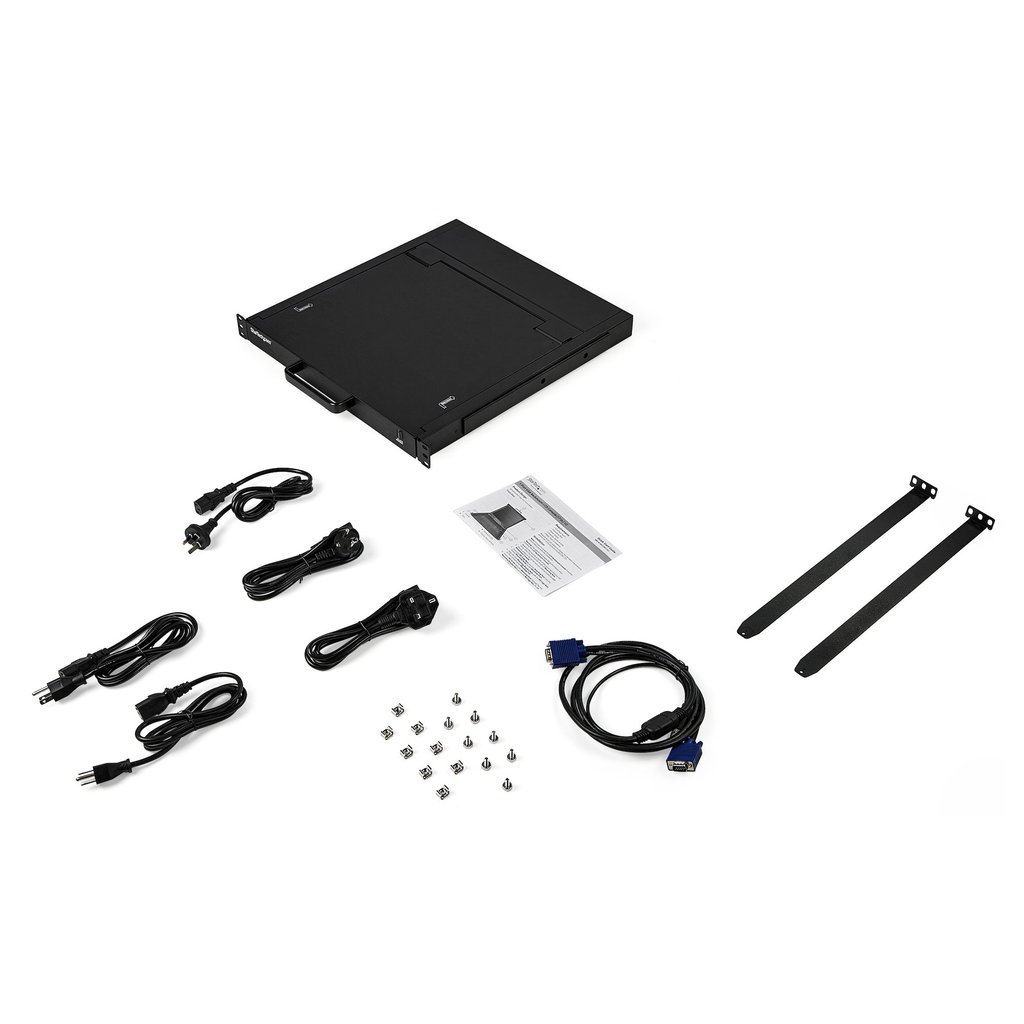

This single-port KVM console includes everything you need to set up right out of the box:
• 1 VGA KVM Cable
• Mounting Rails
• M5 Cage Nuts and Screws
Simple System Integration
The rack console features a single-port KVM module, which can be connected directly to a server or PC, or to a KVM switch for access to multiple systems. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.
StarTech.com Rack Consoles
Rack consoles provide convenient, rack-mounted control options for single servers or entire server rooms. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. RKCONS1701 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Additional information
| Weight | 17 lbs |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Certification | CE, FCC, PSE, UL |
| Power consumption (typical) | 13 W |
| AC adapter input voltage | 100 – 240 V |
| Weight | 11.6 kg |
| Package weight | 17.1 kg |
| Operating temperature (T-T) | 0 – 40 °C |
| Display resolution | 1280 x 1024 pixels |
| Display brightness | 250 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Pixel pitch | 0.264 x 0.264 mm |
| Aspect ratio | 5:4 |
| Display type | LCD |
| Rack mounting | Yes |
| Cable length | 1.82 m |
| Storage temperature (T-T) | -20 – 60 °C |
| Cables included | KVM |
| Display number of colours | 16.78 million colours |
| Material | Steel |
| Mean time between failures (MTBF) | 50000 h |
| Operating relative humidity (H-H) | 10 – 80% |
| Daisy chain | No |
| Key lock | No |
| LED indicators | Power, Status |
| Compliance certificates | RoHS |
| Rack capacity | 1U |
| IP control | No |
| Video port type | VGA |
| Width | 448 mm |
| Height | 471 mm |
| Depth | 42.5 mm |
| Mounting depth (min) | 45 cm |
| Mounting depth (max) | 79 cm |
| Package width | 615 mm |
| Package depth | 765 mm |
| Package height | 185 mm |
| Screws included | Yes |
| Mounting brackets included | Yes |
| Included power plug types | ANZ, EU, JP, NA, UK |
| Quick installation guide | Yes |
| Master (outer) case width | 615 mm |
| Master (outer) case length | 765 mm |
| Master (outer) case height | 185 mm |
| Products per master (outer) case | 1 pc(s) |
| Colour depth | 8 bit |
| Keyboard port type | USB |
| Mouse port type | USB |
| Input current | 1.5 A |
| Number of screws | 8 |
| Cage nuts included | Yes |
| Number of cage nuts | 8 |
| Response time | 5 ms |
| Rack mount kit | Yes |
