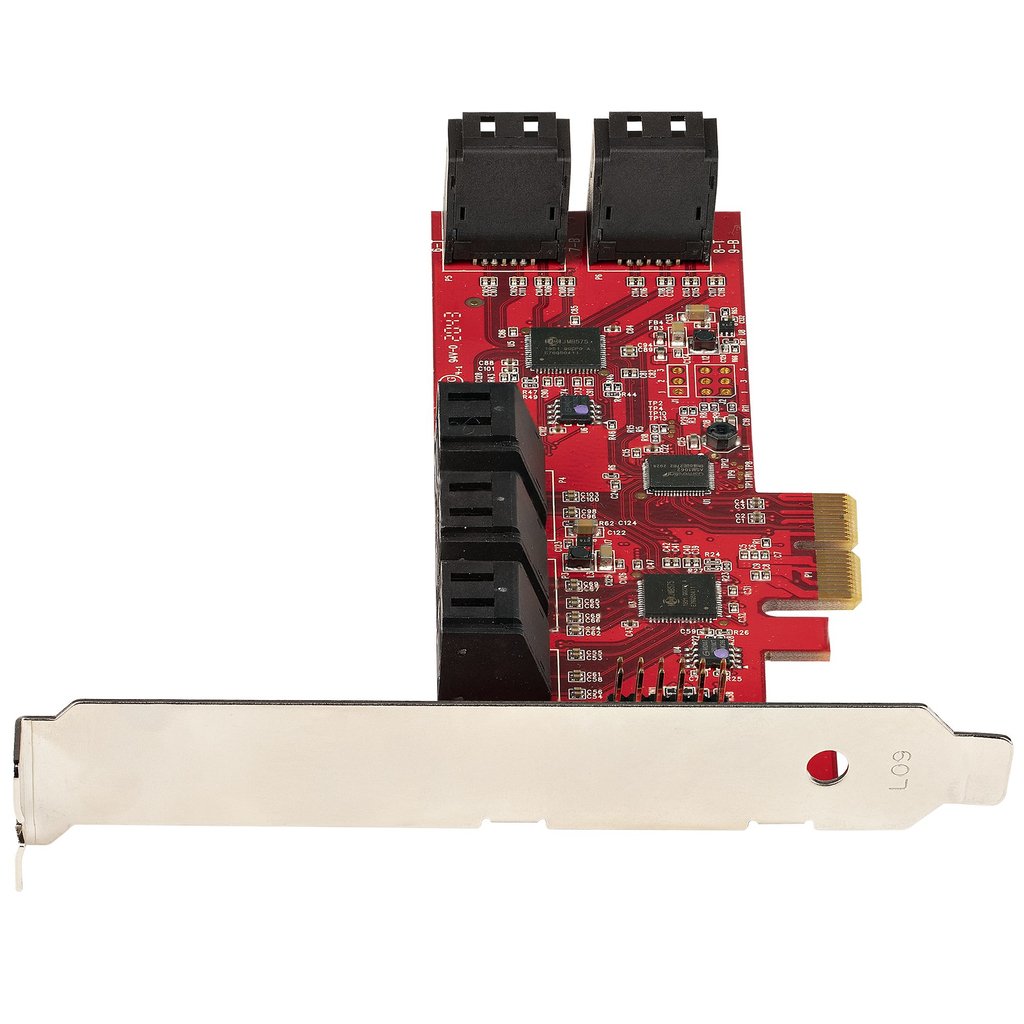

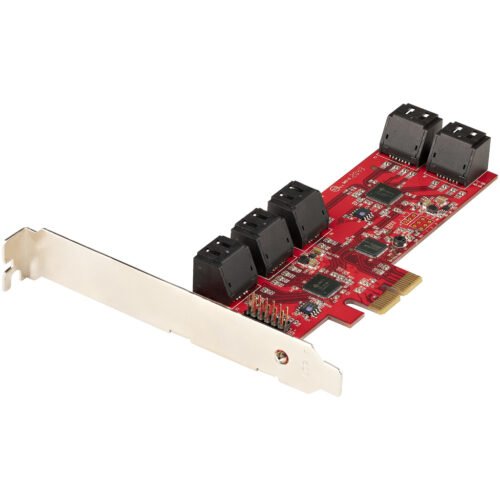

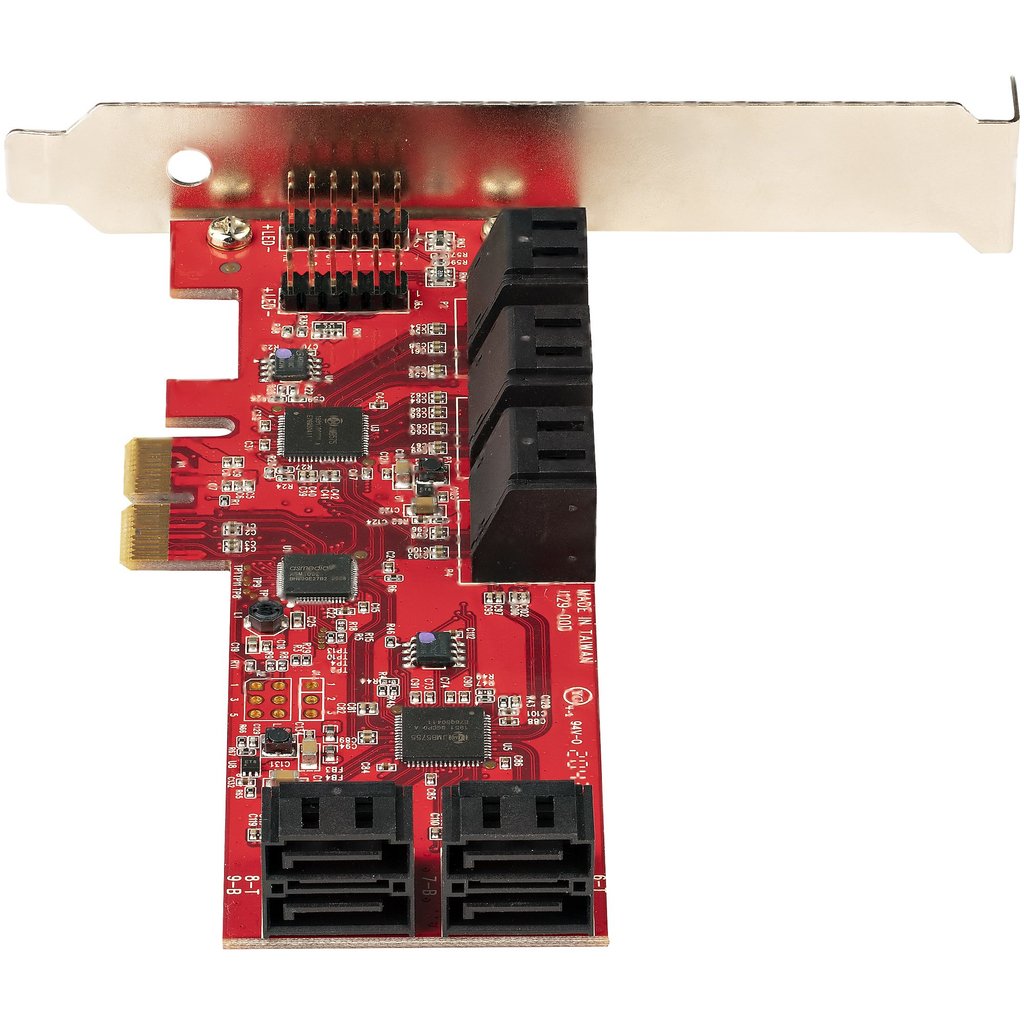

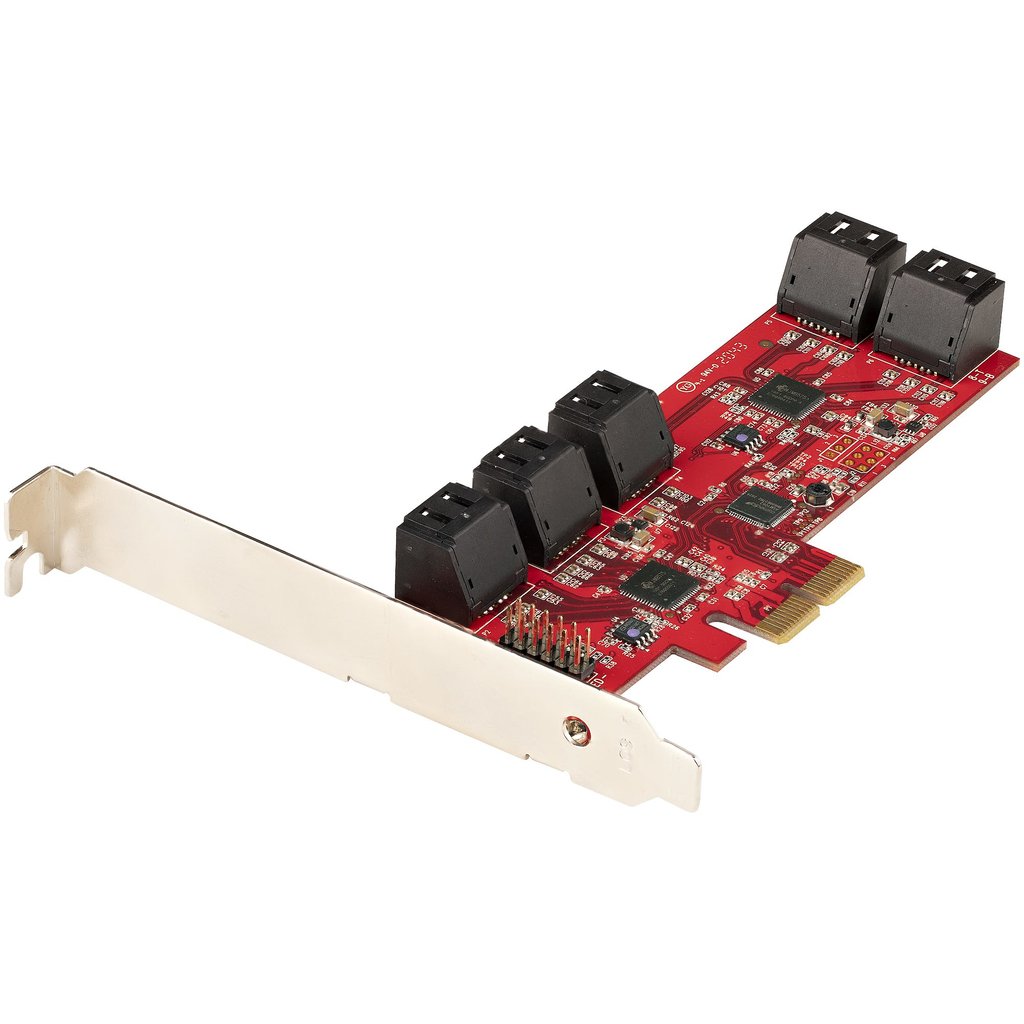

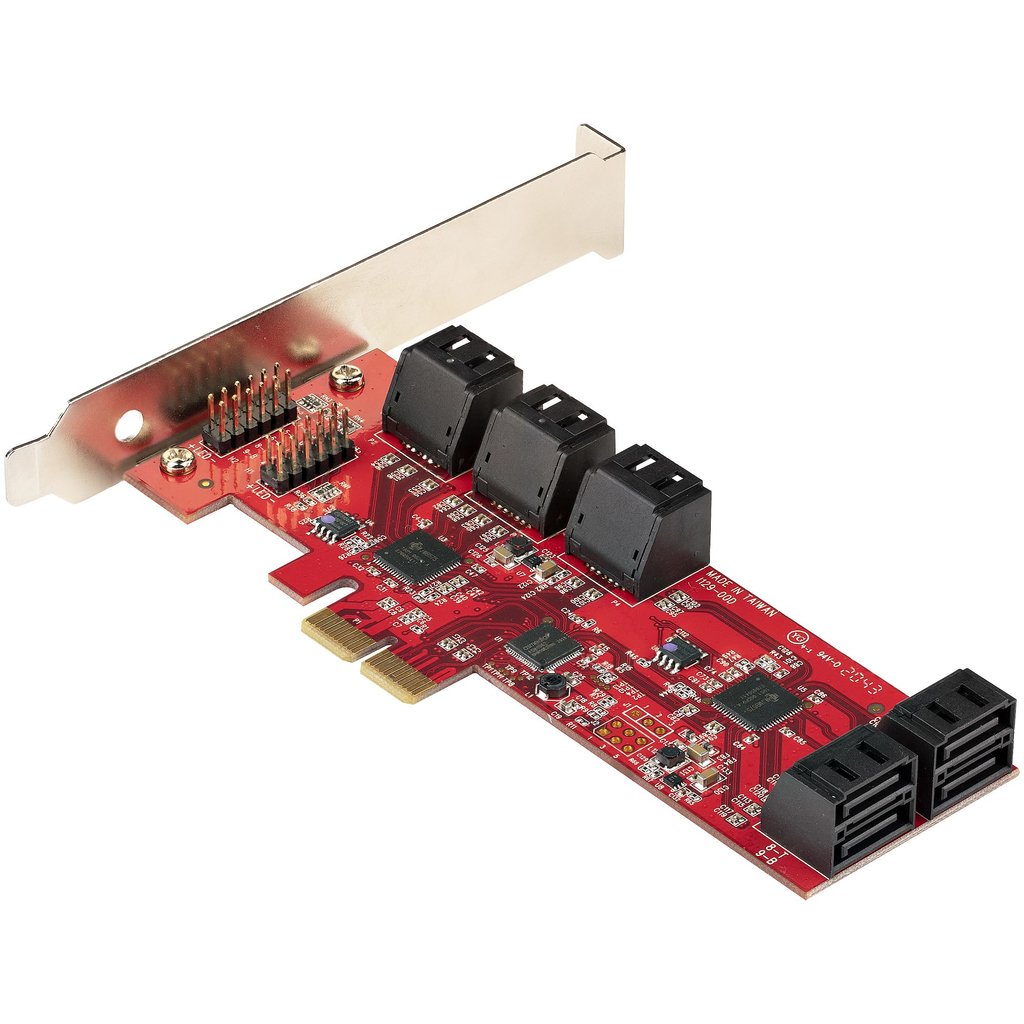

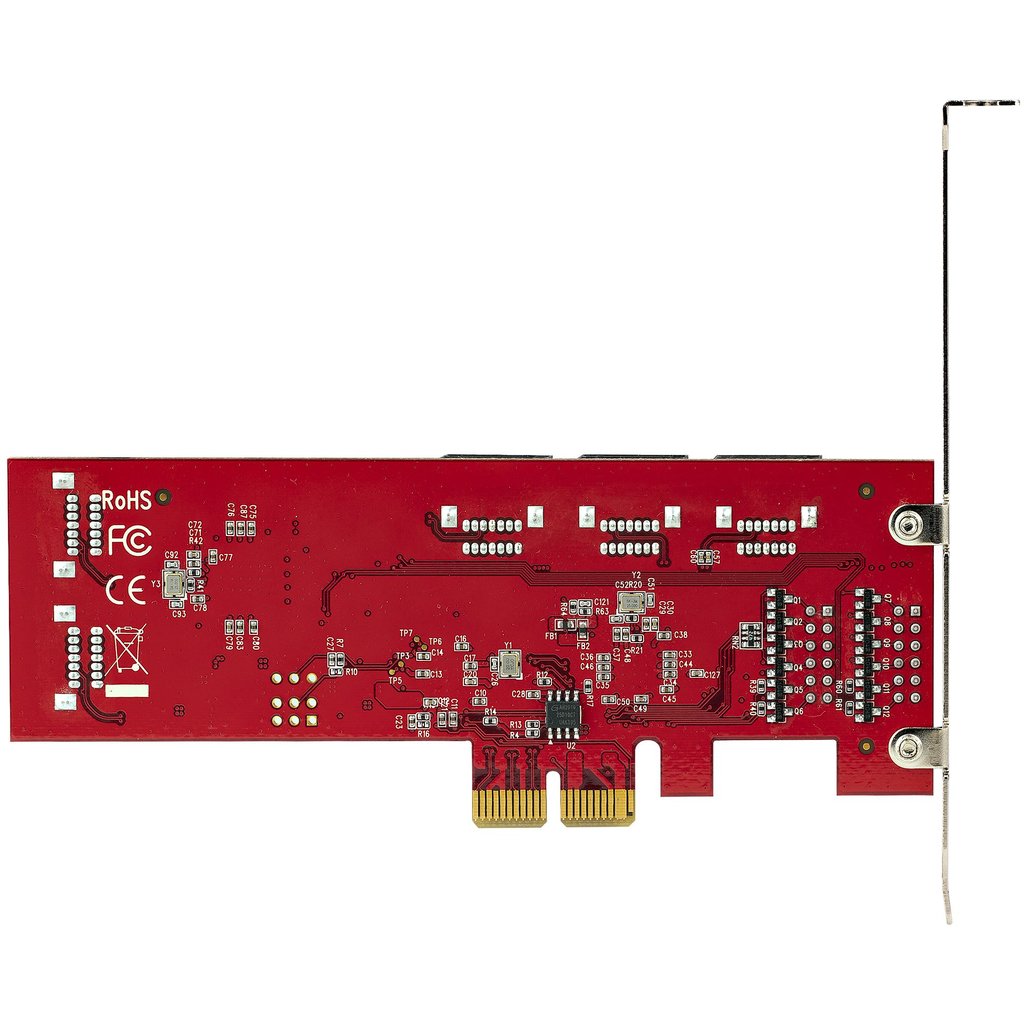

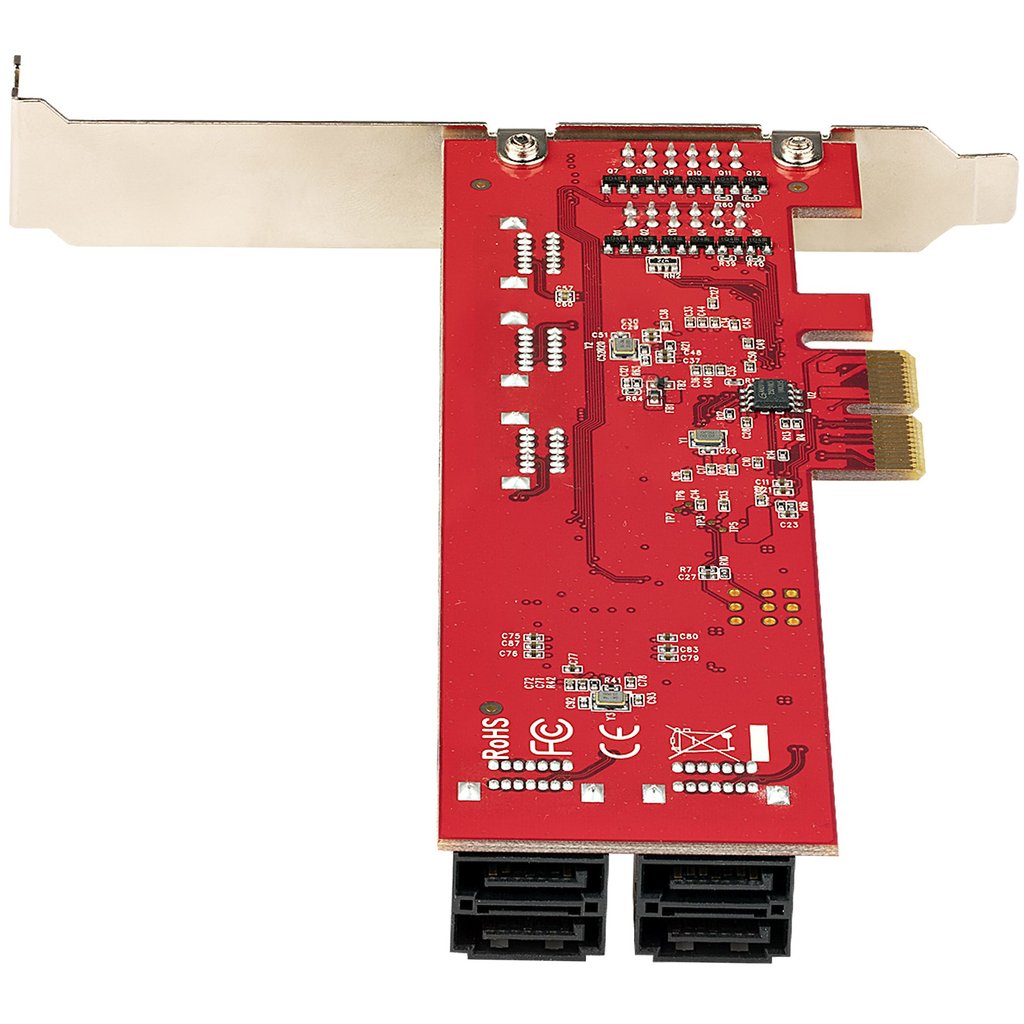

StarTech.com SATA PCIe Card – 10 Port PCIe SATA Expansion Card – 6Gbps – Low/Full Profile – Stacked SATA Connectors – ASM1062 Non-Raid – PCI Express to SATA Converter/Adapter (10P6G-PCIE-SATA-CARD)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
SATA III (6Gbps) | PCI Express 2.0 | PCIe x2 Slot | 10x SATA Connectors | 2-Year Warranty
This 10-port SATA III (6Gbps) controller enables you to add 10 SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x2 card slot. The card supports SATA III and PCI-Express 2.0 Specifications.

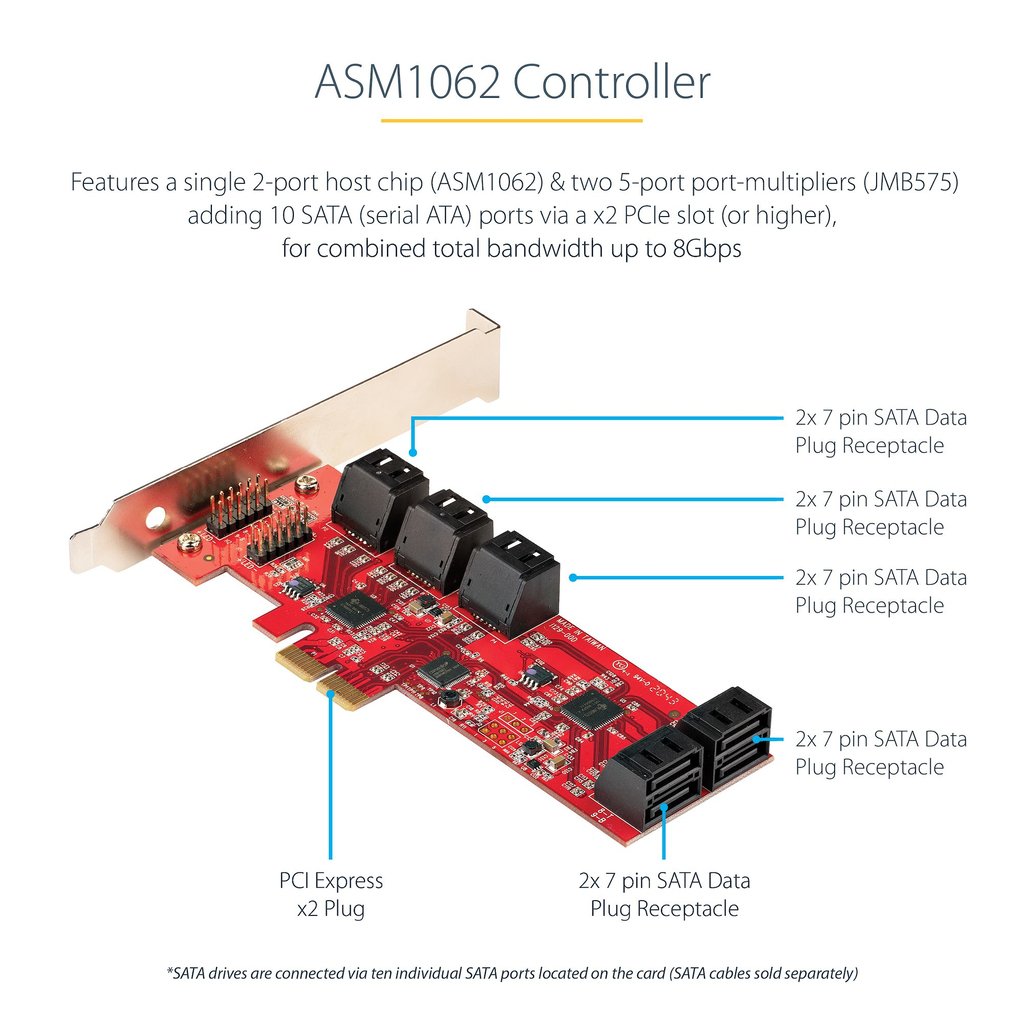

ASM1062 to Deliver 10-Port SATA 6Gbps Performance

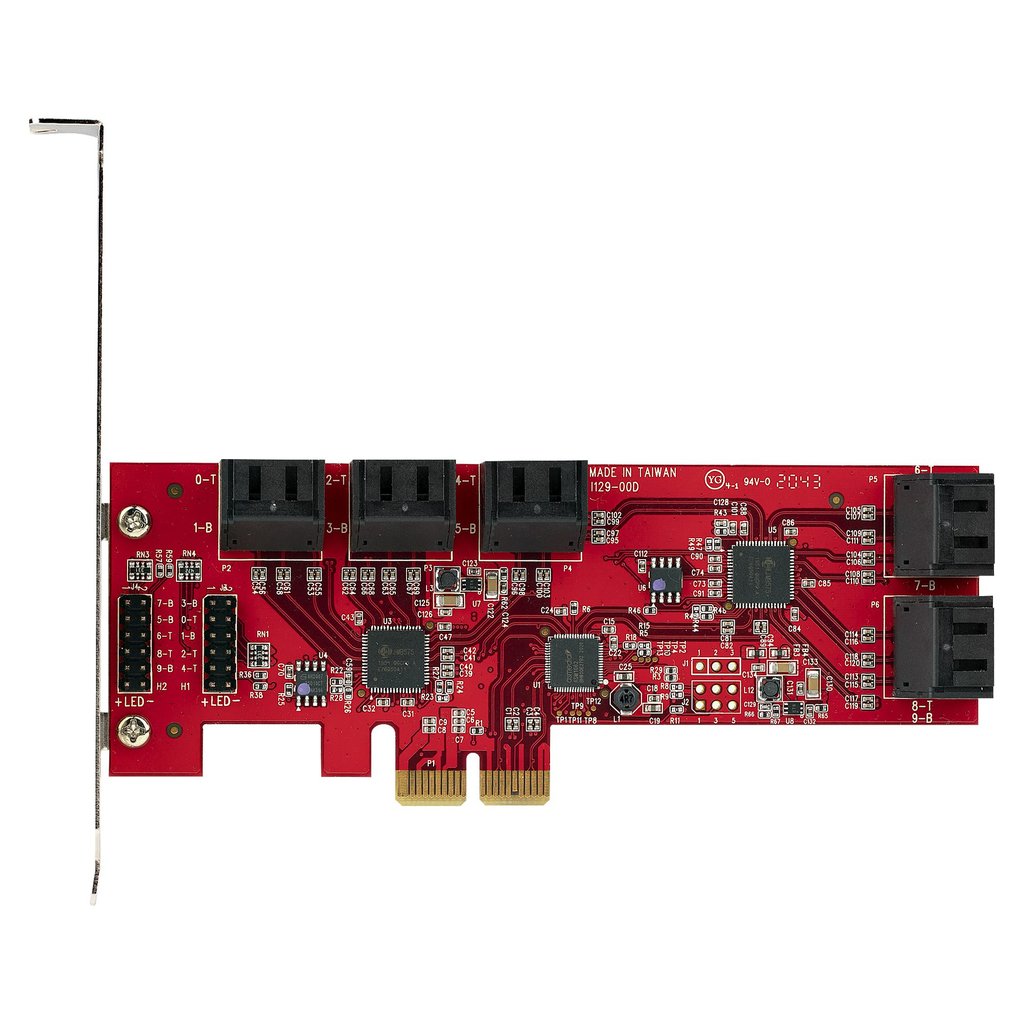

Featuring the ASM1062 controller, this SATA card enables the connection of 10 high-performance SATA 6Gbps drives with a combined total throughput of up to 8Gbps. The SATA drives are connected via ten individual SATA ports located on the card (SATA cables sold separately).

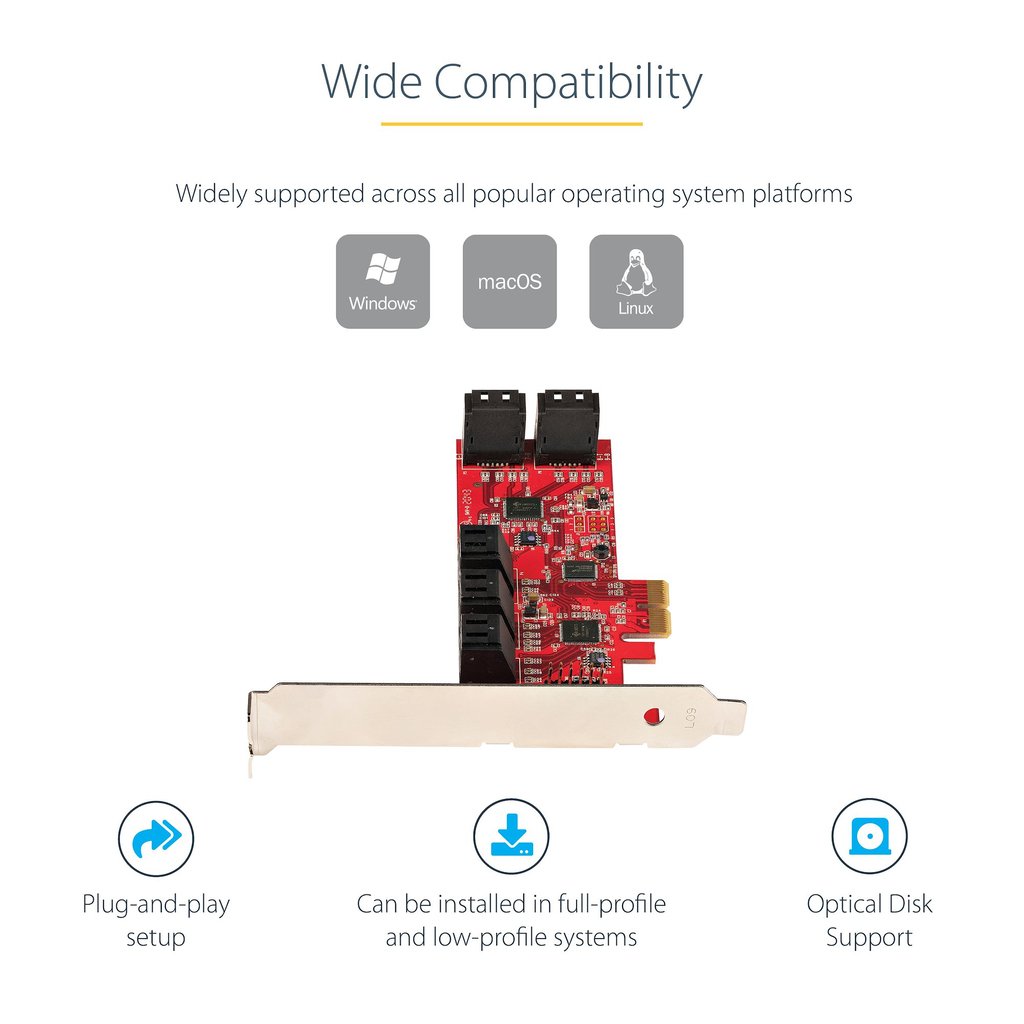

Wide Compatibility
The controller card is widely supported across all popular operating system platforms including Windows (7,8,10, 11), macOS (10.10 and above) and Linux (2.6.32 and above). The card also supports port multiplier, giving you the ability to connect multiple drives to a single SATA port (additional hardware required, sold separately).
To further improve motherboard compatibility the card does not have a built-in RAID controller, but fully supports the use of software RAID. Plus, with support for PCIe 2.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1) at lower performance.

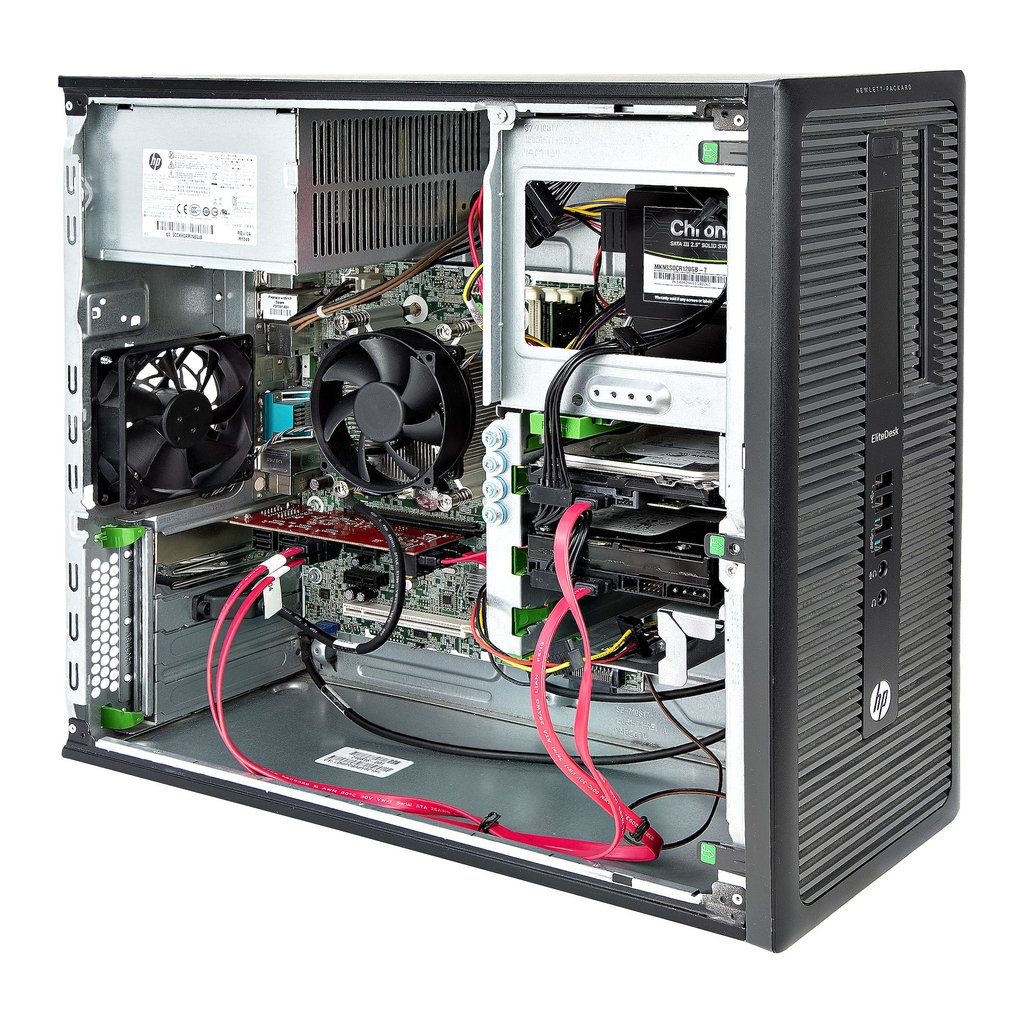

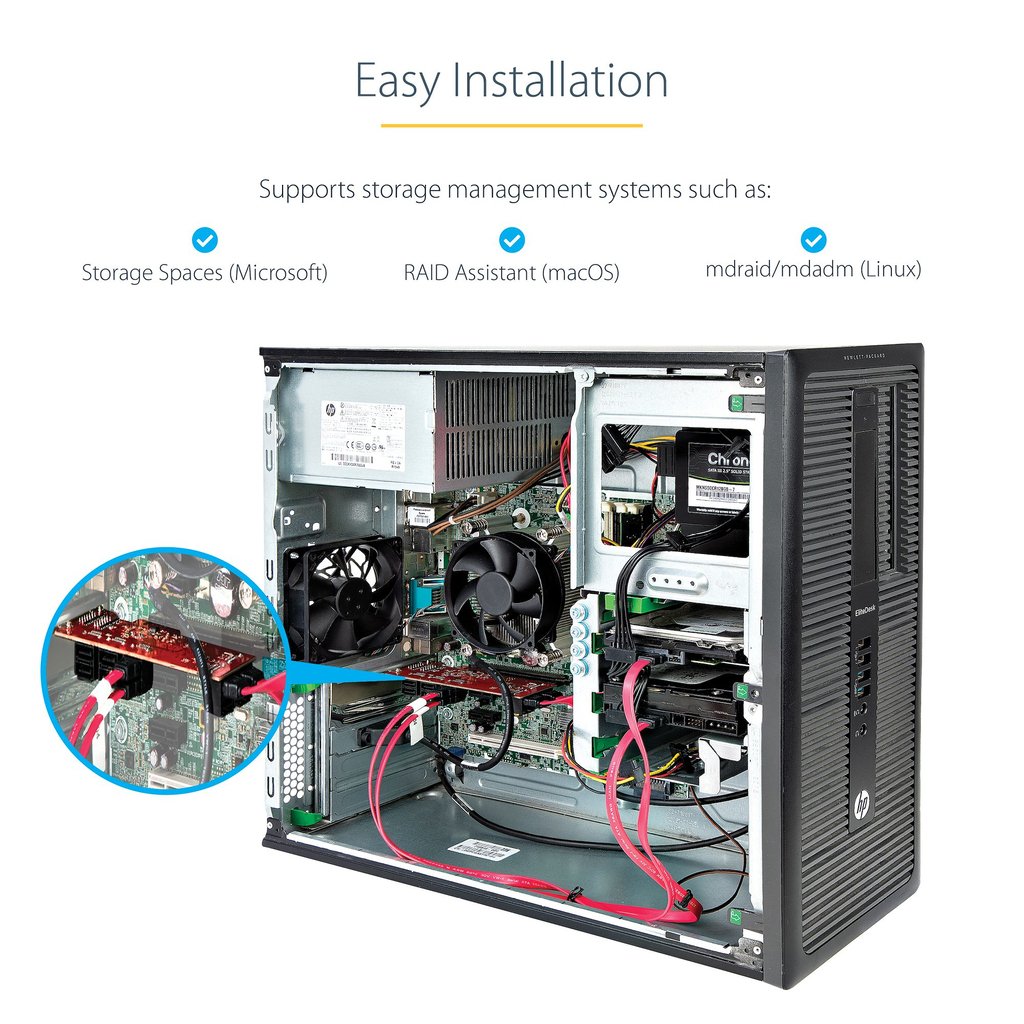

Hassle-Free Installation

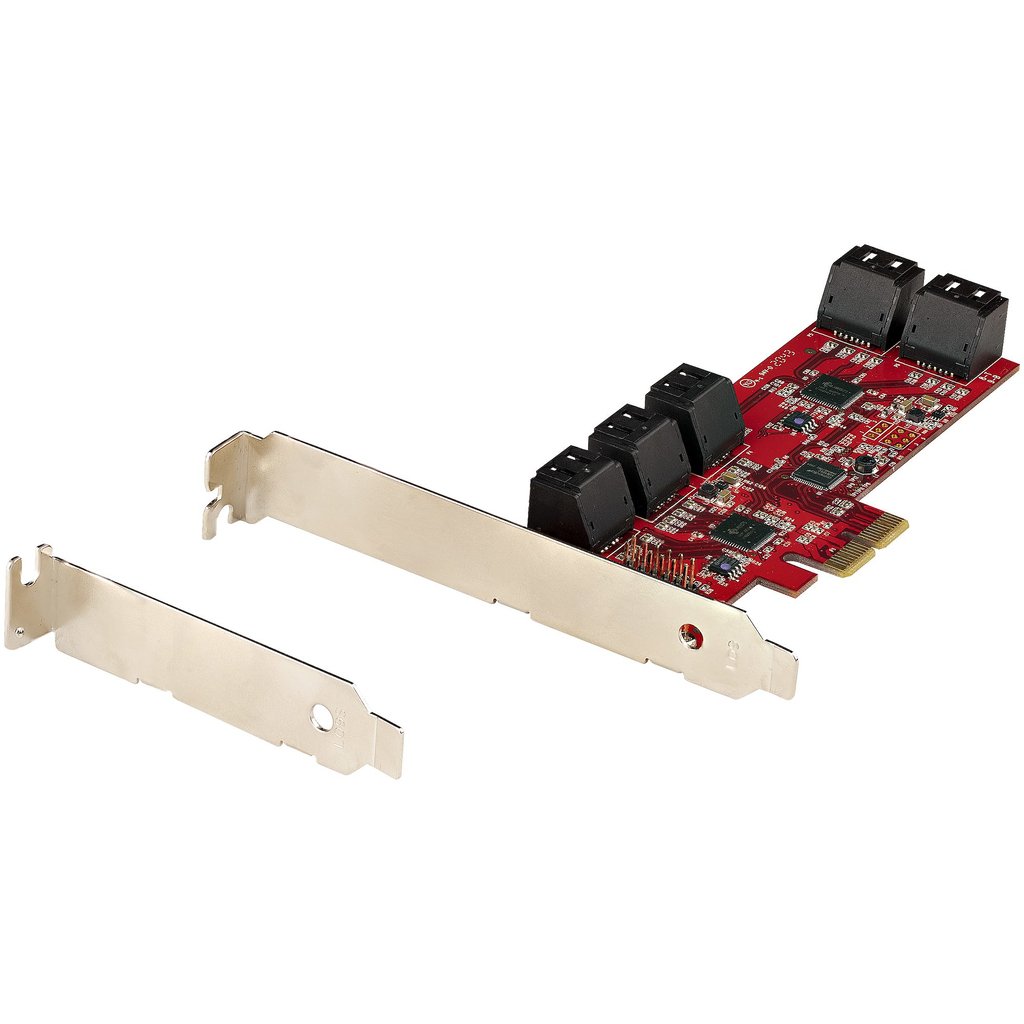

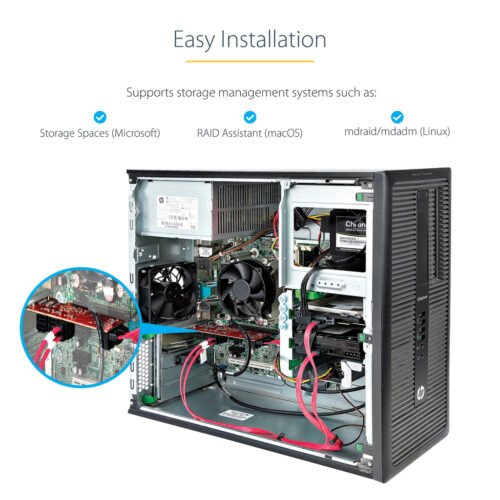

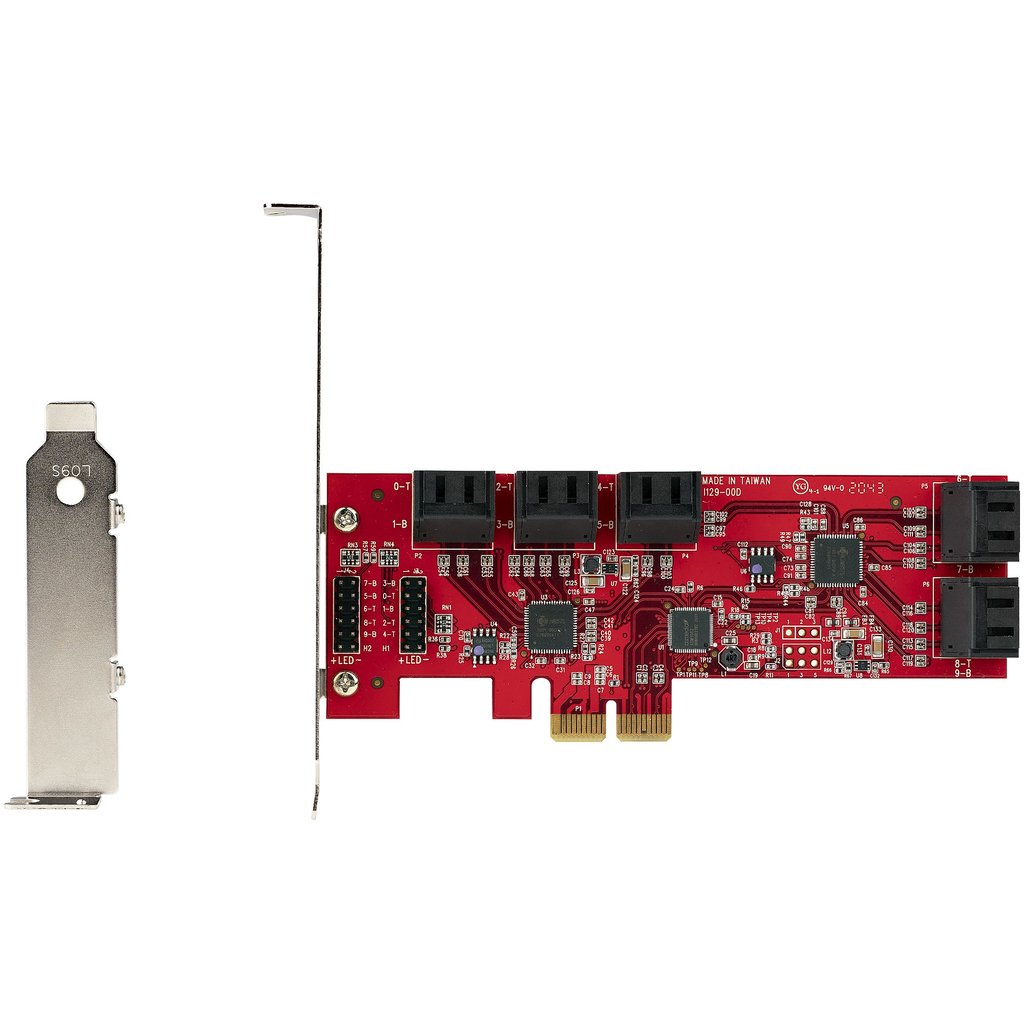

The SATA controller card features plug-and-play installation and can be installed in a full-profile or low-profile computer systems with the full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included. The card also supports storage software data management systems such as Storage Spaces (Microsoft), RAID Assistant (MacOS) and mdraid/mdadm (Linux), for hassle-free setup, partitioning and software RAID array building.
10P6G-PCIE-SATA-CARD is backed by a StarTech.com 2-year warranty and free lifetime 24/5 North American based, multi-lingual support.
The StarTech.com Advantage
Additional information
| Weight | 0.14 lbs |
|---|---|
| Product colour | Red |
| Operating temperature (T-T) | 0 – 85 °C |
| Storage temperature (T-T) | -25 – 85 °C |
| Weight | 75 g |
| Chipset | ASMedia – ASM1062 |
| Host interface | PCIe |
| Output interface | SATA |
| Data transfer rate (max) | 6 Gbit/s |
| Windows operating systems supported | Windows 7 Ultimate x64, Windows 10, Windows 7 x64, Windows 10 Education, Windows 8, Windows 10 Education x64, Windows 7, Windows 8 Enterprise, Windows 10 Enterprise, Windows 7 Enterprise, Windows 8 En |
| Mac operating systems supported | Mac OS X 10.13 High Sierra, Mac OS X 11.0 Big Sur, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.10 Yosemite, Mac OS X 10.15.3 Catalina, Mac OS X 10.11 El Capitan, Mac OS X 13.0 Ventura |
| Compliance certificates | CE, RoHS |

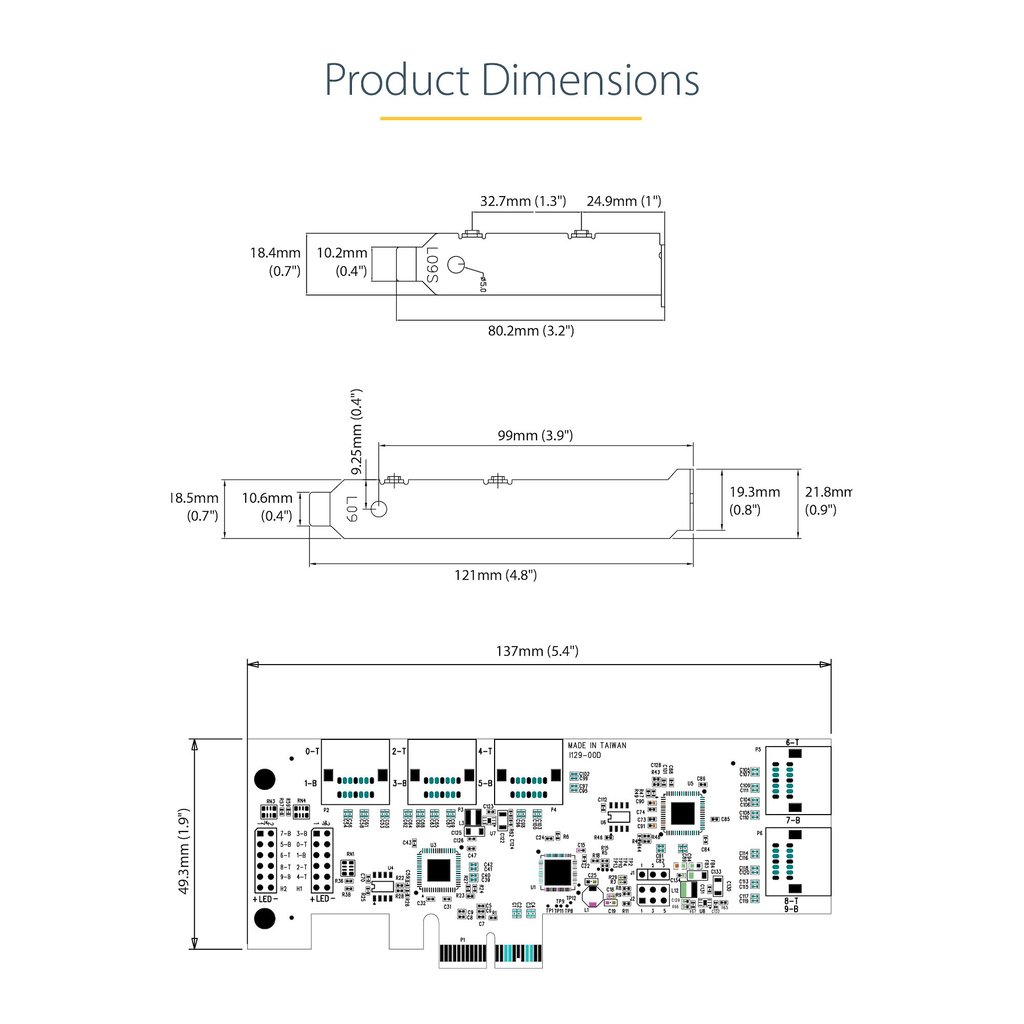

| Depth | 139 mm |
| Expansion card standard | PCIe 2.0 |
| Internal | Yes |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2019, Windows Server 2012 R2, Windows Server 2016 |
| Width | 54 mm |
| Height | 16 mm |
| Harmonized System (HS) code | 84733020 |
| Mounting brackets included | Yes |
| Operating relative humidity (H-H) | 20 – 80% |
| Quick installation guide | Yes |
| Package width | 142 mm |
| Package depth | 175 mm |
| Package height | 30 mm |
| Package weight | 120 g |
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case width | 500 mm |
| Master (outer) case length | 370 mm |
| Master (outer) case height | 310 mm |
| Internal SATA ports quantity | 10 |
| Port multiplier | Yes |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
