StarTech.com Shielded RJ45 Coupler, Inline Cat6a Coupler, Female to Female (F/F) T568B Pinout, Shielded Ethernet Cable Extensio
StarTech.com Shielded RJ45 Coupler, Inline Cat6a Coupler, Female to Female (F/F) T568B Pinout, Shielded Ethernet Cable Extension
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

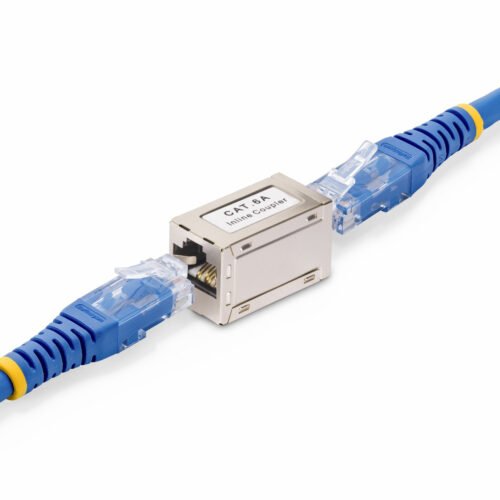

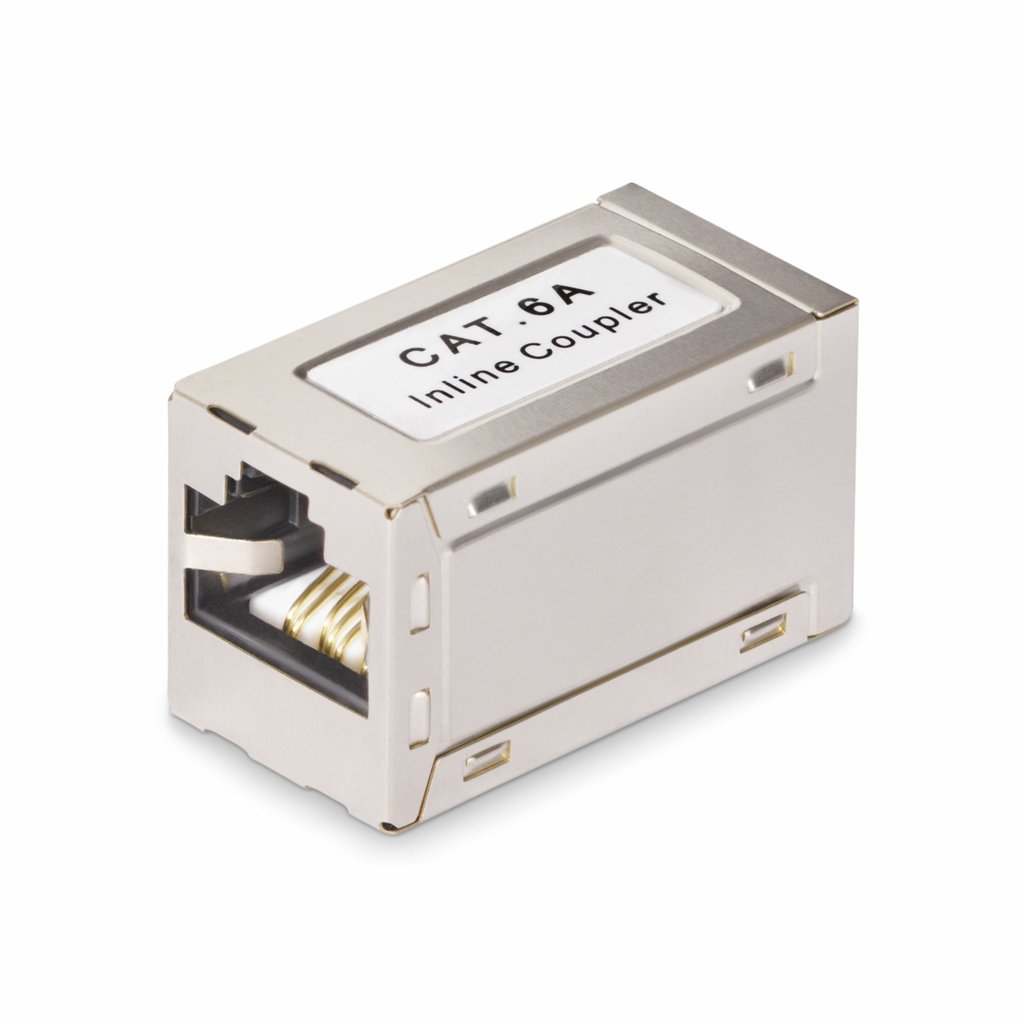

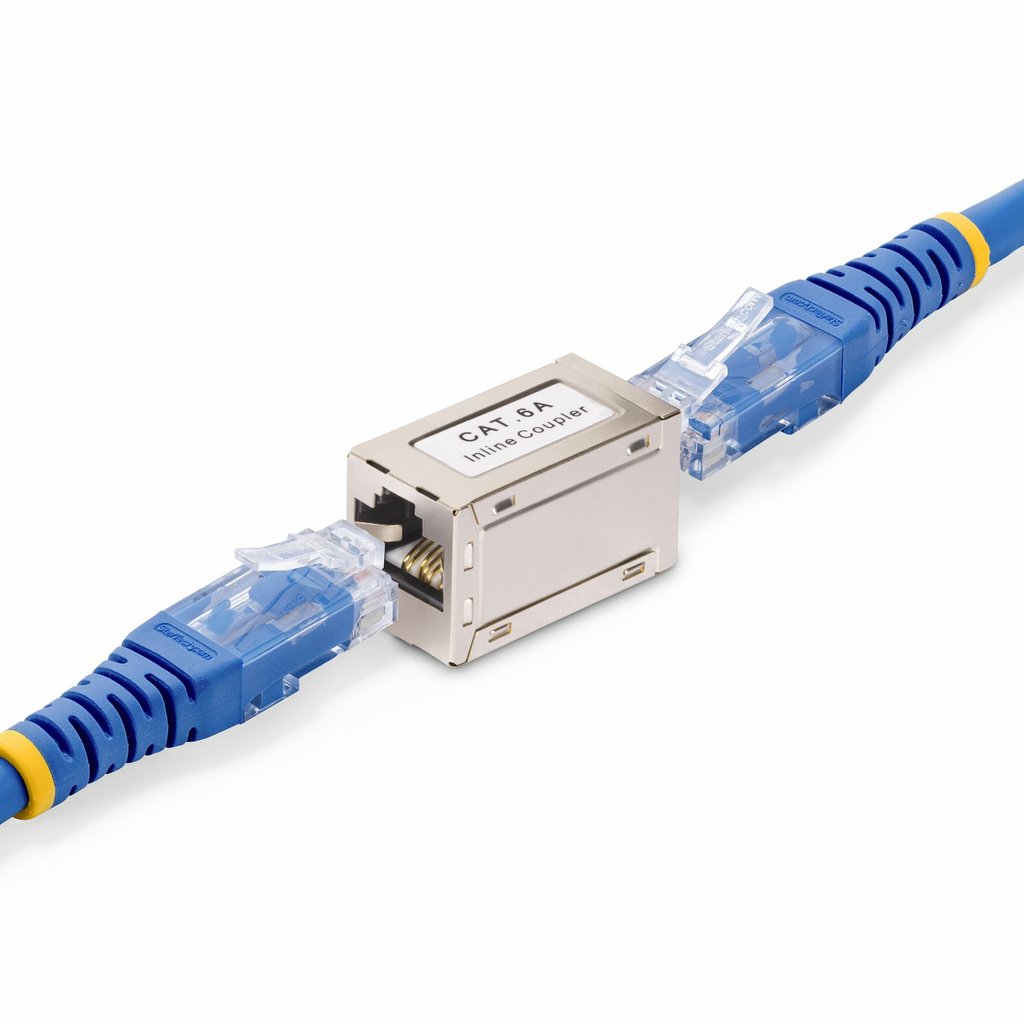

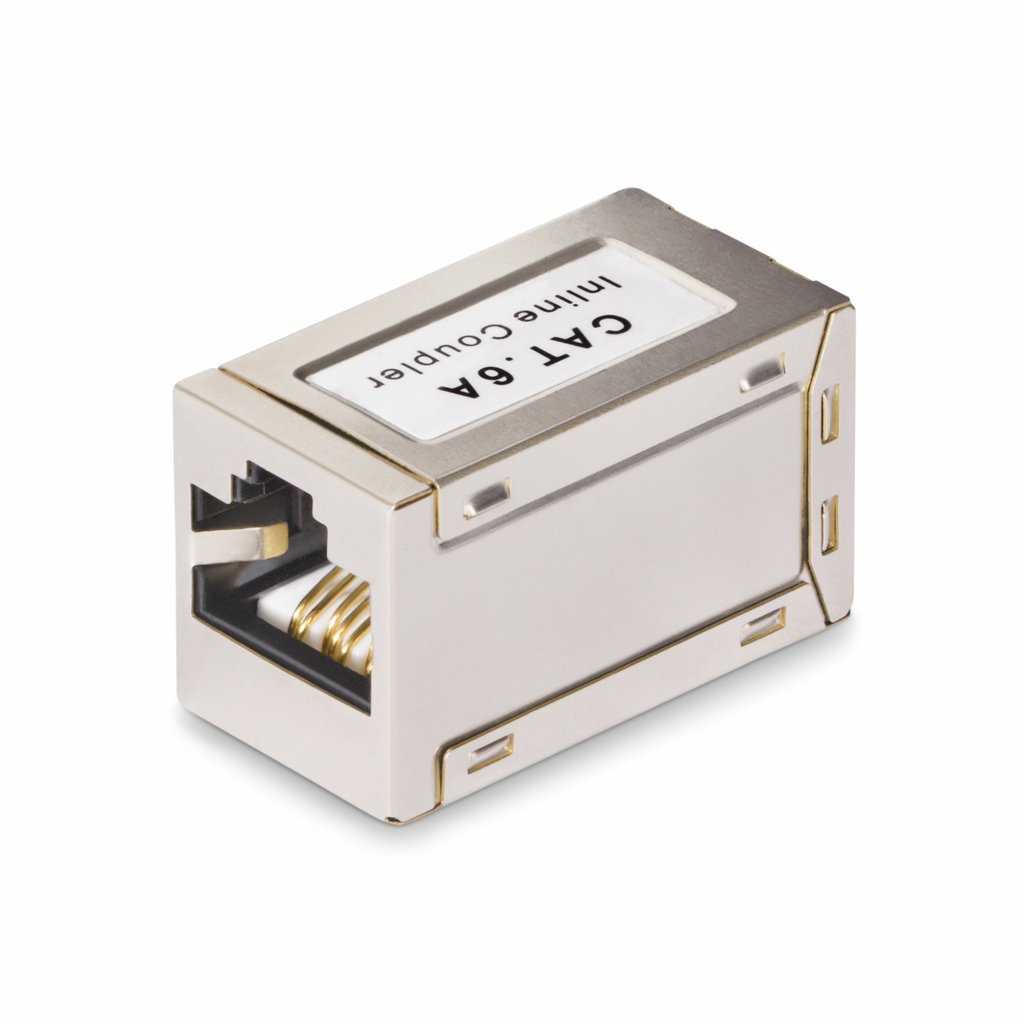

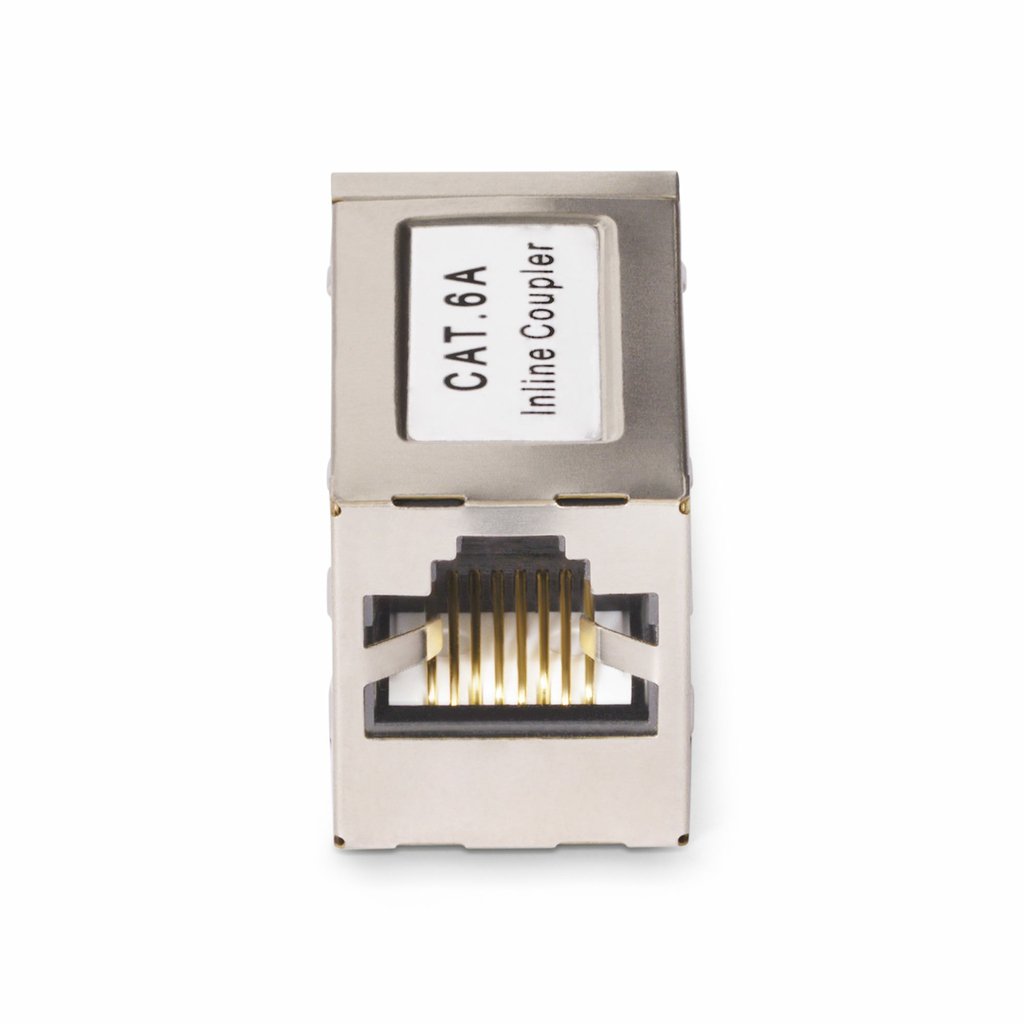

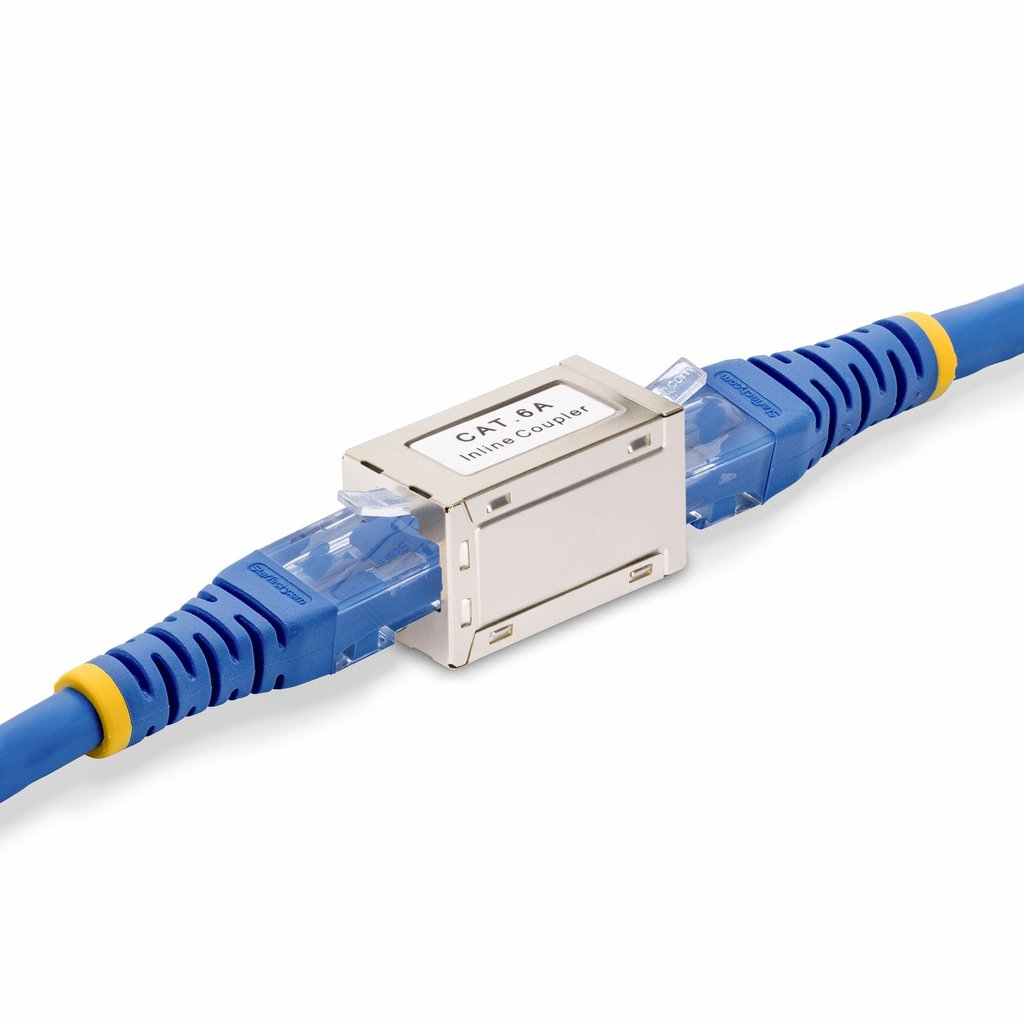

Join two shielded RJ45 Cat6a cables using this Inline Coupler
Connect two Cat 6a cables to extend a network connection, using this Shielded RJ45 Inline Coupler. The female to female Ethernet coupler maintains optimal signal integrity while achieving low insertion loss that exceeds industry standards.
Wide Compatibility
The Cat6a Coupler supports up to 10Gbps and is compatible with common networking standards including 10/100/1000BASE-T, and advanced protocols such as 2.5GBASE-T/5GBASE-T. The Shielded Inline RJ45 coupler facilitates Power-over-Ethernet (PoE) to power network peripheral devices.
Durable Construction
The Shielded RJ45 Cat6a Coupler features a durable metal outer shell with ABS inner housing to enhance EMI protection, and gold-plated phosphor bronze contacts for dependable, long-lasting performance and reliability.
The StarTech.com Advantage
Additional information
| Weight | 0.012 lbs |
|---|---|
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Female |
| Connector 2 gender | Female |
| Product colour | Silver |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| Certification | TIA/EIA-T568B |
| Housing material | Acrylonitrile butadiene styrene (ABS), Metal |
| Data transfer rate | 10 Gbit/s |
| Operating temperature (T-T) | -20 – 65 °C |
| Storage temperature (T-T) | -25 – 75 °C |
| Relative humidity | 30 – 70% |
| Width | 16 mm |
| Depth | 31 mm |
| Height | 20 mm |
| Package width | 125 mm |
| Package depth | 90 mm |
| Package height | 2 mm |
| Package weight | 10 g |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Compliance certificates | CE |
| Sustainability compliance | Yes |
