StarTech.com Thunderbolt 3 PCIe Expansion Chassis, External Enclosure W/Dual PCI Express Slots, PCIe Box for Laptops/Desktops/A
StarTech.com Thunderbolt 3 PCIe Expansion Chassis, External Enclosure W/Dual PCI Express Slots, PCIe Box for Laptops/Desktops/All-In-Ones, 8K/4K Output Via TB3/DP 1.4 (2TBT3-PCIE-ENCLOSURE)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

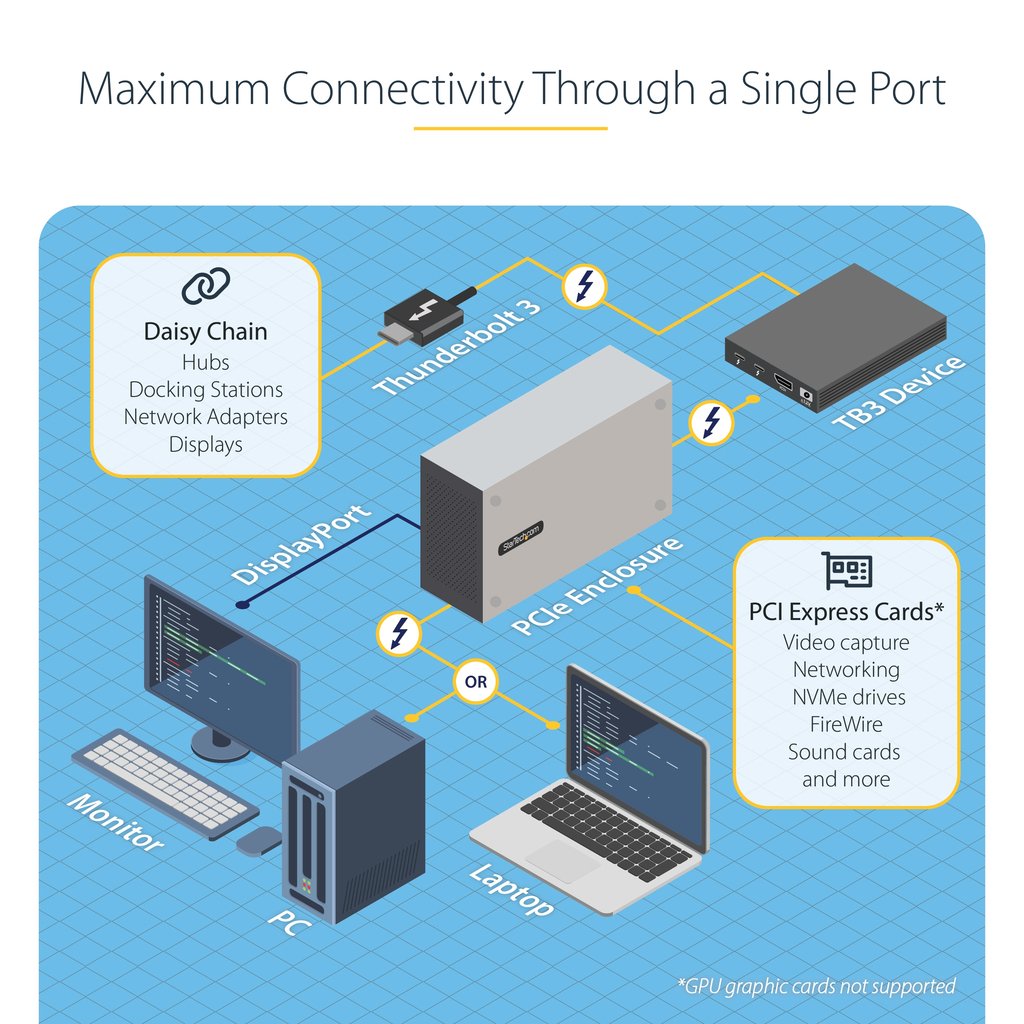

Add dual external PCIe (PCI Express 3.0) slots, Thunderbolt 3 ports, and a DisplayPort connection to a Thunderbolt 3 equipped system.

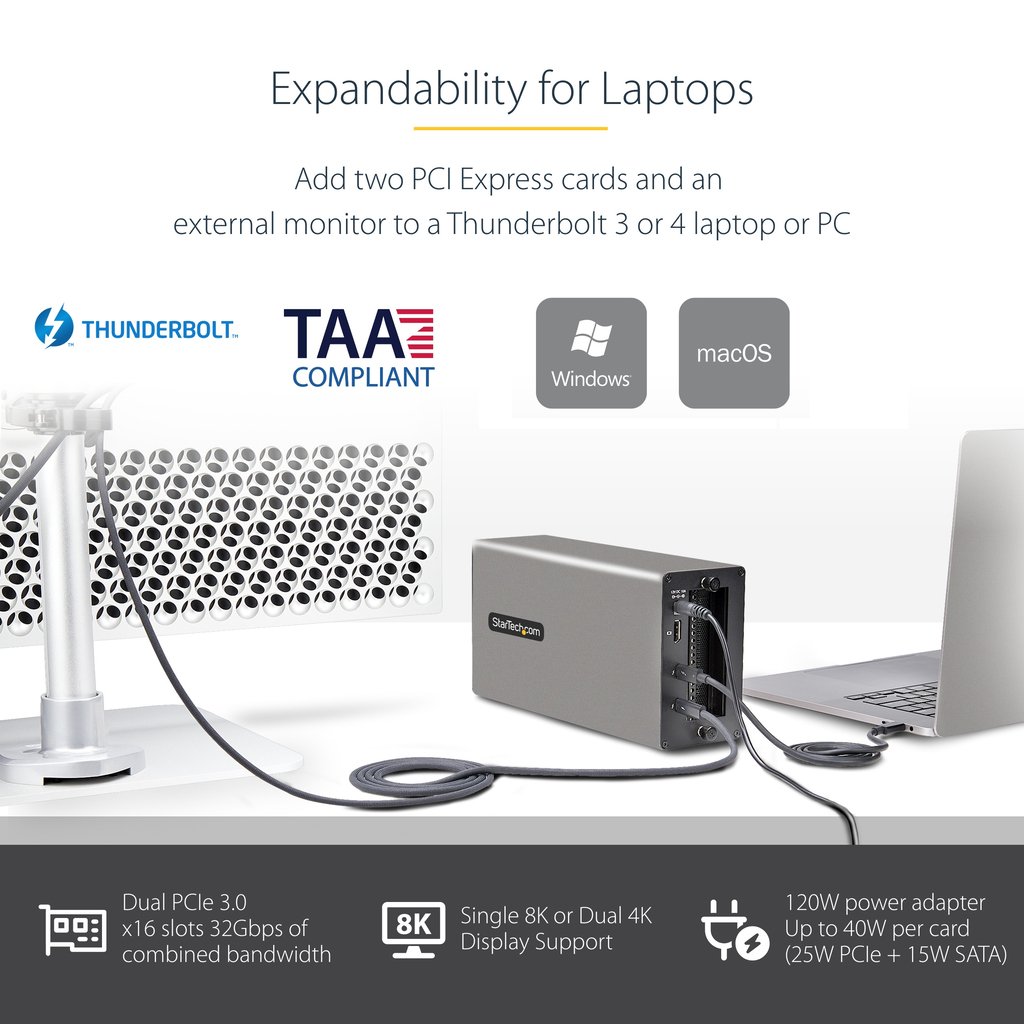

Add two PCI-Express 3.0 x16 capable cards and increase the potential of a Thunderbolt 3 or 4 capable laptop, desktop, or all-in-one system. This Thunderbolt 3 PCIe Expansion Chassis lets you take advantage of the vast range of PCIe expansion cards with computers that lack PCIe slots. The chassis lets you connect an external monitor via the DisplayPort (DP) or Thunderbolt 3 ports, supporting Ultra High Definition (UHD) 4K or 8K resolutions.
Enhanced Computer Capabilities

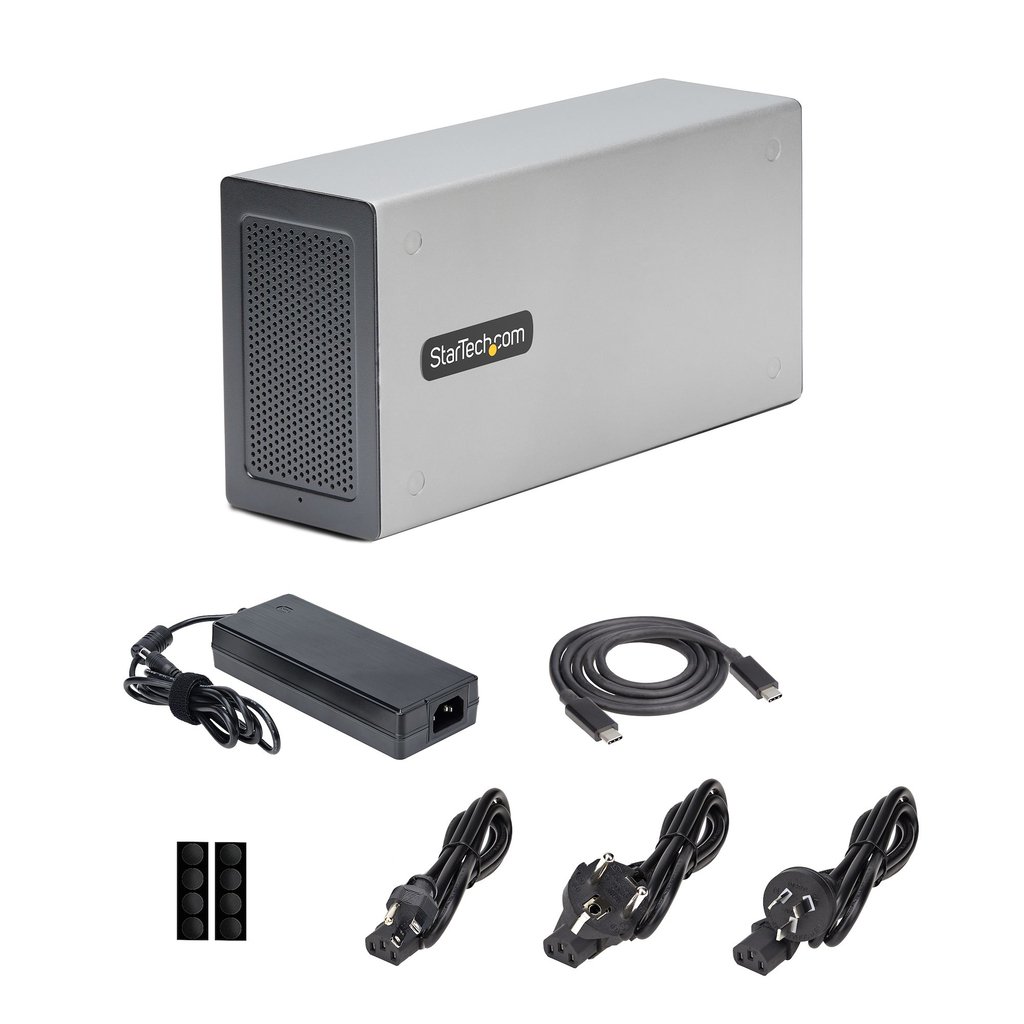

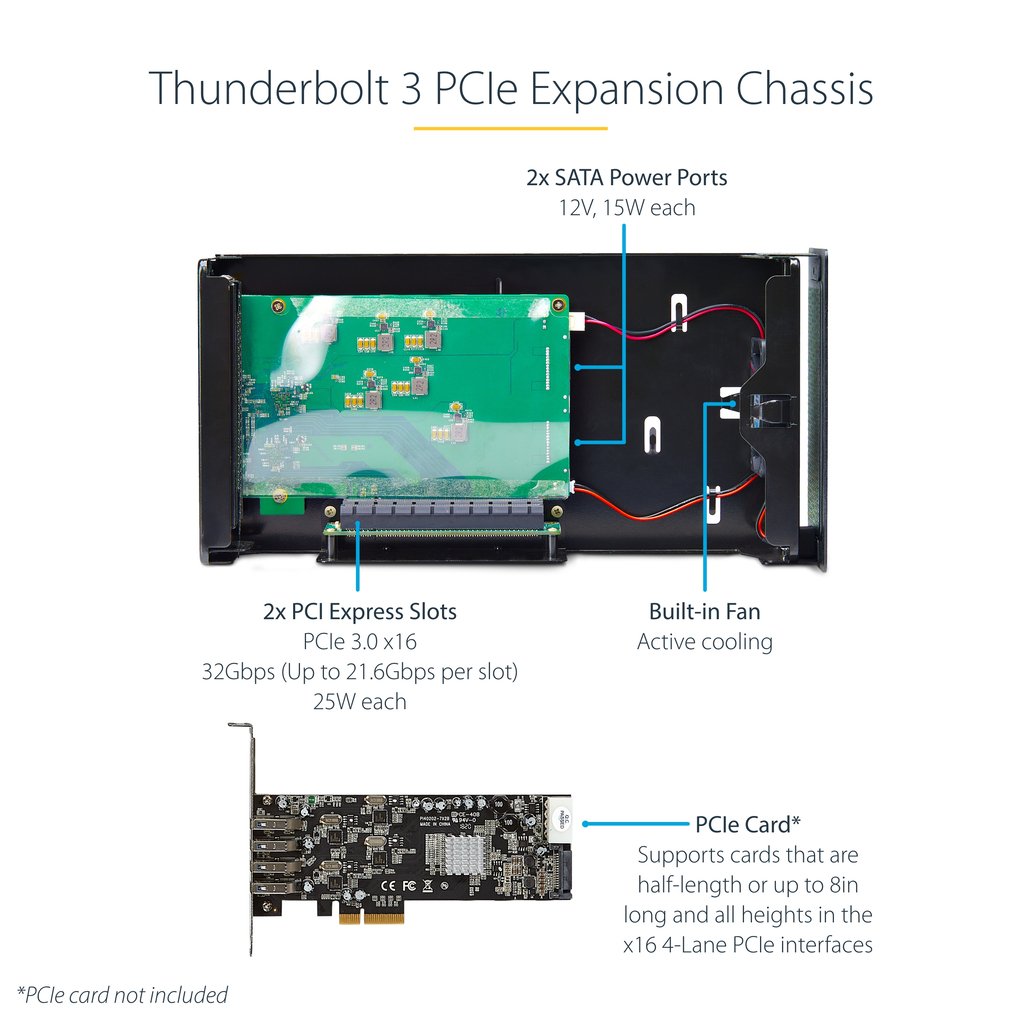

Connect the expansion box to a Thunderbolt 3 or 4 computer with the included 3.3ft (1m) Thunderbolt-certified cable. The chassis features dual PCIe 3.0 x16 slots with 32Gbps of bandwidth that is shared dynamically between both slots (each slot supports up to 2700MBps/21.6Gbps). Add extra functionality to a host device using video capture cards, high-speed fiber or Ethernet networking, NVMe drives, FireWire, sound cards, or any other PCIe-compatible card.
Flexible Card Support
The expansions chassis supports single-slot cards to a maximum length of 8in (20.3cm), allowing current or legacy PCIe cards to be installed. The built-in fan ensures active cooling for your hardware, preventing overheating during heavy usage.
The TAA-Compliant chassis delivers up to 25W per slot, ensuring optimal performance for your connected devices. In addition, the two internal 12V 15W SATA power ports ensure the installed cards have enough power (up to 40W per card) at their disposal.

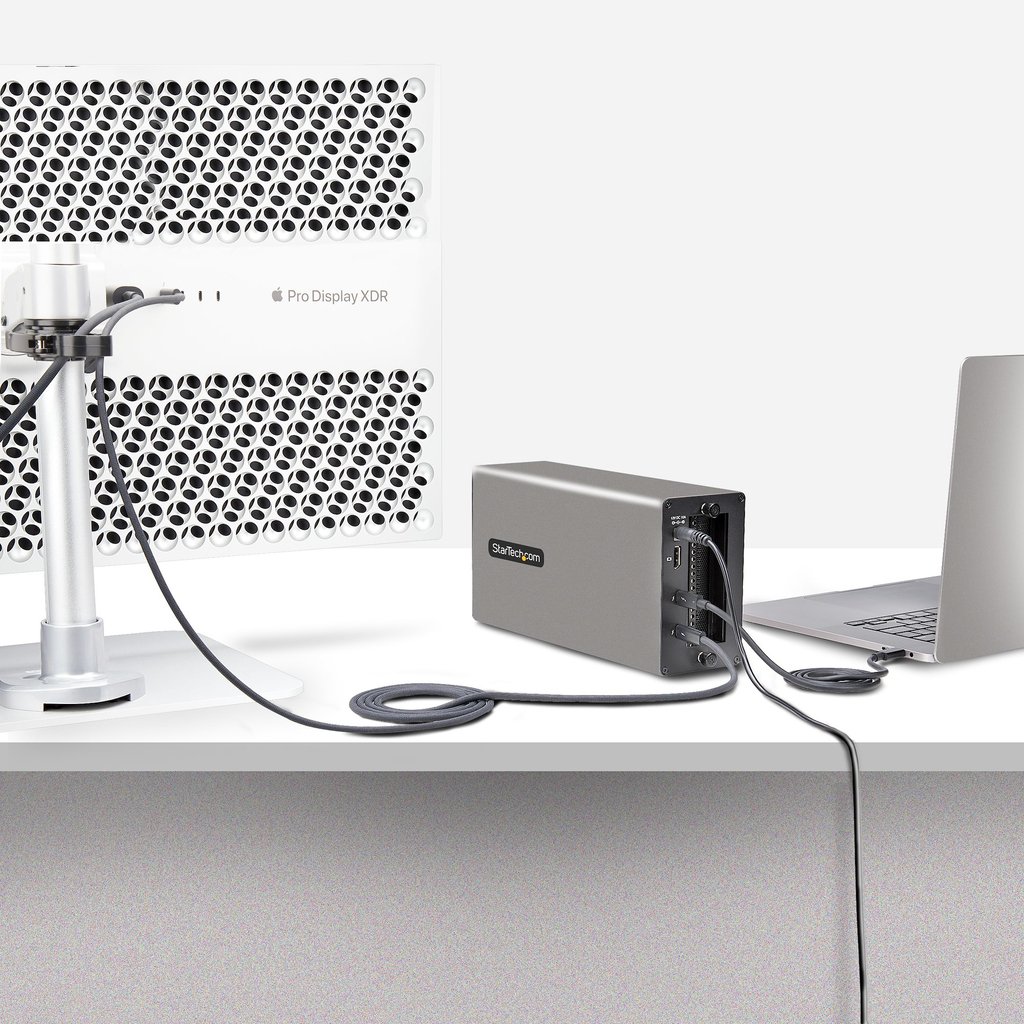

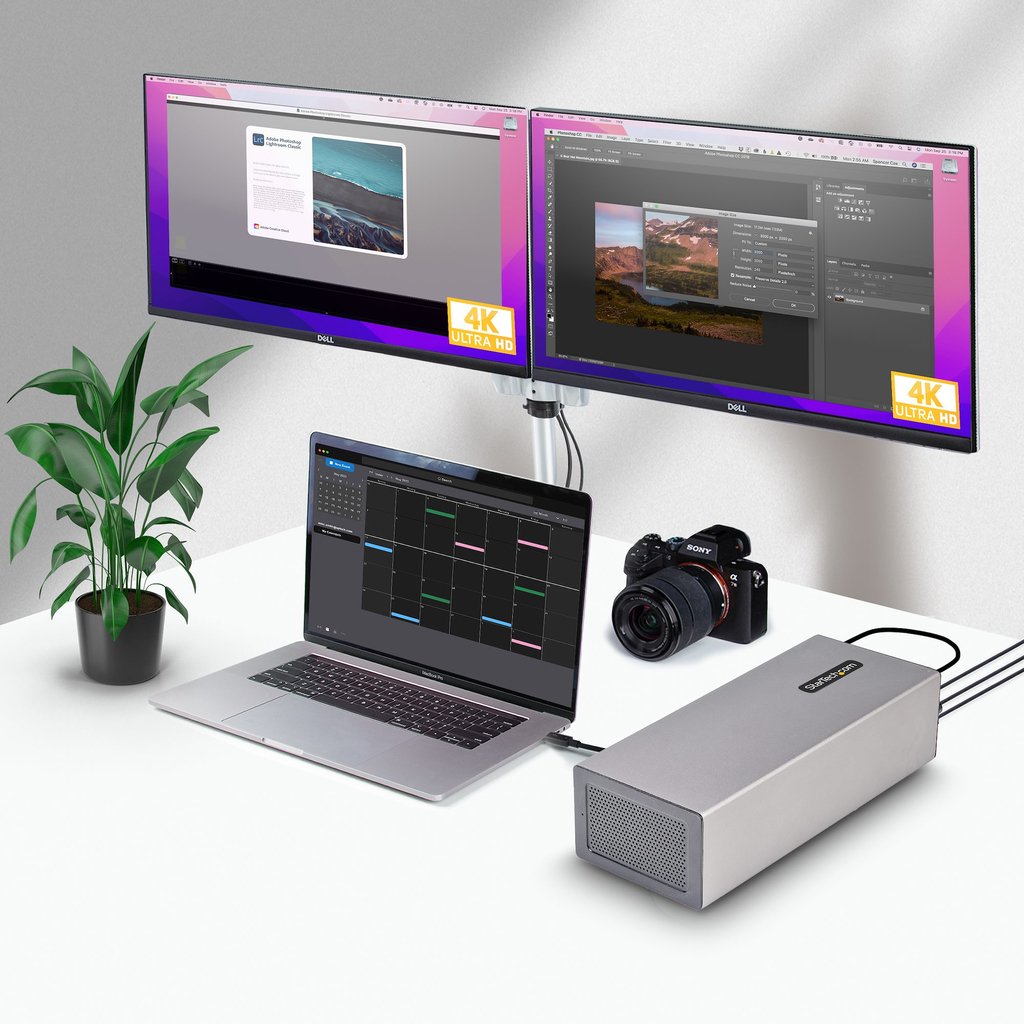

8K & 4K Monitor Support

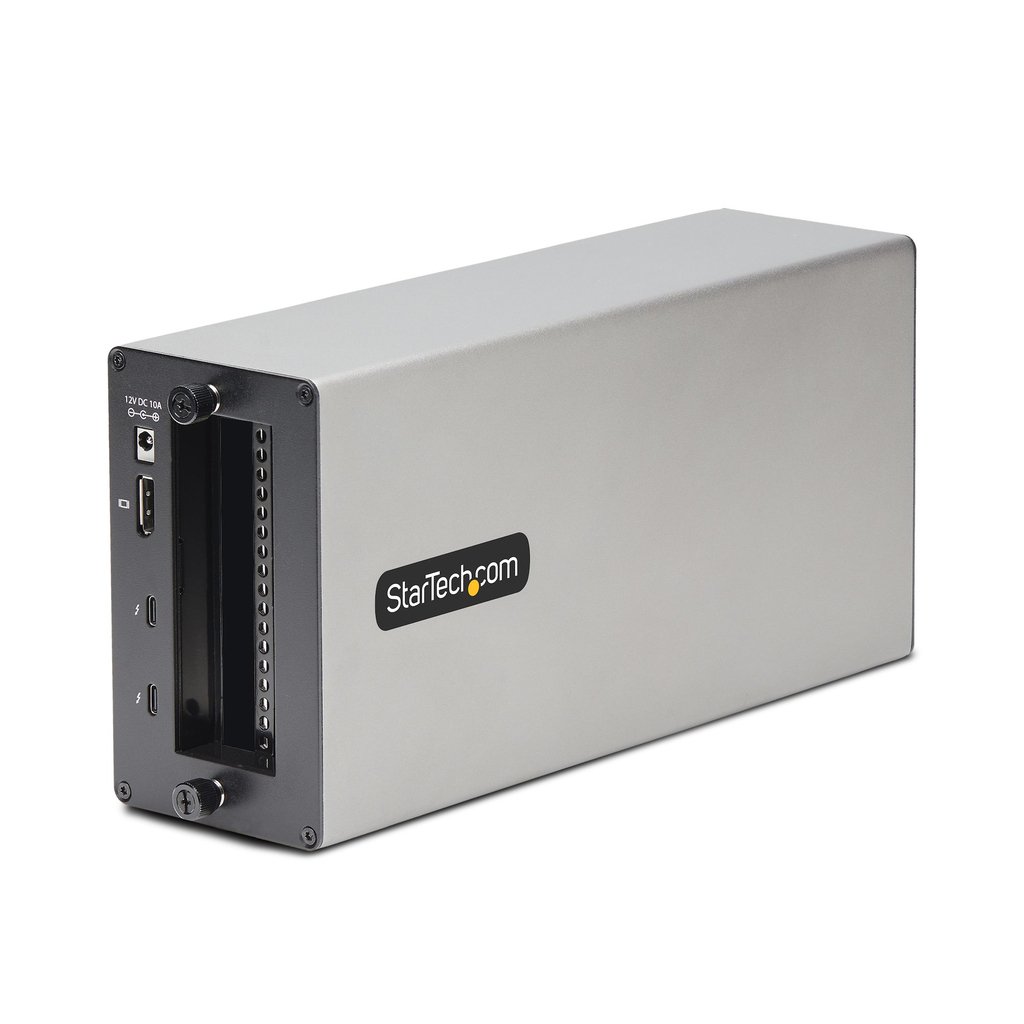

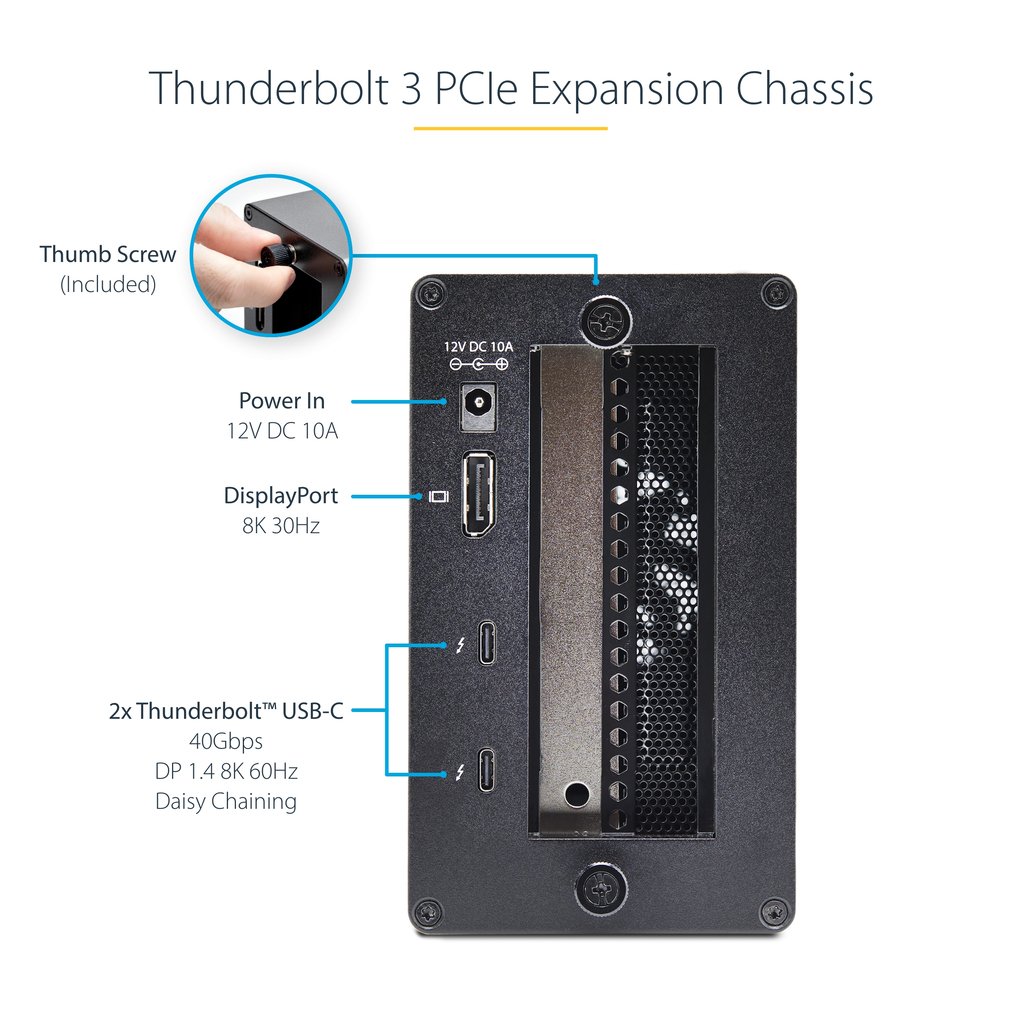

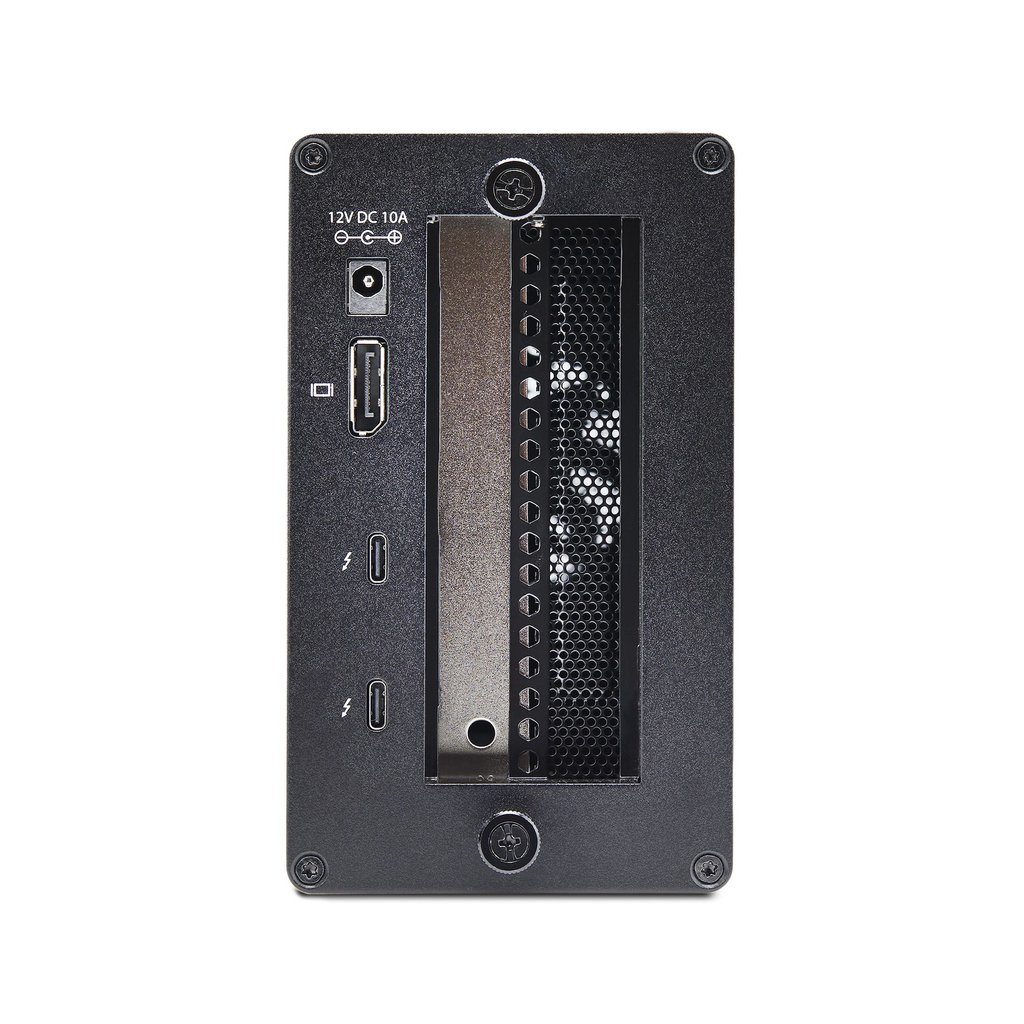

Connect a second high-resolution monitor using the DP 1.4 or Thunderbolt 3 ports at the back of the chassis. Enjoy video resolutions of up to single 8K or 5K 60Hz or dual 4K 60Hz (other video resolutions are also supported).
Compatibility
The enclosure is driverless, enabling rapid deployment and is supported in macOS, Windows, and Linux.

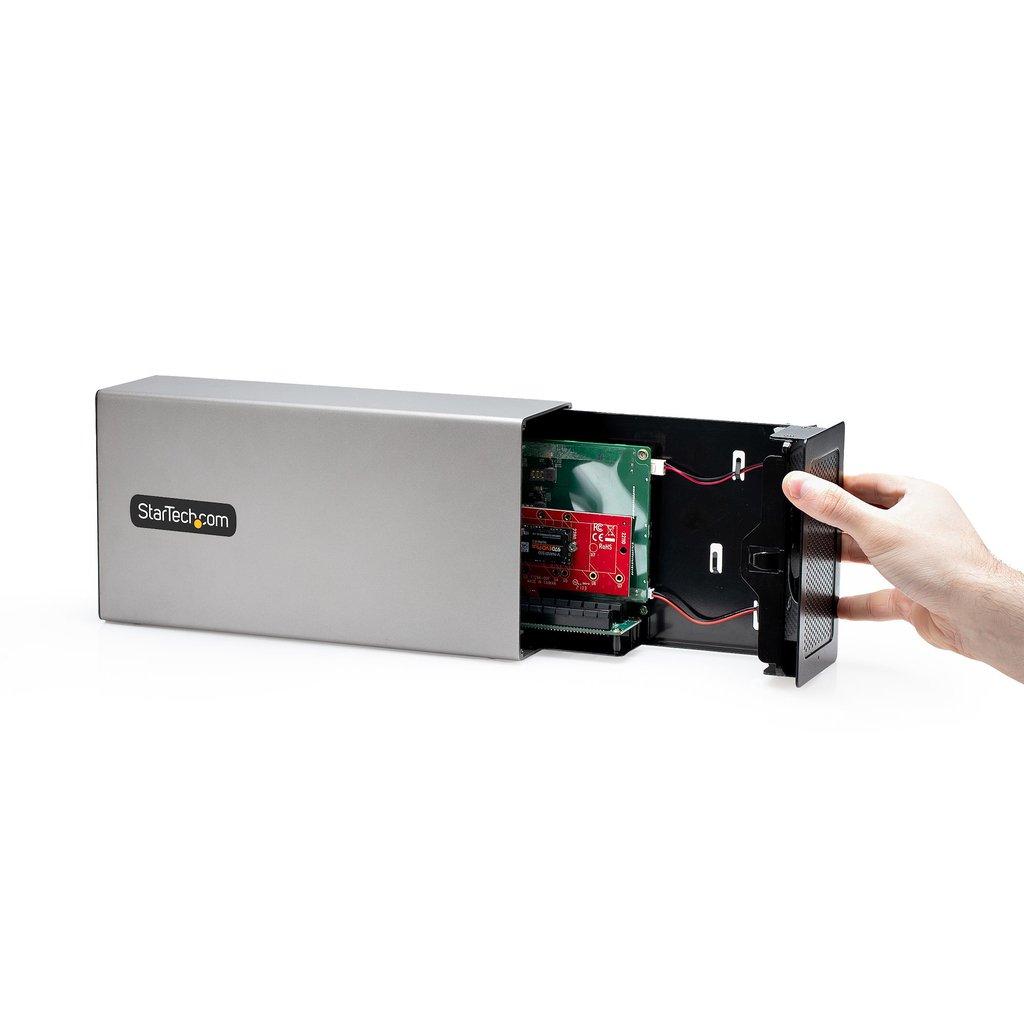

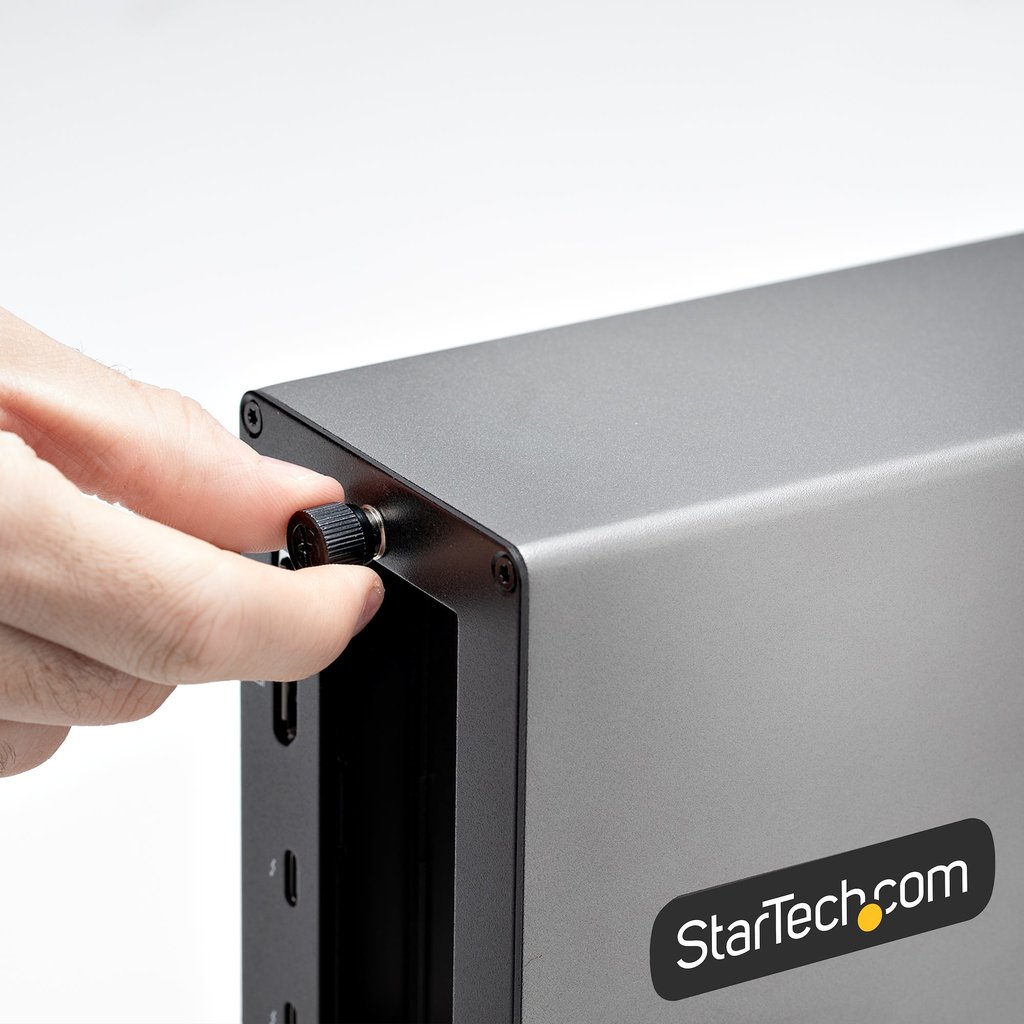

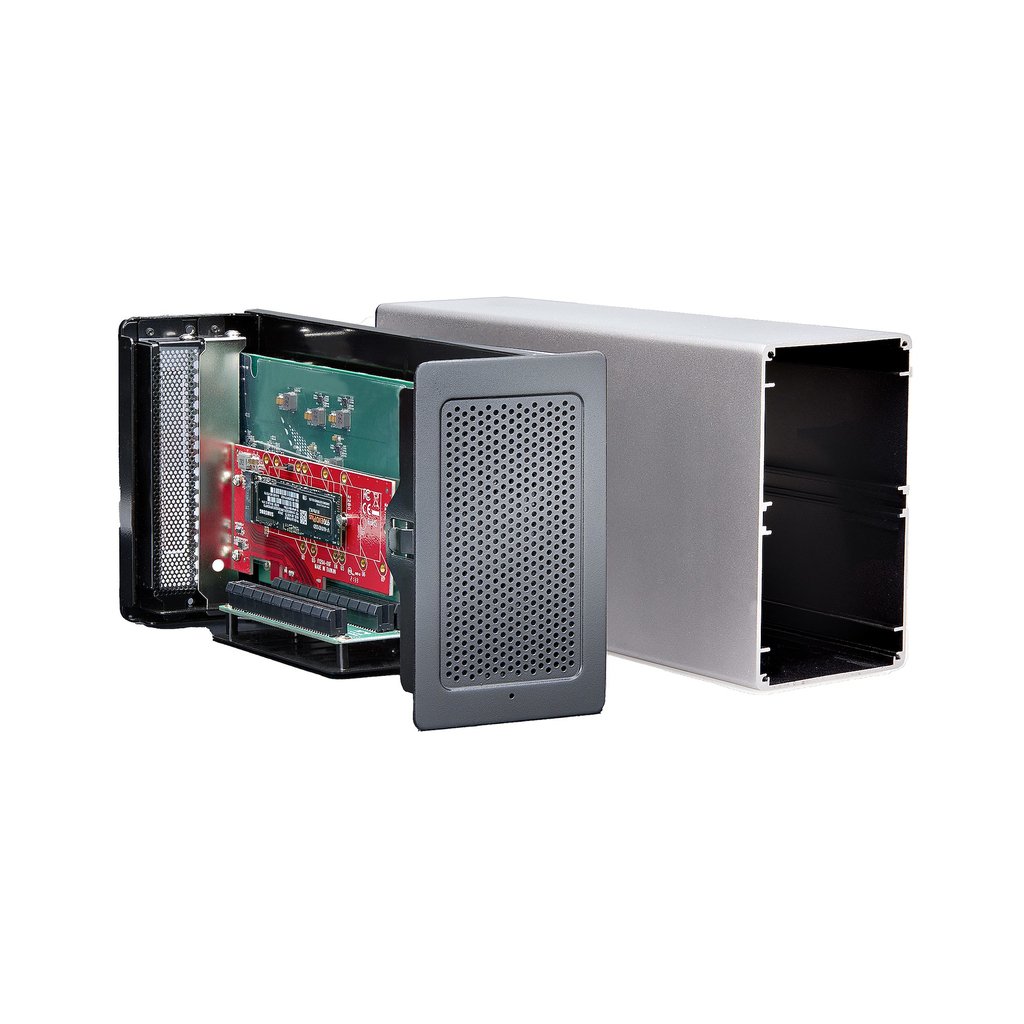

The chassis can be placed horizontally or vertically, adapting to your workspace. The toolless design and aluminum construction ensure fast card installation and longevity.
Note: Some expansion cards installed in the chassis may require drivers to be installed.
The StarTech.com Advantage
Additional information
| Weight | 3.53 lbs |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 3 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Ethernet LAN | No |
| Product colour | Silver |
| Card reader integrated | No |
| HD type | 8K Ultra HD |
| Maximum refresh rate | 60 Hz |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Wind |
| Mac operating systems supported | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Operating temperature (T-T) | 5 – 65 °C |
| Operating relative humidity (H-H) | 20 – 80% |
| Width | 281 mm |
| Depth | 84 mm |
| Height | 142 mm |
| Weight | 1.6 kg |
| Package width | 285 mm |
| Package depth | 353 mm |
| Package height | 143 mm |
| Package weight | 3.4 kg |
| Storage temperature (T-T) | -20 – 65 °C |
| Number of displays supported | 2 |
| LED indicators | Power |
| Housing material | Aluminium |
| AC input voltage | 100 – 240 V |
| Input current | 3 A |
| Output voltage | 12 V |
| Output current | 10 A |
| Cables included | Thunderbolt |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Compliance certificates | RoHS, Trade Agreements Act (TAA) |
| Products per master (outer) case | 3 pc(s) |
| Power source type | DC |
| Microphone in | No |
| Compatible power plug types | AU, EU, JP, UK, US |
| Master (outer) case width | 375 mm |
| Master (outer) case length | 455 mm |
| Master (outer) case height | 325 mm |
| Chipset | Titan Ridge DSL7440 (x2), Ti TPS65983B (x2) |
| Built-in fan | Yes |
| Sustainability compliance | Yes |
| Power consumption (max) | 120 W |
| Thunderbolt 3 ports quantity | 2 |
| PCI Express x16 slots | 2 |
| PCIe version | 3.0 |
| Rubber feet | Yes |
| Number of fans | 1 fan(s) |
| Fan diameter | 6 cm |
