StarTech.com 150m (492ft) USB 2.0 Extender over Cat5e/Cat6 Ethernet Cable, Externally Powered USB Extender via RJ45/Network Cab
StarTech.com 150m (492ft) USB 2.0 Extender over Cat5e/Cat6 Ethernet Cable, Externally Powered USB Extender via RJ45/Network Cable, USB Over Ethernet Cable Extender/Adapter (C15012-USB-EXTENDER)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Connect a remote USB 2.0 device to your computer over long distances
Extend a USB 2.0 connection up to 492 ft (150 m) with this USB Extender Kit. Connect the transmitter to the receiver, using existing Ethernet cabling that is Cat5e or better (e.g., Cat 6, 6a, etc.). No software or configuration is required. Conveniently control remote USB devices in warehouses, classrooms, board rooms, and other long-range application environments.
Overcome Distance Limitations
This USB Extender Kit enables you to exceed the limitations posed by traditional USB cable lengths, to establish long-range USB connections. Use this kit for a wide variety of applications such as remote surveillance and monitoring with a webcam (up to 1080p resolution), controlling machines at a distance, remote printing, connecting retail barcode scanners, and many other applications. In addition, the remote unit is connected to a power source, using the included power adapter, for applications requiring USB bus power.
Rugged Durability

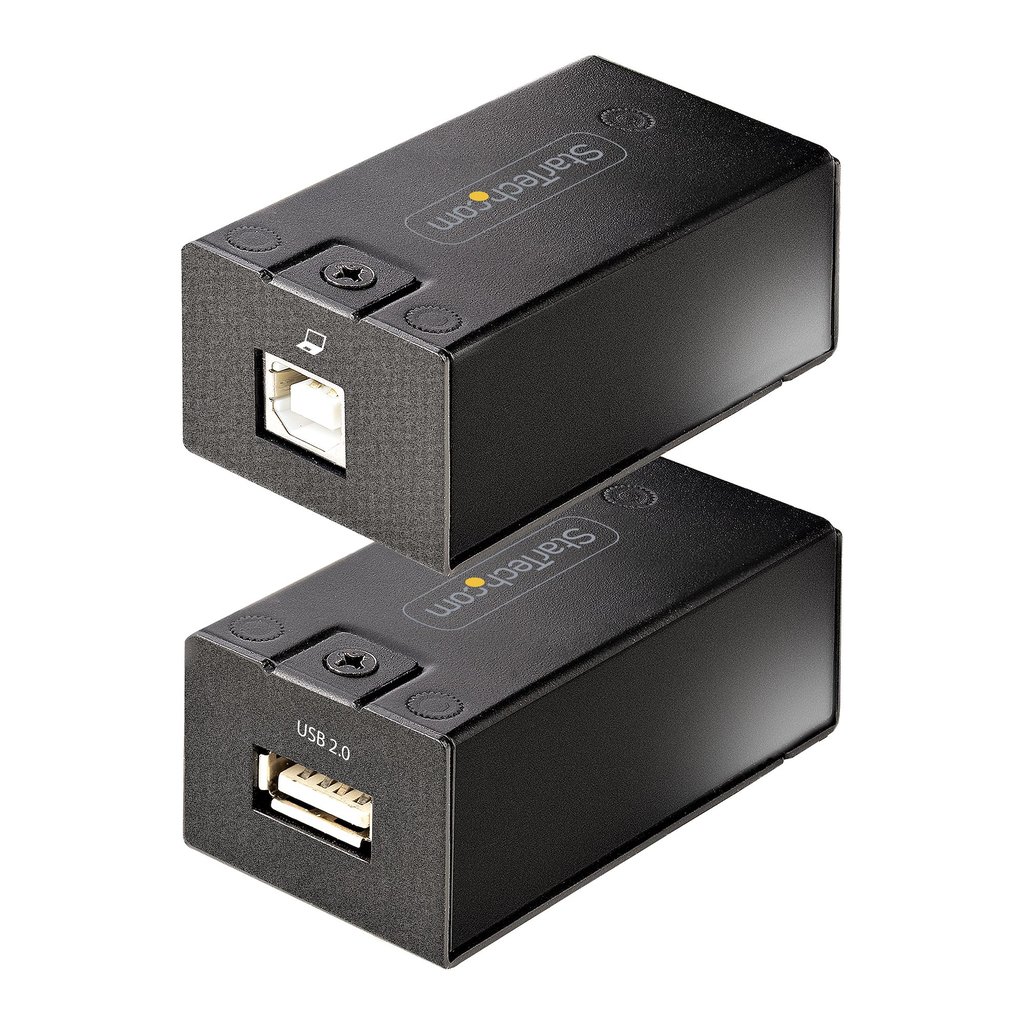

The local and remote units feature a metal exterior for extra protection and longevity in harsher environments. With dimensions of only 1.3 x 1.0 x 2.65 in (32.2 x 25.4 x 67.3 mm), both units are very compact, allowing for installations in tight spaces.
Ease of Use
The USB over Ethernet cable extender kit is compatible with any operating system and does not require any additional software to work. Set up the units by connecting them on a point-to-point connection, using your existing Ethernet cabling (Cat5e or better). This kit is not compatible with network switches and routers. The Extender is compatible with USB 2.0, USB 1.1, and USB 1.0 peripherals.
The C15012-USB-EXTENDER is TAA compliant and backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
Additional information
| Weight | 0.54 lbs |
|---|---|
| Type | Console transmitter & receiver |
| Data transfer rate | 480 Mbit/s |
| Maximum transfer distance | 150 m |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Power |
| Compliance certificates | CE, RoHS |
| USB 2.0 Type-A ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| RJ-45 ports quantity | 2 |
| DC-in jack | Yes |
| Width | 67 mm |
| Depth | 32 mm |
| Height | 25 mm |
| Weight | 173 g |
| Package width | 220 mm |
| Package depth | 194 mm |
| Package height | 60 mm |
| Package weight | 173 g |
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -20 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |

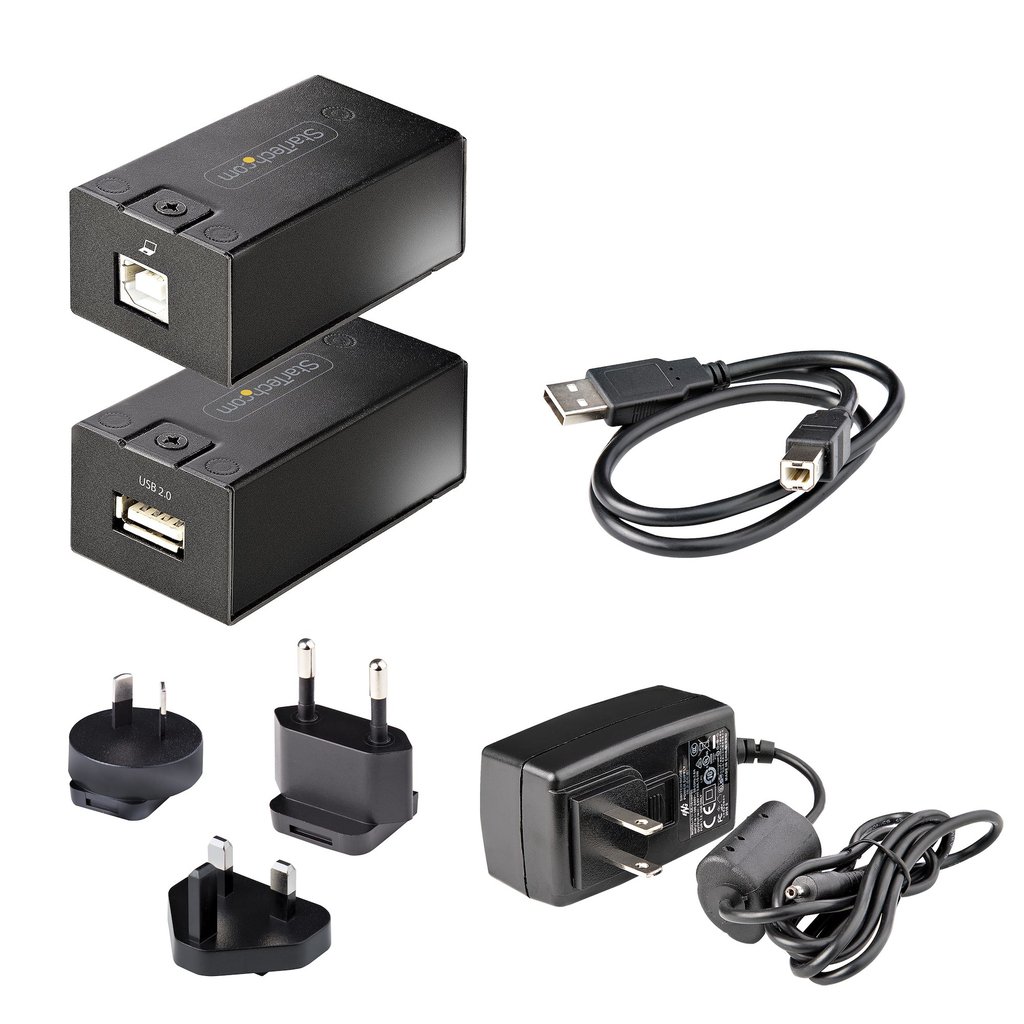

| Cables included | USB Type-A to USB Type-B |
| AC adapter included | Yes |
| Power consumption (typical) | 15 W |
| Input voltage | 100 – 240 V |
| Output voltage | 5 V |
| Output current | 3 A |
| Power plug type | Type H |
| Cable types supported | Cat5e, Cat6 |
| Plug and Play | Yes |
| Input current | 0.6 A |
| Master (outer) case width | 400 mm |
| Master (outer) case length | 400 mm |
| Master (outer) case height | 278 mm |
| Products per master (outer) case | 12 pc(s) |
| Power source type | DC |
