StarTech.com 7-Port USB 2.0 Hub – Metal Industrial USB-A Hub with ESD Protection & 350W Surge Protection – Din Rail, Wall or Desk Mountable – TAA Compliant USB Expander Hub (ST7200USBM)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Industrial Grade | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 480 Mbps

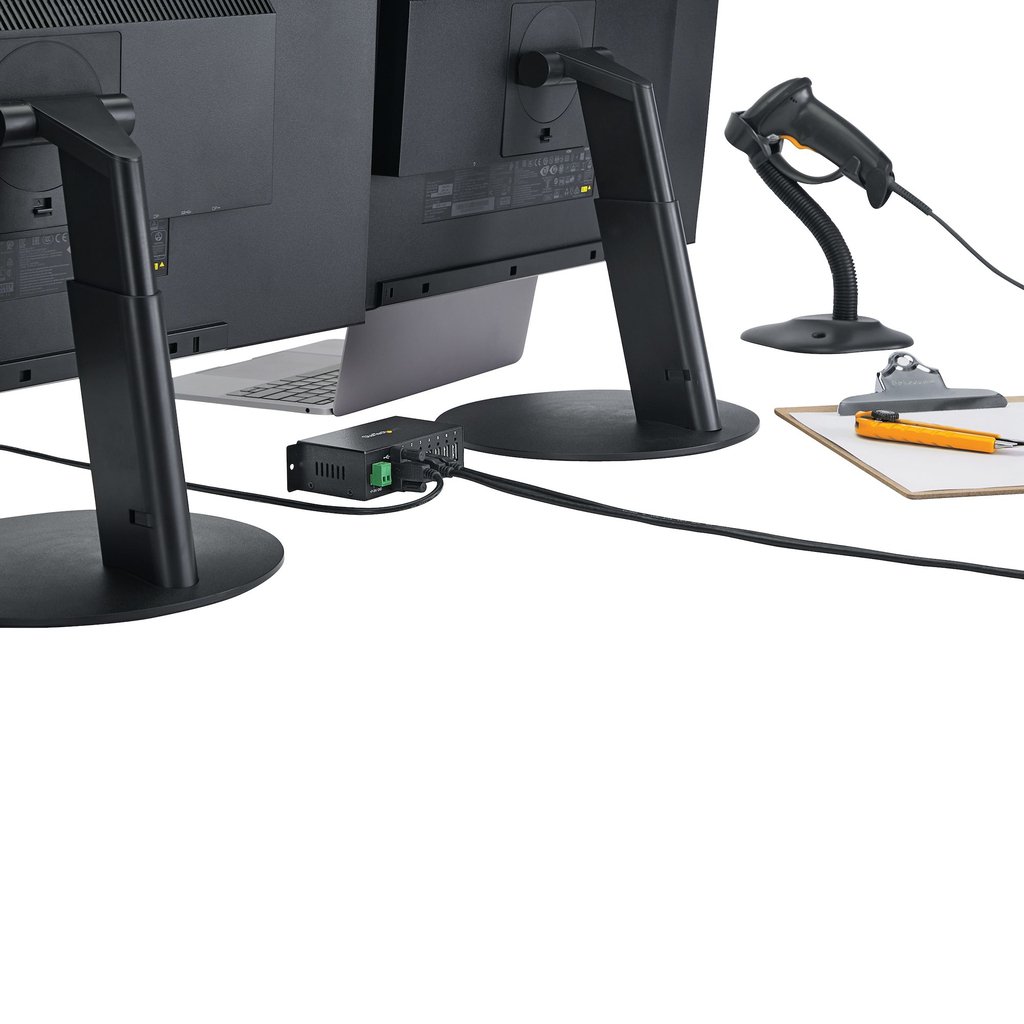

This TAA compliant 7-port industrial USB 2.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.
Perfect for Harsh Environments

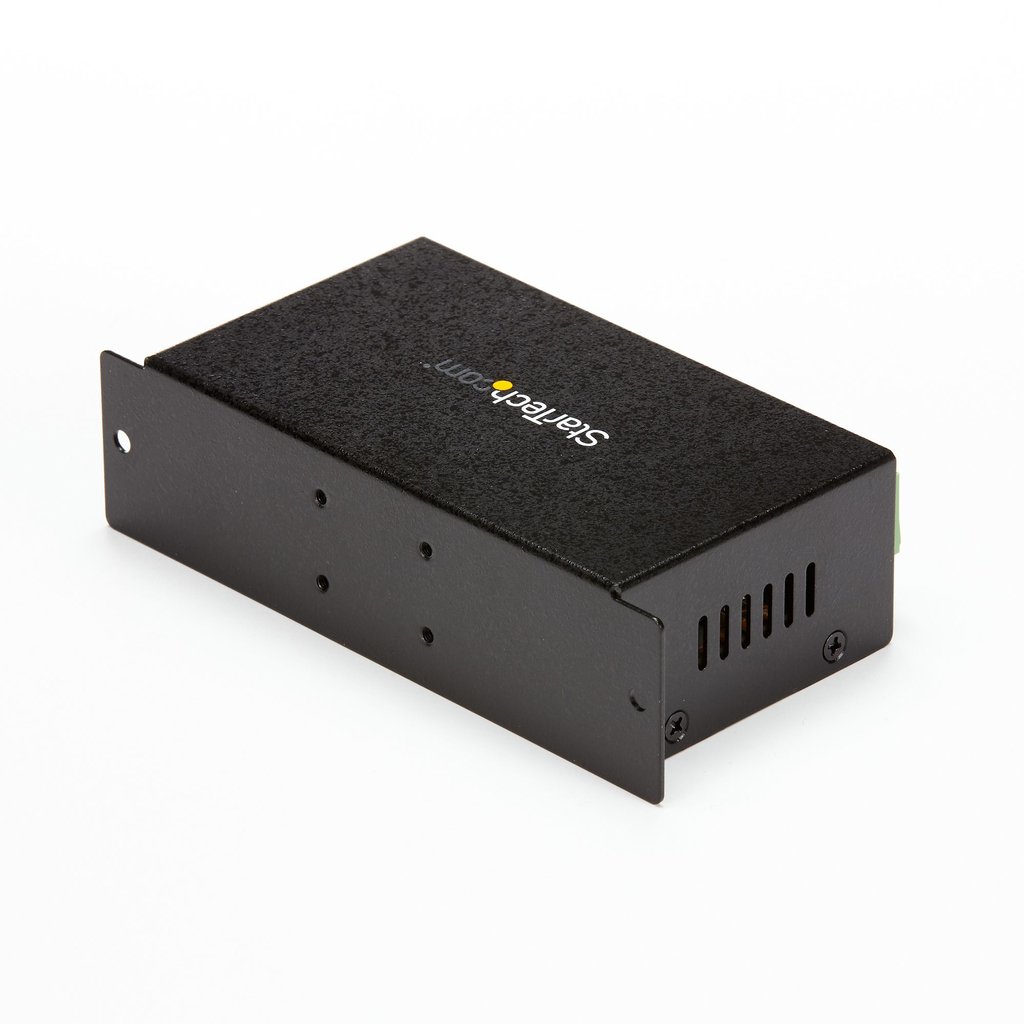

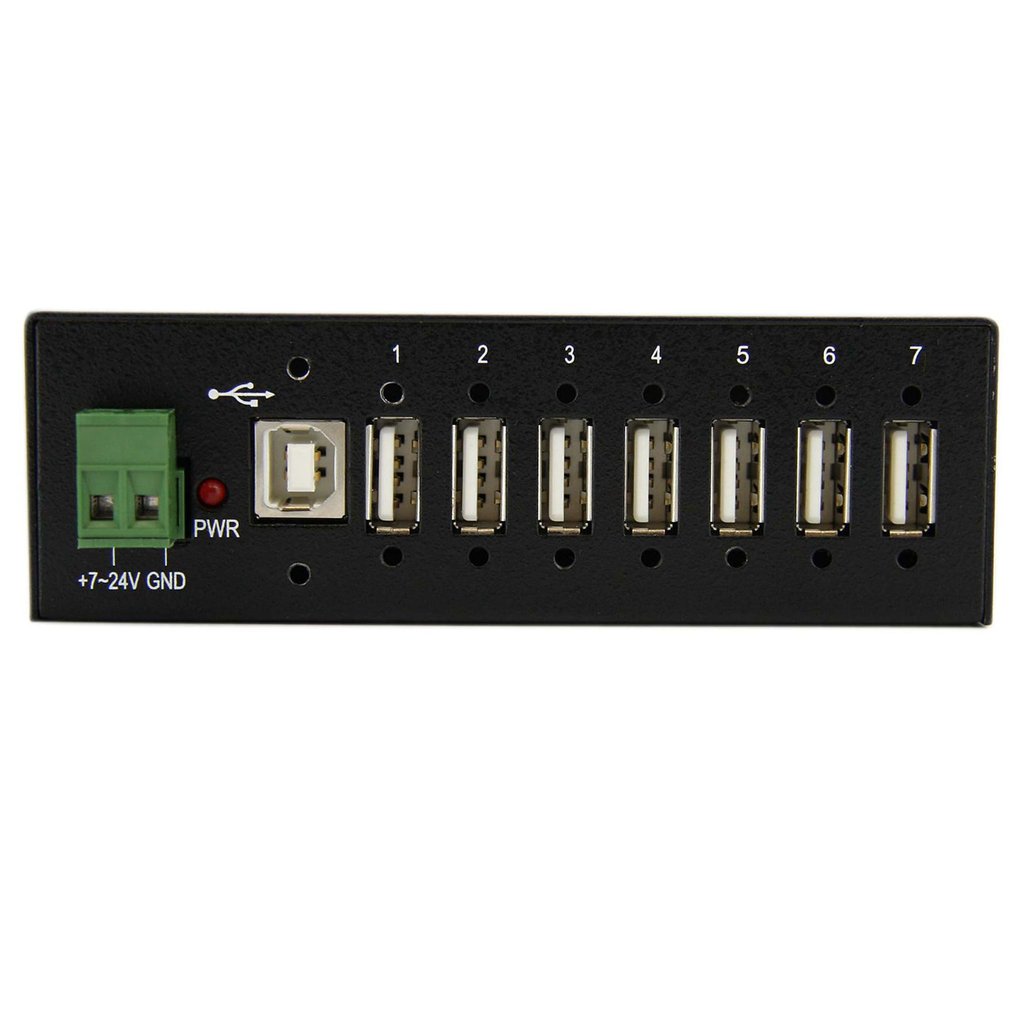

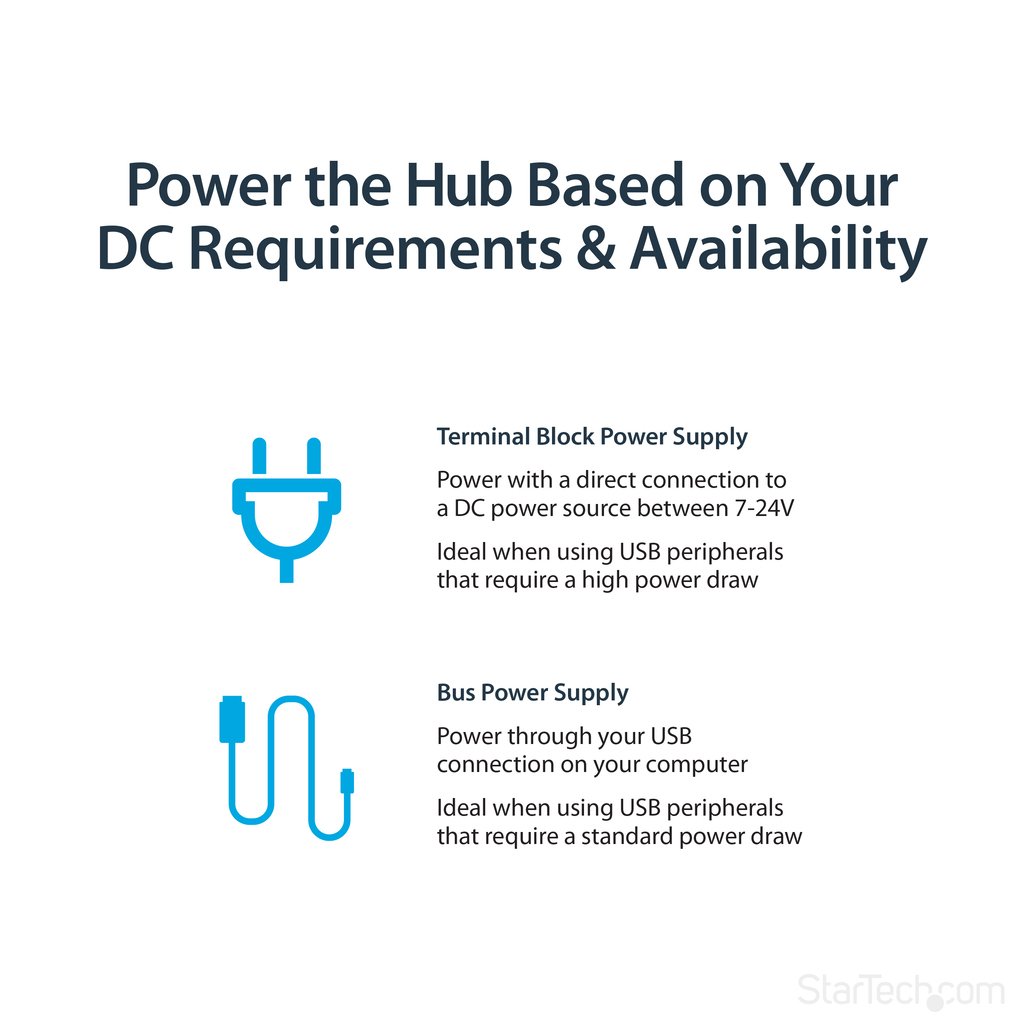

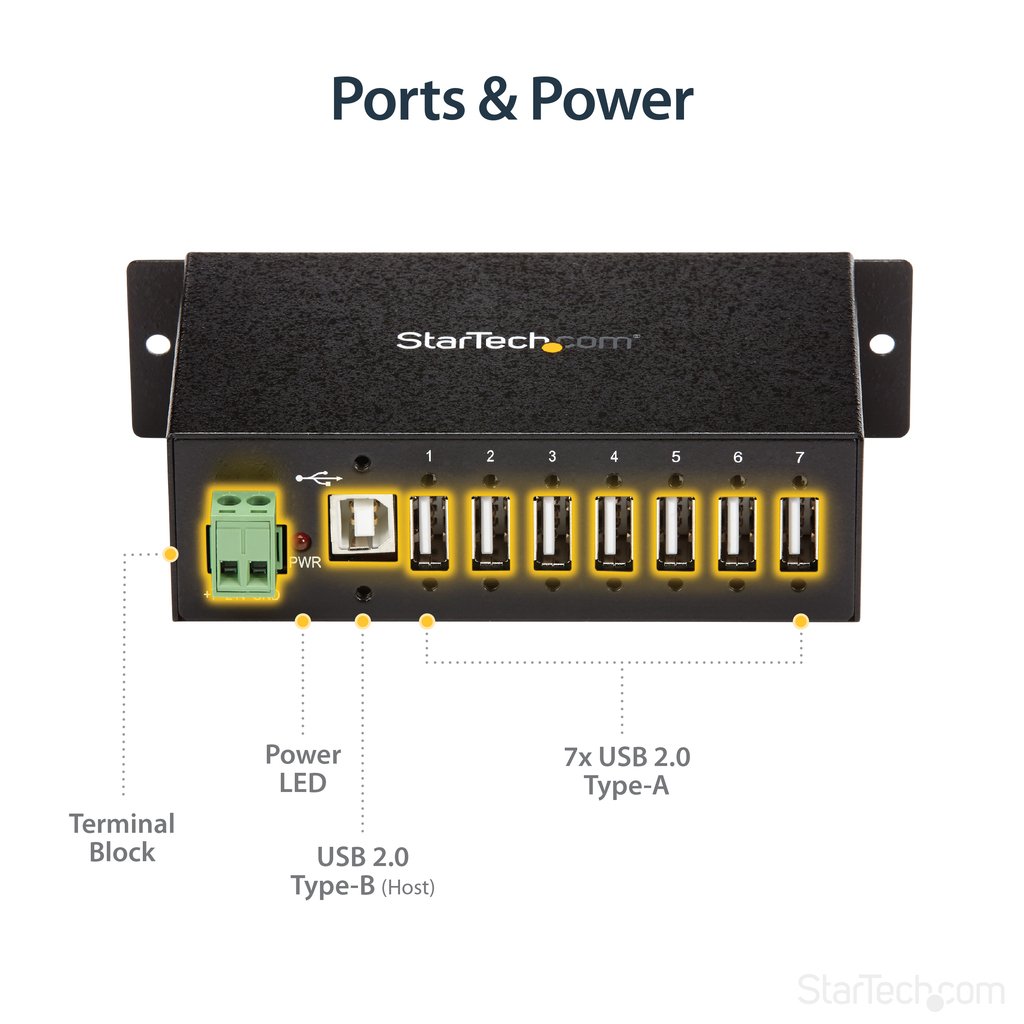

This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.

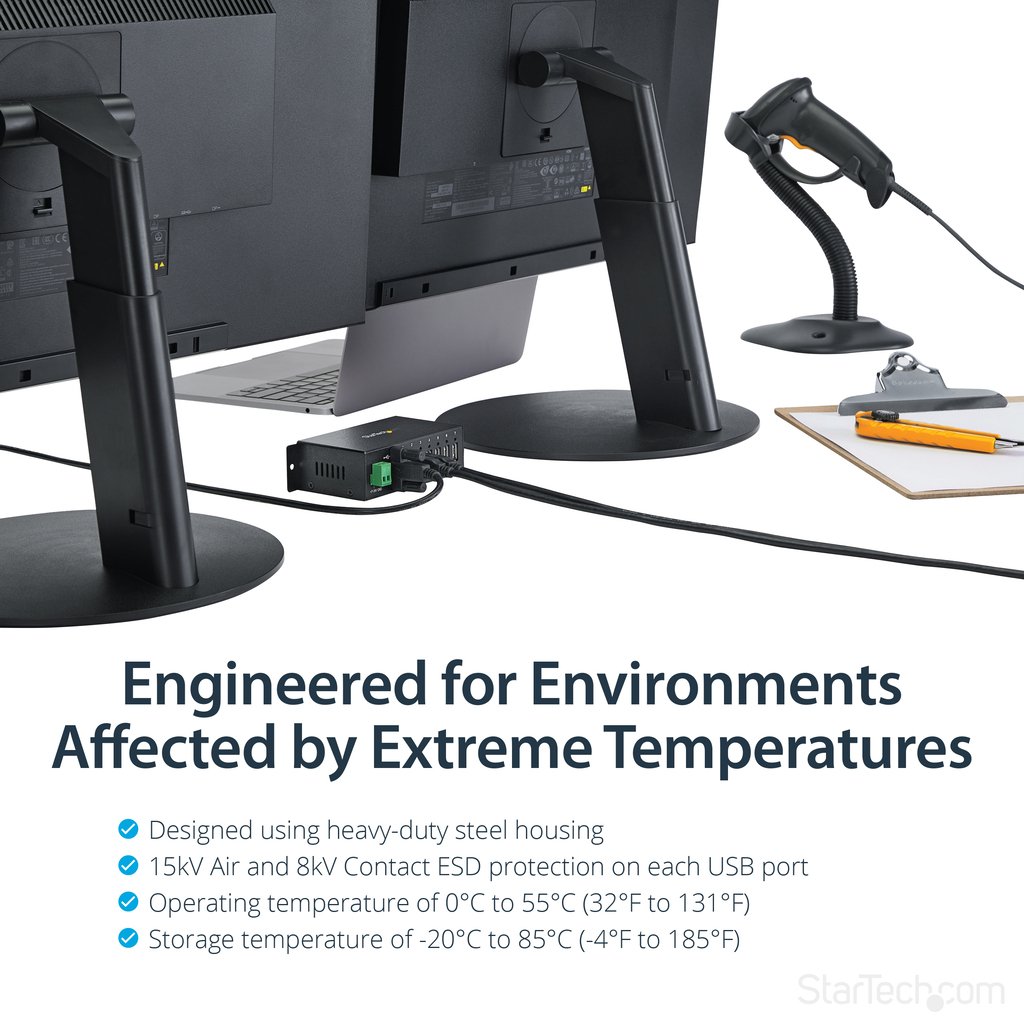

Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 55°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices.
Connect More USB Devices

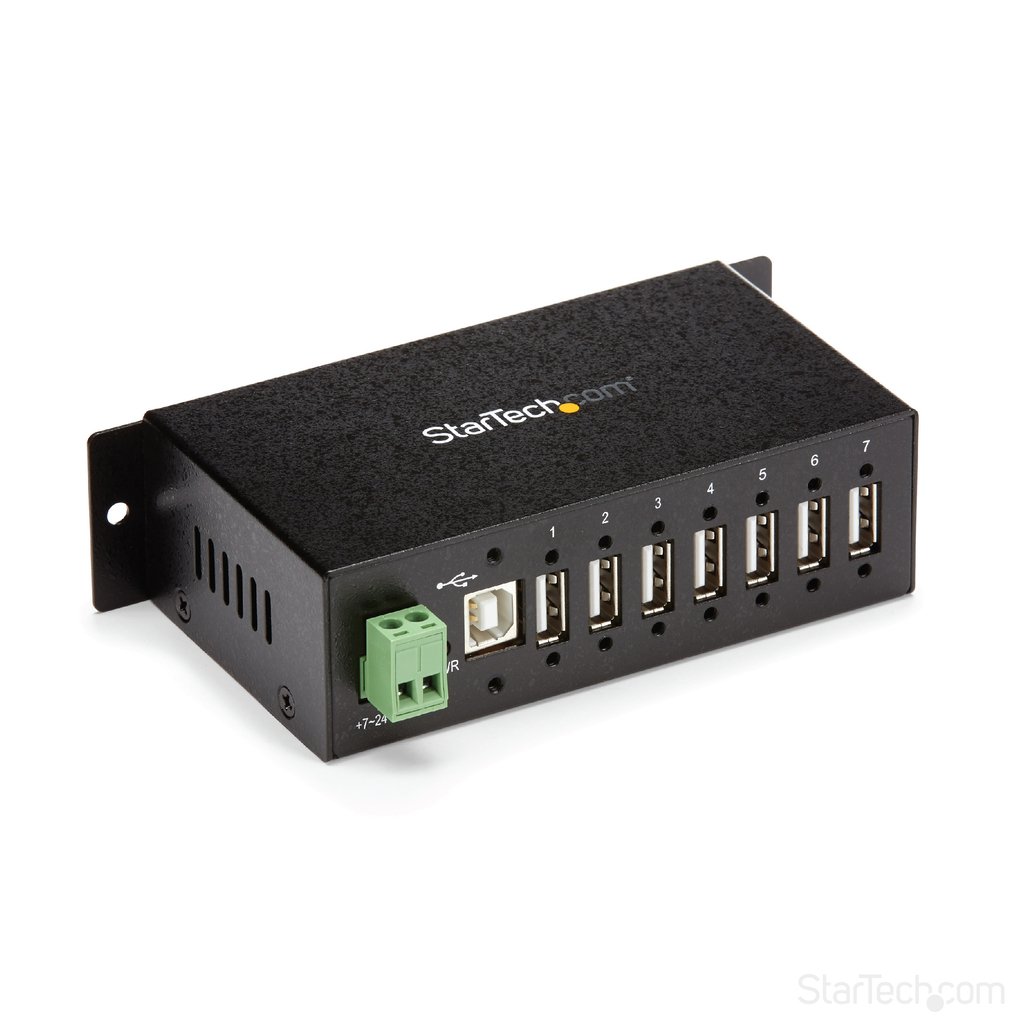

Designed for a high volume of connections, this robust USB 2.0 hub offers 7 connection ports, for connecting more USB devices and peripherals.
Locate the Hub Where You Need It Most

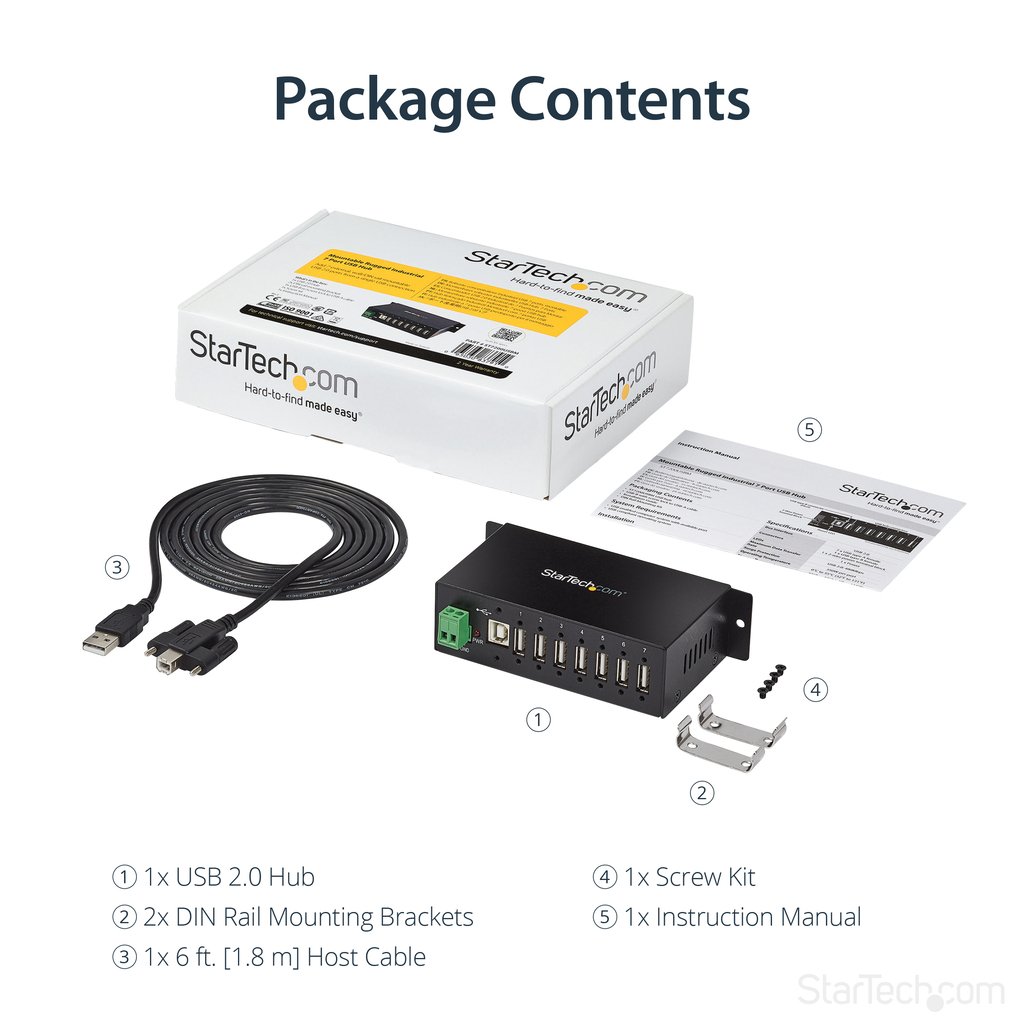

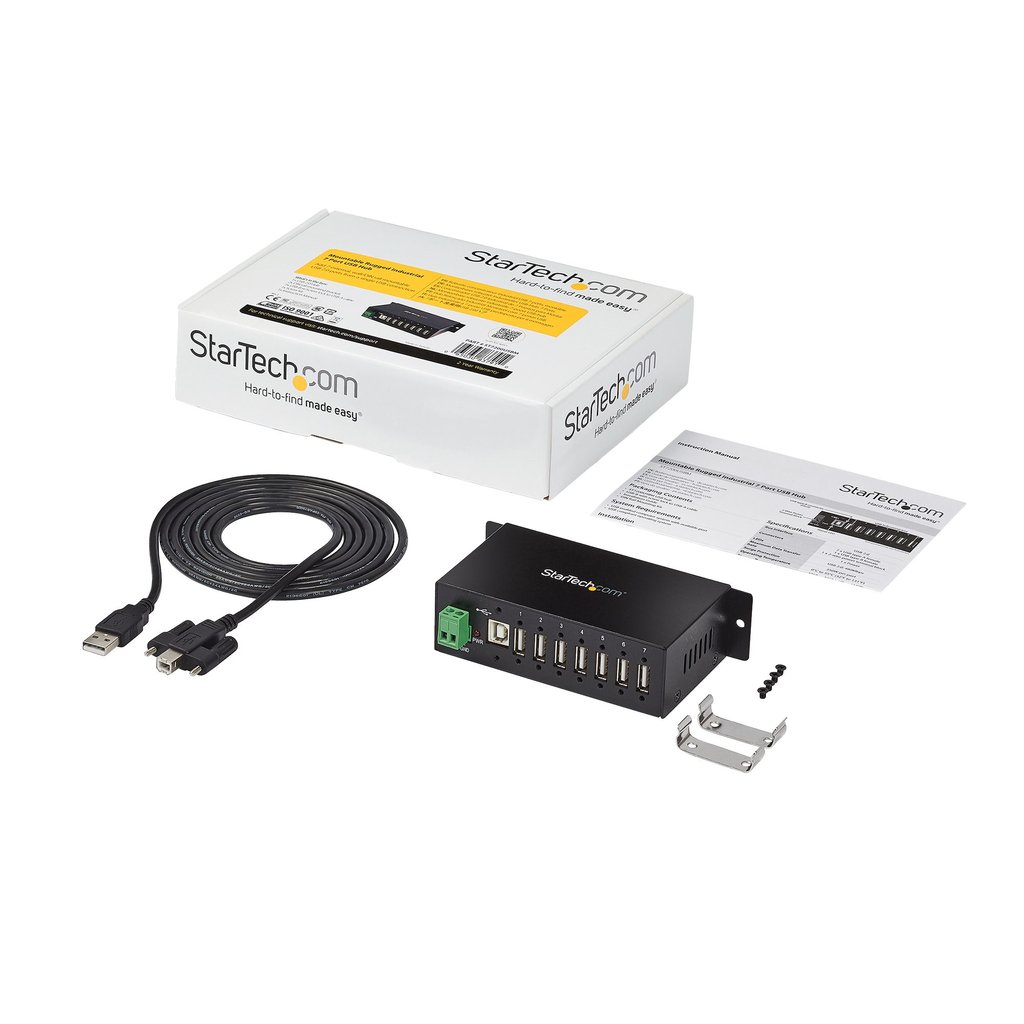

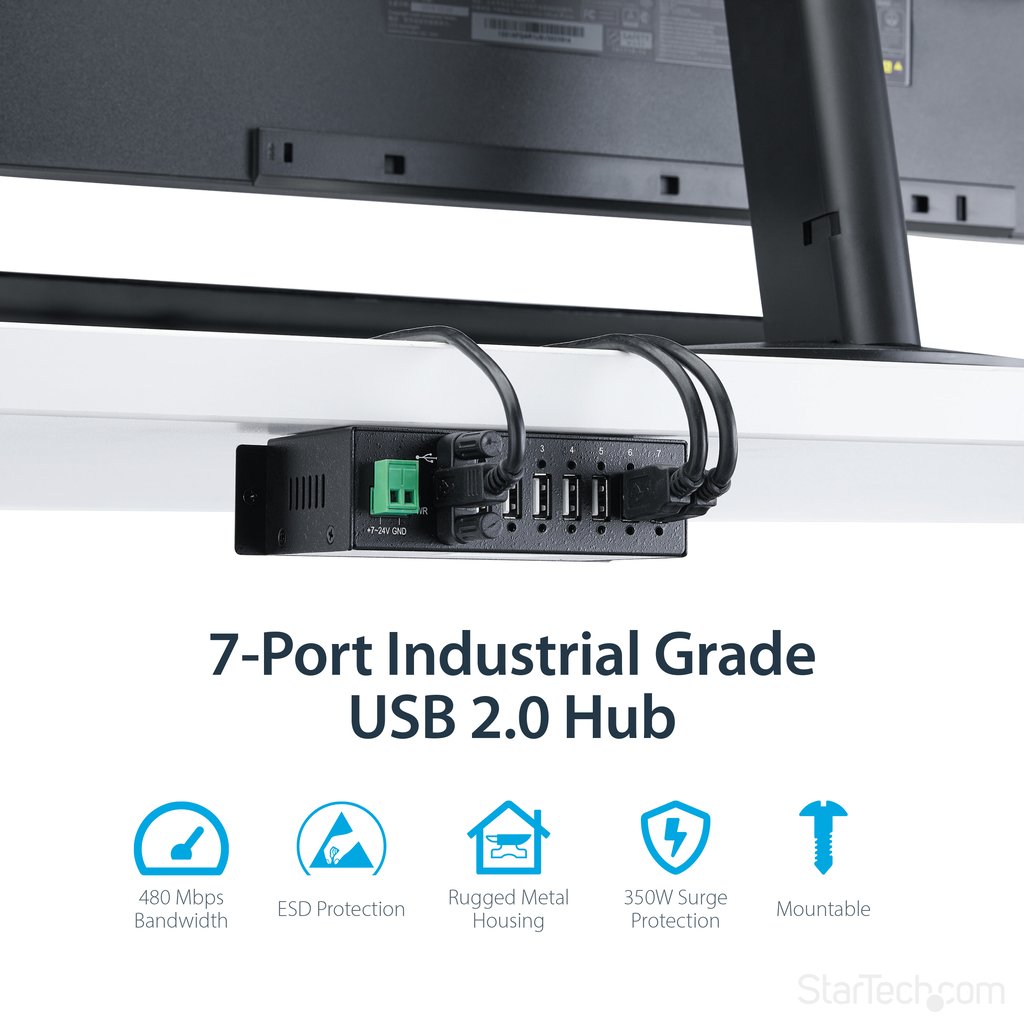

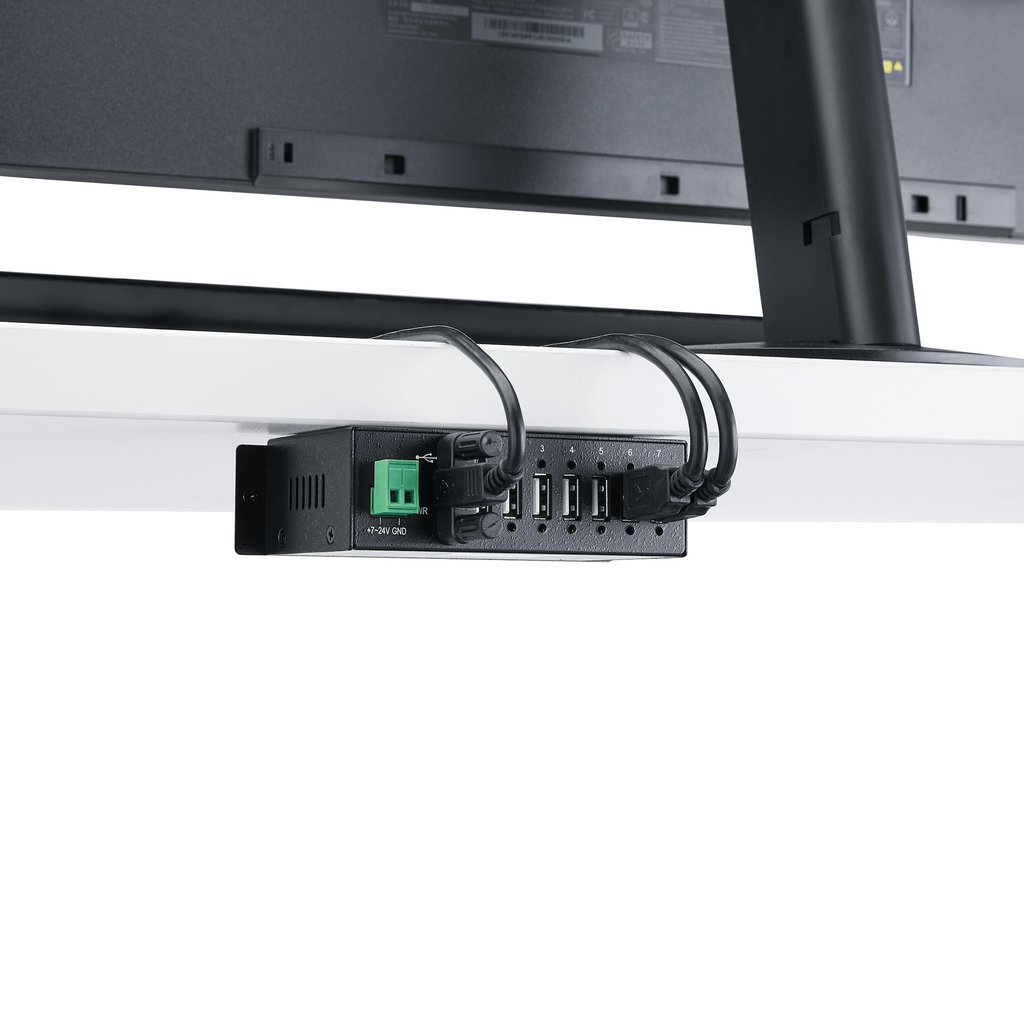

With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets and included DIN mount rails, you can securely mount the USB 2.0 hub to most surfaces such as a wall, under a desk or rack.
StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.
Works with Older USB Devices
The rugged USB hub supports the full 480 Mbps bandwidth of USB 2.0 and is backward compatible with previous USB devices.
The ST7200USBM is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Additional information
| Weight | 0.47 lbs |
|---|---|
| Ports quantity | 7 |
| Host interface | USB 2.0 Type-B |
| Hub interfaces | USB 2.0 |
| USB 2.0 ports quantity | 7 |
| Data transfer rate | 480 Mbit/s |
| Product colour | Black |
| Housing material | Steel |
| Width | 61.5 mm |
| Depth | 133 mm |
| Height | 36.3 mm |
| Weight | 283 g |
| Package width | 216 mm |
| Package depth | 151 mm |
| Package height | 51 mm |
| Package weight | 500 g |
| Operating temperature (T-T) | 0 – 55 °C |
| Storage temperature (T-T) | -20 – 85 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Chipset | Terminus – FE2.1 |
| Plug and Play | Yes |
| Input voltage | 7 – 24 V |
| Harmonized System (HS) code | 84719000 |
| Certification | CE, FCC, RoHS, REACH, TAA |
| Terminal block port | Yes |
| Surge protection | Yes |
| LED indicators | Yes |
| Cables included | USB |
| Manual | Yes |
| Master (outer) case width | 436 mm |
| Master (outer) case length | 514 mm |
| Master (outer) case height | 264 mm |
| Products per master (outer) case | 25 pc(s) |
| DIN rail kit included | Yes |
| Mean time between failures (MTBF) | 170227 h |
| Hot-swap | Yes |
