StarTech.com USB 3.0 HDMI Video Capture Device, 4K 30Hz Video Capture Adapter/External USB Capture Card, UVC, Live Stream, Scre

In Stock

StarTech.com USB 3.0 HDMI Video Capture Device, 4K 30Hz Video Capture Adapter/External USB Capture Card, UVC, Live Stream, Screen Recorder, Works w/ USB-A, USB-C, TB3 – Windows/Mac (4K30-HDMI-CAPTURE)

We give you a dedicated account manager with every order.

We welcome single and bulk orders. Get fast delivery each time.

We can offer installation and configuration on orders.

We care, get great pricing and great customer service.

Any further questions, get in touch on 01933 837600.

Description

4K 30Hz HDMI Recorder | USB 3.2 Gen 1 (5Gbps) | UVC | USB-A/USB-C Cables Included

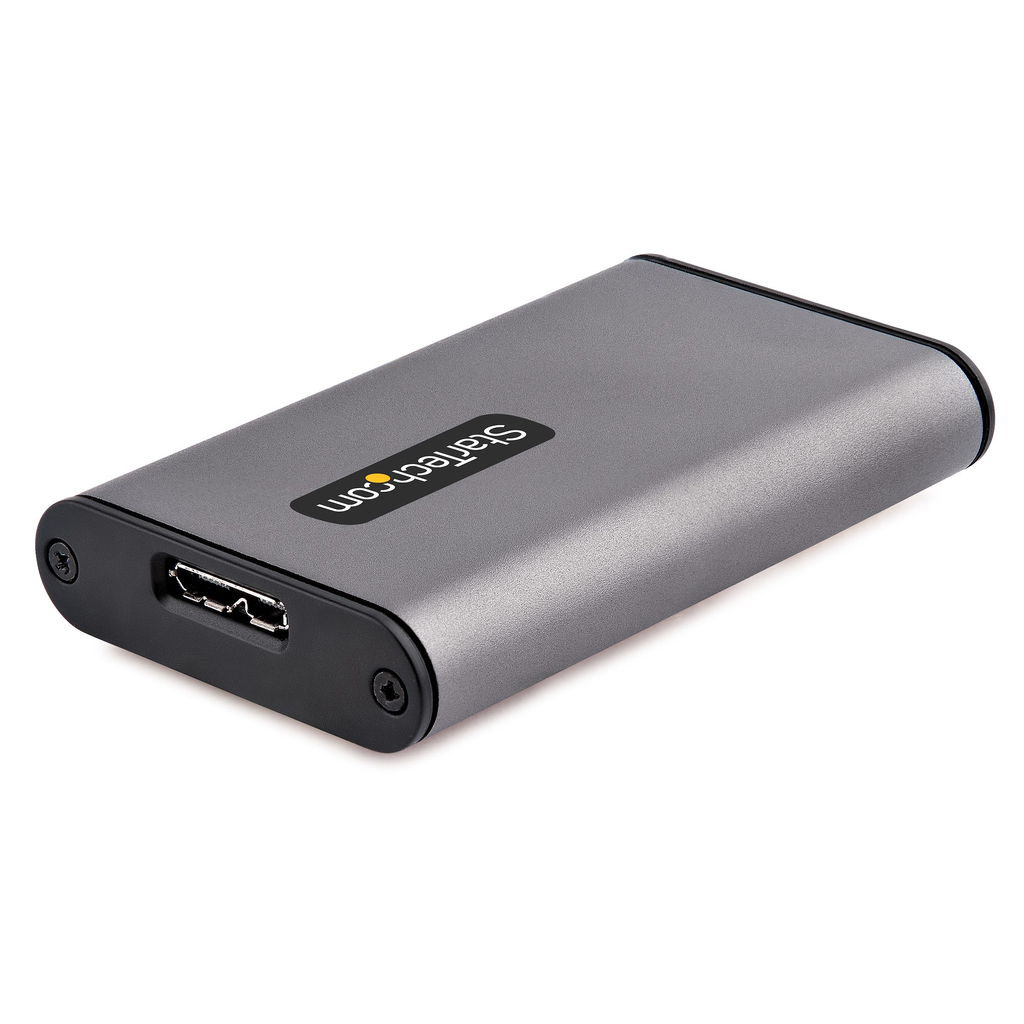

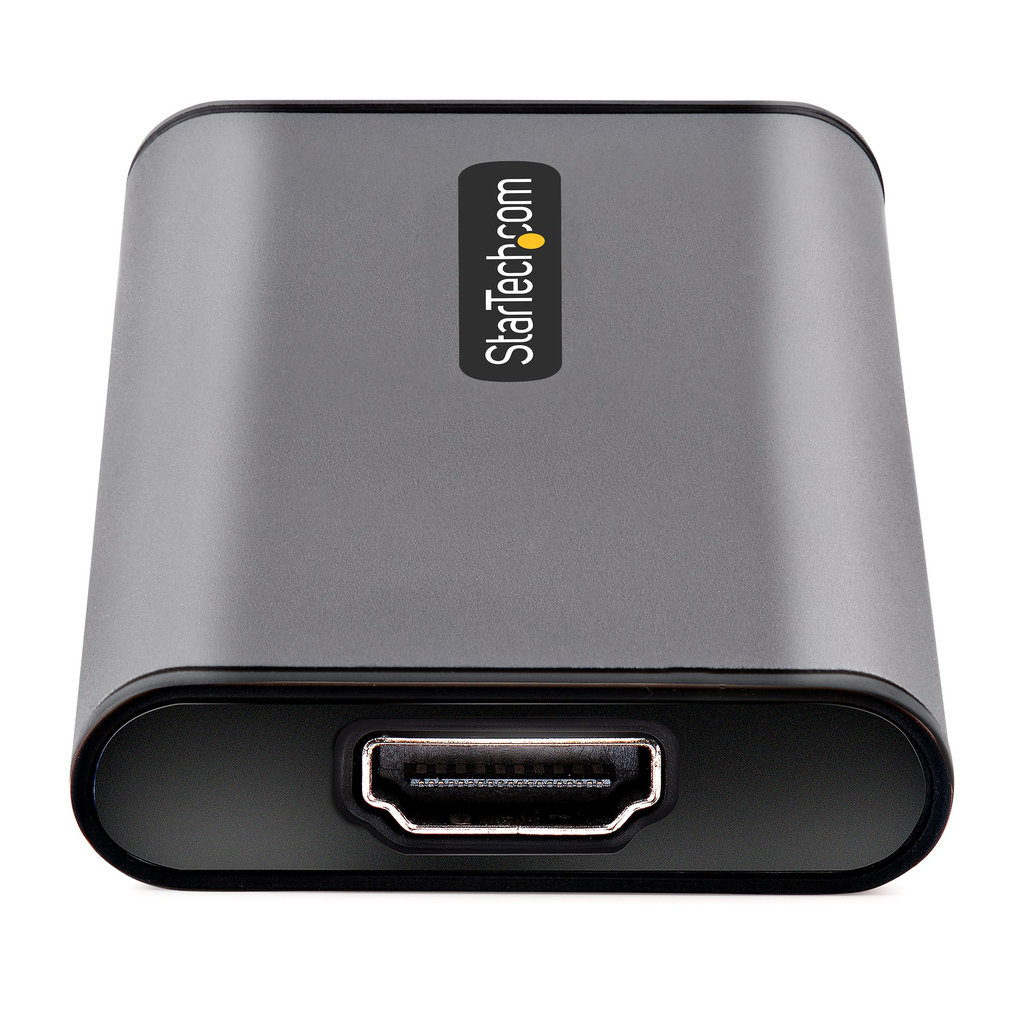

This USB to HDMI video capture device enables HDMI A/V recording, at up to 4K 30Hz, to a USB-C or USB-A enabled computer.

Record 4K Video

The USB 3.2 Gen 1 (5Gbps) Capture Device enables recording of HDMI audio and video. Capture at up to 2160p 30fps, 1440p 60fps or 1080p 120fps with 16-bit PCM audio using third party software that supports DirectShow or QuickTime. Ideal for capturing the HDMI output of DSLR cameras, action cameras, webcams, and more.

USB Video Class

The capture device features USB Video Class (UVC), a video capture standard that’s natively supported by Mac, Windows, and Ubuntu. USB bus-power and UVC facilitate plug and play installation. The included USB-A and USB-C cables let you connect to almost any host device running a supported operating system.

Capture or Stream

Record conference calls, presentations, security feeds, training videos, and more using third party software. Live stream content for community events, remote troubleshooting, or educational purposes on platforms supporting RTSP or RTMP communication protocols. The Capture Device works with Teams, Google Hangouts, Zoom, Adobe Connect, GoToMeeting, and more.

4K30-HDMI-CAPTURE is backed for 2-years by StarTech.com, including free 24/5 multi-lingual technical assistance.

Note: This device is HDCP compliant, and will not capture copy protected video, such as Blu-rays or the video output of Mac computers. However, this device will capture video to Mac computers and will capture non-encrypted video.

The StarTech.com Advantage

Additional information

Weight	0.136 lbs
Internal	No
Host interface	HDMI
Video capture resolution (max)	3840 x 2160 pixels
HDCP	Yes
Operating temperature (T-T)	0 – 45 °C
Storage temperature (T-T)	-20 – 60 °C
Operating relative humidity (H-H)	20 – 90%
Compliance certificates	CE, RoHS
Width	44 mm
Depth	73 mm
Height	12 mm
Master (outer) case width	490 mm
Master (outer) case height	260 mm
Package weight	181 g
Package height	37 mm
Package width	107 mm
Package depth	155 mm
Quick installation guide	Yes
Products per master (outer) case	60 pc(s)
Master (outer) case length	390 mm
Product colour	Black, Grey
Chipset	ITE IT66021 / ITE IT9323
Capturing from	Digital camera, PC
Housing material	Aluminium
Cable length	0.4 m
Maximum frame rate	60 fps
Supported video modes	1080p, 1440p, 2160p
HDCP version	1.4
Supported audio channels	2
Audio formats supported	PCM
USB port	Yes
USB connector type	Micro-USB B
USB version	3.2 Gen 1 (3.1 Gen 1)
HDMI in	1
Power supply type	USB
AC input voltage	5 V
Input voltage	5 V
Input current	0.3 A
Power consumption	1.5 W
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Wind
Mac compatibility	Yes
Mac operating systems supported	Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Linux operating systems supported	Ubuntu 20.04 LTS
Weight	41 g
Cables included	USB Type-A to Micro USB-B, USB Type-C to Micro-USB Type-B
Harmonized System (HS) code	85176990
