StarTech.com USB C Dock – 4K 60Hz Quad Monitor DisplayPort & HDMI – Universal USB-C Docking Station with 100W Power Delivery –
StarTech.com USB C Dock – 4K 60Hz Quad Monitor DisplayPort & HDMI – Universal USB-C Docking Station with 100W Power Delivery – USB Hub with 1x USB Type-C & 3x USB-A, Ethernet, Audio
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
USB-C & USB-A Dock | USB 3.2 Gen 2 10Gbps | 4K 60HZ HDMI | 4K 60Hz DisplayPort | 100W Power Delivery
This USB-C Gen 2 10Gbps docking station turns your USB-C ® or Thunderbolt™ 3 MacBook Pro, Windows laptop, and Chromebook into a powerful workstation. A USB 3.2 Gen 2 Type-C dock features everything you need, from quad HDMI or DisplayPort video outputs up to 4K 60 Hz to 10Gbps USB-C & USB-A downstream peripheral ports to 100W Power Delivery.

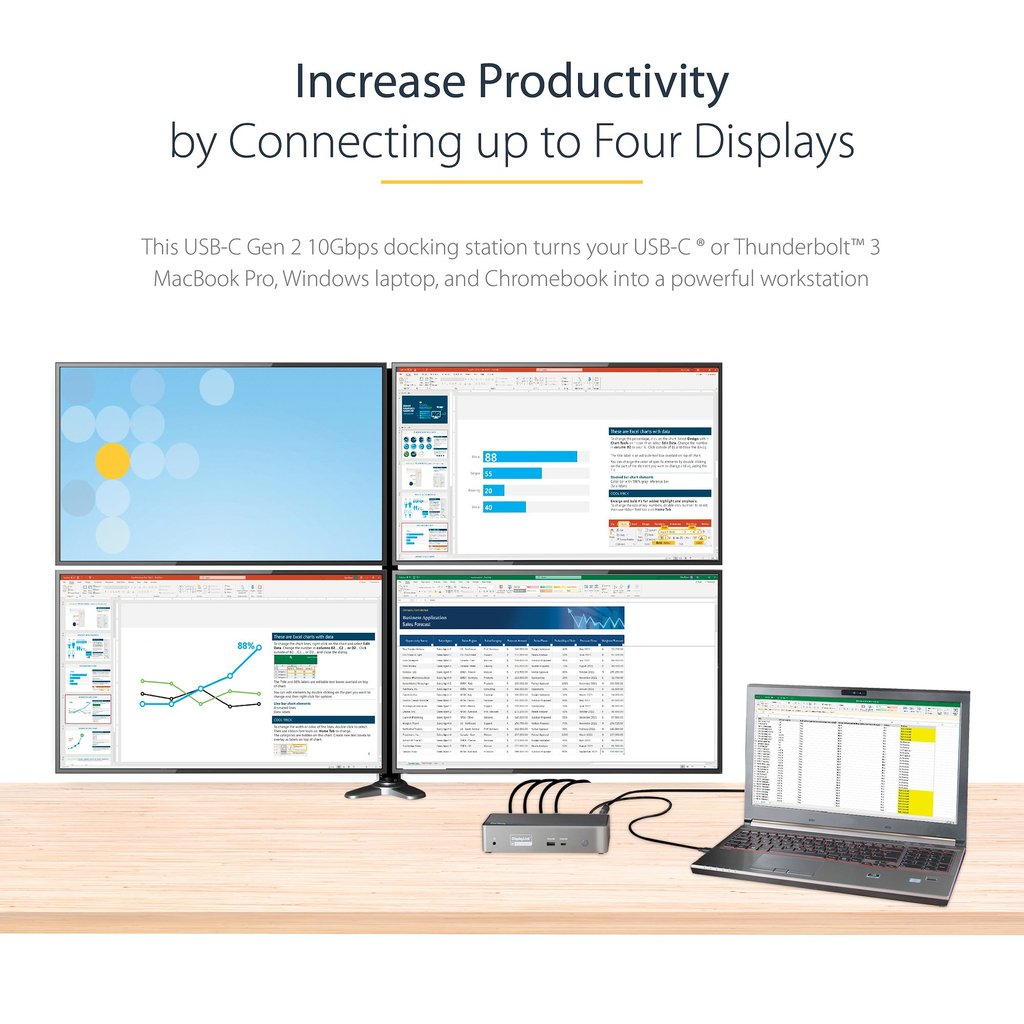

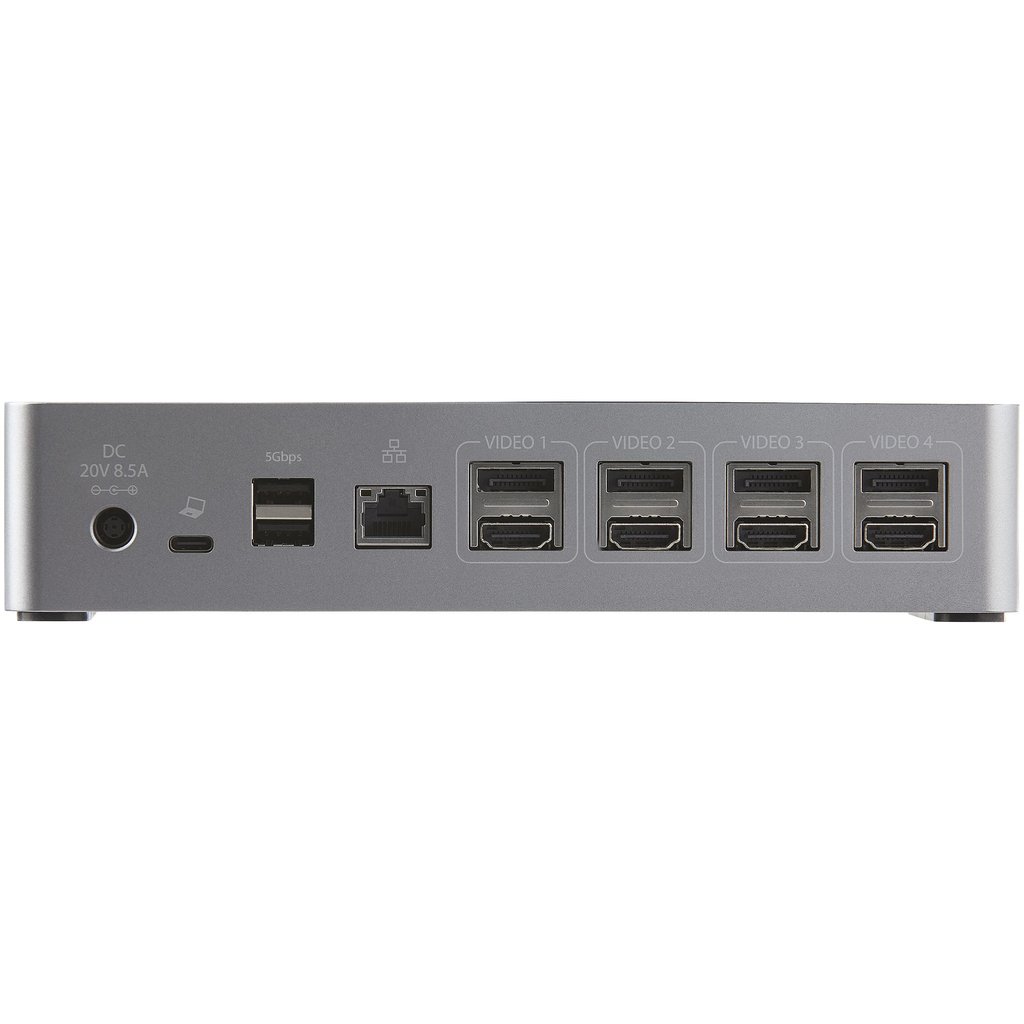

HDMI & DisplayPort for Four Monitor Outputs
This USB-C Gen 2 docking station with DP 1.2 and HDMI 2.0 HDR support, is a perfect choice for dual, triple, or quad monitor setup, supporting up to quad 4K 60Hz display output, with any combination of four DisplayPort or HDMI video interfaces, on USB-C Gen 2 laptops, MacBooks (including M1 based systems) and Windows-based Thunderbolt 3 laptops.

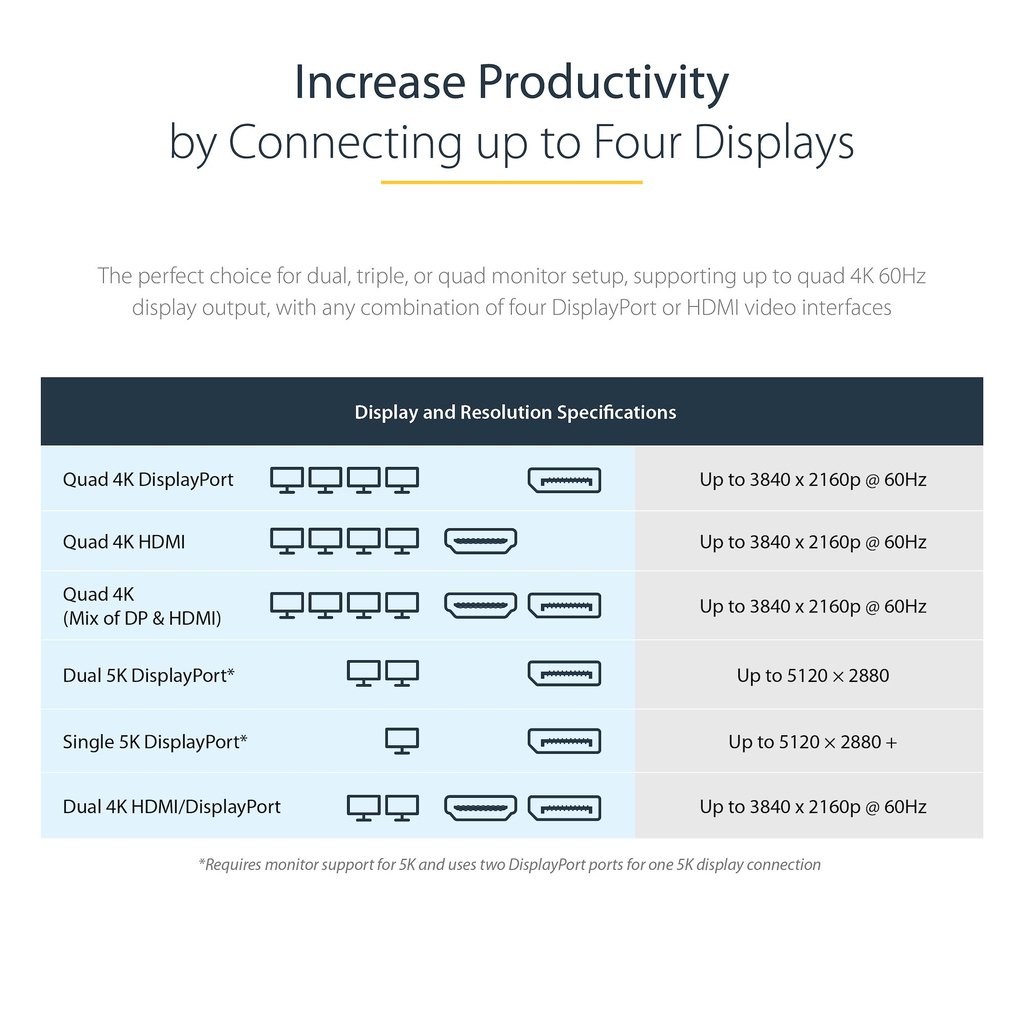

Display & Resolution Specs:
Quad 4K DisplayPort | Up to 3840 x 2160p @ 60Hz
Quad 4K HDMI | Up to 3840 x 2160p @ 60Hz
Quad 4K (Mix of DP & HDMI) | Up to 3840 x 2160p @ 60Hz
Dual 5K DisplayPort* | Up to 5120 × 2880
Single 5K DisplayPort* | Up to 5120 × 2880 + Dual 4K HDMI/DisplayPort | Up to 3840 x 2160p @ 60Hz
*Requires monitor support for 5K and uses two DP ports for one 5K display connection

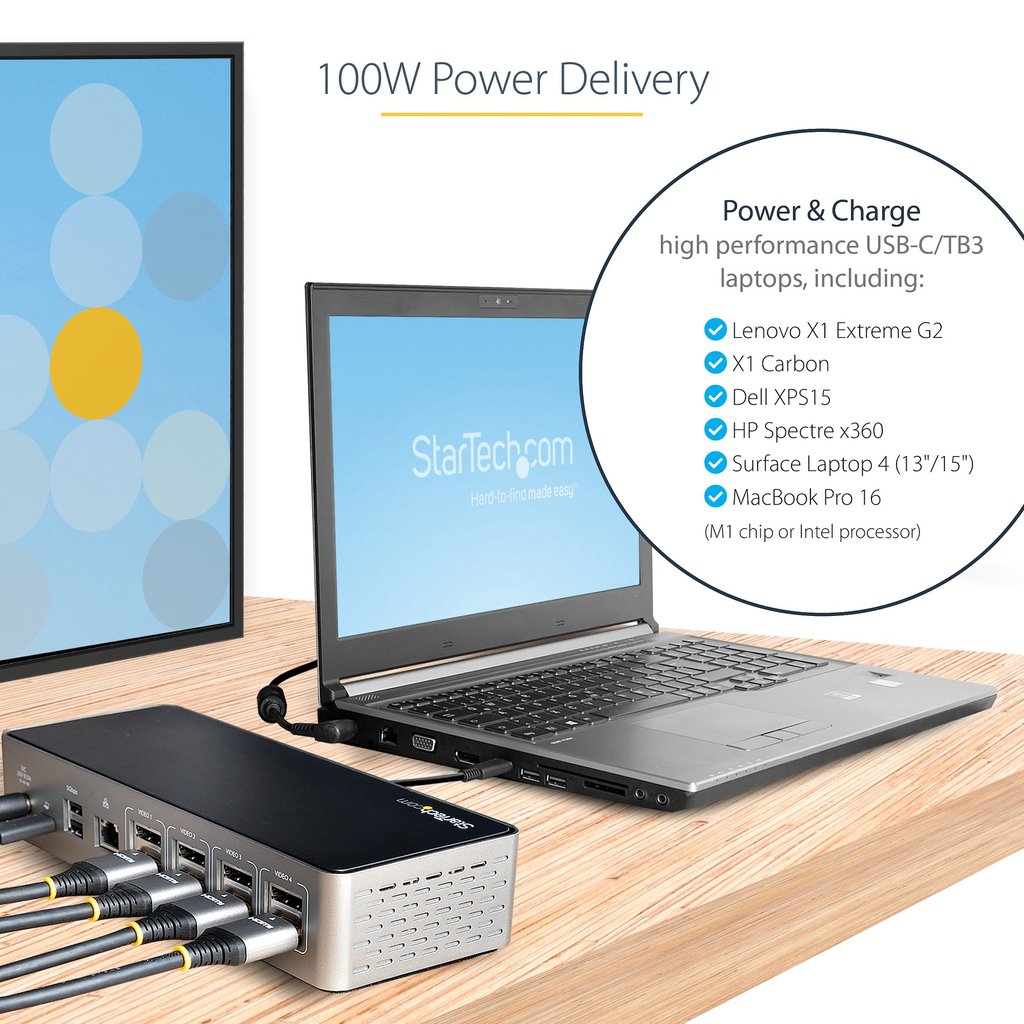

Power & Charge with 100W Power Delivery
Power and charge USB-C/Thunderbolt 3 workstation laptops & ultrabooks with 100 watt PD. Higher power delivery, more than other USB-C 10Gbps quad monitor docks.

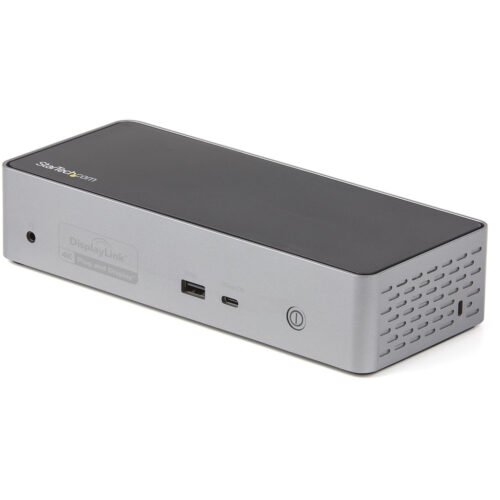

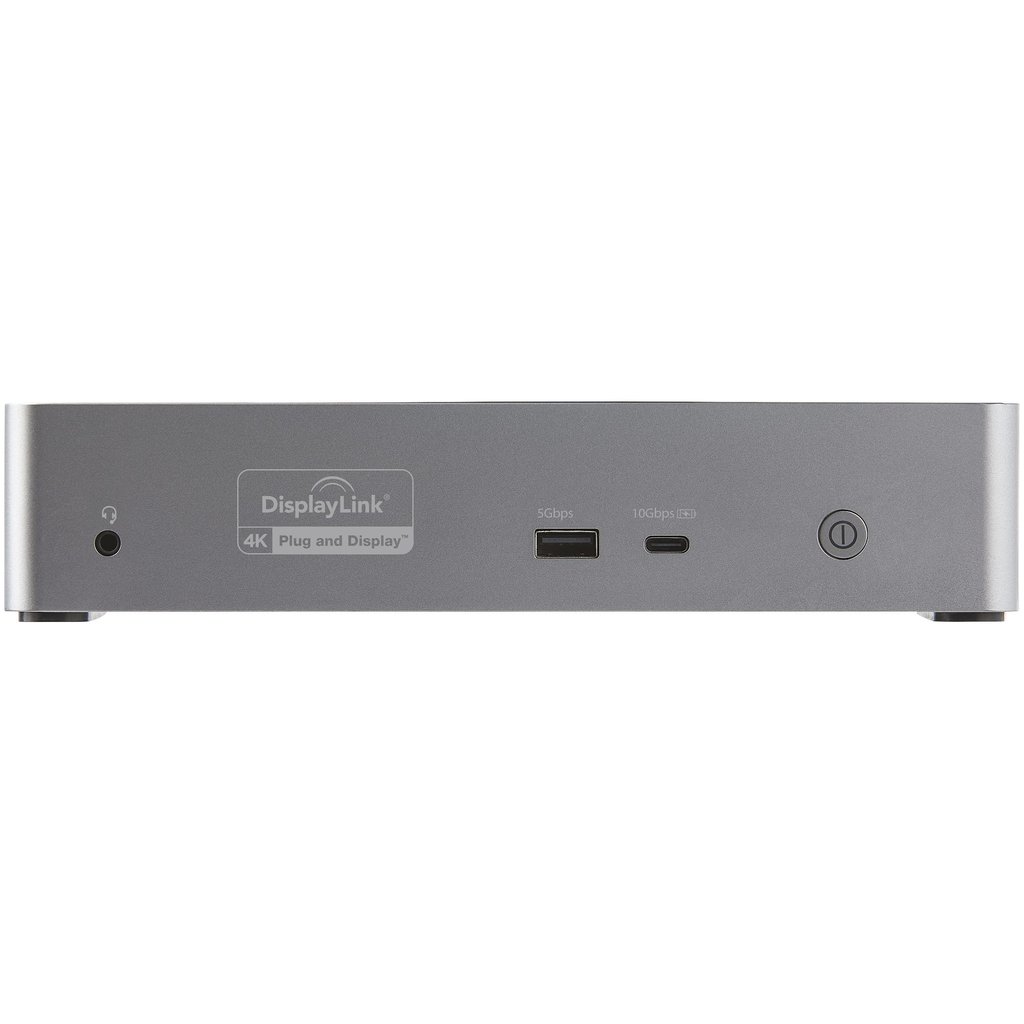

Charge smartphones and other high powered devices with two downstream front-facing charging ports with BC 1.2 for USB-A and USB-C devices. Fast-charge ports support always-on charging so devices will charge whether or not a host laptop is connected.
Plenty of Downstream USB Ports

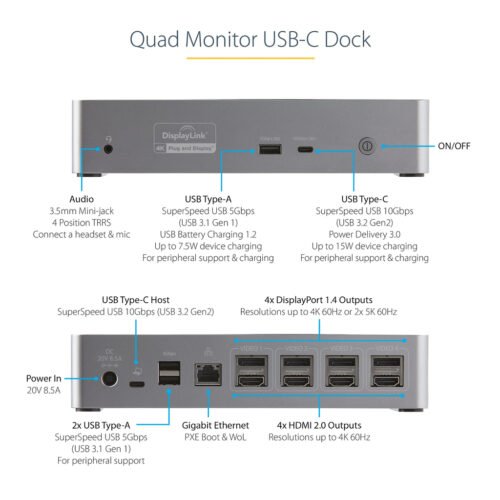

This USB-C Gen 2 docking station features 4 downstream USB ports in total to connect USB peripherals.
• 1x USB-C 3.2 Gen 2 (10 Gbps | 15W/3A)
• 1x USB-A 3.2 Gen 1 (5 Gbps | 7.5W/1.5A)
• 2x USB-A 3.2 Gen 1 (5 Gbps | 4.5W/0.9A)
Also included, is a gigabit Ethernet port with PXE Boot and WoL support, as well as 4-position TRRS stereo audio headset/mic port.
Additional Security Features

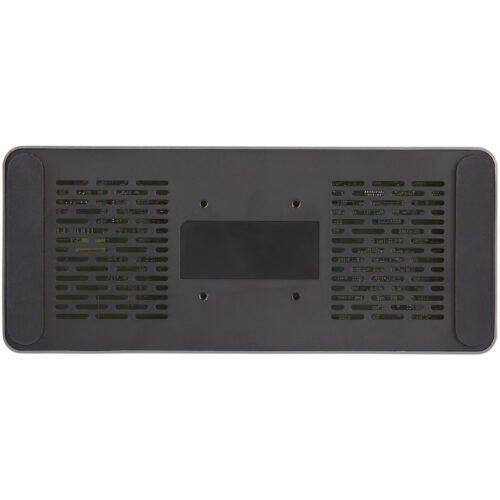

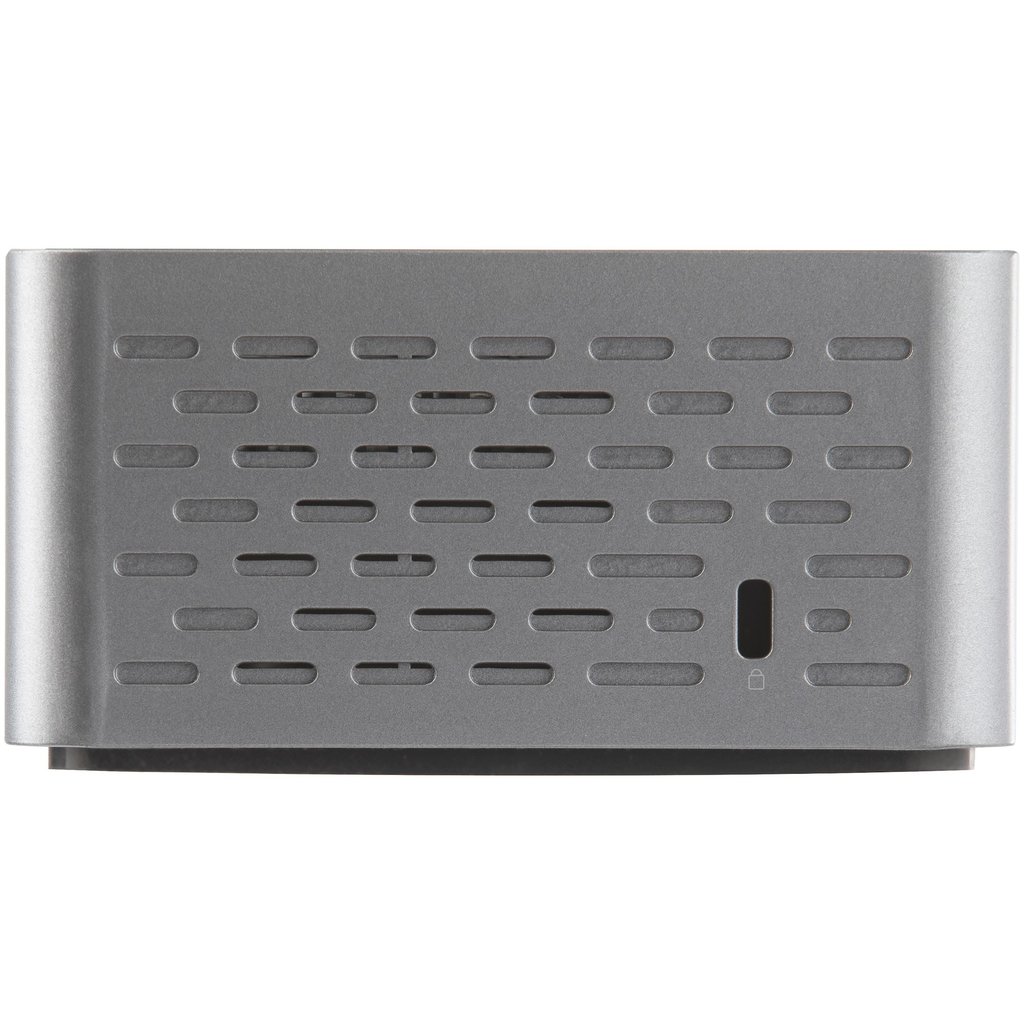

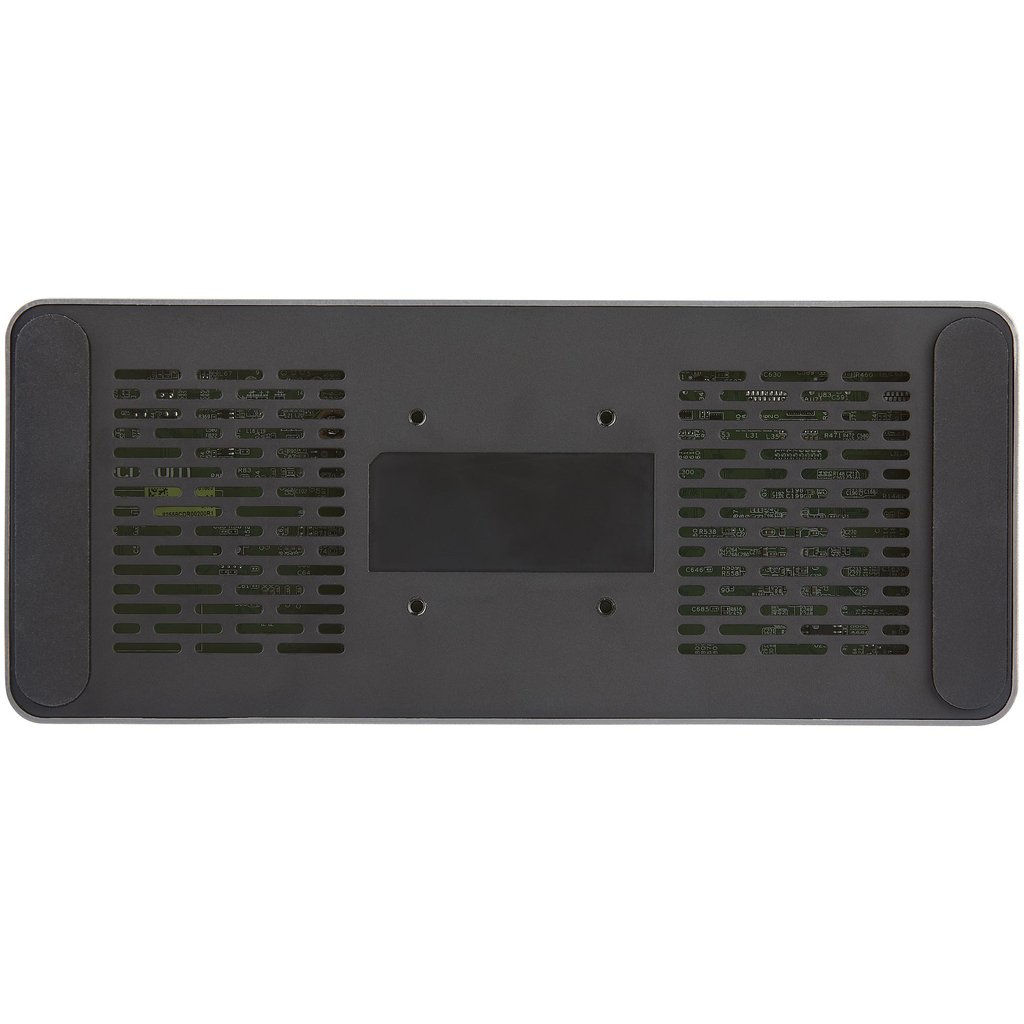

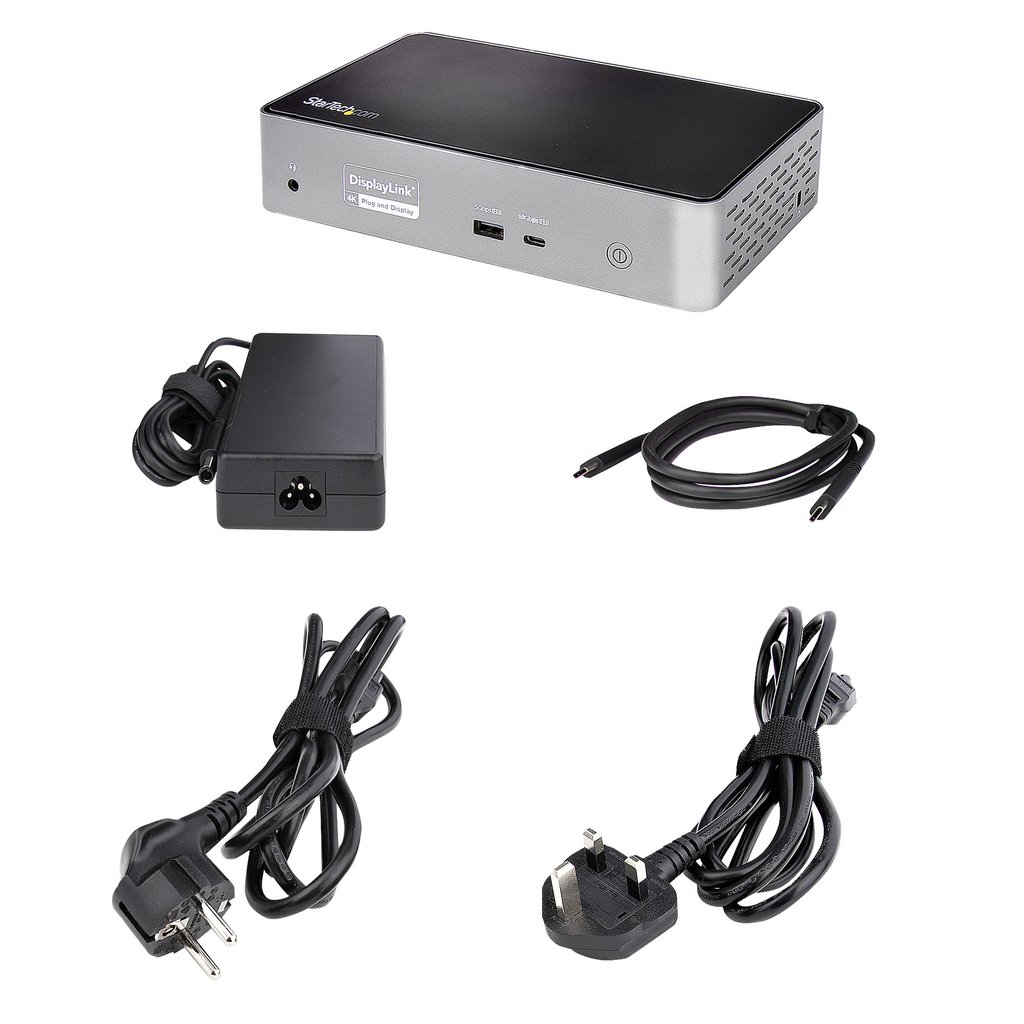

This USB-C docking station comes with plenty of security features a K-slot for a Kensington style laptop lock and holes to mount the dock on the desk or wall and includes a USB-IF Certified 1m USB-C cable.
Extra Ventilation
USB-C dock features optimized ventilation on both ends and bottom side of dock to provide cooling support to higher temperature thermals that can be generated by high performance video/graphics applications and multiple 4K 60Hz video outputs.

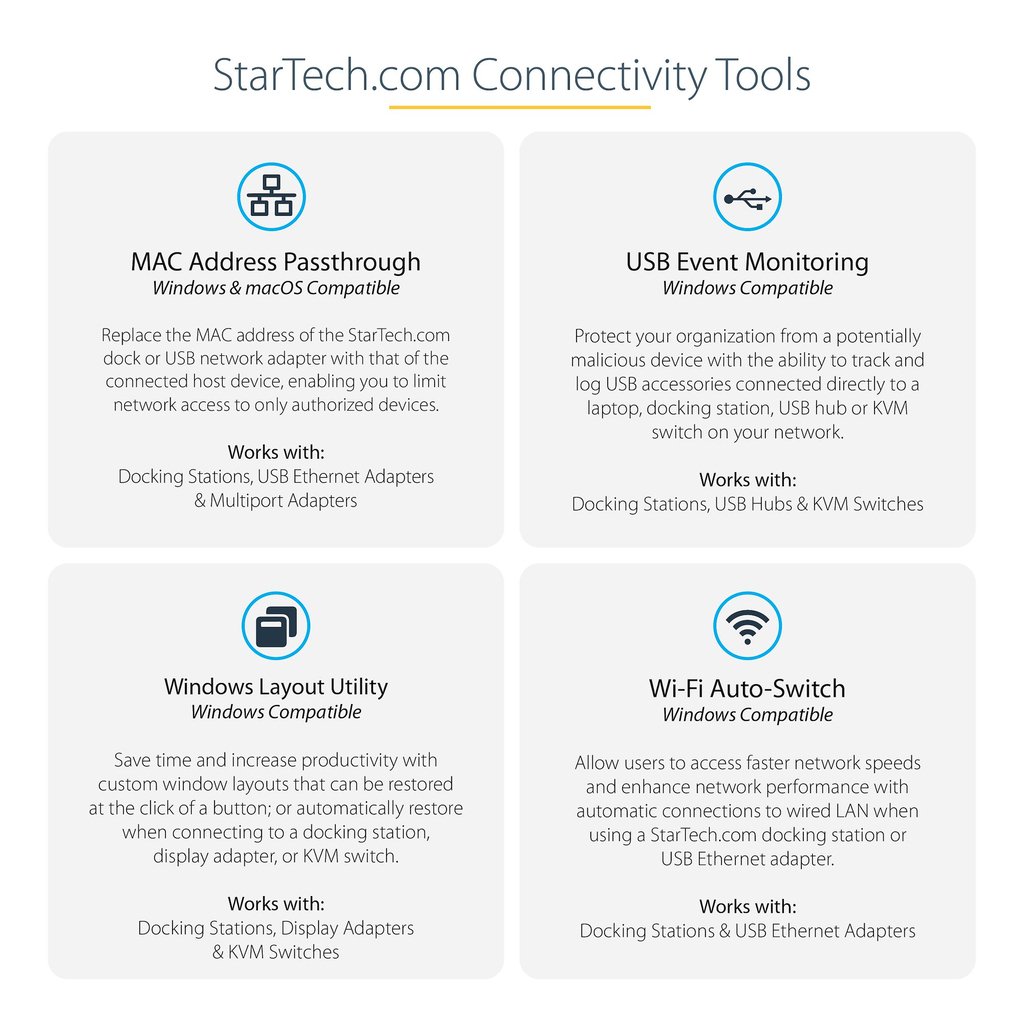

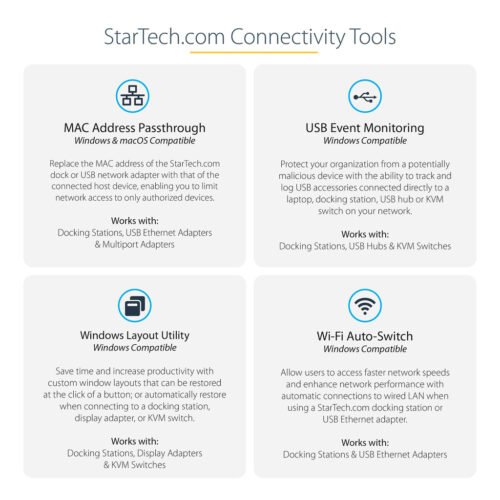

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Advanced Windows Layout Utility : To setup and save custom windows layouts.
•
Mac Address Pass-Through Utility : To improve network security.
•
USB Event Monitoring Utility : To track and log connected USB devices
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
The StarTech.com Advantage
Additional information
| Weight | 1.65 lbs |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| HDMI ports quantity | 4 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 4 |
| DisplayPort version | 1.2 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Product colour | Black, Grey |
| Card reader integrated | No |
| Maximum refresh rate | 60 Hz |
| Windows operating systems supported | Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64, Windows 11 x64 |
| Mac operating systems supported | Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Operating temperature (T-T) | 0 – 50 °C |
| Operating relative humidity (H-H) | 0 – 95% |

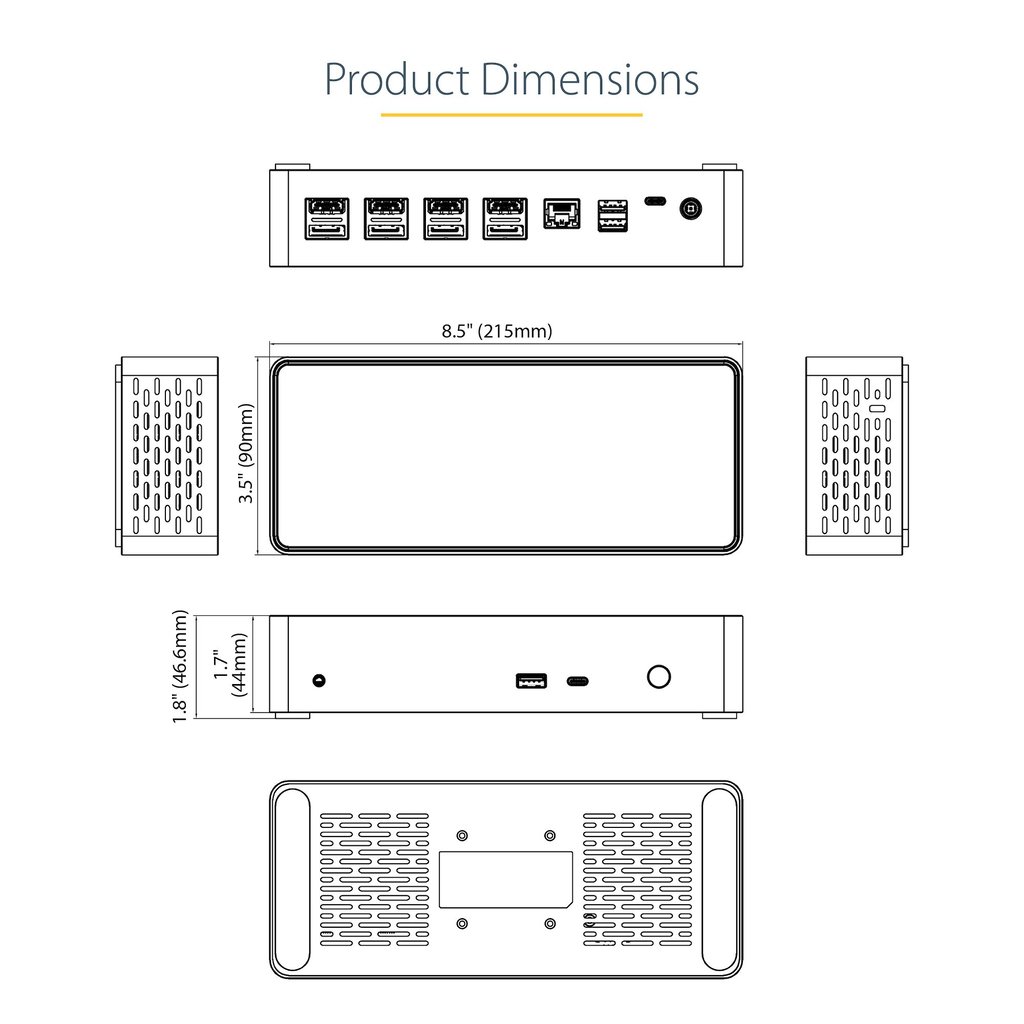

| Width | 90 mm |
| Depth | 215 mm |
| Height | 46 mm |
| Weight | 330 g |
| Package width | 145 mm |
| Package depth | 233 mm |
| Package height | 100 mm |
| Package weight | 360 g |
| Storage temperature (T-T) | -20 – 70 °C |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| Combo headphone/mic port | Yes |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| Maximum digital resolution | 5120 x 2880 pixels |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| LED indicators | Yes |
| AC input voltage | 100 – 240 V |
| Output voltage | 20 V |
| Output current | 8.5 A |

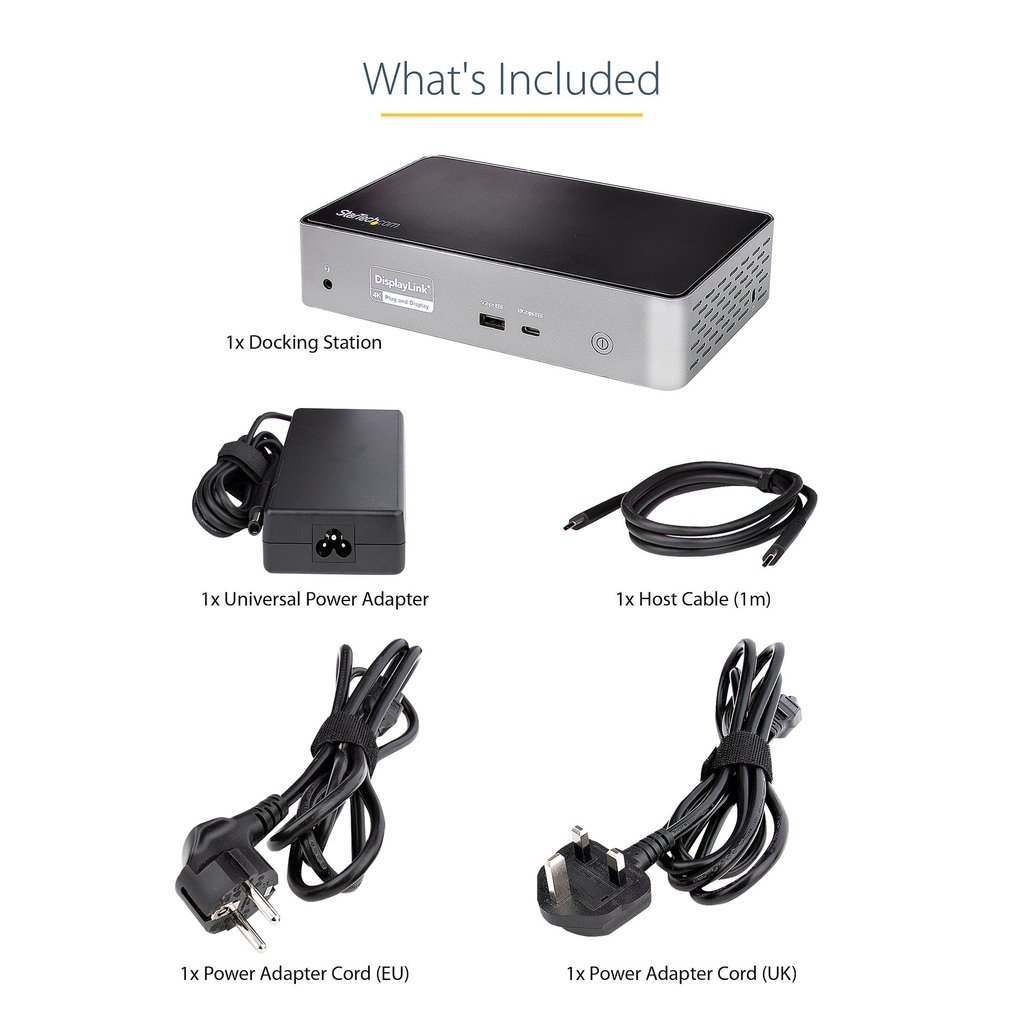

| Cables included | USB |
| AC adapter included | Yes |
| Compliance certificates | CE |
| Products per master (outer) case | 4 pc(s) |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Data transfer rate | 10 Gbit/s |
| Other operating systems supported | ChromeOS |
| Wake-on-LAN ready | Yes |
| Compatible power plug types | EU, UK |
| Master (outer) case width | 240 mm |
| Master (outer) case length | 410 mm |
| Master (outer) case height | 160 mm |
| Chipset | DisplayLink – DL6910, Realtek – RTS5423, Realtek – RTS5411/RTS5411E, Realtek – RTL8153 |
| Manual | Yes |
| Harmonized System (HS) code | 84733020 |
