StarTech.com USB-C Multiport Adapter, 4K 60Hz HDMI 2.0b, HDR, USB 3.2 Gen 2 10Gbps Hub (2xUSB-C, 1xUSB-A), 100W PD Pass-Through
StarTech.com USB-C Multiport Adapter, 4K 60Hz HDMI 2.0b, HDR, USB 3.2 Gen 2 10Gbps Hub (2xUSB-C, 1xUSB-A), 100W PD Pass-Through, Mini Travel Dock, 12″/30cm Cable, Laptop Docking Station (DKT31CH2CPD3)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
4K 60Hz HDMI | 100W PD Pass-Through | 12″ (30cm) Cable | 3-Port USB Hub (10Gbps)
This USB-C multiport adapter with DP 1.4 supports 4K 60Hz HDMI® (HDR) and turns a USB-C™ laptop or tablet into a workstation, anywhere you go.
Enhance Productivity

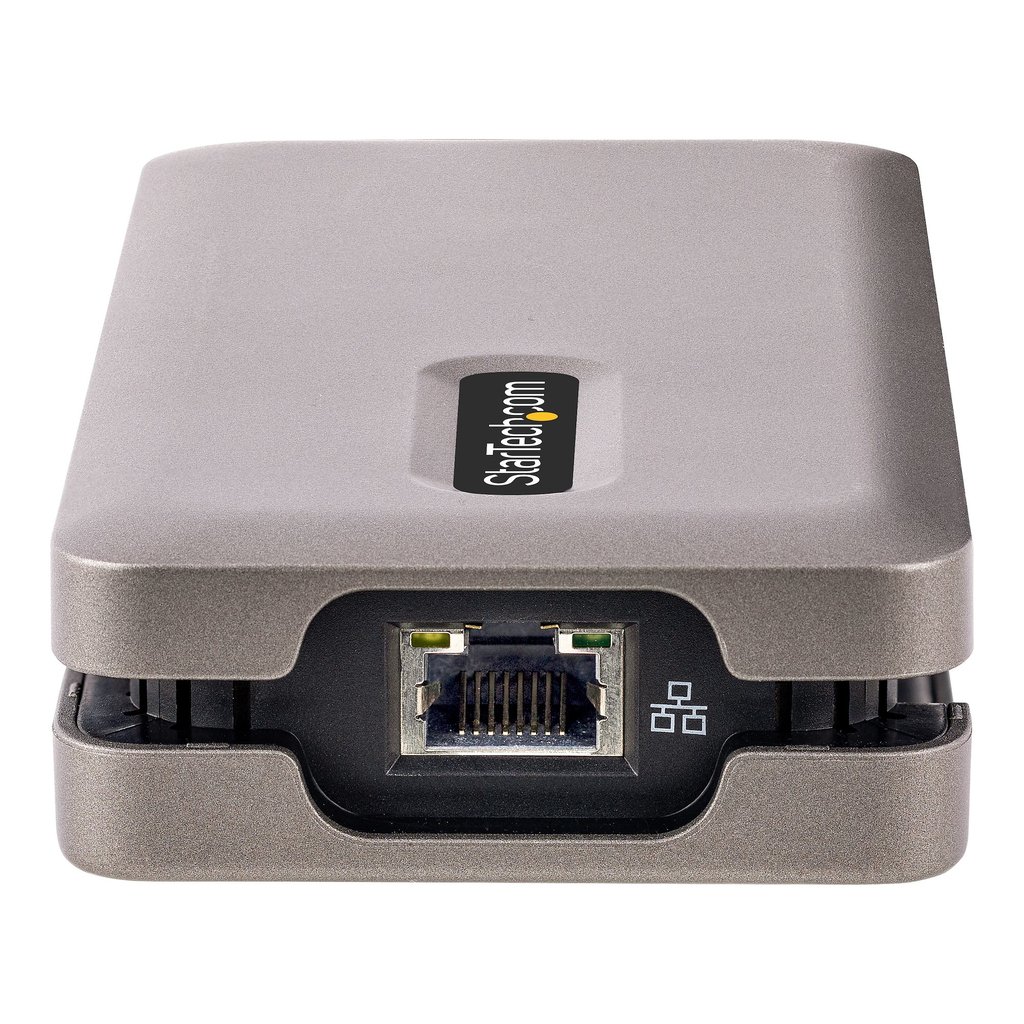

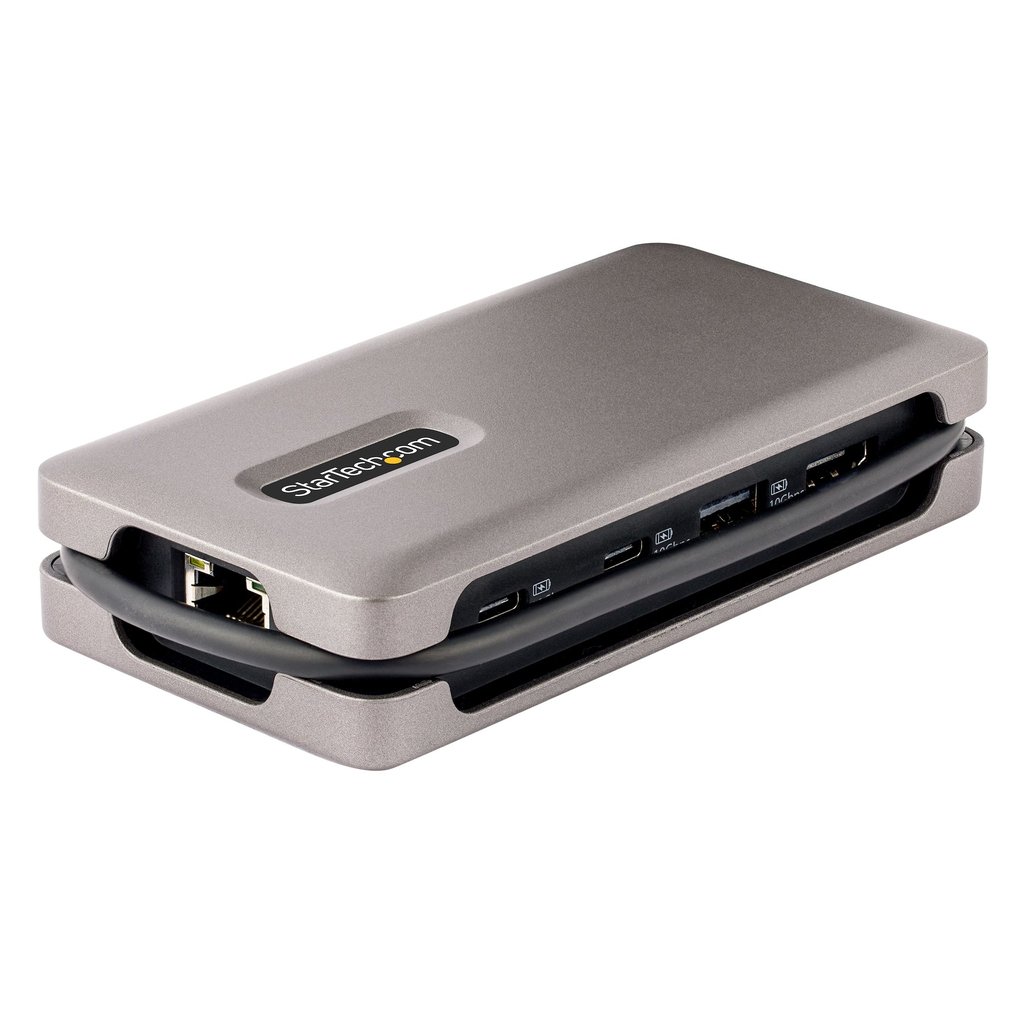

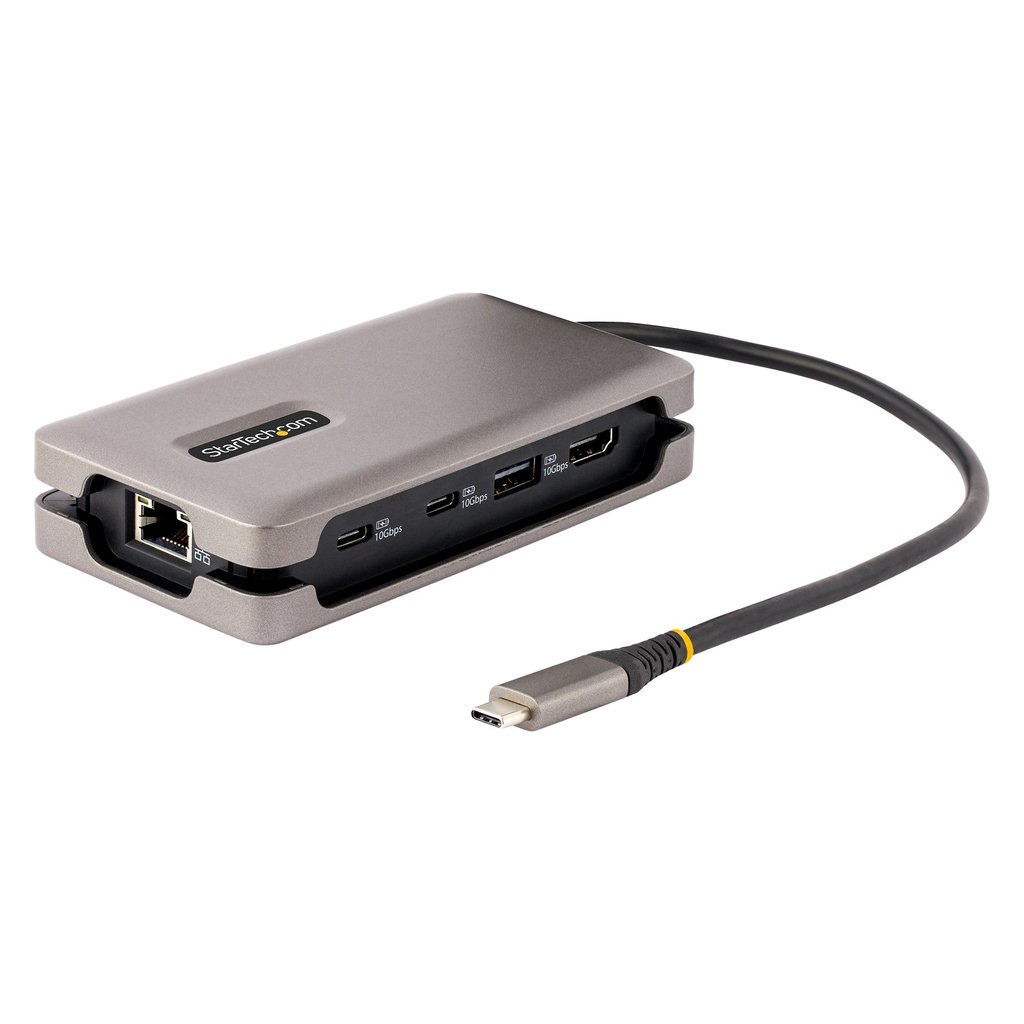

The portable docking station provides 4K 60Hz HDMI video output, two USB 3.2 Gen 2 Type-C (10Gbps) ports, one USB 3.2 Gen 2 Type-A (10Gbps) port, and a Gigabit Ethernet port (PXE and WoL support) all through one connection to your laptop’s USB-C or Thunderbolt 3/4™ port. A USB-C DisplayPort 1.4 Alt-Mode port is required for 4K 60Hz HDMI output.
Host Connection
Maximum Resolution
DP 1.4 Alternate Mode
Up to 4K 60Hz
DP 1.2 Alternate Mode
Up to 4K 30Hz
Connect and Charge Your USB Devices

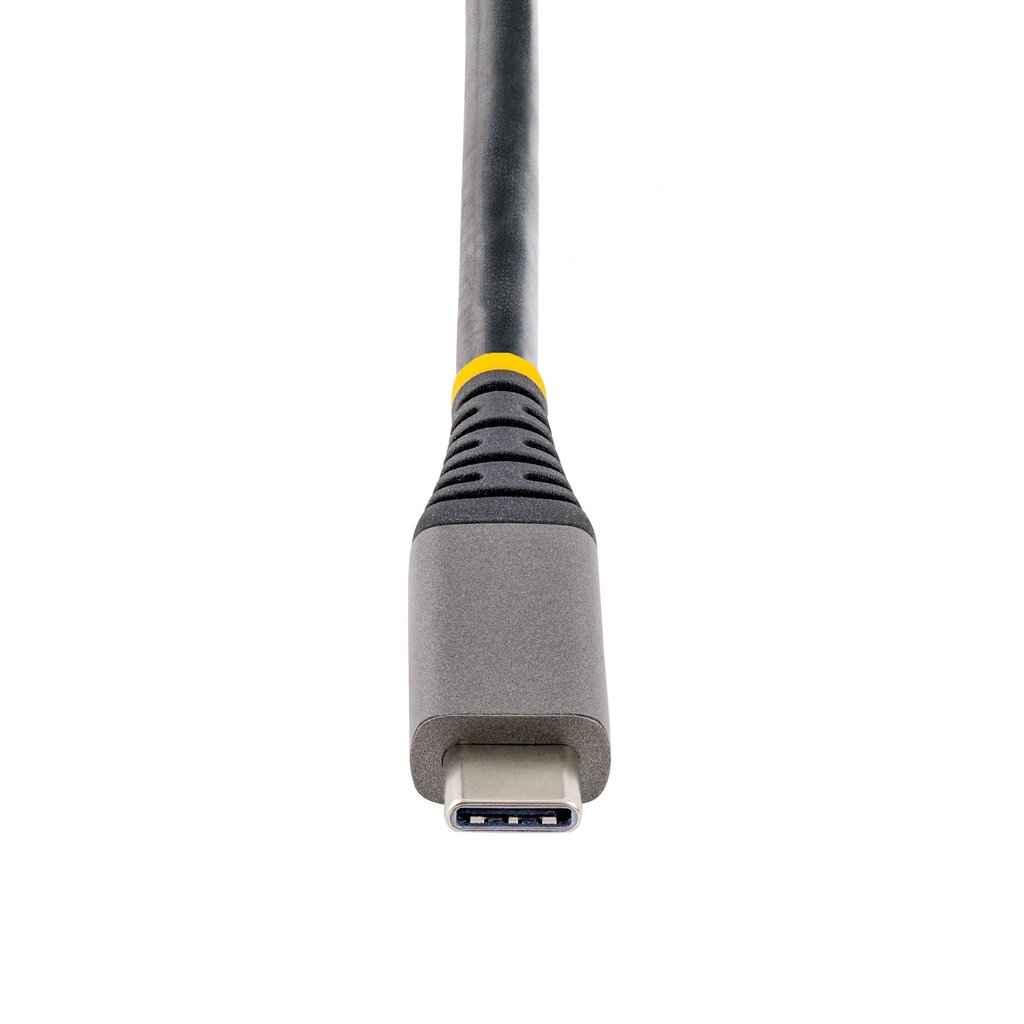

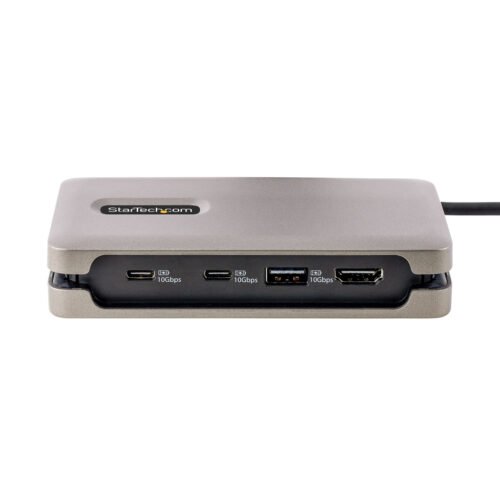

The USB hub features two USB-C (10Gbps) ports and one USB-A (10Gbps) port for connecting up to three USB peripherals. The USB PD pass-through port enables charging of the host laptop. USB PD is only available when a USB-C power adapter is connected to the PD pass-through port. Connect a USB-C Power Adapter to use as a standalone USB peripheral charger. The extra-long attached 12inch (30cm) USB-C host cable enables an extended reach for setup flexibility.
Portable Connectivity

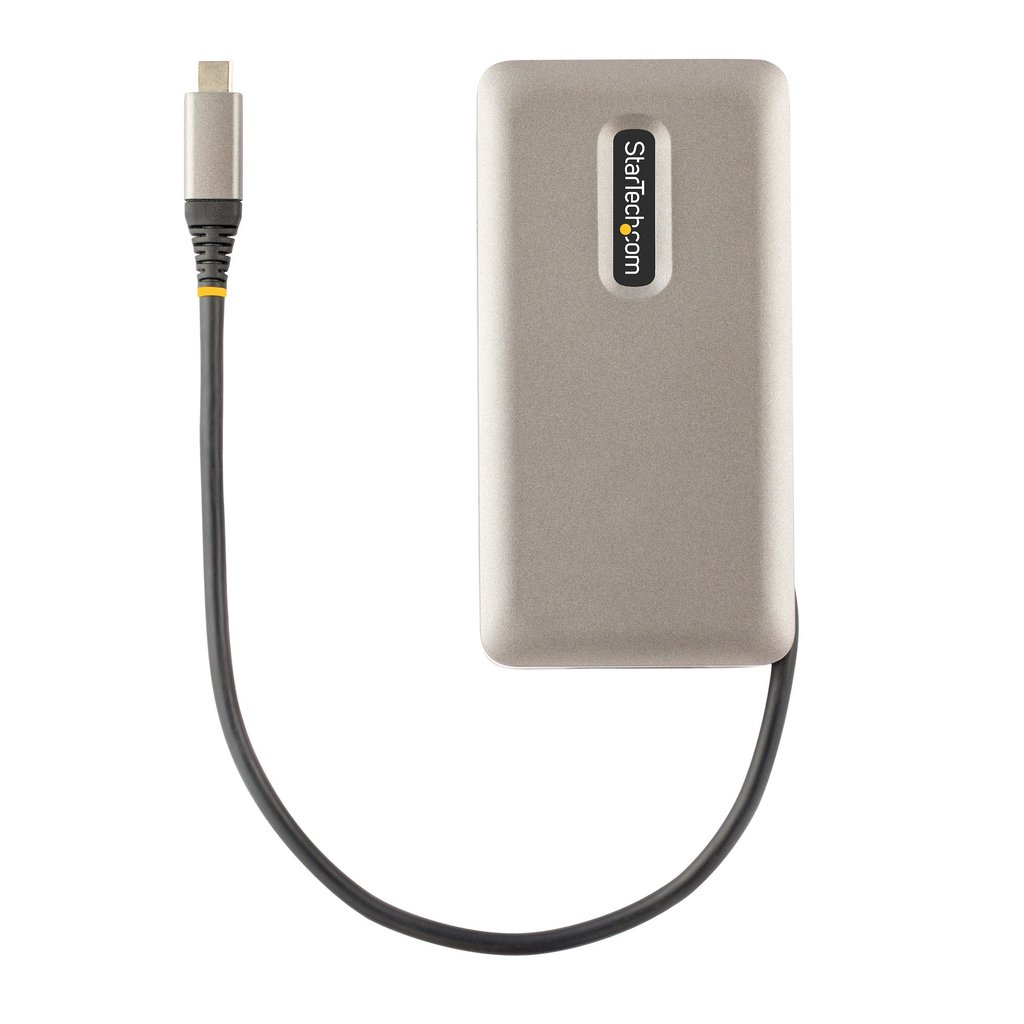

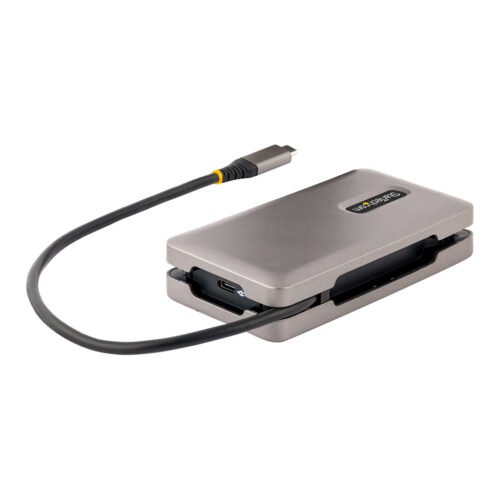

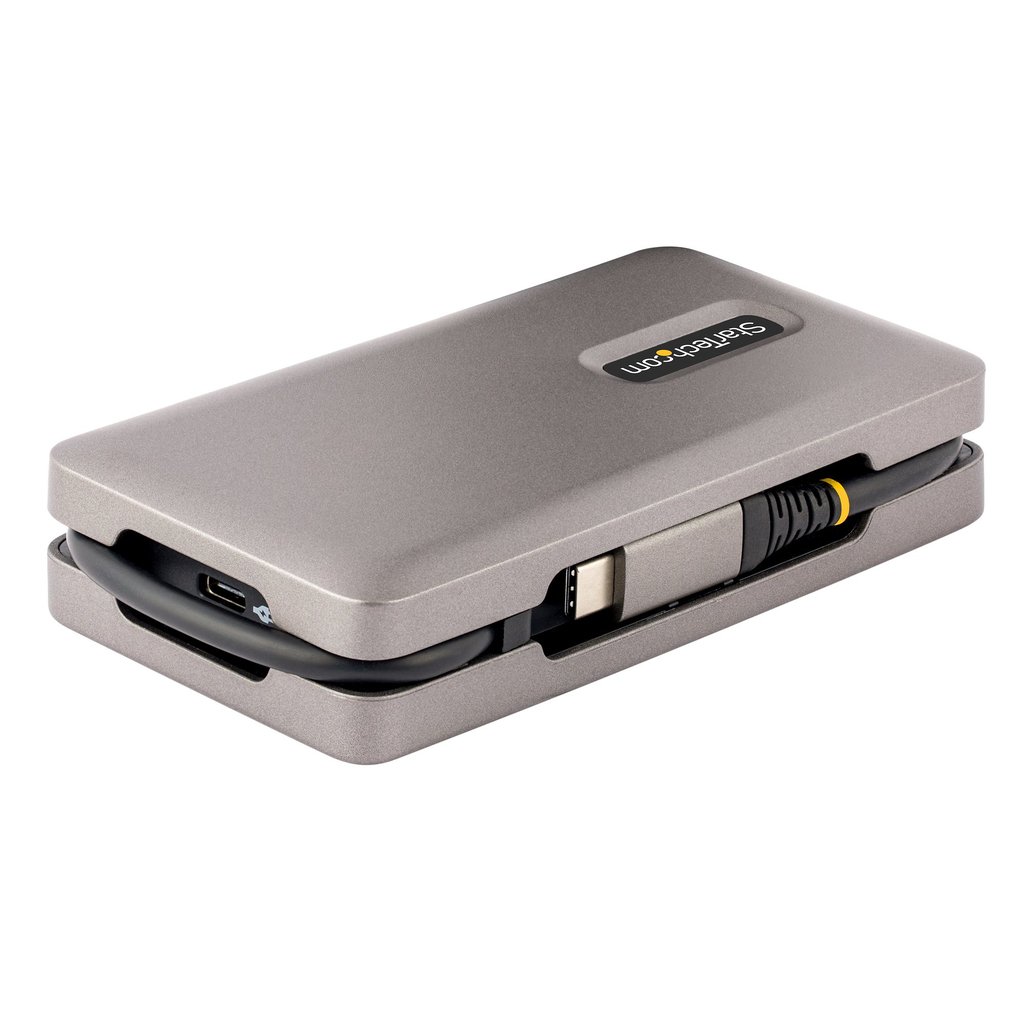

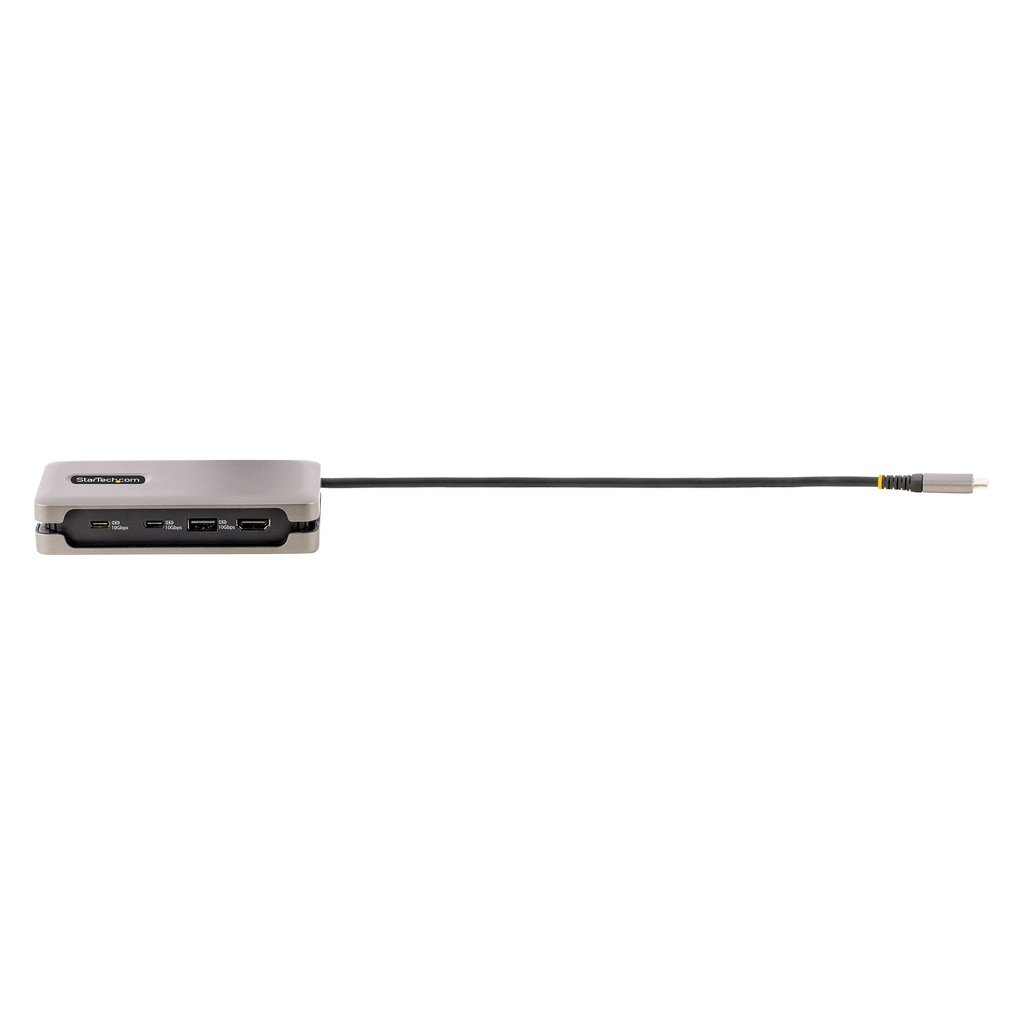

For use while travelling, the USB-C adapter can operate bus-powered alone, or with a USB-C power adapter to enable laptop and peripheral charging. The docking station is lightweight and features a built-in wraparound USB-C host cable.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
• Advanced Windows Layout Utility: Setup and save custom windows layouts.
• Mac Address Pass-Through Utility: To improve network security.
• USB Event Monitoring Utility: To track and log connected USB devices
• Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools
This product is backed for 3-years, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
Additional information
| Weight | 0.16 lbs |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Product colour | Grey |
| Card reader integrated | No |
| HD type | 4K Ultra HD |
| Maximum refresh rate | 60 Hz |
| Power consumption (typical) | 15 W |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Wind |
| Mac operating systems supported | Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Operating temperature (T-T) | 0 – 50 °C |
| Operating relative humidity (H-H) | 0 – 85% |
| Width | 64 mm |
| Depth | 124 mm |
| Height | 26 mm |
| Weight | 93 g |
| Package width | 143 mm |
| Package depth | 172 mm |
| Package height | 30 mm |
| Package weight | 149 g |
| Storage temperature (T-T) | -20 – 70 °C |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| Maximum digital resolution | 3840 x 2160 pixels |
| LED indicators | Yes |
| Housing material | Plastic |
| Compliance certificates | CE, RoHS |
| Products per master (outer) case | 70 pc(s) |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Data transfer rate | 10 Gbit/s |
| Power source type | USB |
| Other operating systems supported | ChromeOS |
| Microphone in | No |
| Full duplex | Yes |
| UASP support | Yes |
| Master (outer) case width | 465 mm |
| Master (outer) case length | 335 mm |
| Master (outer) case height | 440 mm |
| Chipset | Realtek – RTD2172L, Realtek – RTL8153B, VIA – VL822, VIA – VL103 |
| Sustainability compliance | Yes |
| Linux operating systems supported | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Harmonized System (HS) code | 84733020 |
| Cable length | 0.3 m |
| Mobile operating systems supported | Android, iPadOS |
| High Dynamic Range (HDR) supported | Yes |
