StarTech.com USB-C Triple Monitor Docking Station – HDMI/DP Triple 4k USB-C Dock – 5x USB Hub – GbE – 100W PD – Universal Multi

In Stock

StarTech.com USB-C Triple Monitor Docking Station – HDMI/DP Triple 4k USB C Dock – 5x USB Hub – GbE – 100W PD – Universal Multi Monitor Docking Station – Thunderbolt 3/4 Compatible (116U-USBC-DOCK)

  • We give you a dedicated account manager with every order.
  • We welcome single and bulk orders. Get fast delivery each time.
  • We can offer installation and configuration on orders.
  • We care, get great pricing and great customer service.
  • Any further questions, get in touch on 01933 837600.
SKU: 116U-USBC-DOCK
Brand:

Description

USB-C Dock | 5-Port USB 3.2 Gen 2 10Gbps/5Gbps Hub | Dual 4K 60HZ HDMI and/or DisplayPort | 4K 30Hz HDMI via DP Alt Mode | 100W Power Delivery

This USB-C Triple 4K Monitor Docking Station enables wide workstation flexibility, featuring compatibility with USB-C, or Thunderbolt 3/Thunderbolt 4 laptops, and supporting multiple combinations of Ultra HD 4K DisplayPort and HDMI monitors.

Enhance Productivity with Triple-4K Video

This triple-4K docking station uses a combination of its integrated DisplayLink® graphics controller and your computer’s DP Alt Mode enabled USB-C port to provide three independent 4K displays.

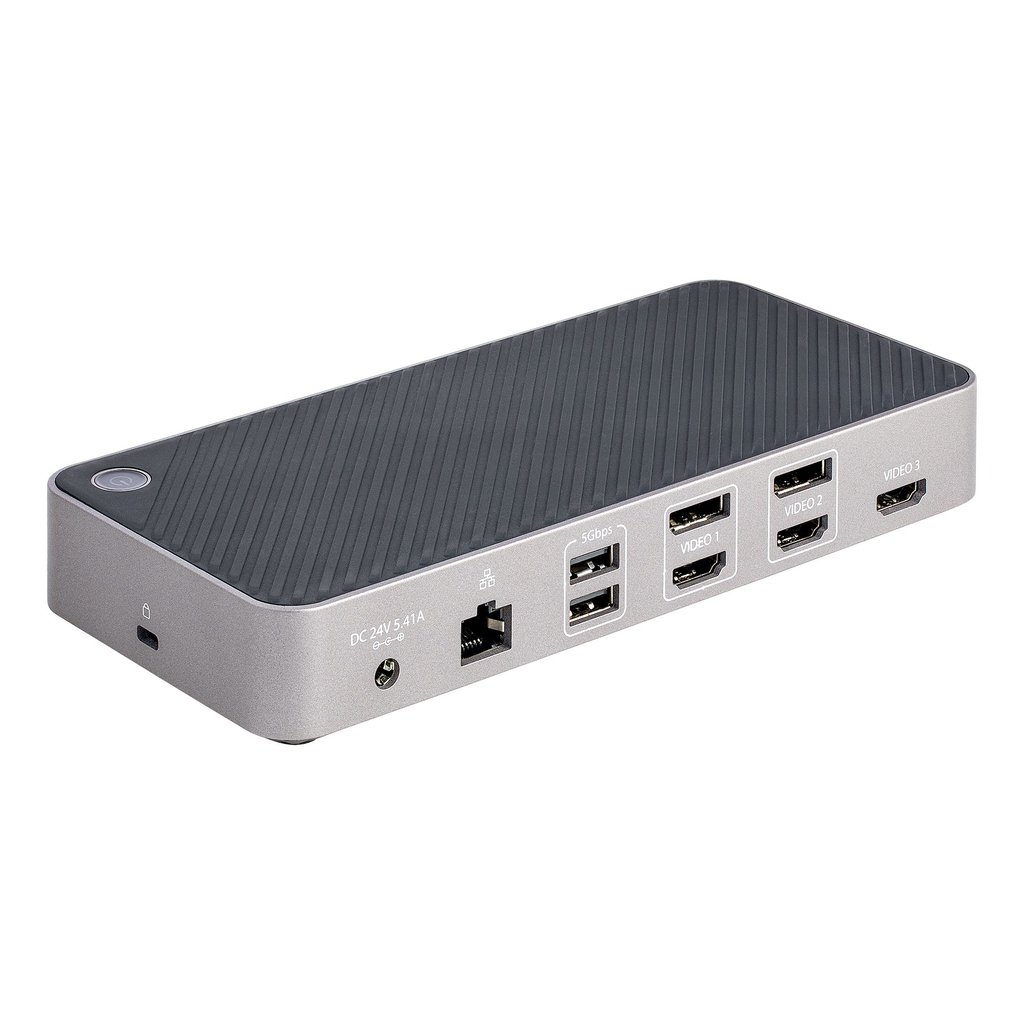

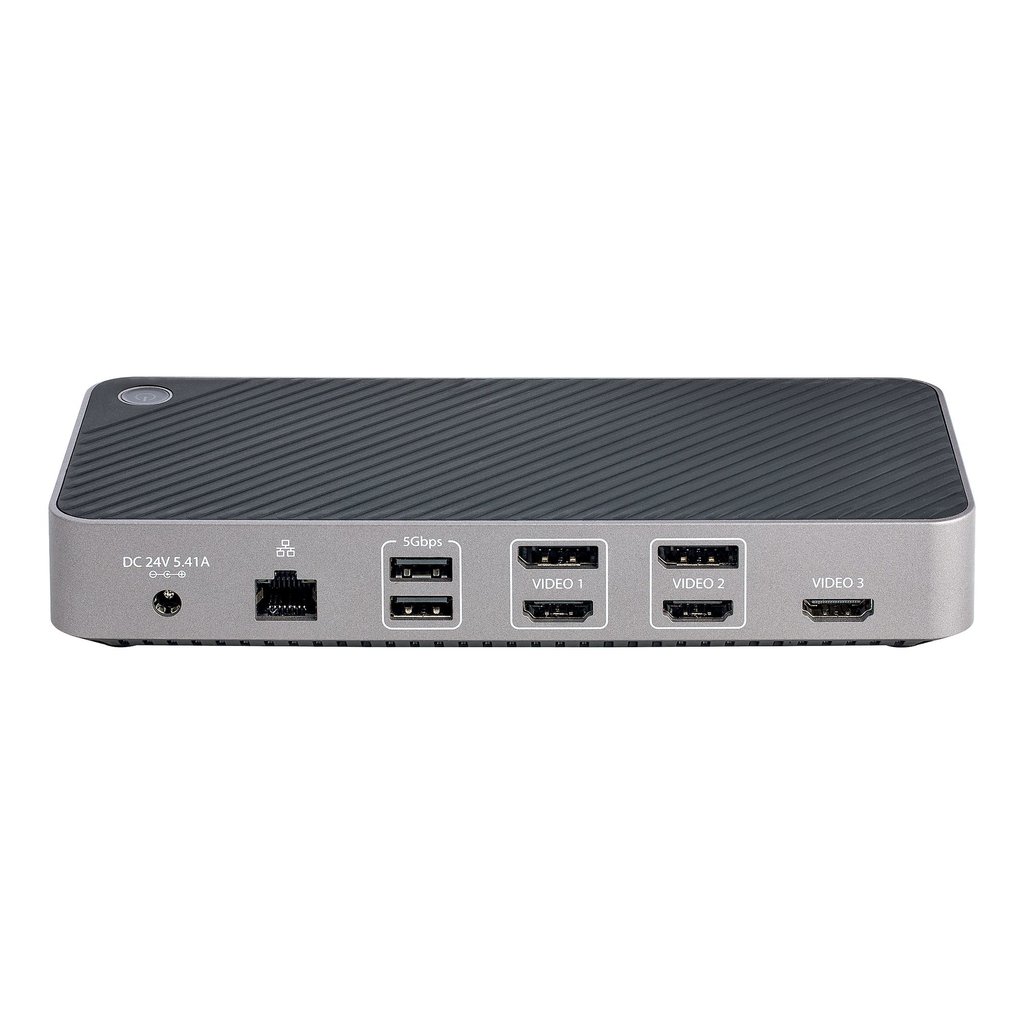

Connect any combination of HDMI and/or DisplayPort monitors to Video Ports 1 and 2 (DisplayLink®); at resolutions up to 4K at 60Hz. Connect an HDMI monitor to Video Port 3 (DP Alt-Mode), at resolutions up to 4K at 30Hz. This high-resolution video performance is ideal for detailed graphics applications, enhancing your productivity by expanding the display capabilities of your laptop.

Full-Featured Docking Station

Connect the docking station to your computer’s USB 3.2 Gen 2 (10Gbps) Type-C port to provide a wide range of port connectivity, options and features. The docking station features:

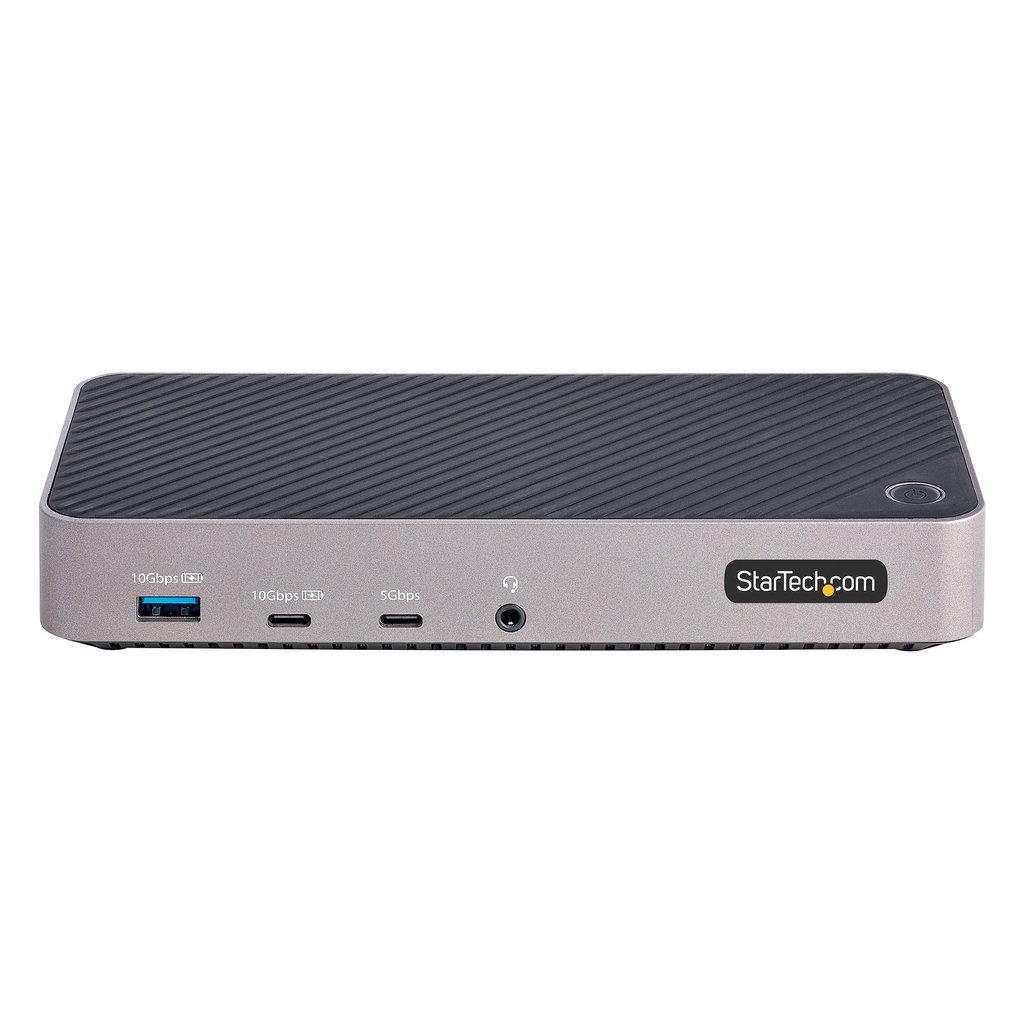

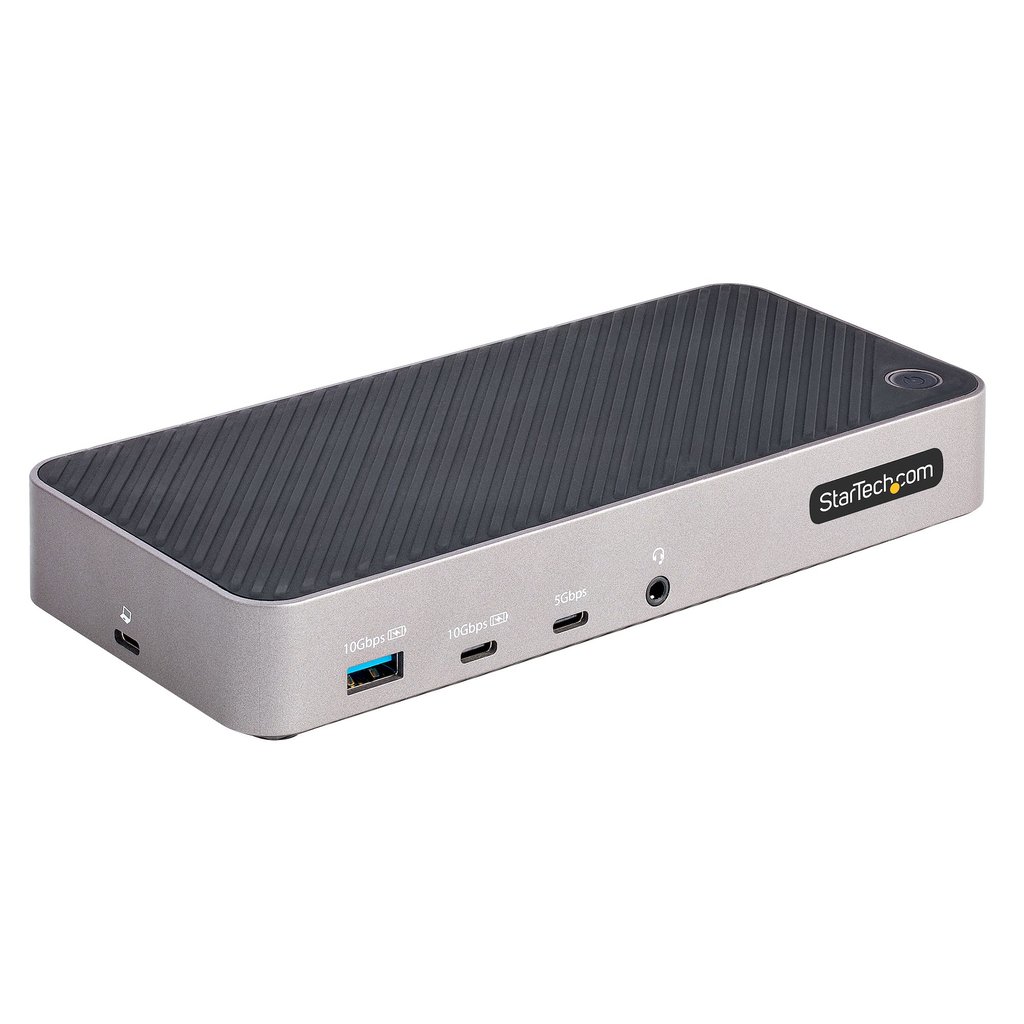

• 2x USB-A and 1x USB-C (USB 3.2 Gen 1 5Gbps) ports for USB peripheral devices.
• 1x USB-A and 1x USB-C (USB 3.2 Gen 2 10Gbps) port that supports BC 1.2 with 7.5W (1.5A) for charging tablets and smartphones.
• 1x Gigabit Ethernet port with WoL (Wake-on-LAN) for a wired Local Area Network (LAN) connection.
• 1x 3.5mm 4-position TRRS Audio Jack for a 3.5mm headset.

100W USB Power Delivery

The USB-C docking station supports 100W USB Power Delivery with the included power adapter. This allows you to charge the connected host device, as well as the devices connected to the BC 1.2 USB charging ports.

For added protection to connected USB devices, the BC 1.2 enabled USB charging ports feature Overcurrent Protection (OCP). OCP prevents USB peripherals from drawing more power than is safely allocated for the port.

Easy Deployment

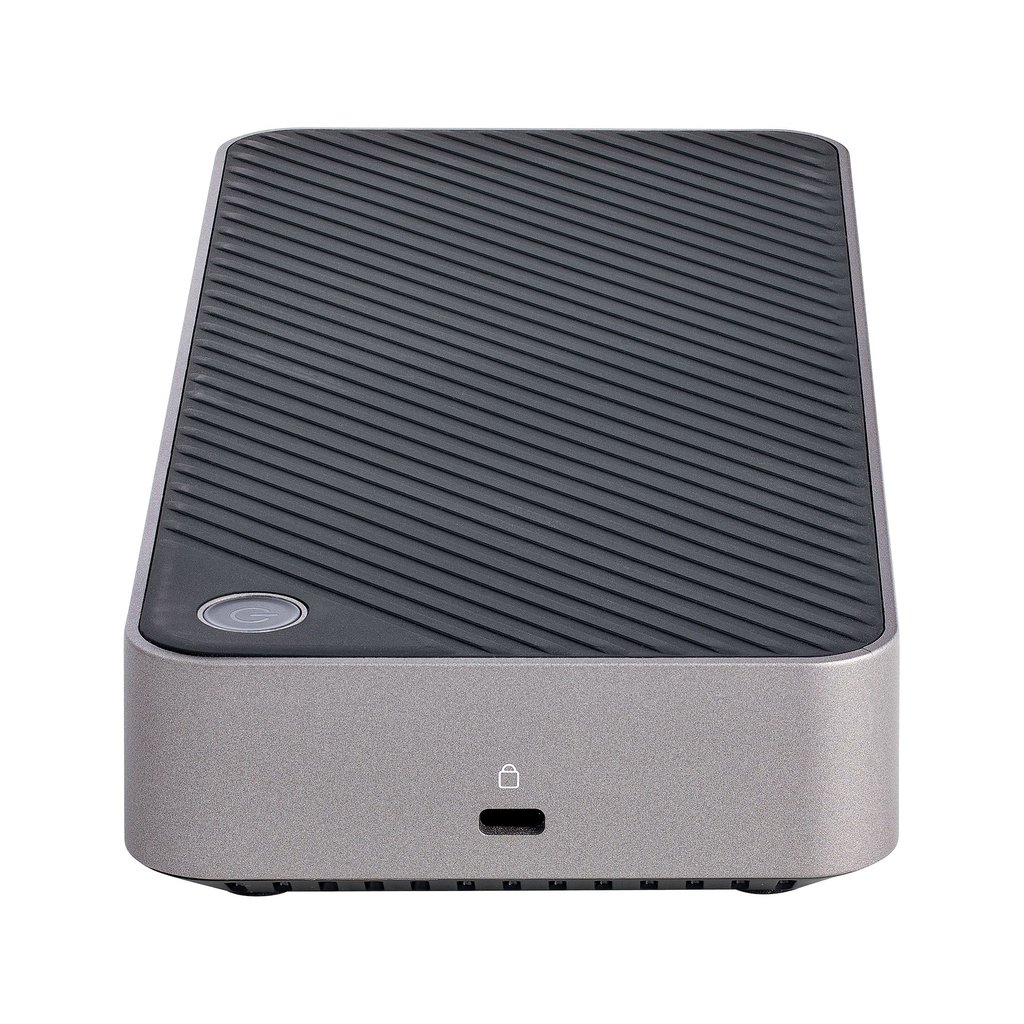

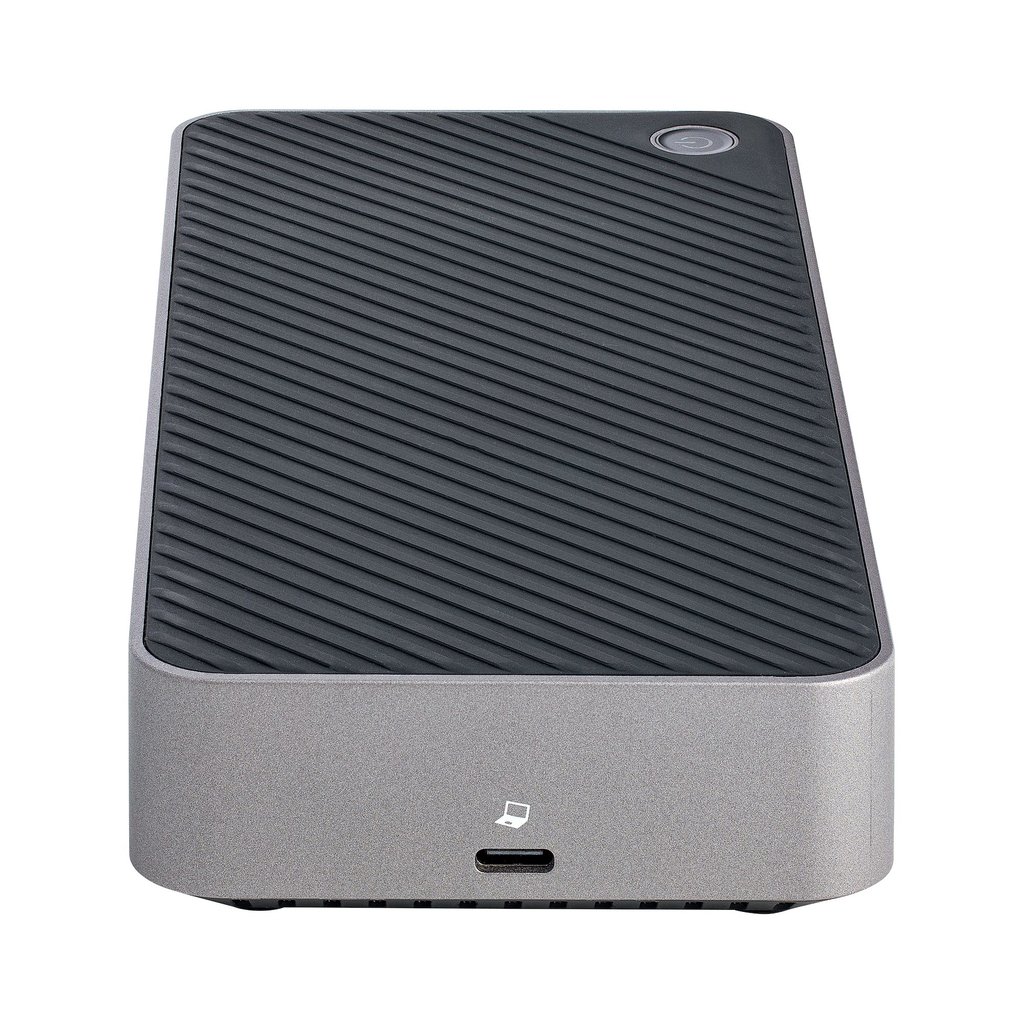

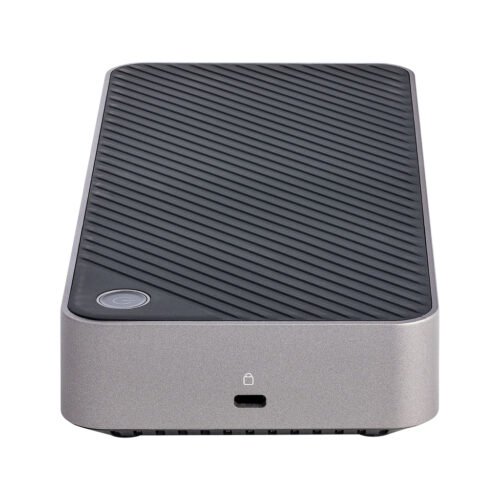

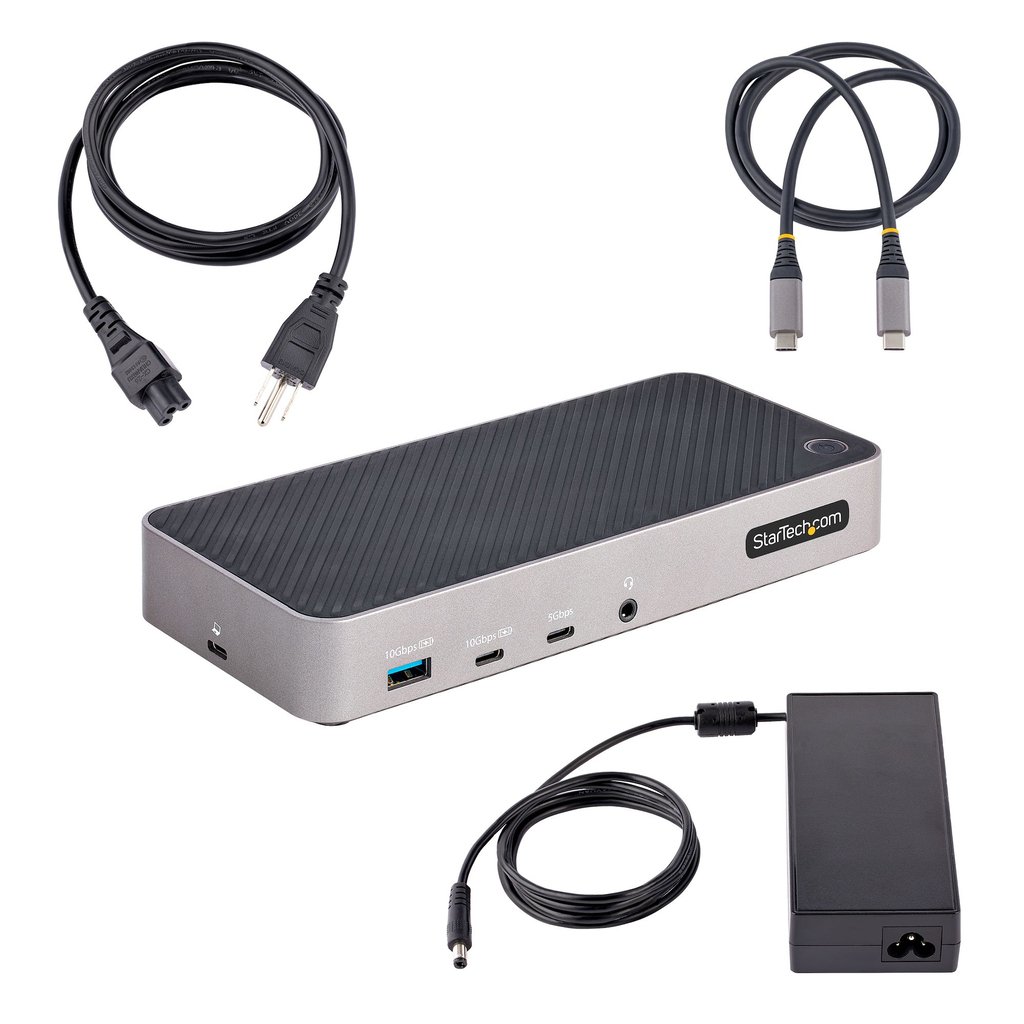

Connect the dock to your host computer, using the included 3.3ft (1m) USB-C cable. The docking station supports all major operating systems, including Windows, macOS, ChromeOS, and Ubuntu. This dock was designed for seamless integration with any compatible USB-C equipped device within your organization, including Lenovo X1/Thinkpad P Series, Dell Latitudes/Precision/XPS 15, HP Envy, Surface Laptop 3, and M1 Pro/Max/M2 MacBooks. The dock features a side-facing K-Slot for added security in shared workspaces (e.g., BYOD hoteling/hot-desking).

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

Advanced Windows Layout Utility : Setup and save custom windows layouts.

Mac Address Pass-Through Utility : Improve network security.

USB Event Monitoring Utility : Track and log connected USB devices.

Wi-Fi Auto Switch Utility : Enable users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

This product is backed for 3-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.

The StarTech.com Advantage

Additional information

Weight 1.08 lbs
Connectivity technology

Wired

Host interface

USB 3.2 Gen 2 (3.1 Gen 2) Type-C

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

HDMI ports quantity

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

HDMI version

2.0

DisplayPorts quantity

2

DisplayPort version

1.4

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN data rates

10,100,1000 Mbit/s

Product colour

Grey

Card reader integrated

No

HD type

4K Ultra HD

Maximum refresh rate

60 Hz

Power consumption (typical)

15 W

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Wind

Mac operating systems supported

Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura

Operating temperature (T-T)

0 – 70 °C

Operating relative humidity (H-H)

0 – 85%

Width

85 mm

Depth

190 mm

Height

30 mm

Weight

350 g

Package width

205 mm

Package depth

250 mm

Package height

50 mm

Package weight

1.1 kg

Storage temperature (T-T)

-10 – 55 °C

Headphone outputs

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB Power Delivery (USB PD)

Yes

USB Power Delivery revision

3.0

USB Power Delivery up to

100 W

Combo headphone/mic port

Yes

Headphone connectivity

3.5 mm

DC-in jack

Yes

Maximum digital resolution

4096 x 2160 pixels

Cable lock slot

Yes

Cable lock slot type

Kensington

LED indicators

Power

Housing material

Plastic

AC input voltage

100 – 240 V

Input current

2.5 A

Output voltage

24 V

Output current

5.41 A

Cables included

USB Type-C to USB Type-C

AC adapter included

Yes

Quick start guide

Yes

Compliance certificates

CE

Products per master (outer) case

10 pc(s)

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Data transfer rate

10 Gbit/s

Power source type

DC

Other operating systems supported

ChromeOS

Wake-on-LAN ready

Yes

Power plug type

Type M

Master (outer) case width

280 mm

Master (outer) case length

430 mm

Master (outer) case height

290 mm

Chipset

DisplayLink – DL-6950-N, VIA – VL817C0, Parade – PS176C0

Sustainability compliance

Yes

Networking standards

IEEE 802.3ab

Linux operating systems supported

Yes

USB Type-C DisplayPort Alternate Mode

Yes

Copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-T

Mobile operating systems supported

Android
