StarTech.com 2 Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention
StarTech.com 2-Port USB to Serial Adapter DB9 – RS232 RS422 RS485 – USB Serial Adapter – USB to Serial RS232 Adapter – USB to RS232 Hub
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Add RS232, RS422 and RS485 support to your laptop or desktop computer via USB

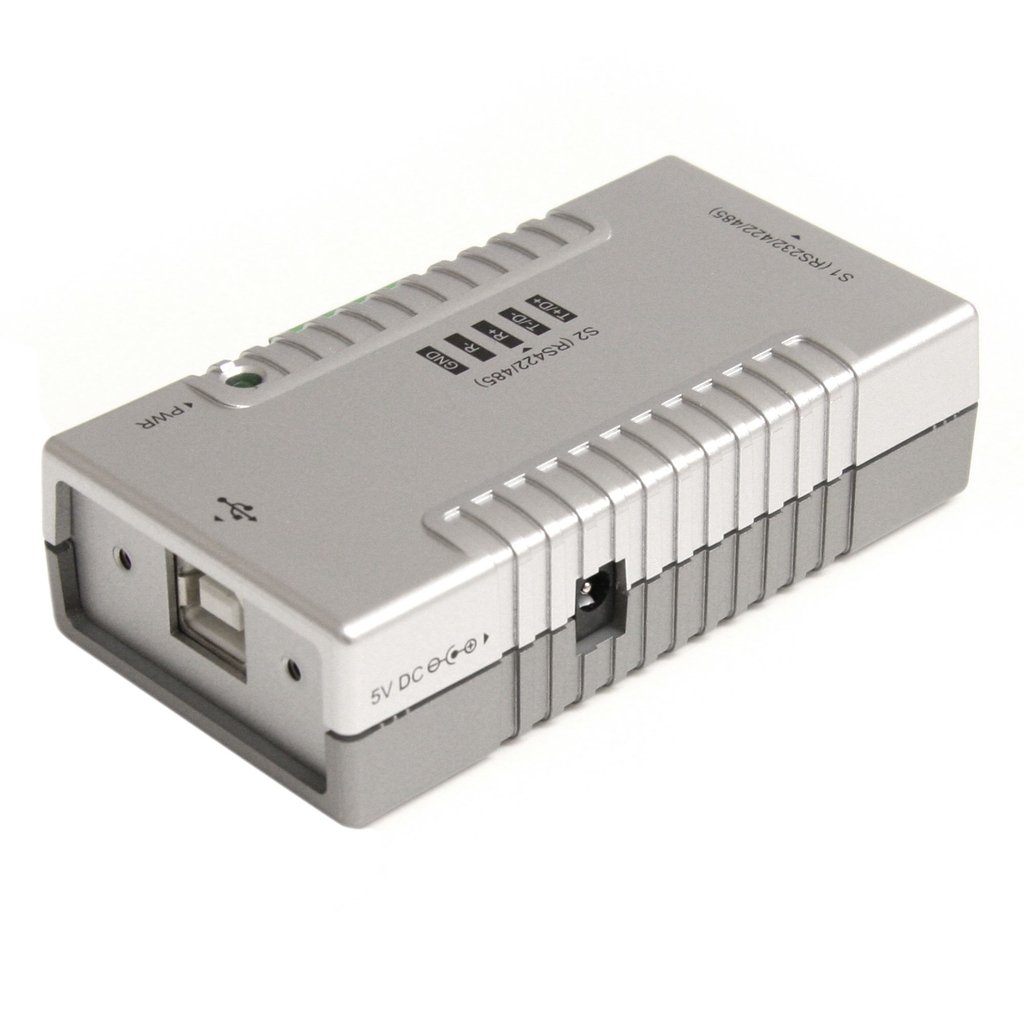

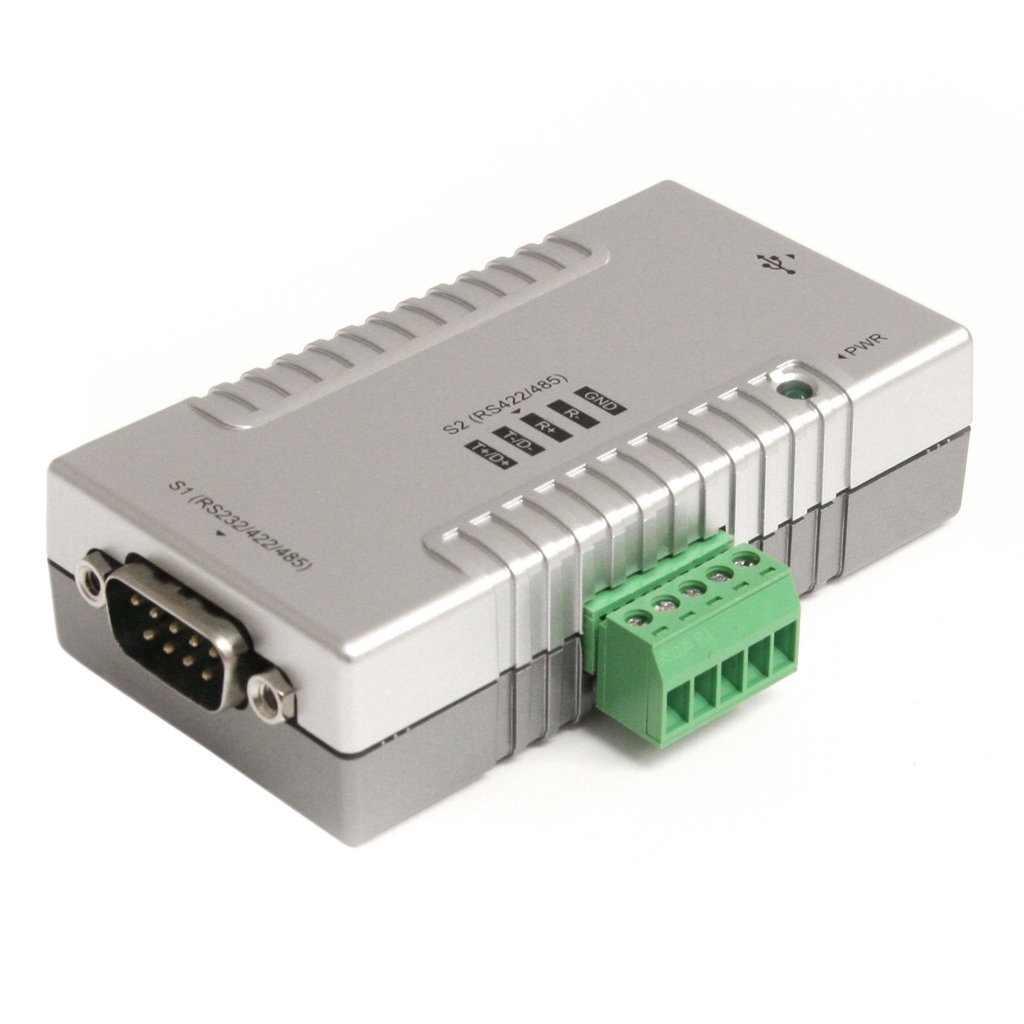

The ICUSB2324852 2 Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention lets you connect every type of serial device to your USB-enabled computer, whether it be for RS232, RS422, or RS485 communication. The adapter features a 9-pin (DB9) male and a 5-pin terminal block serial connector as well as dip-switch controls for easy port configuration with minimal software requirements. The adapter also supports using 2 ports simultaneously, including with mixed protocols; for example RS-232 on port 1, and RS-485 on port 2, or a number of other combinations. For a convenient, and clean installation in office or industrial settings, the RS232/RS422/RS485 USB Adapter is wall-mountable and fully powered via the host USB connection, providing power to the attached serial device without requiring an external power adapter. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Additional information
| Weight | 0.26 lbs |
|---|---|
| Product colour | Grey |
| Operating temperature (T-T) | 0 – 55 °C |
| Storage temperature (T-T) | -25 – 85 °C |
| Weight | 300 g |
| Chipset | FTDI – FT2232H |
| Host interface | USB Type-B |
| Output interface | Serial |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Wind |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.6 Snow Leo |
| Compliance certificates | CE, RoHS |
| Depth | 82.3 mm |
| Internal | No |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Width | 44.2 mm |
| Height | 23 mm |
| Harmonized System (HS) code | 84733020 |
| Mounting brackets included | Yes |
| Serial interface type | RS-232/422/485 |
| LED indicators | Power |
| Operating relative humidity (H-H) | 5 – 95% |
| Quantity per pack | 1 pc(s) |
| Package width | 144 mm |
| Package depth | 208 mm |
| Package height | 40 mm |
| Package weight | 310 g |
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 395 mm |
| Master (outer) case length | 514 mm |
| Master (outer) case height | 329 mm |

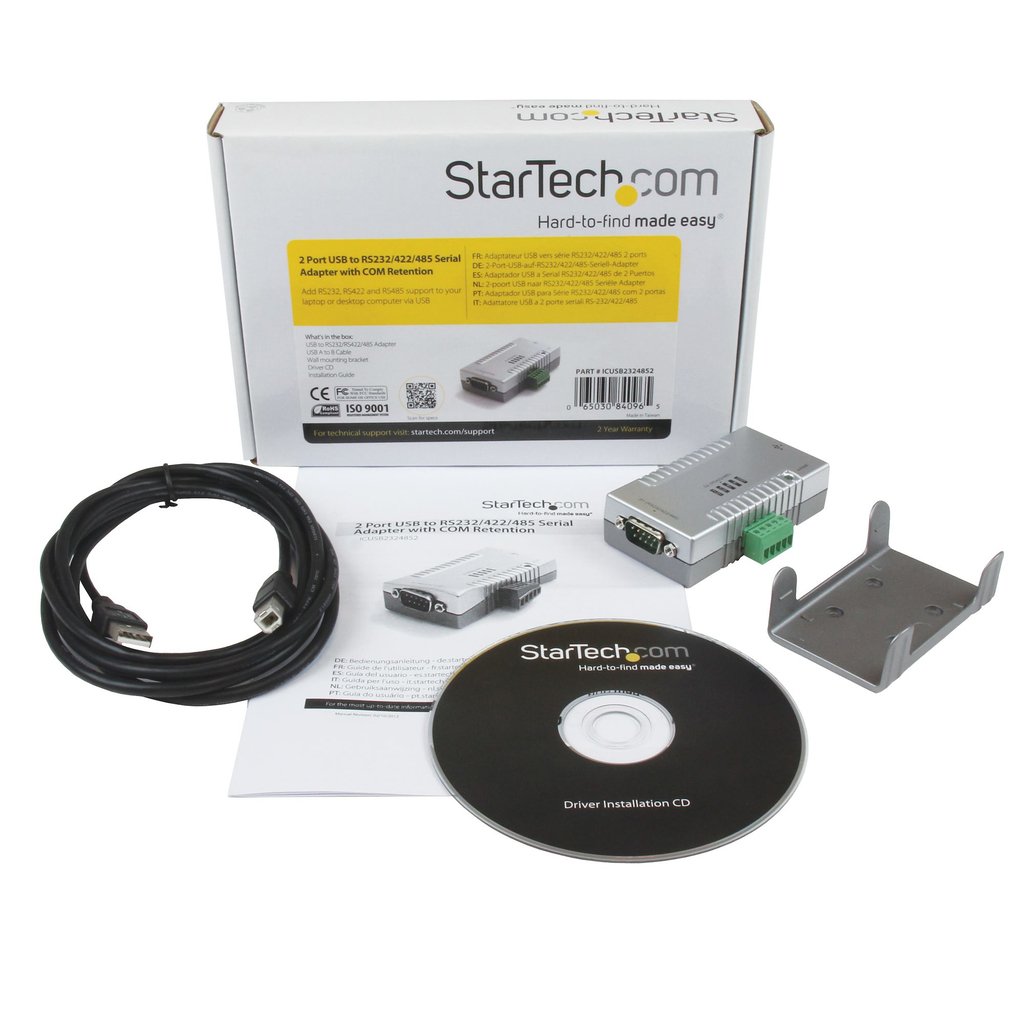

| Cables included | USB Type-A to USB Type-B |
| Serial ports quantity | 1 |
| FIFO (First In, First Out) | 128 B |
| Compatible operating systems | Windows 98SE/ ME/ 2000/ XP(32/64bit)/ 2003(32/64bit)/ Vista(32/64bit)/ Server 2008(32/64bit)/ 7(32/64bit)/ Server 2008 R2, Mac 9.8/OS X, Linux 2.4.x;Windows XP Embedded, CE 4.2/ 5.2/ 6.0, PocketPC 200 |
| Baud rate | 921.6 Kbit/s |
| Data bits | 7, 8 |
| Stop bits | 1, 2 |
| Parity bit | Even, Mark, No, Odd, Space |
| Flow Control type | No, XON/XOFF |
| Sustainability compliance | Yes |
| Output voltage | 5 V |
| Drivers included | Yes |
| Manual | Yes |
| Other operating systems supported | Windows XP Embedded |
