StarTech.com VESA TV Wall Mount, Adjustable Full Motion TV Wall Mount For 23″-55″ Displays, Slim TV Mounting Bracket Supports 6
StarTech.com VESA TV Wall Mount, Adjustable Full Motion Mount For 23″-55″ Displays, Slim Wall Mount TV Bracket Supports 66lb (30kg), Extendable/Tilting/Swivel Monitor Wall Mount (FHA-TV-WALL-MOUNT)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Mounting Hardware Included | One-touch Adjustments | Digital Signage

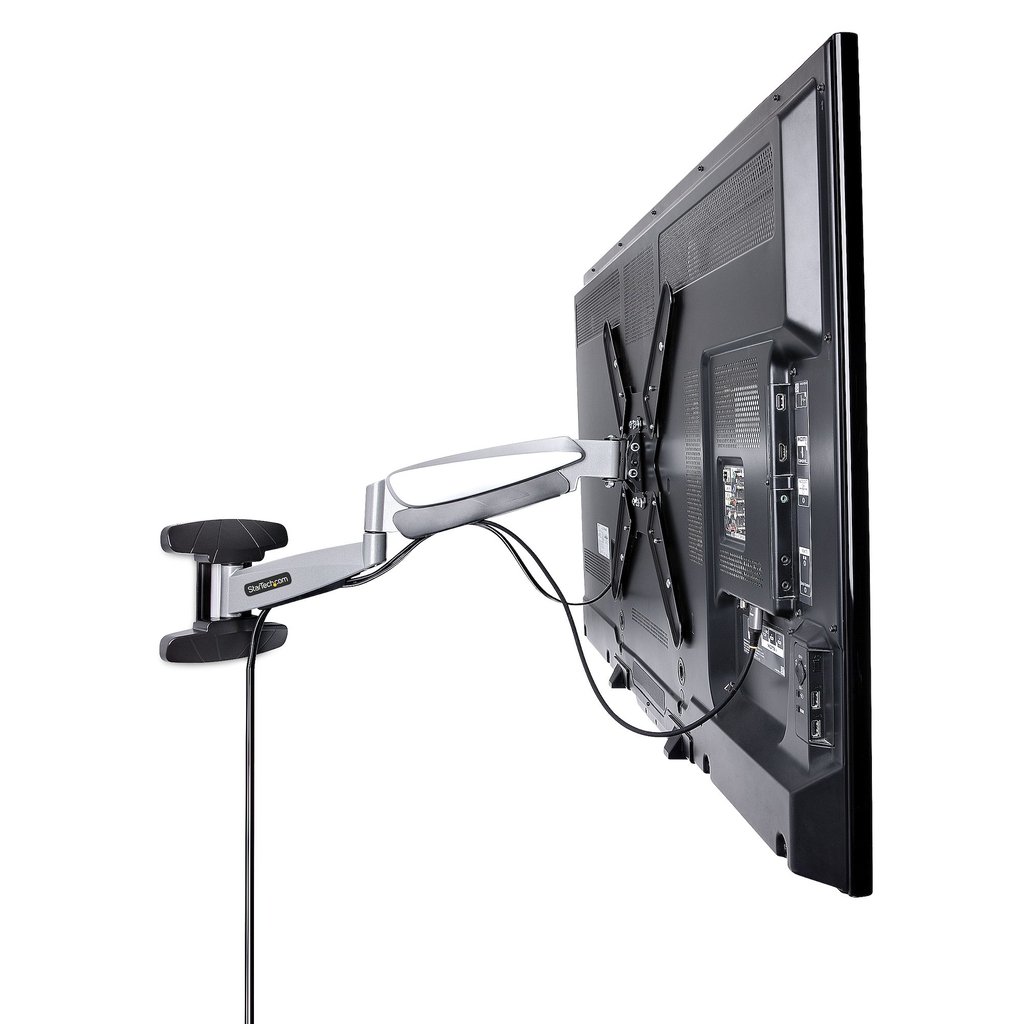

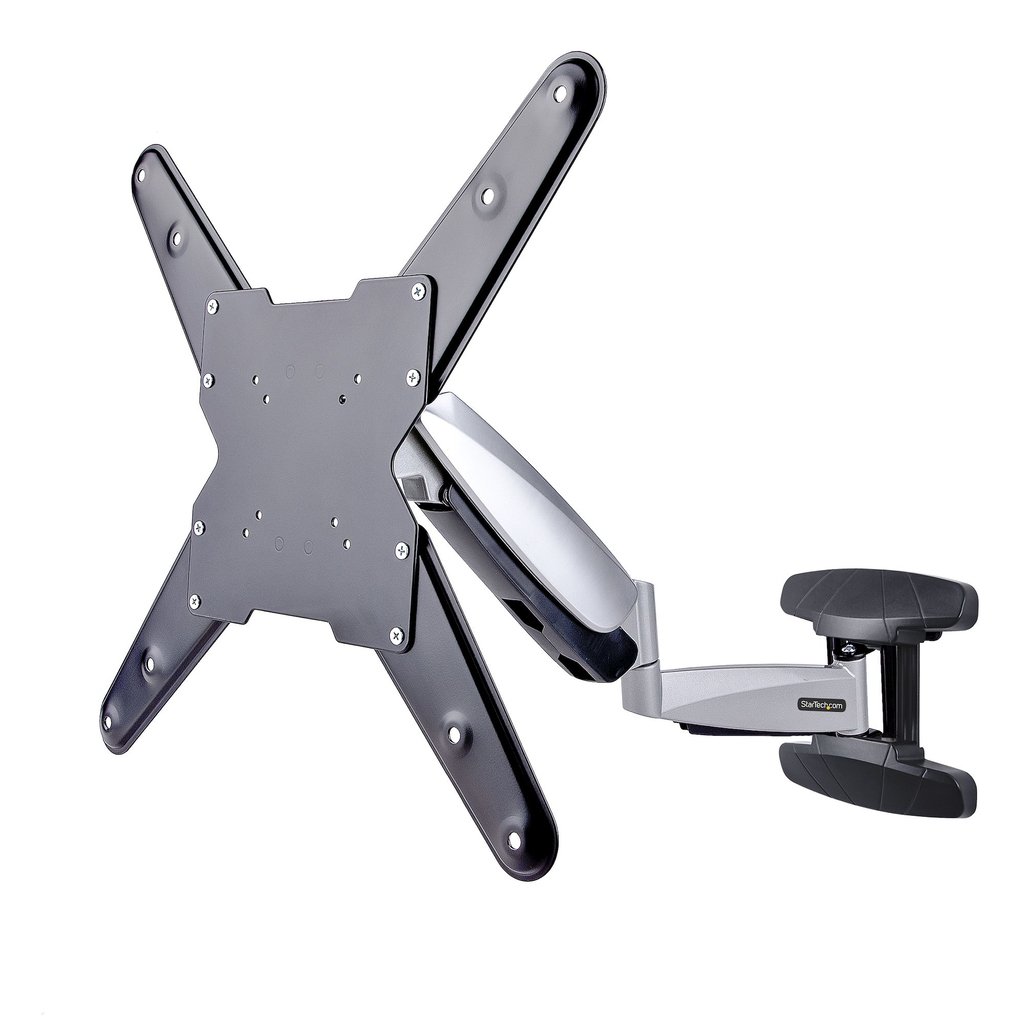

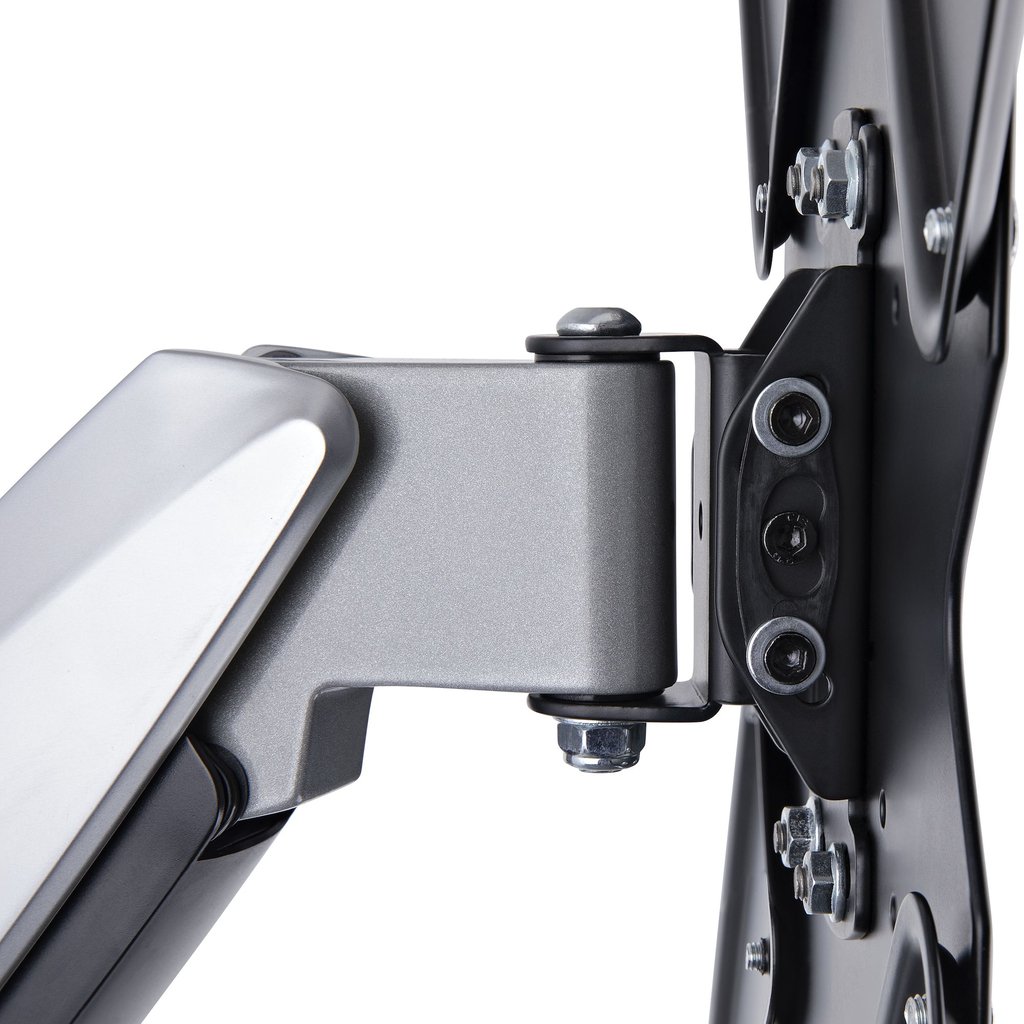

The steel and aluminum construction of this VESA TV Wall Mount supports TVs from 23″ to 55″ and up to 66lb (30kg). The arm assembly provides smooth one-touch height adjustment thanks to its spring-loaded mechanism that acts as a counterbalance. The VESA plate supports mounting patterns of 75×75 to 400×400.
Versatile TV Mounting

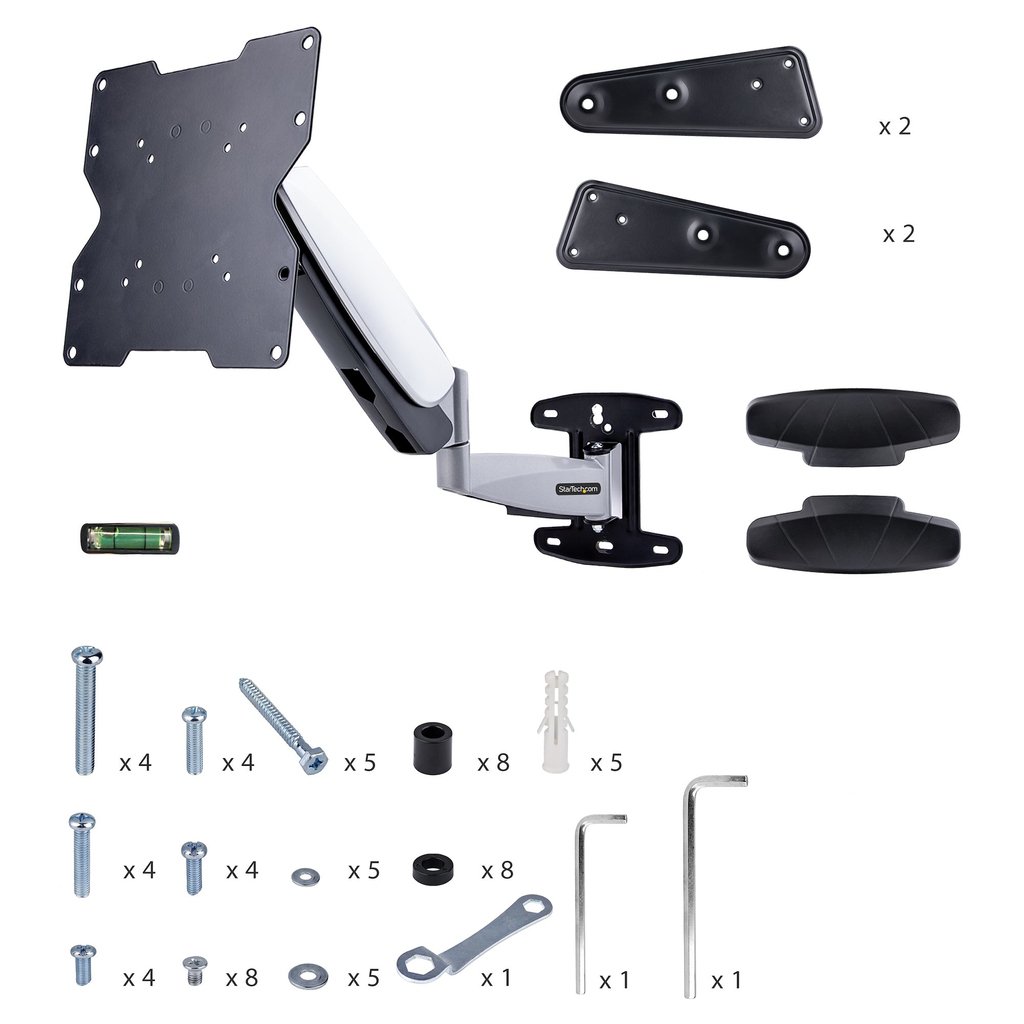

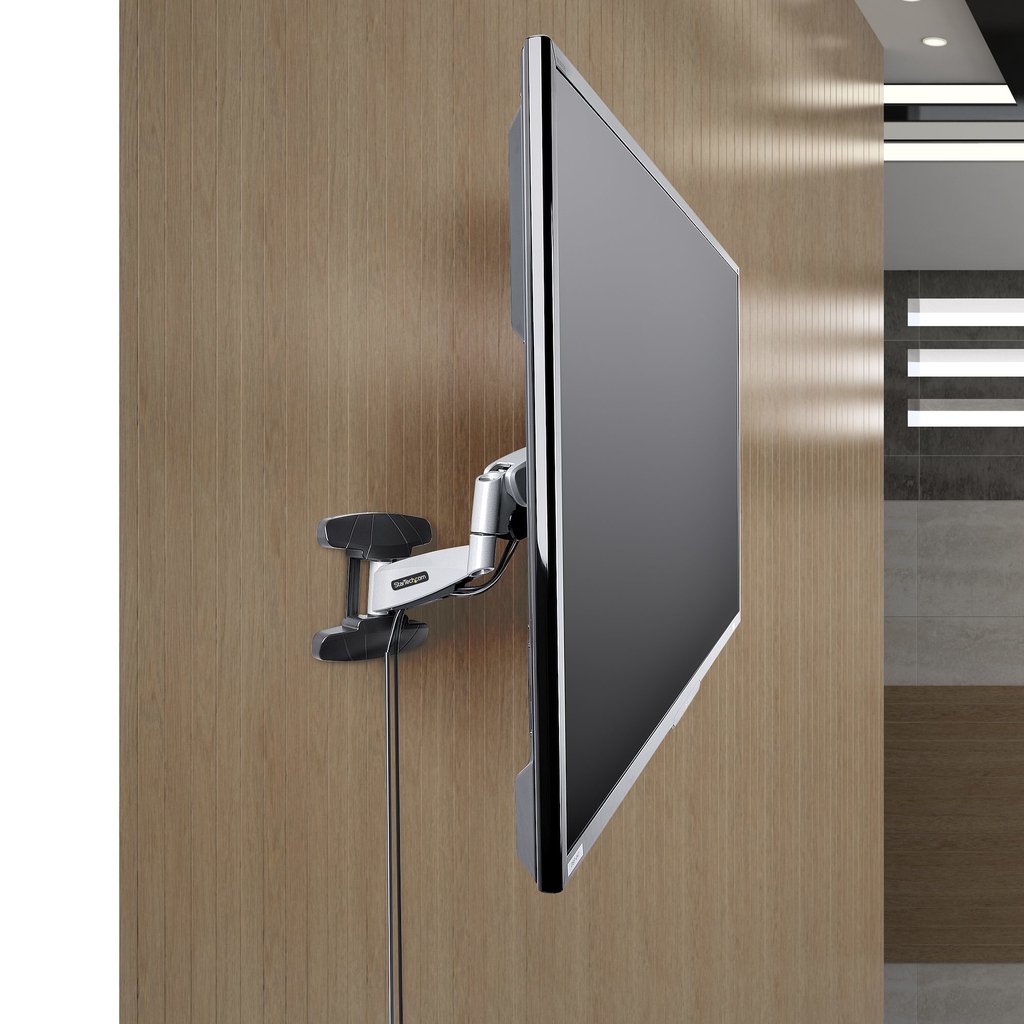

Securely mount a flat or curved-screen TV or digital signage in a convenient location for viewing by visitors, clients, and employees. This TV wall mount is ideal for lobbies, boardrooms, and manufacturing facilities. The lateral range of 3.54 ft (1.08m) is ideal for corner mounting. The jointed arm folds on itself and creates a slim profile from the wall of just 2.2in (5.8cm) for limited space installations. The minimum TV weight is 17.6lb (8kg). M5/M6/M8 Screws of various lengths and an assortment of washers and spacers enhance TV mounting compatibility. Mount into wood-stud or concrete walls, using the included hardware.

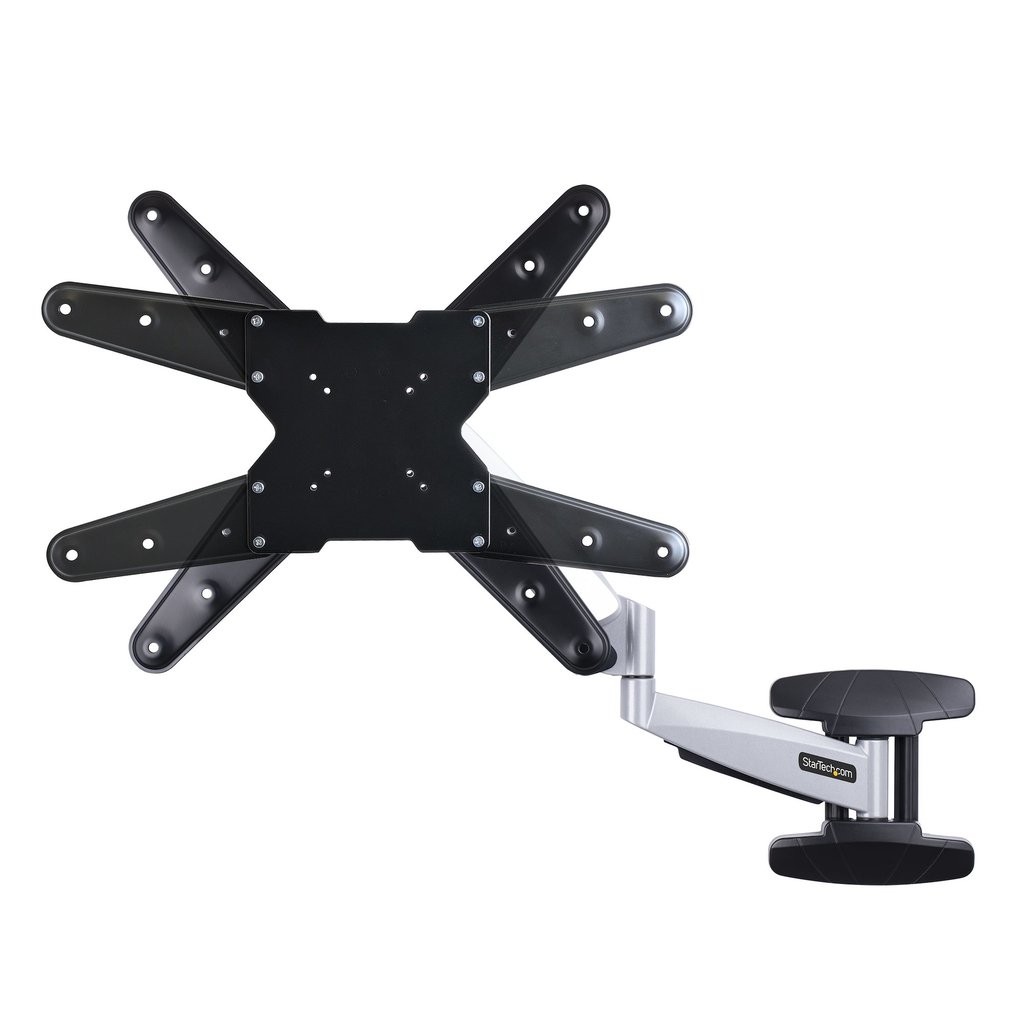

Supported VESA mounting patterns: 75×75,100×100, 200×100, 200×200, 300×300, 400×200, and 400×400.
Full-Motion Adjustment

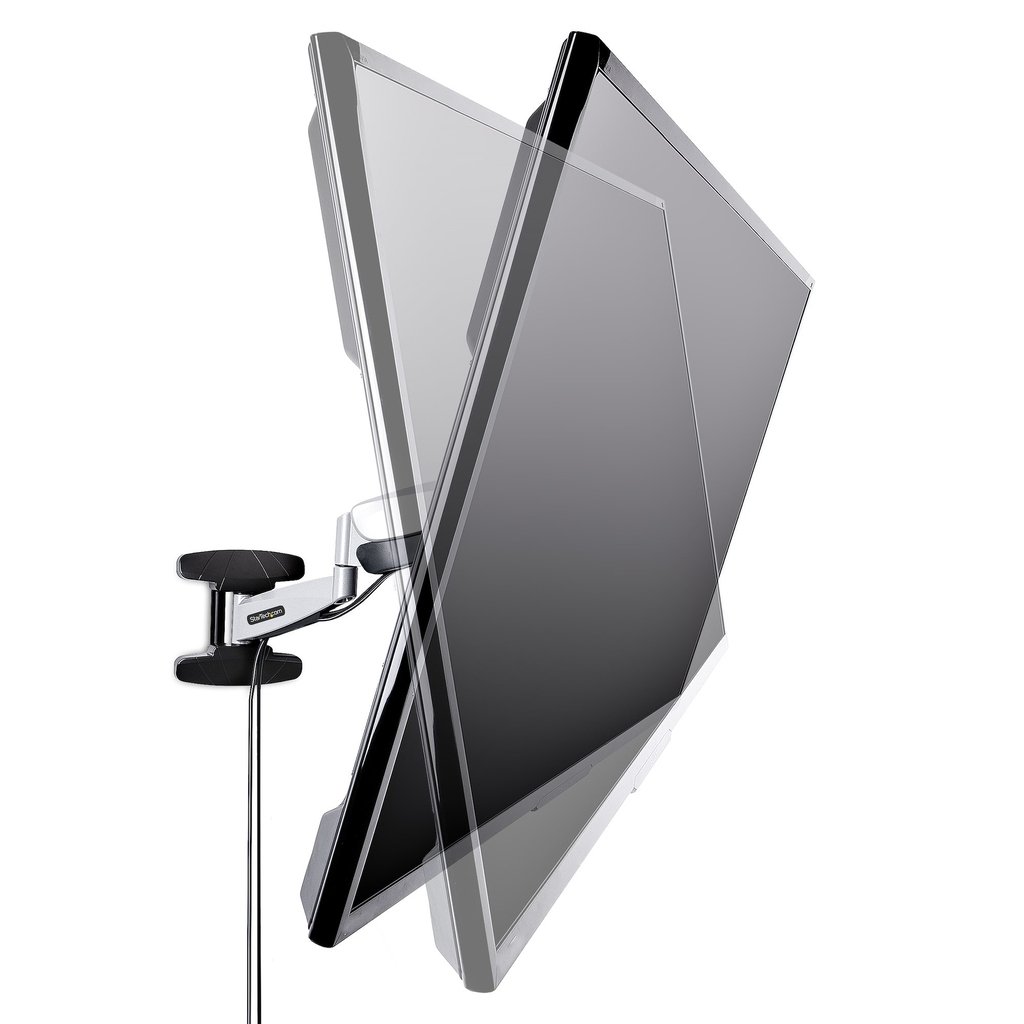

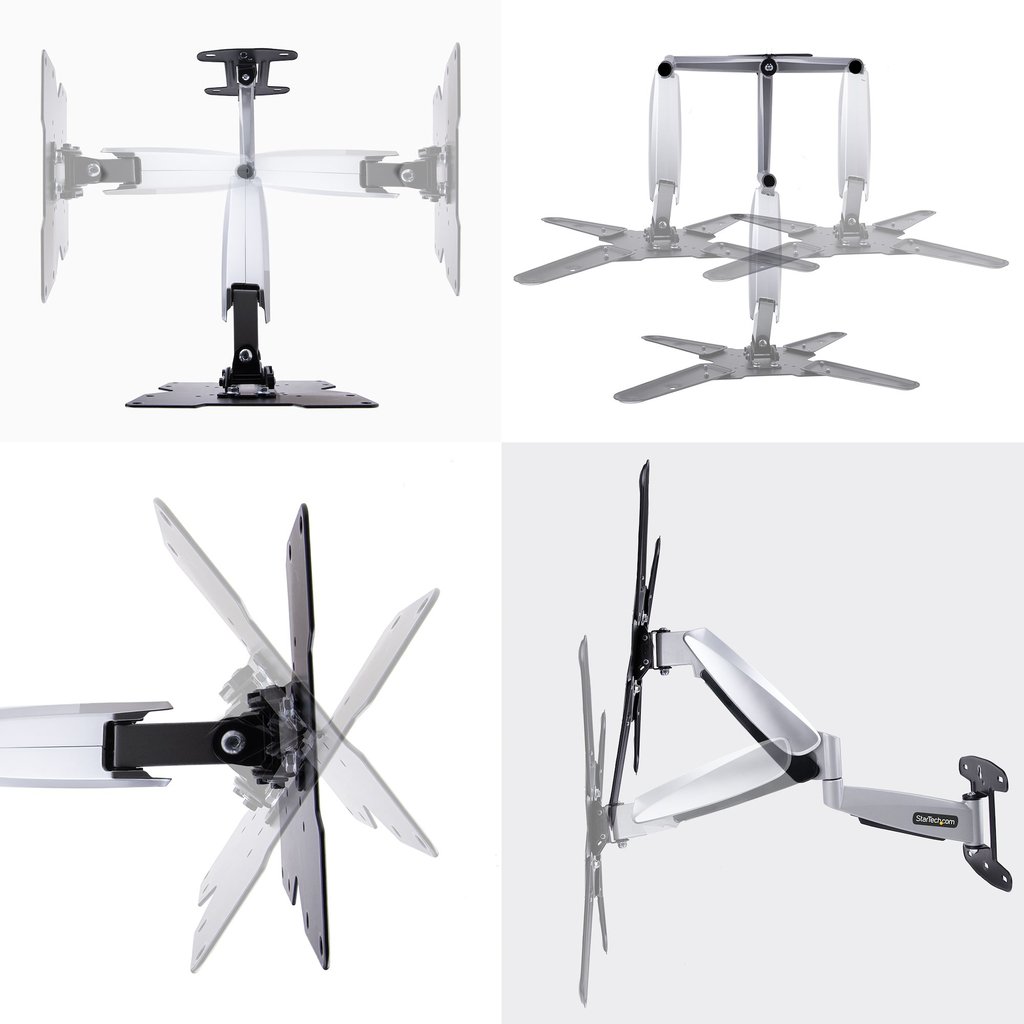

The VESA plate swivels +90 / -90 degrees, tilts +8 / -15 degrees, and rotates +3 / -3 degrees. Customize the viewing experience and comfort with these full-motion capabilities. The one-touch spring-assisted mechanism facilitates effortless height adjustments, with a range of up to 12.6in (32cm).
The arm assembly extends up to 23.4 in (59.5 cm) from the wall to accommodate different viewing positions.
Durable Construction
The robust steel and aluminum design safely and securely supports the TV. The arm assembly features built-in cable management and a wall mount cover for a an organized and visually appealing installation.
The height adjustable TV wall mount is backed for two years, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
Additional information
| Weight | 6.95 lbs |
|---|---|
| Number of displays supported | 1 |
| Maximum screen size | 139.7 cm (55") |
| Mounting type | Wall |
| Maximum weight capacity | 30 kg |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 400 x 400 mm |
| Minimum screen size | 58.4 cm (23") |
| Panel mounting interface | 75 x 75,100 x 100,200 x 100,200 x 200,300 x 300,400 x 200,400 x 400 |
| Tilt angle range | -15 – 8° |
| Swivel angle | 180° |
| Rotating | Yes |
| Angle of rotation | 3° |
| Distance to the wall (max) | 59.5 cm |
| Distance to the wall (min) | 5.8 cm |
| Product colour | Black, Silver |
| Housing material | Aluminium, Steel |
| Country of origin | China |
| Weight | 6 kg |
| Package width | 585 mm |
| Package depth | 440 mm |
| Package height | 95 mm |
| Package weight | 6.1 kg |
| Master (outer) case width | 605 mm |
| Master (outer) case length | 460 mm |
| Master (outer) case height | 305 mm |
| Products per master (outer) case | 1 pc(s) |
| Height adjustment | Yes |
| Depth | 595 mm |
| Height | 450 mm |
| Width | 450 mm |
| Cable management | Yes |
| Number of washers included | 13 |
| Number of spacers included | 16 |
| Screws included | Yes |
| Number of screws | 33 |
| Manual | Yes |
| Wrench included | Yes |
| Wrench type | Hexagonal wrench |
| Anti-theft function | No |
| VESA mount included | Yes |
| Mounting plate included | Yes |
