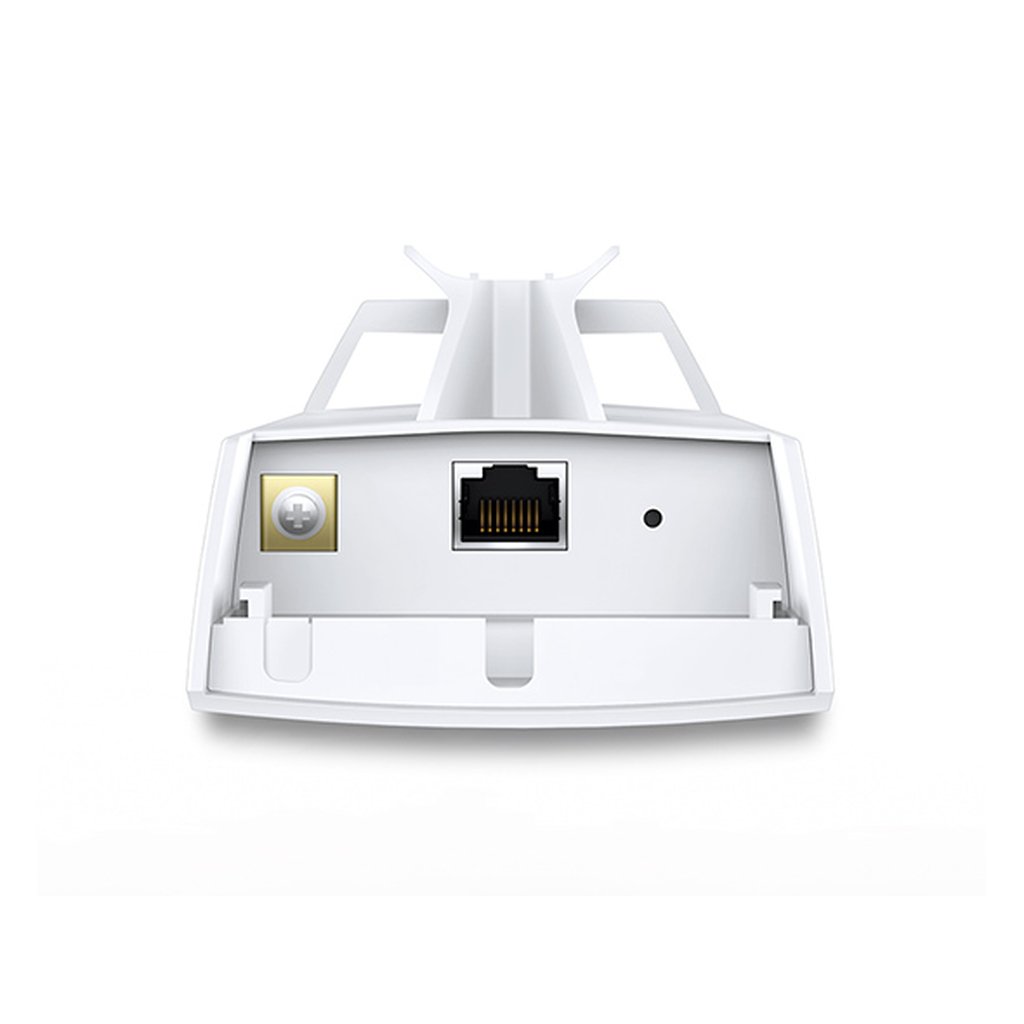

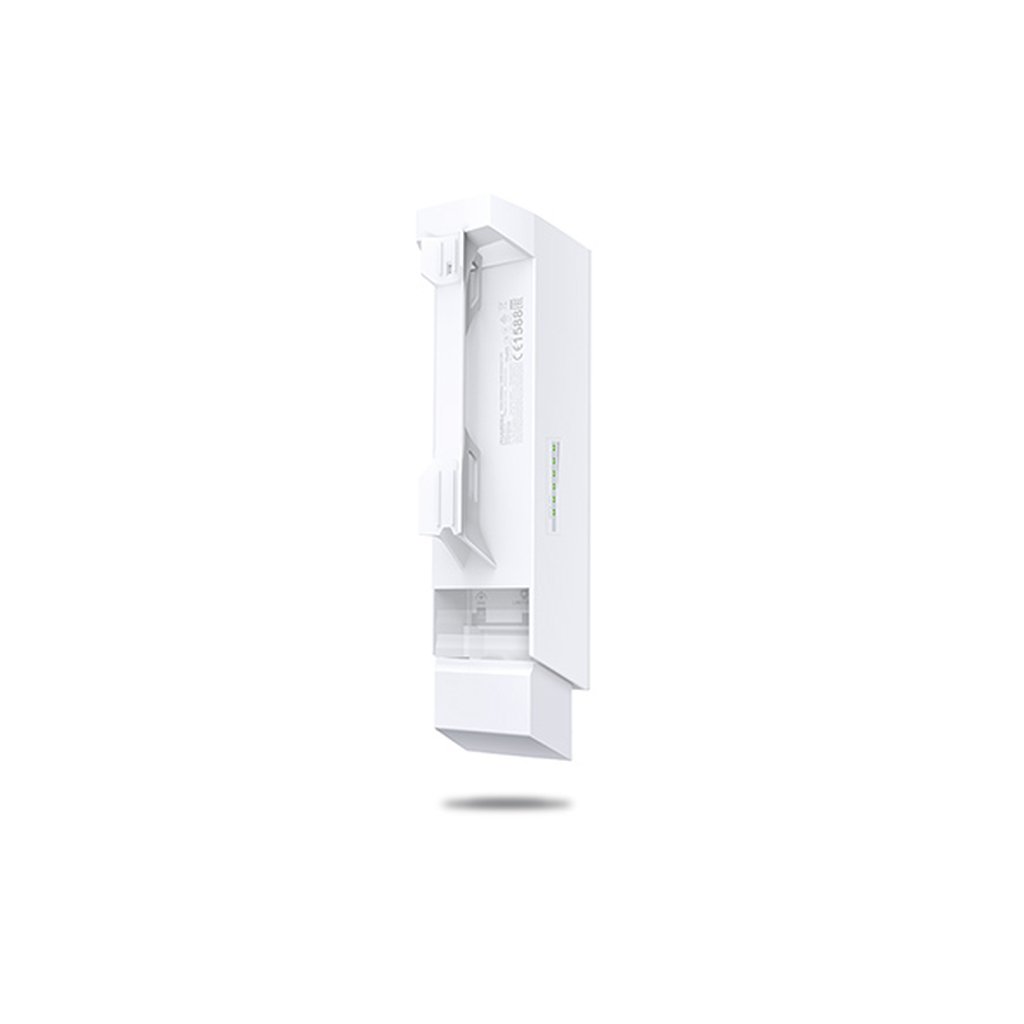

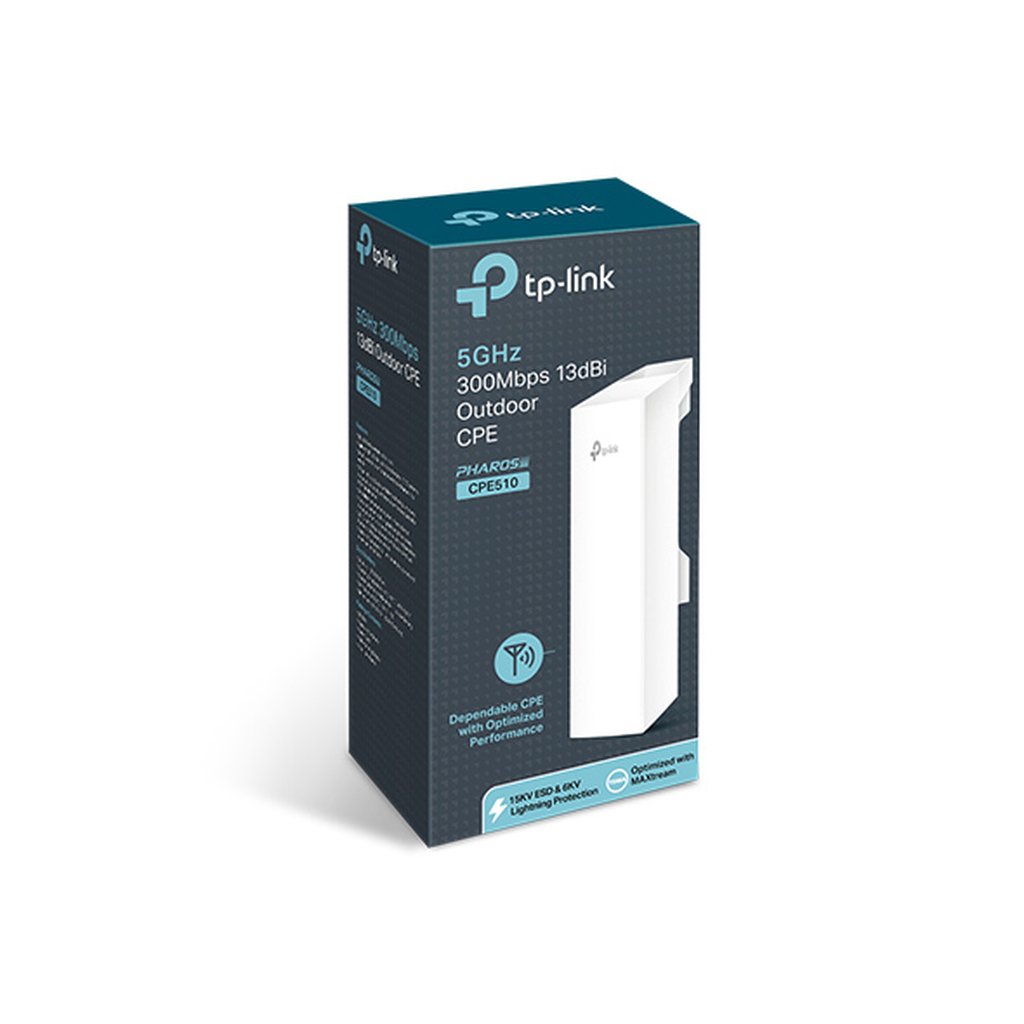

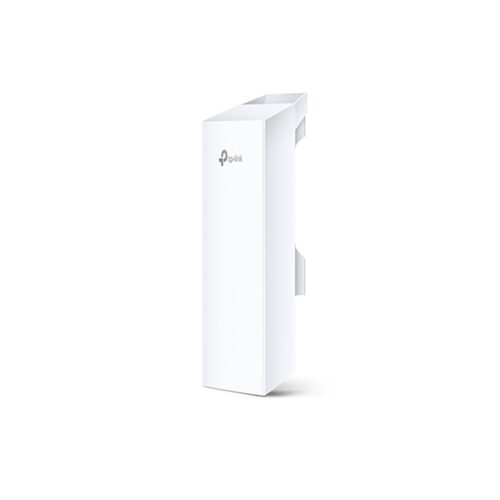

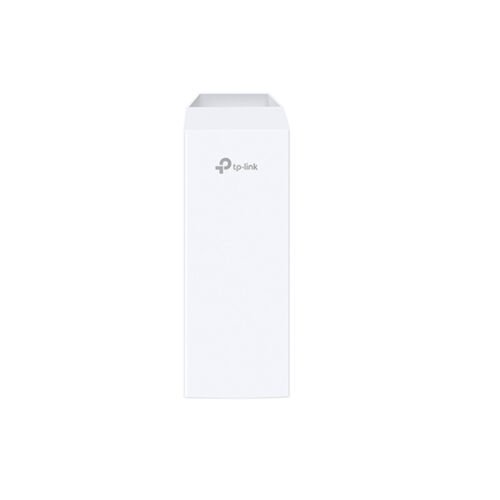

TP-Link CPE510 wireless access point 300 Mbit/s White Power over Ethernet (PoE)
5GHz 300Mbps 13dBi Outdoor CPE, 560 Mhz, 64MB DDR2 RAM, 8MB Flash, IPX5, IEEE 802.11 a/n, 27dBm/500mw (Adjustable power by 1dBm)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
TP-LINK’s 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.
Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30℃ (-22℉) to +70 ℃ (158℉).
Advanced Antenna System
– Built-in High Gain Dual-Polarized Antenna
– Dedicated metal reflector ensures higher gain and lower noise interference
15km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission, covering a range of 15km+ , tested in the field.
TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE510 uses MAXtream TDMA Technology.
Additional information
| Weight | 0.9 lbs |
|---|---|
| Maximum data transfer rate | 300 Mbit/s |
| Frequency band | 5.15 – 5.85 GHz |
| Bandwidth | 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11n |
| Security algorithms | 64-bit WEP, 128-bit WEP, 152-bit WEP, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| MAC address filtering | Yes |
| Web-based management | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Power over Ethernet (PoE) | Yes |
| Input current | 0.8 A |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
| Antenna gain level (max) | 13 dBi |
| Width | 224 mm |
| Depth | 75 mm |
| Height | 60 mm |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Certification | FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-markRoHS |
| Operating relative humidity (H-H) | 10 – 90% |
| Operating temperature (T-T) | -30 – 70 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Storage relative humidity (H-H) | 5 – 95% |
| Antennas quantity | 1 |
| Cables included | AC |
| WAN connection | Ethernet (RJ-45) |
| Power consumption (typical) | 13 W |
| Flash memory | 8 MB |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Antenna features | Integrated antenna |
| Management protocols | TDMA |
| Internal | No |
| Internal memory | 64 MB |
| Harmonized System (HS) code | 85176990 |
| Receiver sensitivity | 802.11a:54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm802.11n:MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm,MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm,MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm,MCS |
| Compatible operating systems | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. |
| Management platform | Pharos Control |
| Built-in processor | Yes |
| Maximum outdoor range | 15000 m |
| Wi-Fi data rate (max) | 300 Mbit/s |
