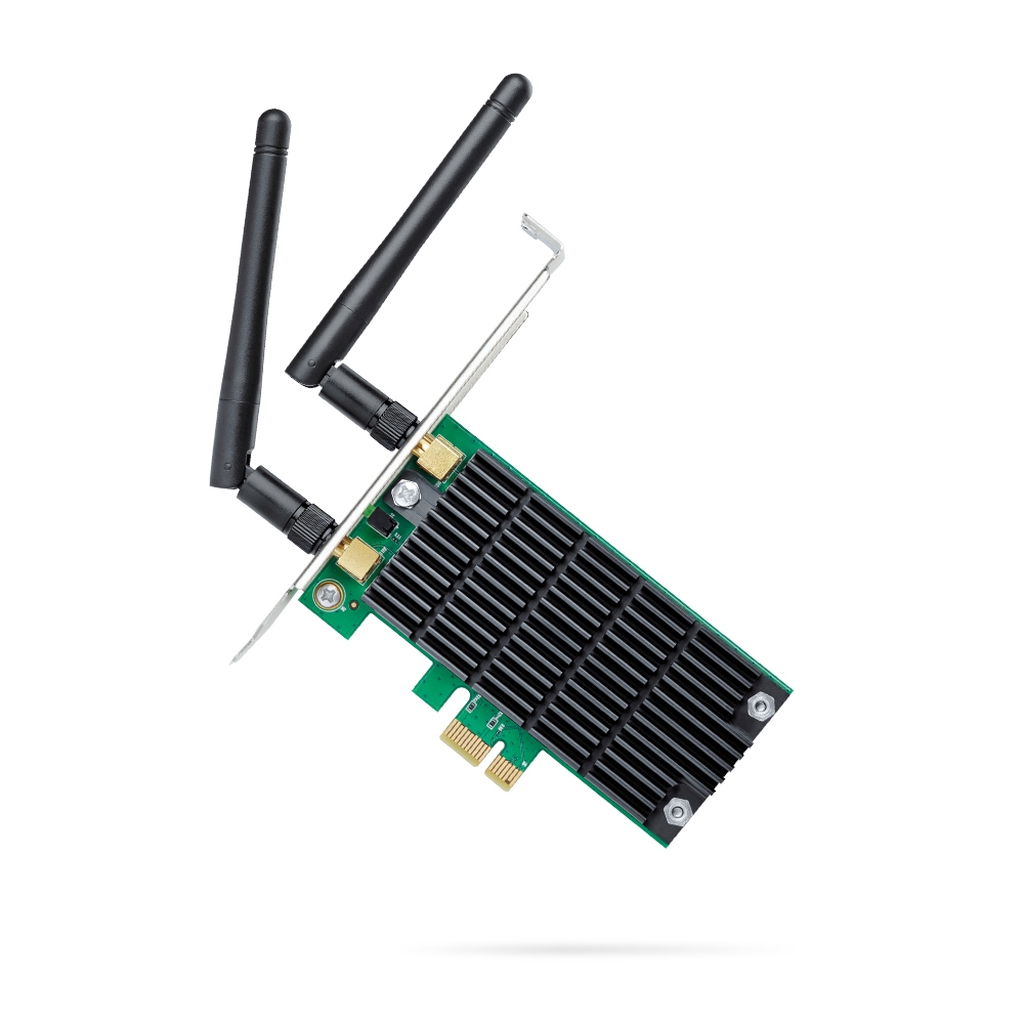

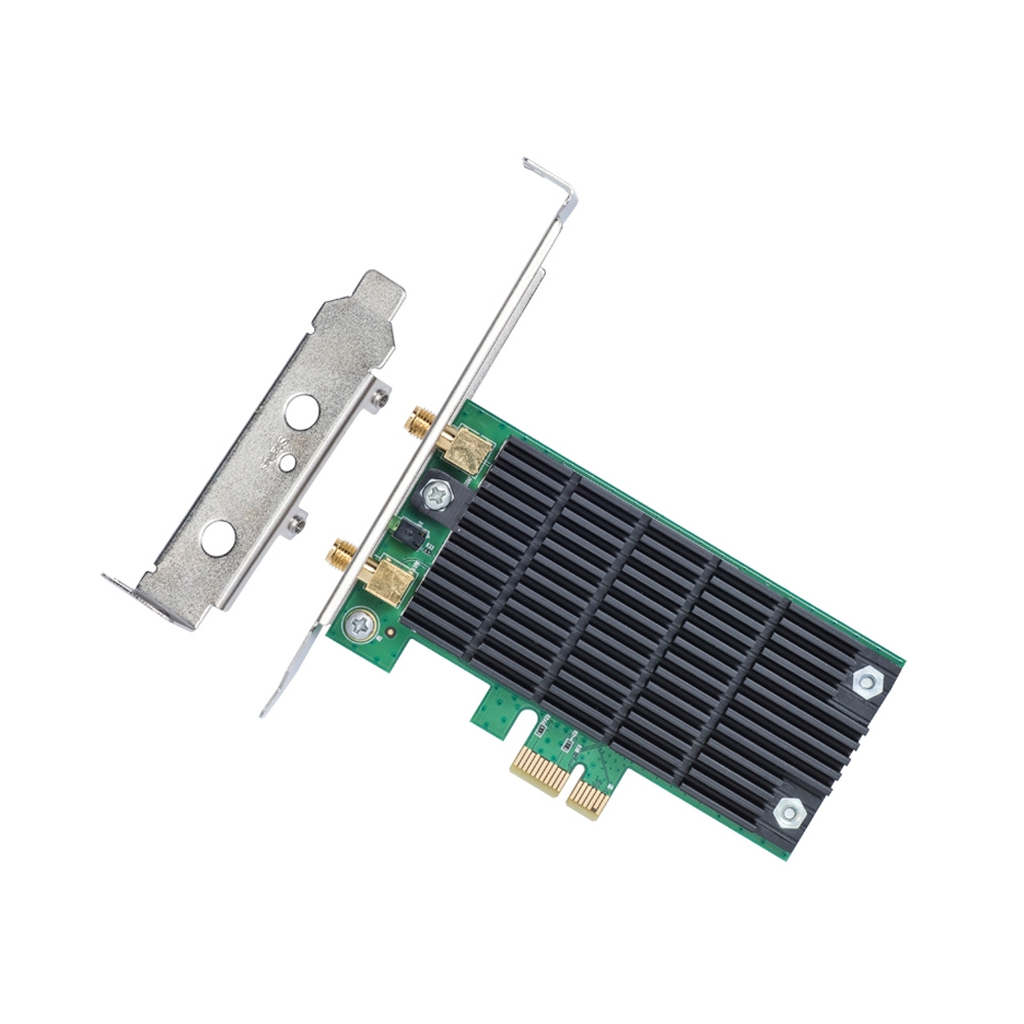

TP-Link Archer T4E Internal WLAN 867 Mbit/s
Dual Band, PCI Express, 2.4/5 GHz, 300/1200 Mbps, 2×2 MIMO, EEE 802.11ac
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
802.11ac – Dual Band Wi-Fi for Faster Connections
TP-LINK’s Archer T4E supports the advanced Wi-Fi standard of IEEE 802.11ac, offering 3 times transferring rates as IEEE 802.11n. You can send emails and browse the web with 2.4GHz network, while keeping the speedy 5GHz band free for gaming, HD streaming and other bandwidth intensive applications.

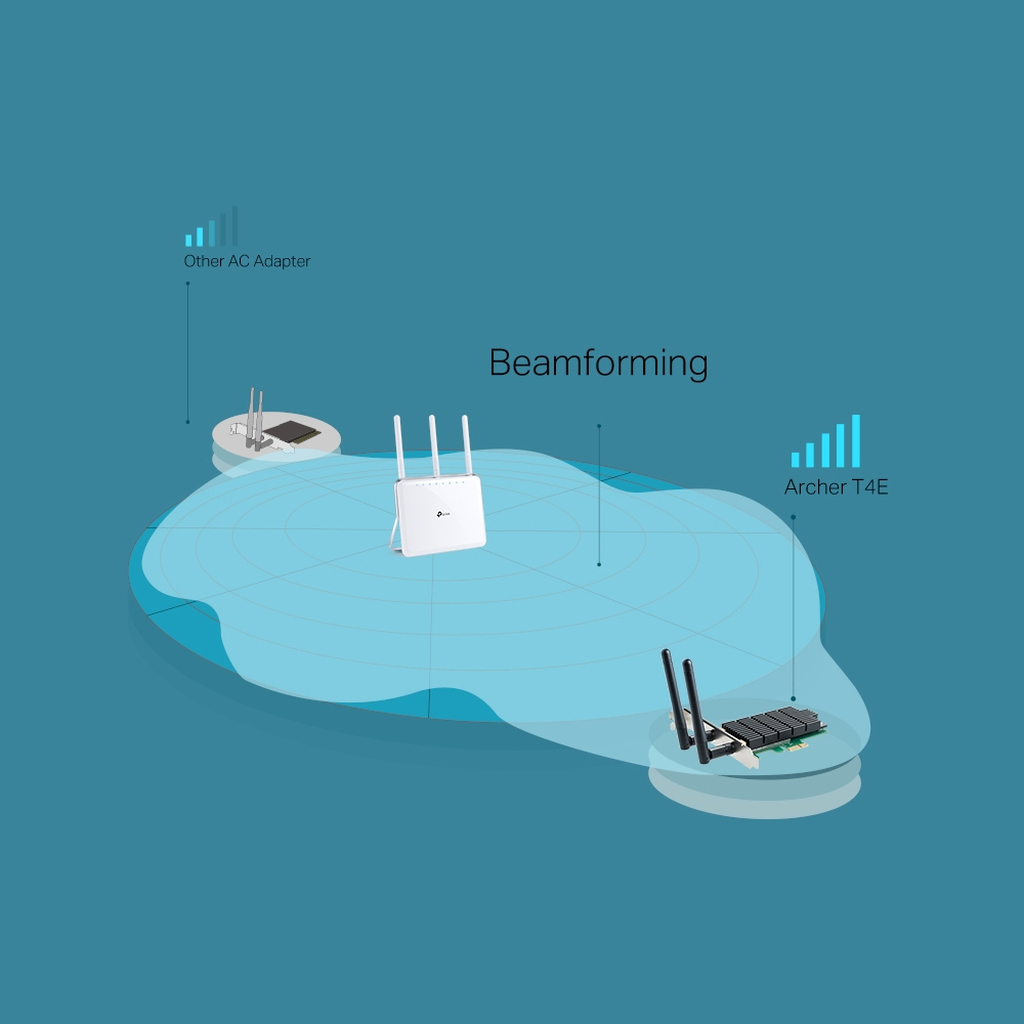

Greater Coverage with Beamforming
Beamforming technology smartly focuses Wi-Fi signals towards connected devices for stable connections and boosted range.

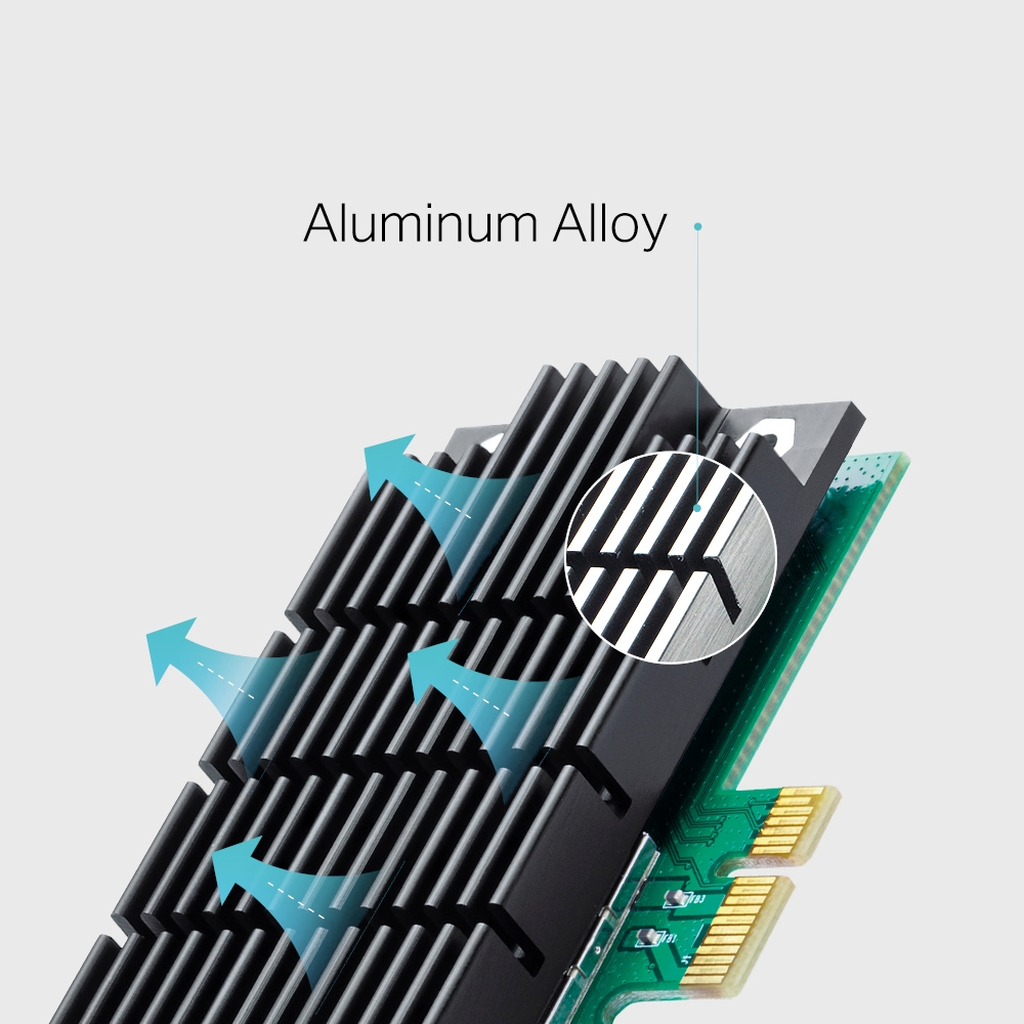

Heat Sink for Ultimate Stability
A heat sink helps to dissipate the thermal energy generated by the adapter, which in turn improves stability. Additionally, lower temperatures help to extend the product lifespan.
External Antennas for More Targeted signal
Two external antennas utilize the latest wireless technology to achieve stable connections and boosted coverage.
Additional information
| Weight | 0.3 lbs |
|---|---|
| Connectivity technology | Wireless |
| Host interface | PCI Express |
| Interface | WLAN |
| Internal | Yes |
| Product colour | Black, Green |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Wind |
| Width | 120.8 mm |
| Depth | 115.2 mm |
| Height | 21.5 mm |
| Quantity per pack | 1 pc(s) |
| Maximum data transfer rate | 867 Mbit/s |
| Component for | PC |
| Harmonized System (HS) code | 85176990 |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 5 – 90% |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Package width | 207 mm |
| Package depth | 148 mm |
| Package height | 42 mm |
| Package weight | 300 g |
| Compliance certificates | RoHS, Federal Communications Commission (FCC), CE |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rates supported | 11,54,300,867 Mbit/s |
| Modulation | 16-QAM, 64-QAM, 256-QAM, CCK, DBPSK, DQPSK, OFDM |
| Security algorithms | 64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Antenna | Yes |
| Antenna design | External |
| Transmitting power (CE) | 23 dBm |
| Transmitting power (FCC) | 24 dBm |
| Resource CD | Yes |
| Sustainability compliance | Yes |
| Wi-Fi | Yes |
| Detachable antenna(s) | Yes |
| Low-profile bracket | Yes |
| PCI Card form factor | Half-height (low-profile) |
| Operating modes | Infrastructure mode |
| Antennas quantity | 2 |
| Bandwidth (first) | 2.4 GHz |
| Bandwidth (second) | 5 GHz |
| Package type | Box |
| Transmit power range | 59.5 – 92 dBmW |
| Conflict-Free | Yes |
