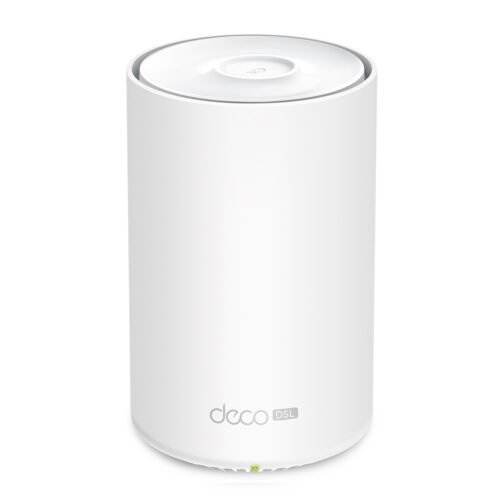

TP-Link AX1800 VDSL Whole Home Mesh WiFi 6 Router
AX1800, 2.4 / 5 GHz, 802.11 a/b/g/n/ac/ax, 1.5 GHz Quad-Core CPU, 4x Gigabit LAN, 1x DSL, 105 × 105 × 167mm
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Superior Mesh Wi-Fi, Everywhere
AX1800 VDSL Mesh Wi-Fi 6 Modem Router
Less Hassle, More WiFi Coverage
Armed with a built-in VDSL/ADSL modem, WiFi 6, and TP-Link Mesh technology, Deco X20-DSL saves you a fortune on the DSL modem equipment and delivering an excellent whole-home WiFi experience.
Meet the Potent Mesh WiFi 6
Armed with WiFi 6 technology, Deco whole home mesh WiFi is designed to deliver a huge boost in coverage, speed, and total capacity. Get on the latest mesh WiFi to enjoy the future network that loads faster and connects more.
Faster Streaming, with Less Lag
The Deco X20-DSL gateway supports Super VDSL with internet downlink speeds up to 350 Mbps, shared by super-fast WiFi 6 with speeds up to 1,800 Mbps, enabling lag-free online activities such as 4K streaming, cloud-gaming, and video calls.

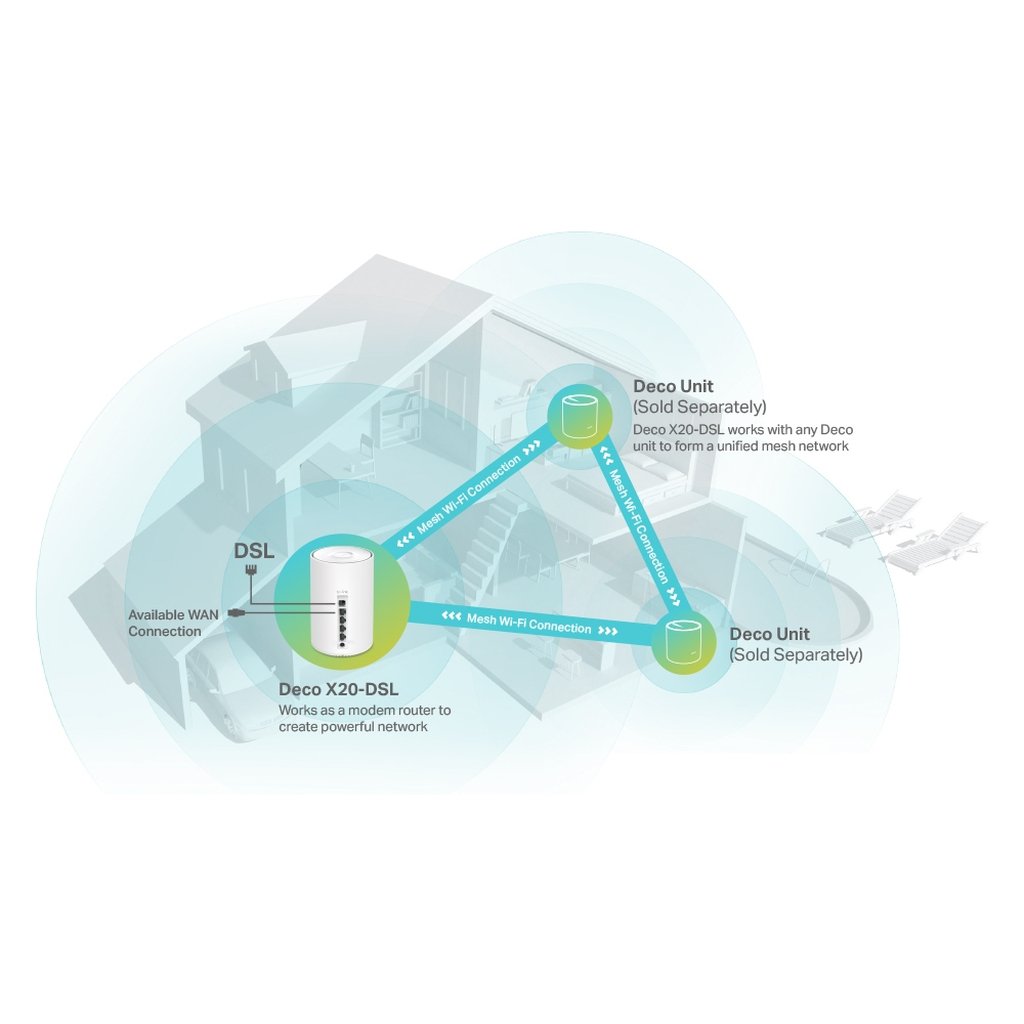

Seamless Roaming with One Wi-Fi Name
TP-Link Mesh means Deco units work together to form one unified network. Your phone or tablet automatically connects to the fastest Deco as you move through your home, creating a truly seamless Wi-Fi experience.
Enjoy Your WiFi with Enhanced Security
Customize your home network with enhanced security using a kit of features. Whether protecting your sensitive data or limiting the access of kids and guest, Deco X20-DSL provides you the tools you need to fully manage your WiFi.
Quick Setup with the Deco App
Unbox Deco, install the app and then simply follow the on-screen directions. Deco will take care of the rest, getting your network up and running in minutes.
WiFi Made Easy
Easy Management
Manage your Wi-Fi at home or away on the Deco app, including seeing all connected devices, prioritizing your own, setting up a guest network, and more.
Voice Control
Pair with Alexa to control Deco X20-DSL with simple voice commands. Enjoy the convenient life.
All Decos Work Together
Deco X20-DSL is compatible with every other Deco model to form a mesh network. Expand mesh Wi-Fi coverage anytime by simply adding more Decos.
Additional information
| Weight | 1.26 lbs |
|---|---|
| Product colour | White |
| Antenna type | Internal |
| Number of devices supported | 150 |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 1201 Mbit/s |
| WLAN data transfer rate (second band) | 574 Mbit/s |
| Security algorithms | WPA, WPA2-PSK, WPA3 |
| Built-in processor | Yes |
| Processor cores | 4 |
| Processor frequency | 1.5 GHz |

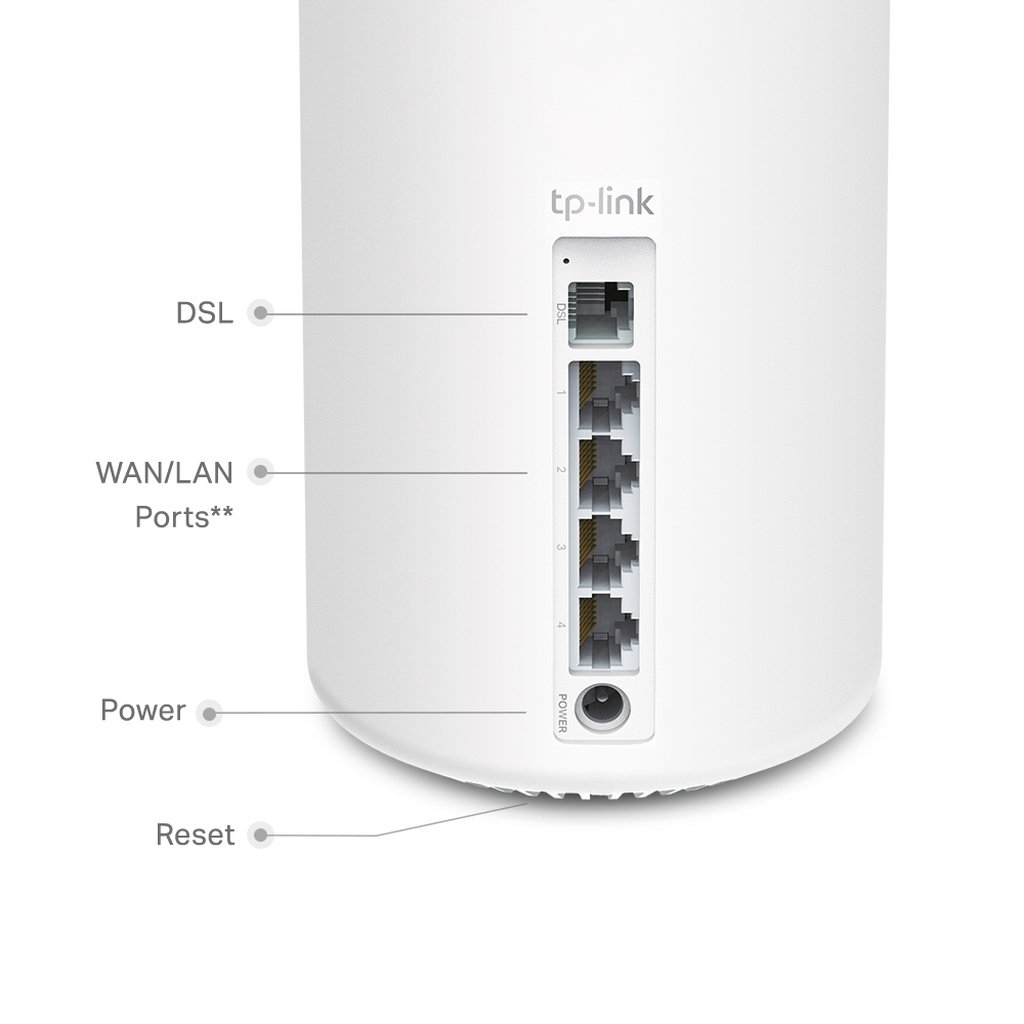

| Ethernet LAN (RJ-45) ports | 3 |
| Ethernet WAN | Yes |
| Width | 105 mm |
| Depth | 105 mm |
| Height | 167 mm |
| AC adapter included | Yes |
| Number of units included | 1 pc(s) |
| Ethernet cable | Yes |
| Antennas quantity | 2 |
| Reset button | Yes |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Dynamic IP | Yes |
| Static IP | Yes |
| IGMP proxy | Yes |
| IGMP snooping | Yes |
| Tagged VLAN | Yes |
| Dynamic DNS (DDNS) | Yes |
| Quality of Service (QoS) support | Yes |
| Port forwarding | Yes |
| DHCP client | Yes |
| DHCP server | Yes |
| Firmware upgradeable via | Network |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -40 – 60 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 5 – 90% |
| Number of products included | 1 pc(s) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v |
| Guest access | Yes |
| Firewall security | SPI Firewall |
| Parental control | Yes |
| AC adapter output voltage | 12 V |
| AC adapter output current | 1.5 A |
| Certification | CE, EAC, RoHS, RCM |
| LED indicators | Power |
| Number of guest networks (5 GHz) | 1 |
| Number of guest networks (2.4 GHz) | 1 |
| Apps supported | TP-Link Deco |
| BeamForming | Yes |
| MU-MIMO technology | Yes |
| MIMO | Yes |
| DC-in jack | Yes |
| AC input voltage | 100 – 240 V |
| AC adapter input current | 0.6 A |
| AC input frequency | 50/60 Hz |
| Operating modes | DSL, Router, Access Point |
| Transmit power | CE: ≤20 dBm (2.4GHz), ≤23 dBm (5GHz) |
| Transmitting power (CE) | ≤20 dBm (2.4GHz) ≤23 dBm (5GHz) |
| NAT functionality | Port ForwardingUPnP |
| Supported WAN type | Dynamic IPStatic IPPPPoEL2TPPPTPPPPoAIPoADS-Lite |
| Harmonized System (HS) code | 85171800 |
| ADSL | Yes |
| ADSL2+ | Yes |
| VDSL2 | Yes |
