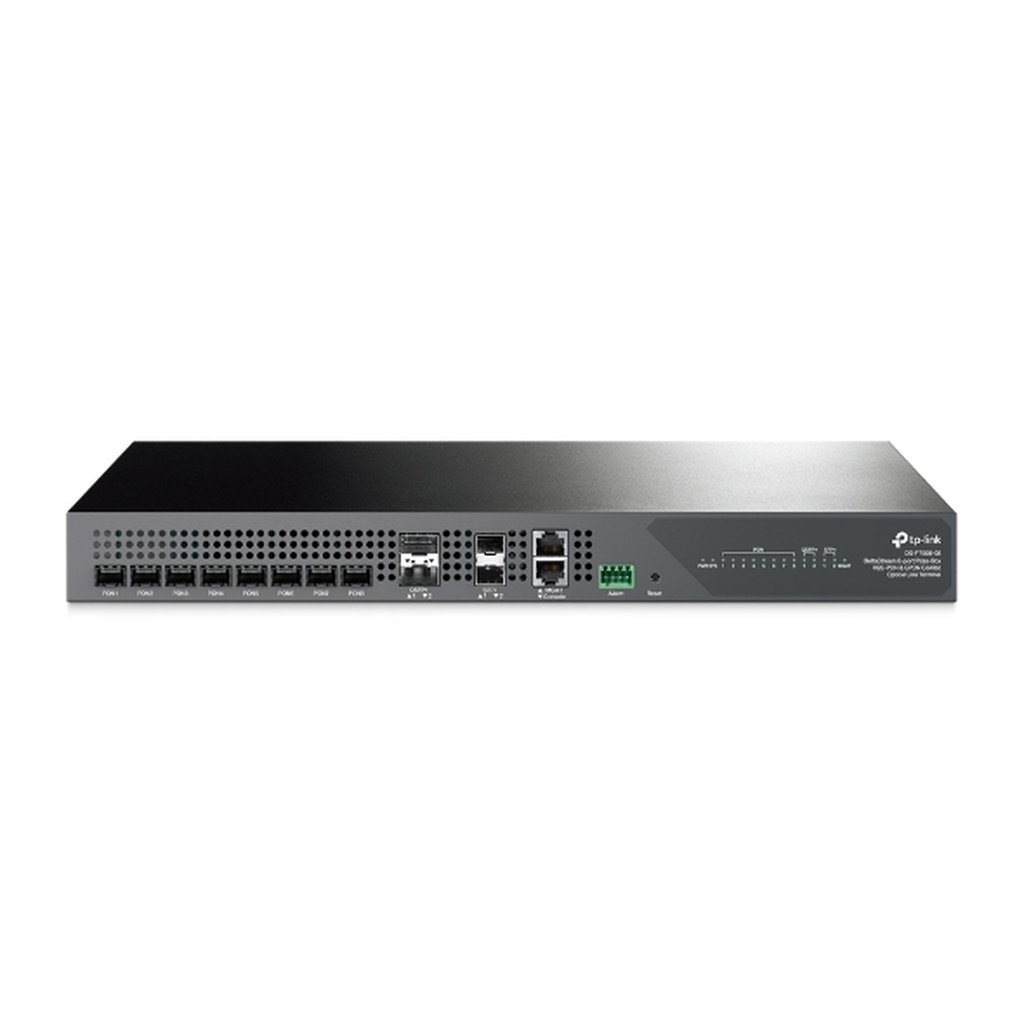

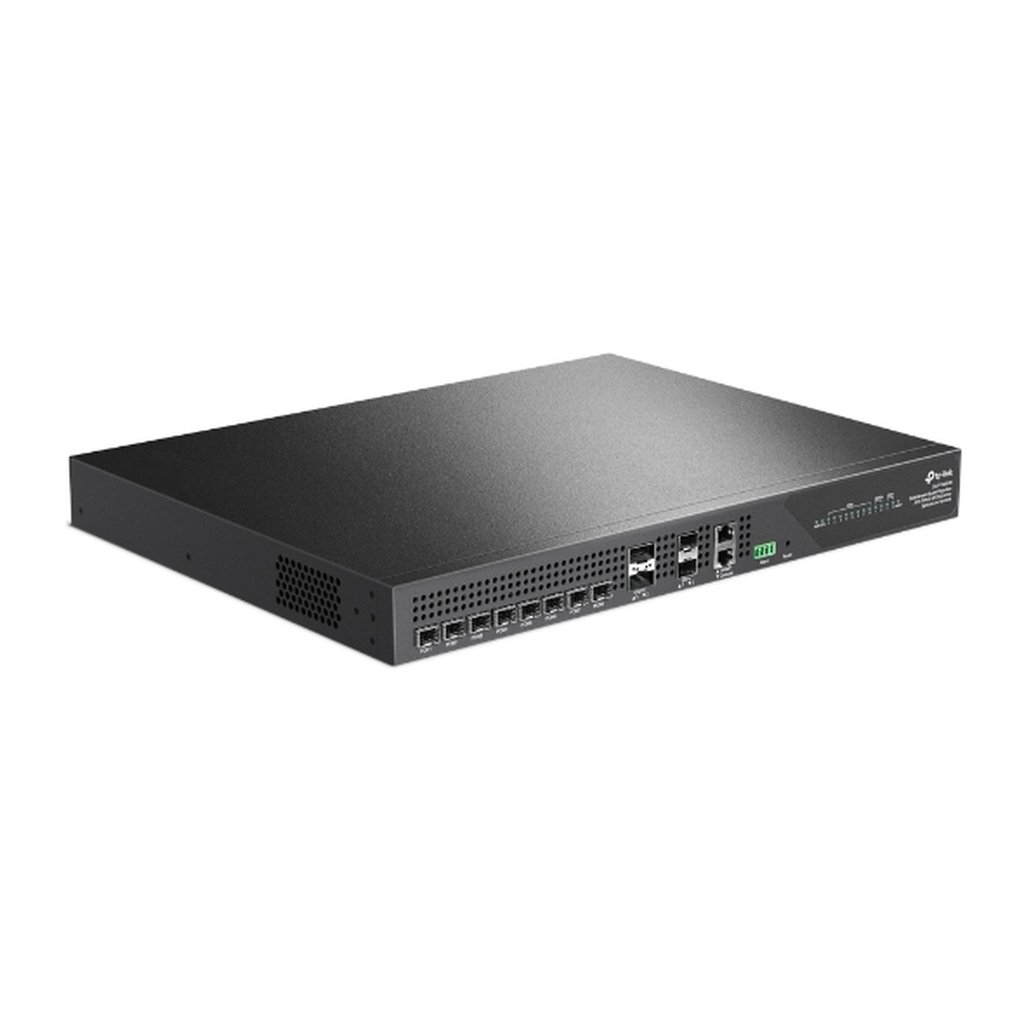

TP-Link DeltaStream 8-Port Pizza-Box XGS-PON & GPON Combo Optical Line Terminal
8x XGS-PON & GPON (SFP+), 2x 40G QSFP+, 2x 10G SFP+, 2x RJ45, 440 x 330 x 44 mm
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The DS-P7500-08 is a DeltaStream 8-port Pizza-Box XGS-PON&GPON Combo Optical Line Terminal with full L2 and advanced L3 featuresdesigned to meet a wide range of business needs. The pizza-box OLTsupports a higher number of ONUs and its dual power supply redundancydesign further improves the stability of the OLT network.
High Split Ratio for High Capacity
Support 1:256(XGS-PON) & 1:128(GPON) splitting ratio forevery port – up to 3072ONTs by one device.
Redundant Dual Power Supplies
Carrier-class reliability with redundant dual power supplies supporting AC, DC ormixed power input.
Compact Sizefor Flexible Deployment
19 inch rack mount sizeis flexible and easy to deploy, suitable for different application scenarios.
Centralized Management
Makes maintenance easier with remote batch configuration and updates via DeltaStream PON Management System (DPMS), SNMP,CLI, and WEB UI.
Additional information
| Weight | 0.56 lbs |
|---|---|
| Static route | Yes |
| DHCP server | Yes |
| DHCP relay | Yes |
| IGMP snooping | Yes |
| Multicast Listener Discovery (MLD) snooping | Y |
| Quality of Service (QoS) support | Yes |
| GPON split ratio (max) | 1:256 |
| Maximum operating distance (GPON) | 20000 m |
| Access Control List (ACL) | Yes |
| MAC address entries | Dynamic MAC address entries, Static MAC address entries |
| Networking standards | IEEE 802.1p, IEEE 802.1x |
| Upstream ports | 10G Ethernet, Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 2 |
| GPON ports quantity | 8 |
| SFP/SFP+ slots quantity | 4 |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| DC voltage range | 38.4 – 72 V |
| Power consumption (max) | 109.2 W |
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 5 – 90% |
| Width | 440 mm |
| Depth | 330 mm |
| Height | 44 mm |
