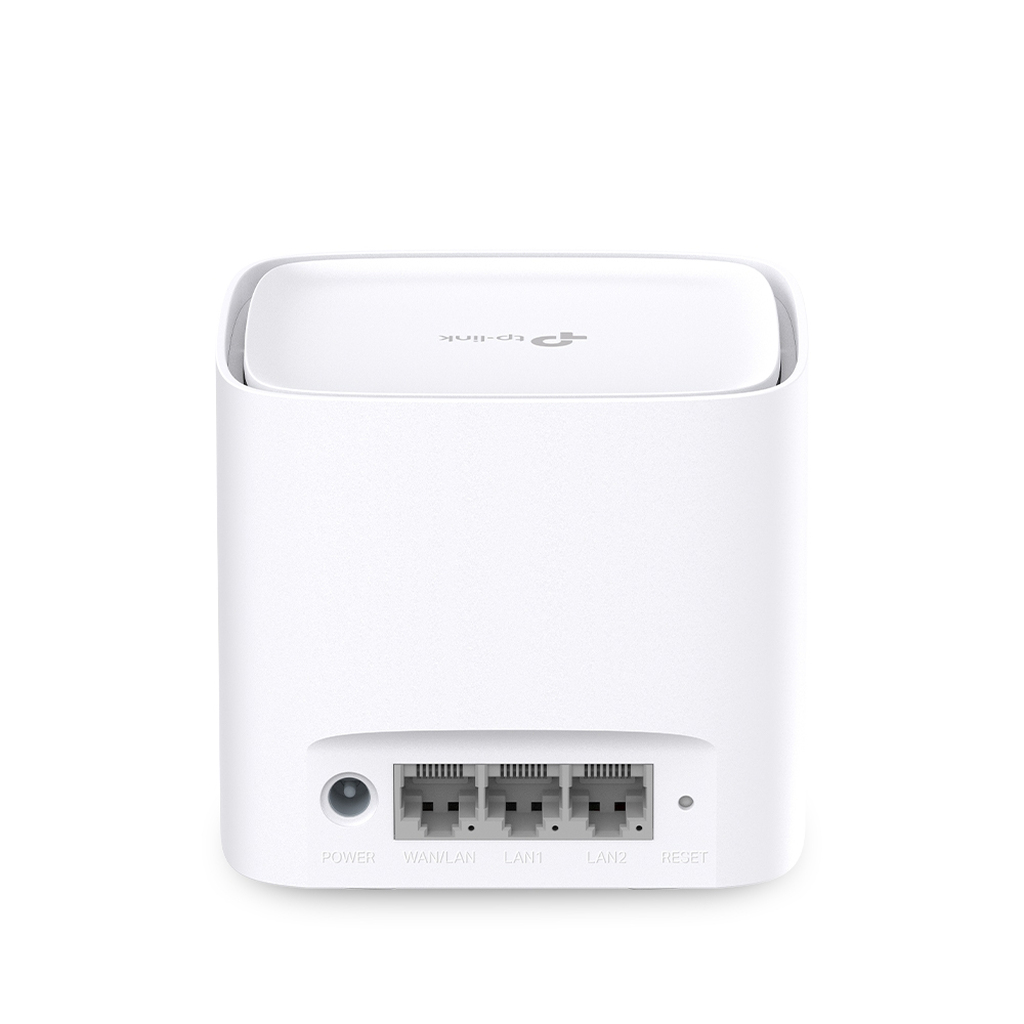

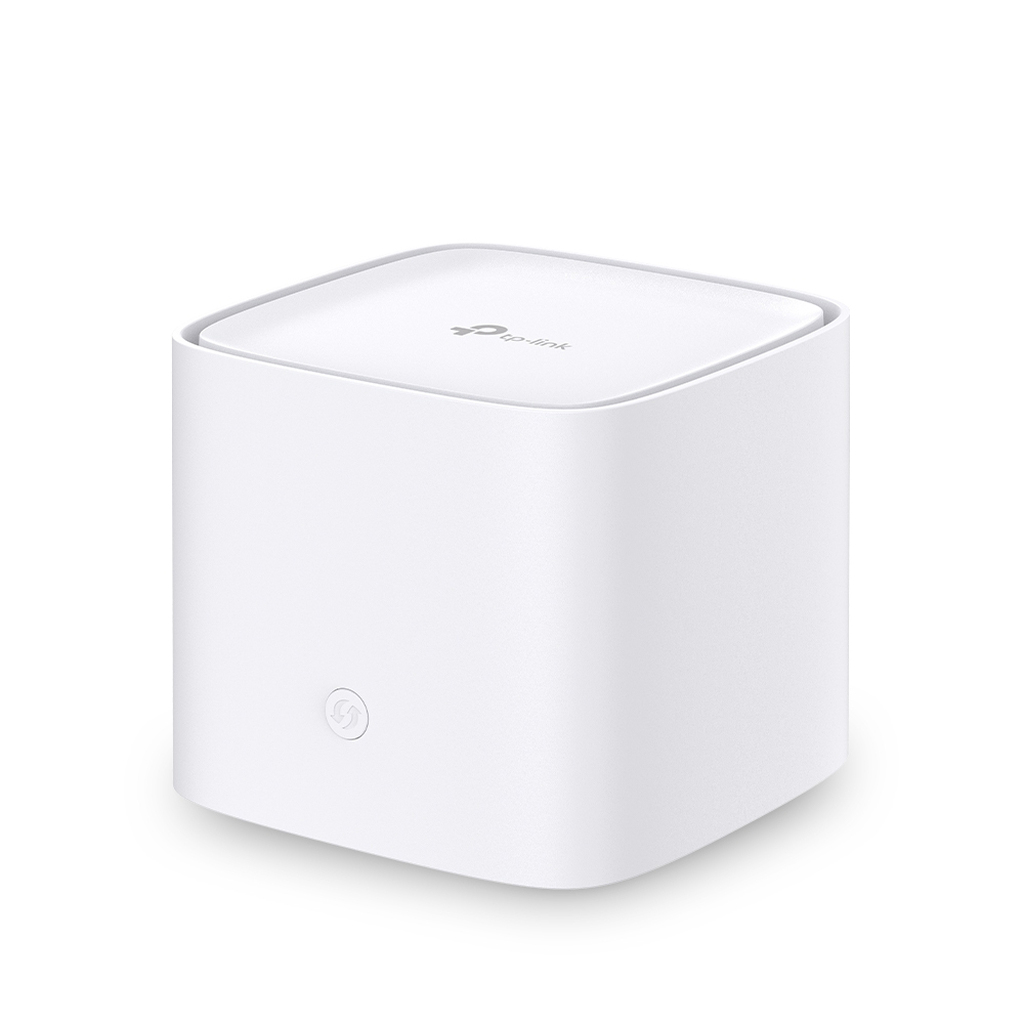

TP-Link AC1200 Whole Home Mesh WiFi System
2.4 GHz (300 Mbps), 5 GHz (867 Mbps), 802.11 a/b/g/n/ac, 3× Gigabit RJ-45, 100 x 100 x 89.5 mm
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Fast. Stable. Everywhere.
AC1200 Whole Home Mesh WiFi System
Whole Home Coverage
Empowered by EasyMesh technology, HC220-G5 provides a strong WiFi signal in every corner of your home. Wireless connections and optional Ethernet backhaul work together to link each unit, providing even faster network speeds and truly seamless coverage. Want more coverage? Simply add another HC220-G5 whenever you want.
Seamless Roaming with One Wi-Fi Name
All units work together to form one unified network. Your mobile device will automatically connect to the fastest unit when you move through your home, creating a truly seamless WiFi experience.
2-in-1 Router and Access Point Modes
Flexible and multifunctional, HC220-G5 includes a variety of features to serve as a router or access point. Choose the mode for actual network demands and experience maximum wireless flexibility.
Robust Network Protection
WPA3 Security
Higher password safety and enhanced protection against brute-force attacks
Multi-SSID
Create guest networks for visitors and keep your main network secure
Parental Controls
Block inappropriate content and restrict time spent online
Easy to Set Up and Use
You can set up your device in minutes, whether you prefer the intuitive Aginet app or the powerful web interface. The Aginet app allows you to manage network settings from your smart phone or tablet.
Support TR-069 Remote Management
ISPs can remotely configure and manage the devices via ACS (Auto-Configuration Server). High-level operations are also supported thanks to compatibility with TR-181, TR-111, and TR-143 protocols.
Aginet Solution:
End-to-End Management System for ISPs
Aginet Solutions offer ISPs powerful and flexible platforms to manage multiple devices for connected home, such as dynamic service provisioning, zero-touch firmware upgrading and remote troubleshooting and mesh WiFi diagnostics.
Additional information
| Weight | 0.5 lbs |
|---|---|
| Product colour | White |
| Antenna type | Internal |
| Product type | Mesh system |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 1200 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (second band) | 867 Mbit/s |
| Security algorithms | SSID, WMM, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3 |
| Built-in processor | Yes |
| Processor cores | 2 |
| Processor frequency | 0.88 GHz |
| Ethernet LAN (RJ-45) ports | 3 |
| Ethernet WAN | Yes |
| Width | 100 mm |
| Depth | 100 mm |
| Height | 89.5 mm |
| AC adapter included | Yes |
| Number of units included | 1 pc(s) |
| Ethernet cable | Yes |
| Reset button | Yes |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Dynamic IP | Yes |
| Static IP | Yes |
| IGMP snooping | Yes |
| Quality of Service (QoS) support | Yes |
| Port forwarding | Yes |
| DHCP client | Yes |
| DHCP server | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -40 – 60 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 5 – 90% |
| Number of products included | 1 pc(s) |
| Networking standards | IEEE 802.11k, IEEE 802.11r, IEEE 802.11v |
| Firewall security | SPI |
| Parental control | Yes |
| Certification | CE, FCC |
| LED indicators | Yes |
| Apps supported | TP-Link Tether |
| Mobile network generation | Not supported |
| Band steering | Yes |
| BeamForming | Yes |
| MU-MIMO technology | Yes |
| MIMO | Yes |
| DC-in jack | Yes |
| AC input voltage | 12 V |
| AC adapter input current | 1 A |
| Operating modes | Router Mode, Access Point Mode |
| Transmit power | 30 dBmW |
| Transmitting power (CE) | 20 dBm |
| Transmitting power (FCC) | 30 dBm |
| NAT functionality | IPTV, IGMPV2/3 and IGMP Snooping |
| Mobile operating systems supported | Android, iOS |
| SSID Broadcast | Yes |
| Supported WAN type | Dynamic IP/Static IP/PPPoE |
| Supported network protocols (IPv6) | IPv4 IPv6 |
