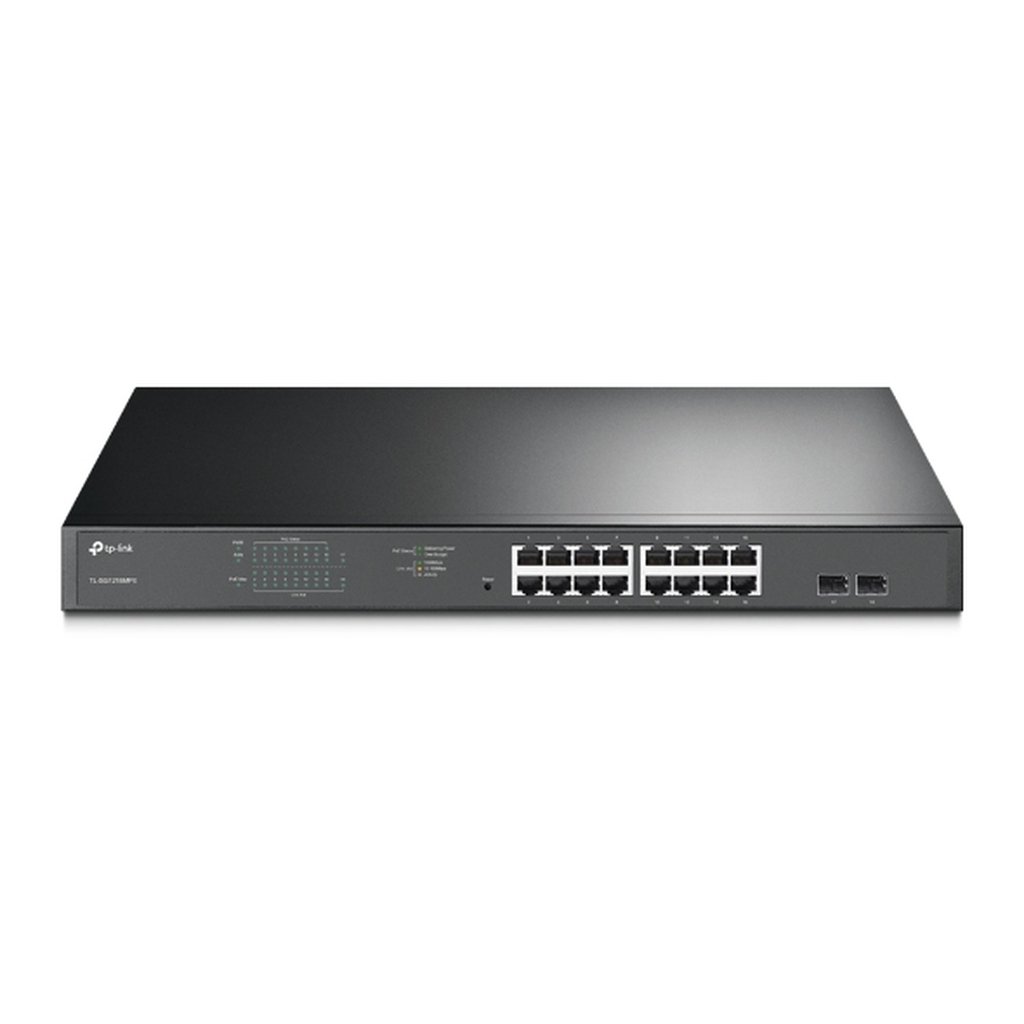

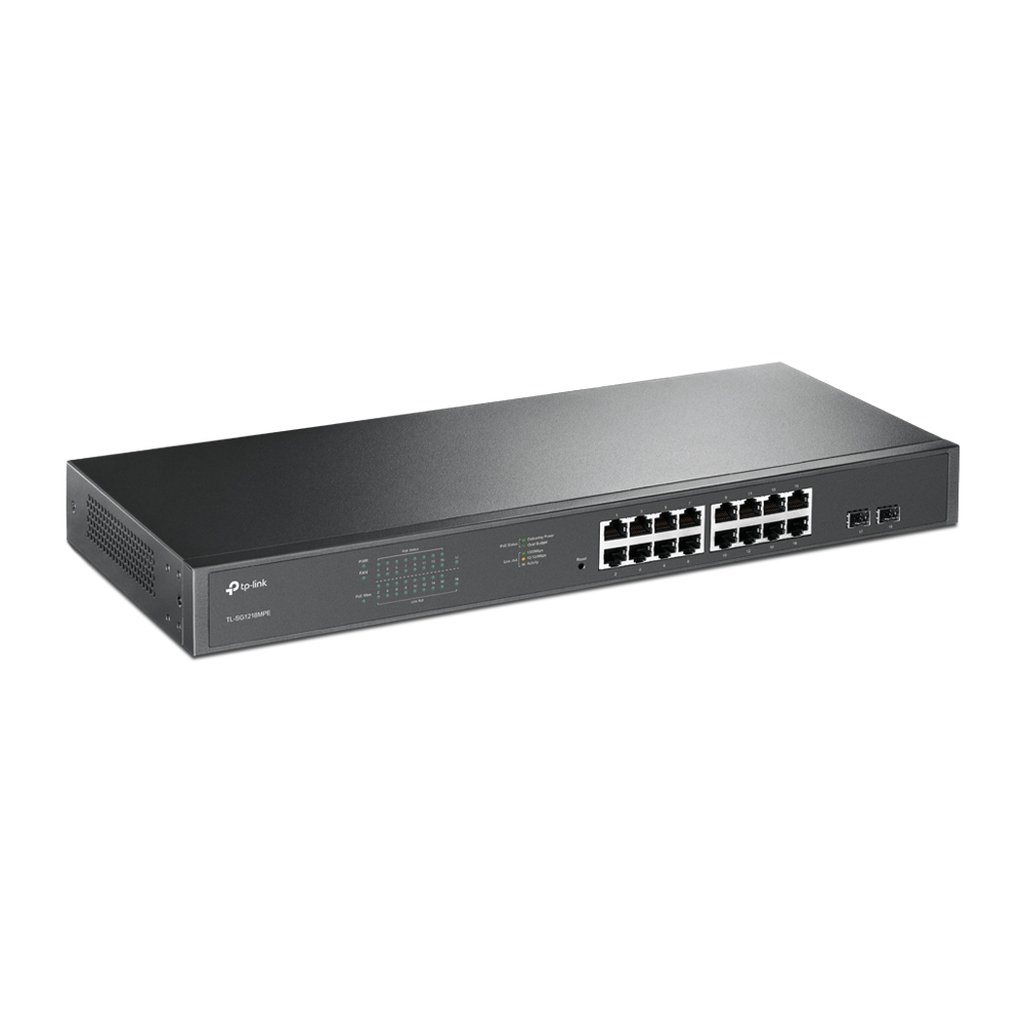

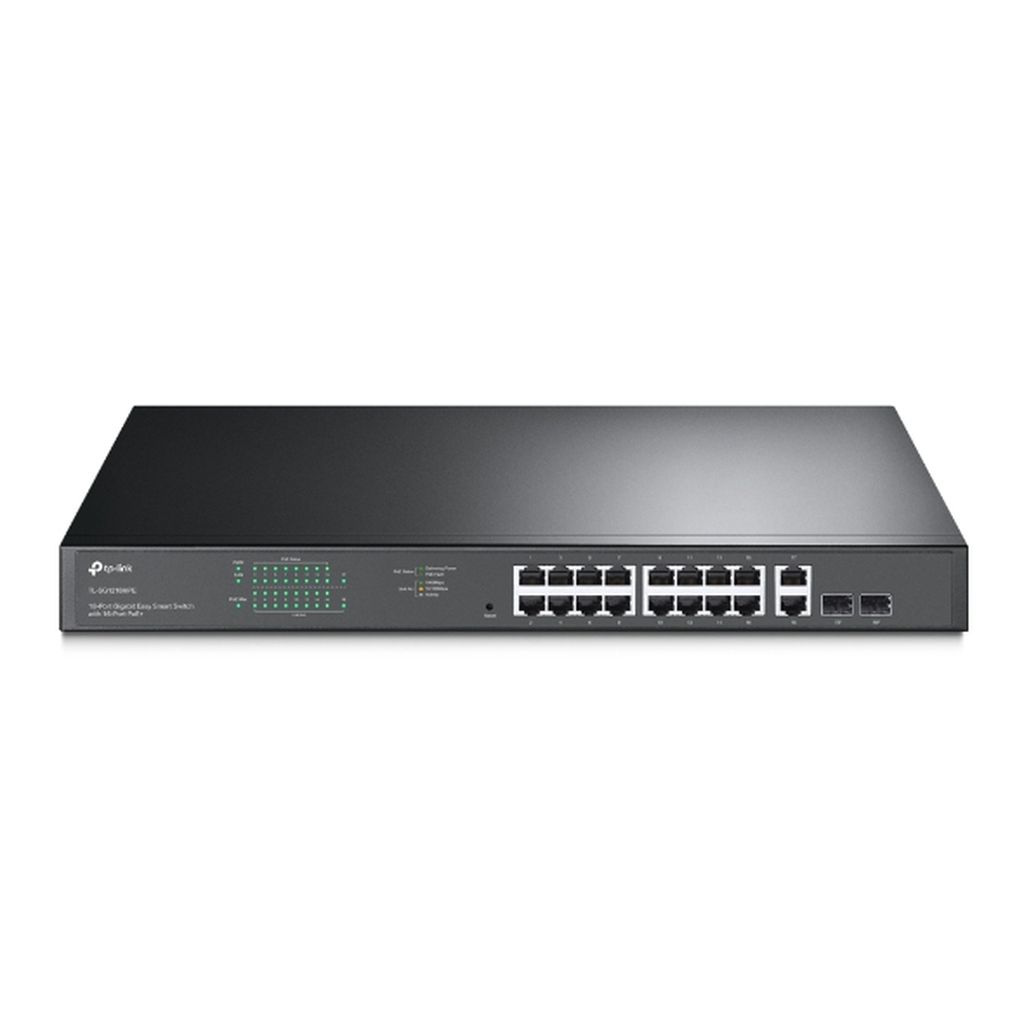

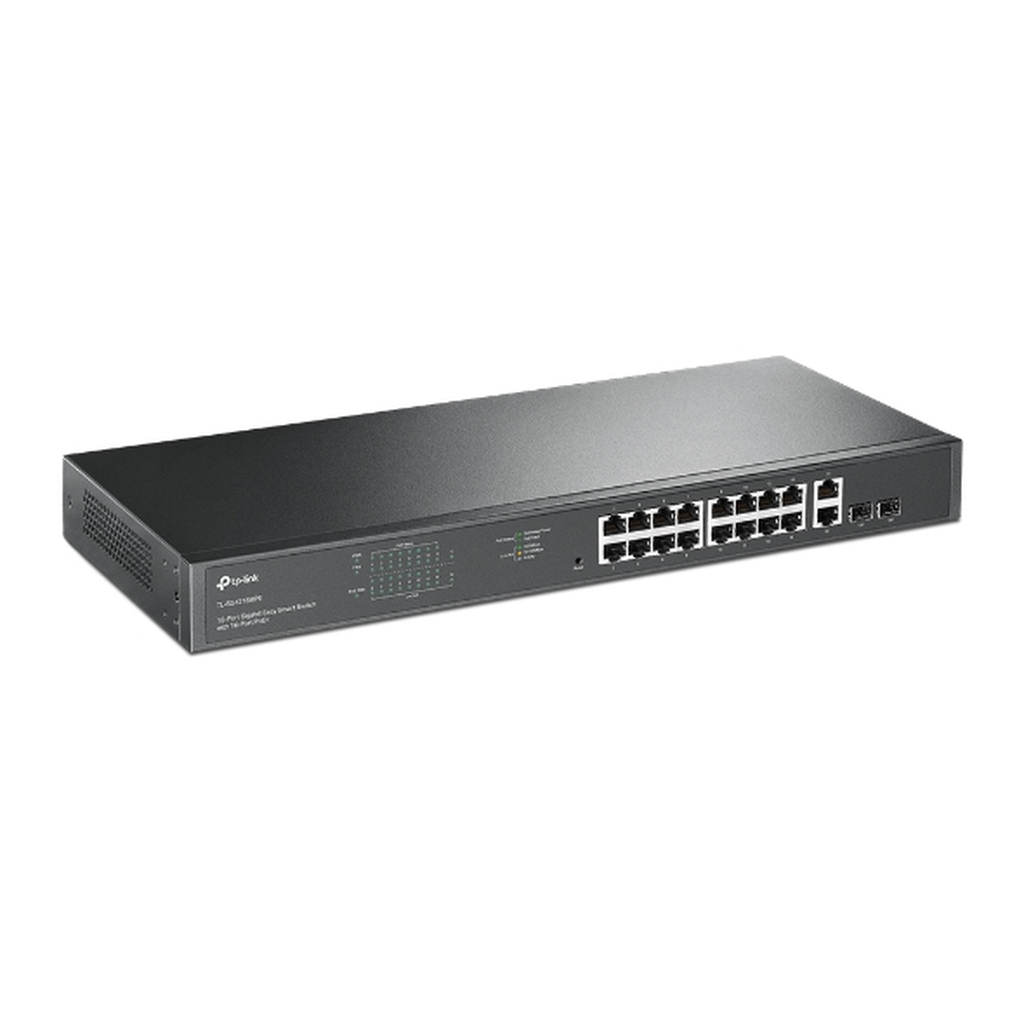

TP-Link 18-Port Gigabit Easy Smart PoE Switch with 16-Port PoE+
16x 1Gbps Mbps PoE+ RJ45, 2x 1Gbps Mbps non-PoE RJ45, 2x Combo 1Gbps SFP, 36 Gbps, 8K MAC, 10 KB Jumbo, 440 × 180 × 44 mm
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Professional High Power 18-Port Gigabit Easy Smart Switch with 16-Port PoE+
Easy to Use, Multi-Purpose PoE Switch with Powerful Performance

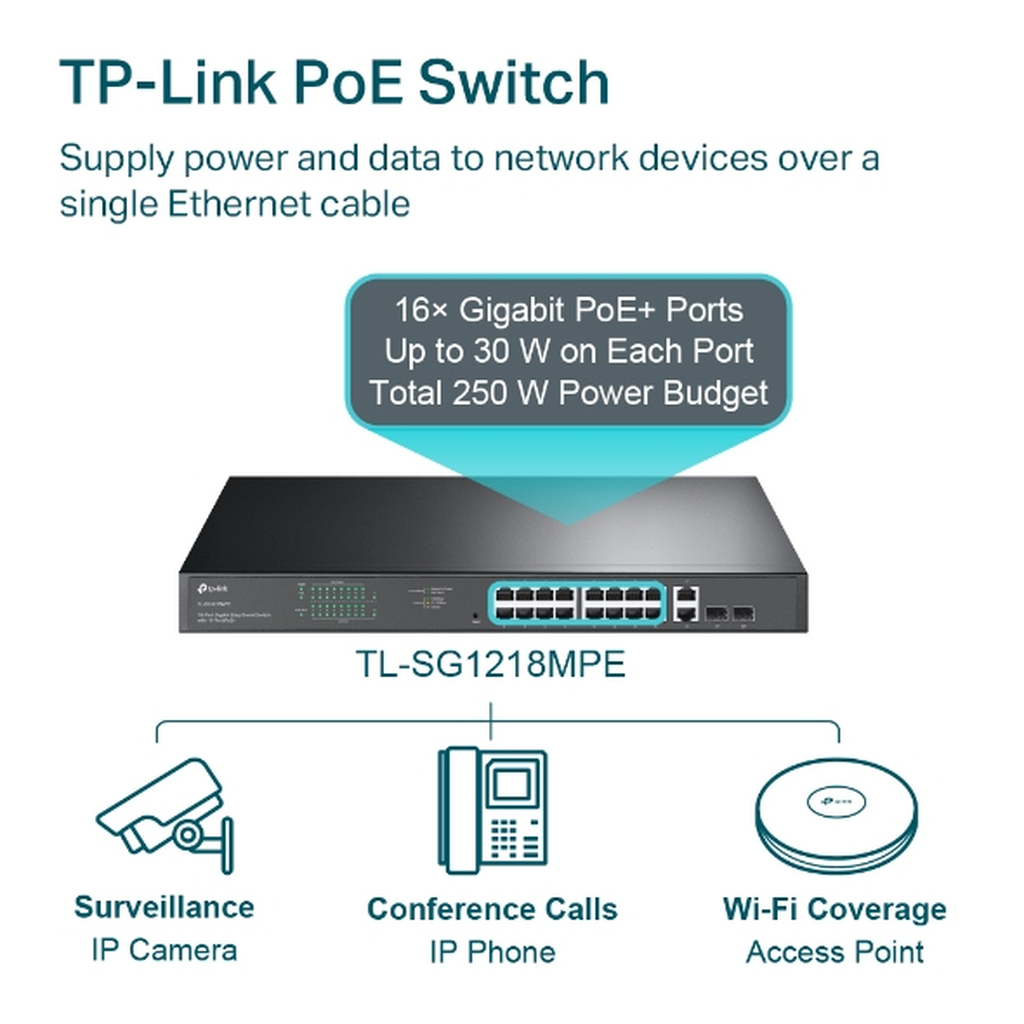

Dedicated 16-Port PoE+ Switch (250 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 16× gigabit PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.
Making Management Easy

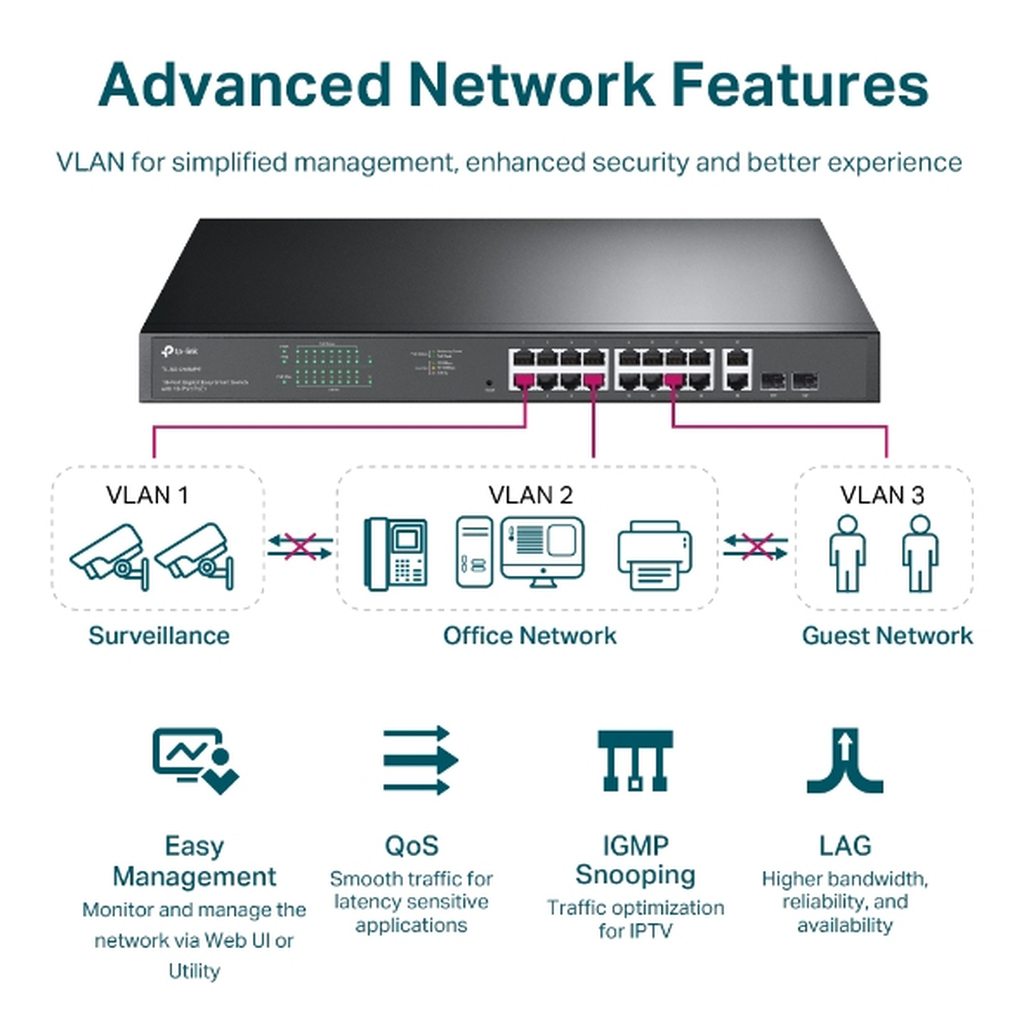

TL-SG1218MPE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1218MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

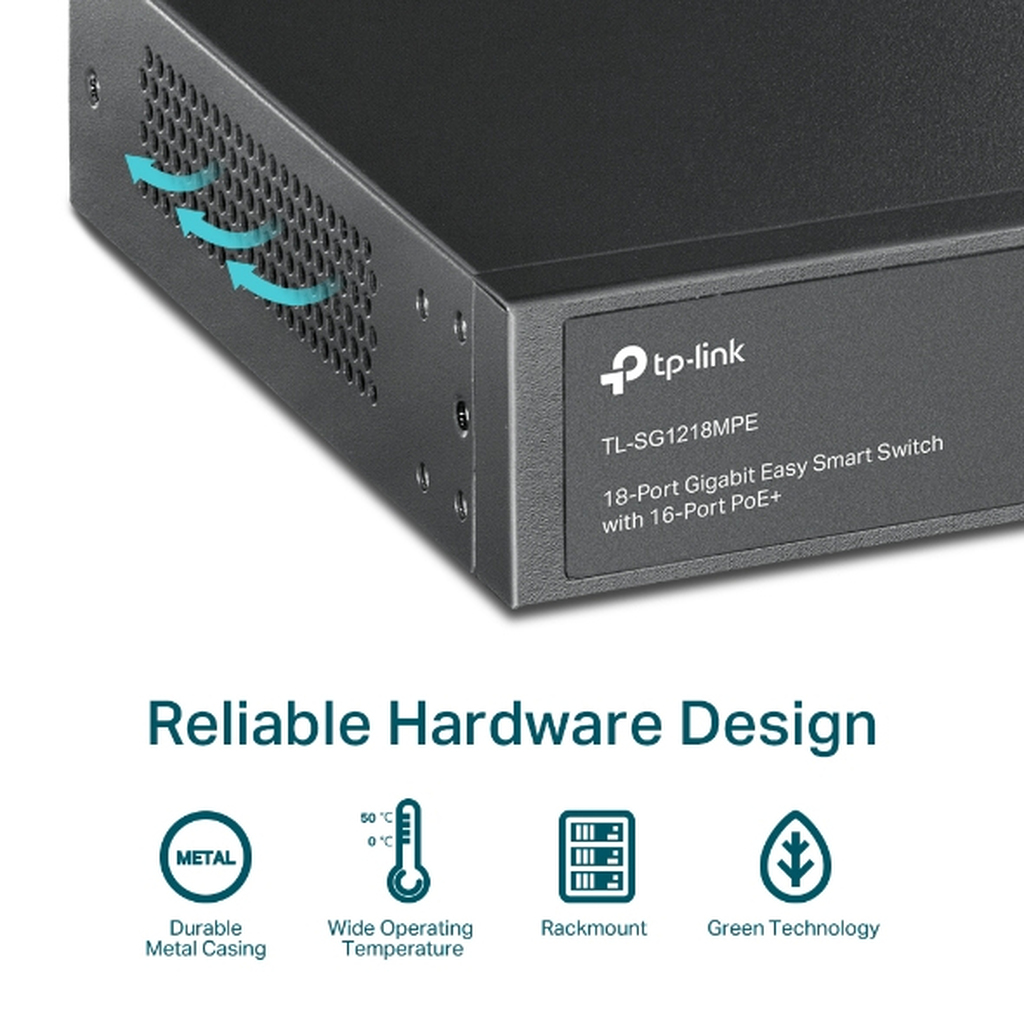

Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.

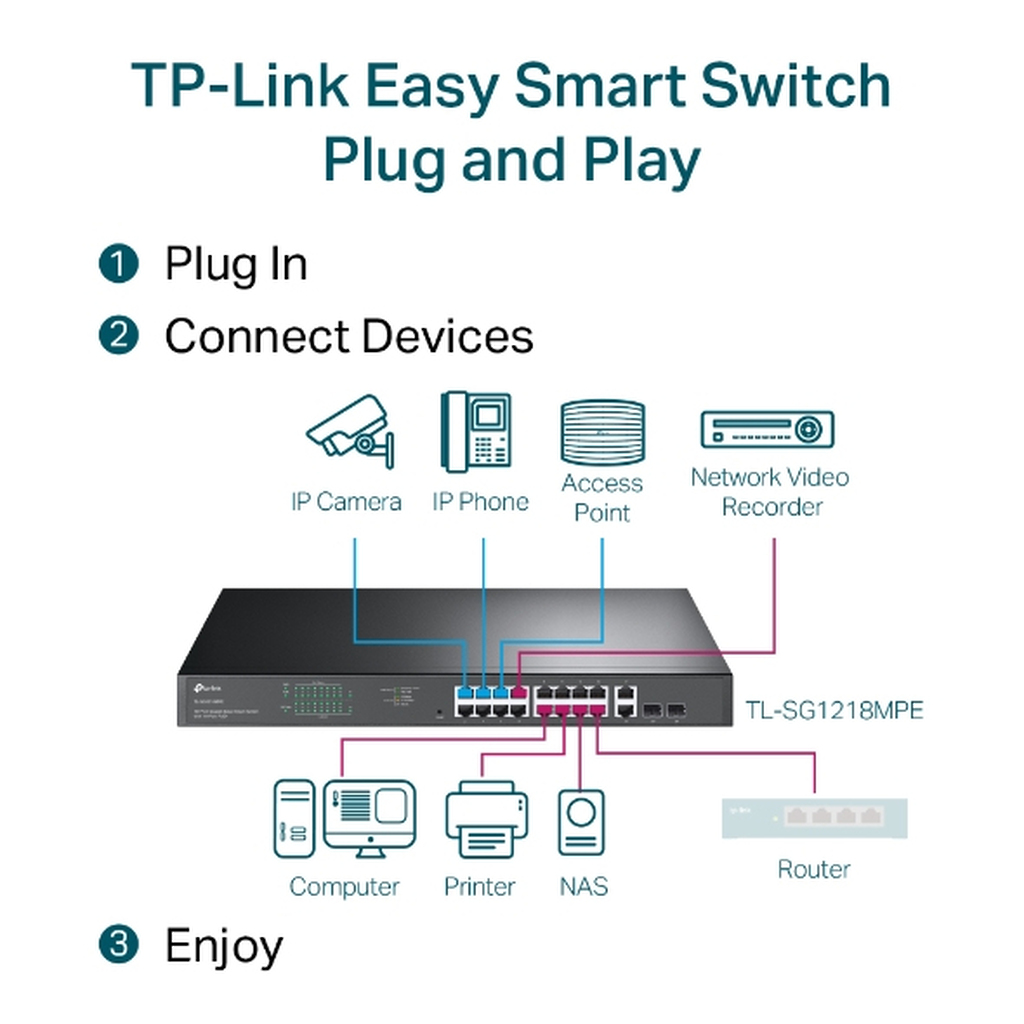

Multiple Application Scenarios
The TL-SG1218MPE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.
Additional information
| Weight | 3.08 lbs |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 18 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| MAC address table | 8000 entries |
| Switching capacity | 36 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 4.1 MB |
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Power consumption (max) | 296.3 W |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 5 – 90% |
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Harmonized System (HS) code | 85176990 |
| Switch layer | L2 |
| Web-based management | Yes |
| Combo SFP ports quantity | 2 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN |
| Fiber ethernet cabling technology | 1000BASE-X |
| IGMP snooping | Yes |
| Number of fans | 2 fan(s) |
| Power source | AC |
| Power supply included | Yes |
| Cables included | AC |
| Certification | CE, FCC, RoHS |
| Form factor | 1U |
| AC input voltage | 100 – 240 V |
| Loop protection | Yes |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Number of VLANs | 32 |
| Forwarding rate | 26.78 Mpps |
| Link aggregation | Yes |
| User guide | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Heat dissipation | 741.15 BTU/h |
| Gigabit Ethernet (copper) ports quantity | 18 |
| Rate limiting | Yes |
| Number of queues | 4 |
| Power over Ethernet (PoE) type supported | PoE+ |
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Rack mount kit | Yes |
