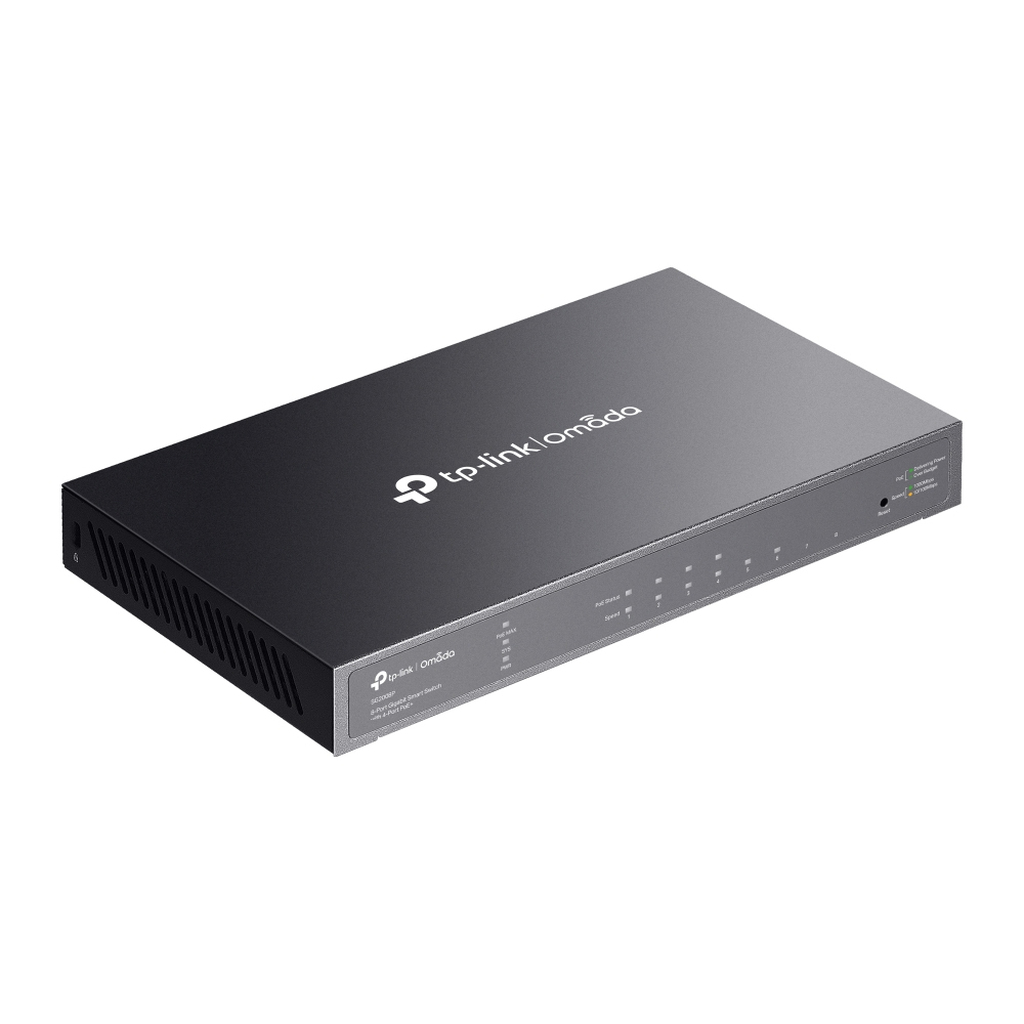

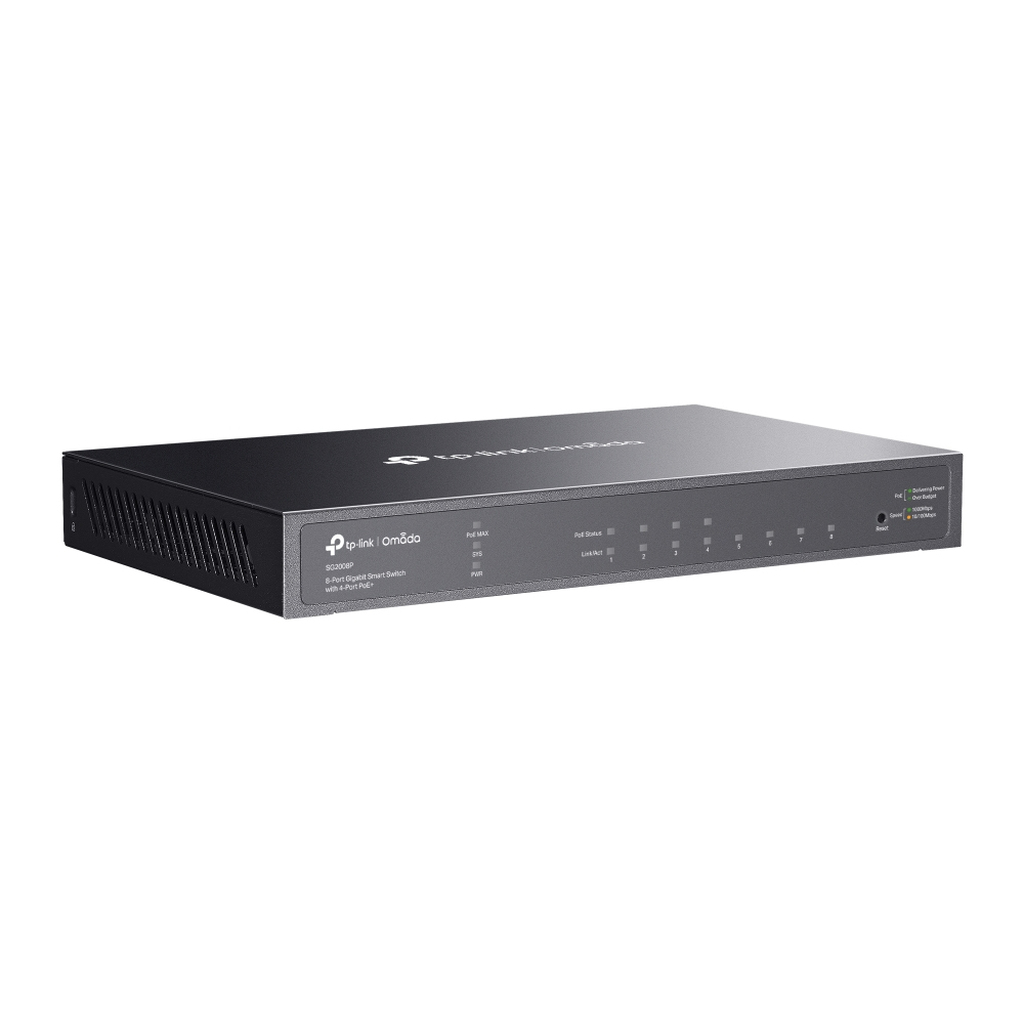

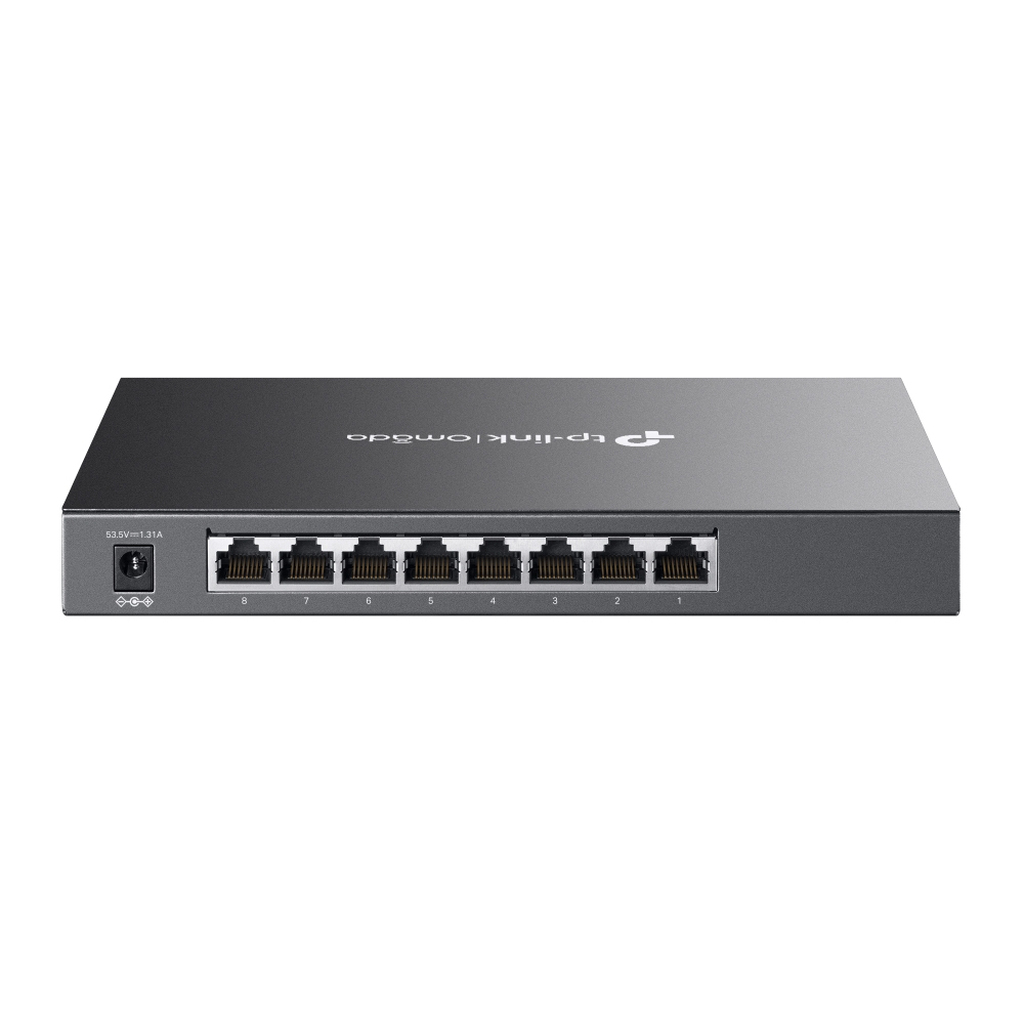

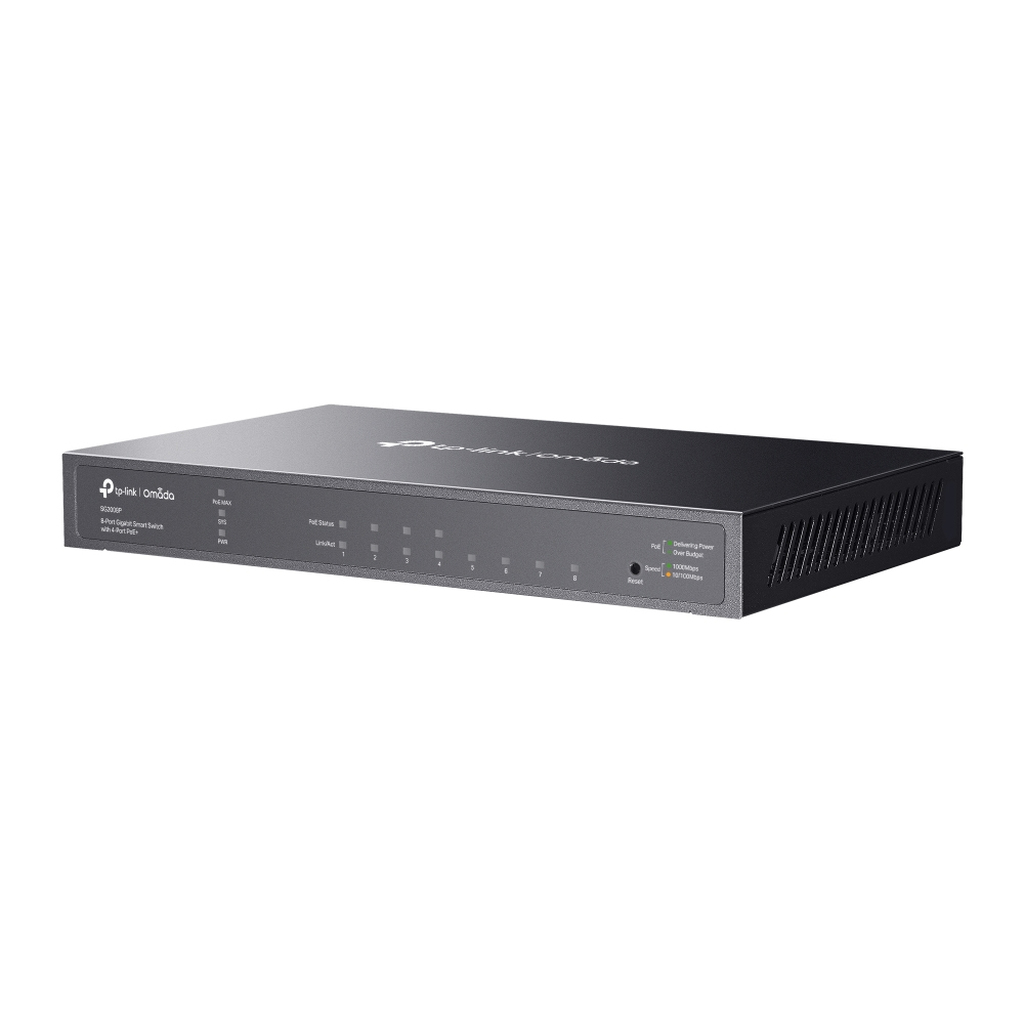

TP-Link Omada 8-Port Gigabit Smart Switch with 4-Port PoE+
8× 10/100/1000 Mbps RJ45 PoE, 16 Gbps, 8K MAC, 9 KB Jumbo, 209 x 126 x 26mm
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
Additional information
| Weight | 1.274 lbs |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| MAC address table | 8000 entries |
| Switching capacity | 16 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 4.1 MB |
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Power consumption (max) | 77.3 W |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 5 – 90% |
| Width | 209 mm |
| Depth | 126 mm |
| Height | 26 mm |
| Manual | Yes |
| Switch layer | L2/L2+ |
| Web-based management | Yes |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| DHCP features | DHCP client, DHCP relay, DHCP snooping, DHCPv6 server, DHCPv6 snooping |
| IGMP snooping | Yes |
| Power supply included | Yes |
| Certification | CE, FCC, RoHS |
| System event log | Yes |
| ARP inspection | Yes |
| MIB support | MIB II (RFC1213) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618) Remote Ping, Traceroute MIB (RFC2925) Support TP- |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Number of VLANs | 4094 |
| Forwarding rate | 11.9 Mpps |
| Authentication type | RADIUS |
| Link aggregation | Yes |
| Fanless | Yes |
| Package type | Box |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Heat dissipation | 263.6 BTU/h |
| Rate limiting | Yes |
| MAC address filtering | Yes |
| Authentication | MAC-based authentication, Web-based authentication |
| Multicast support | Yes |
| Number of queues | 8 |
| IPv4 & IPv6 features | IPv6 Telnet, IPv6 ping, IPv6 tracert |
| Security algorithms | 802.1x RADIUS |
| Management protocols | SNMPv1/v2c/v3 |
