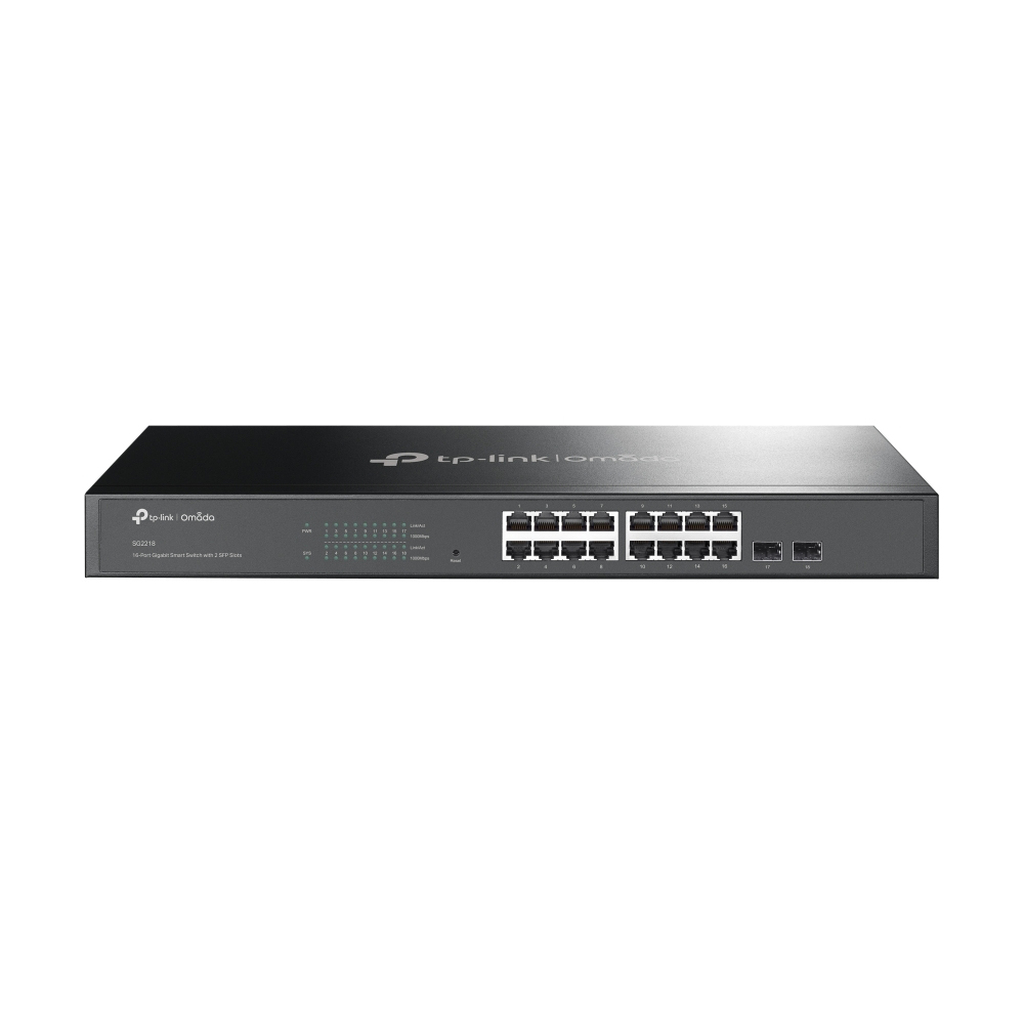

TP-Link Omada 16-Port Gigabit Smart Switch with 2 SFP Slots
16× 10/100/1000 Mbps RJ45, 2× Gigabit SFP Slots, 36 Gbps, 8K MAC, 9KB Jumbo, 440 × 180 × 44 mm
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
Additional information
| Weight | 2.58 lbs |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| 10G support | No |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| MAC address table | 8000 entries |
| Switching capacity | 36 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 4.1 MB |
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Power consumption (max) | 12.3 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 5 – 90% |
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Switch layer | L2/L2+ |
| Web-based management | Yes |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Power source | AC |
| Power supply included | Yes |
| Cables included | AC, LAN (RJ-45) |
| Quick start guide | Yes |
| Certification | CE, FCC, RoHS |
| Form factor | 1U |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50/60 Hz |
| System event log | Yes |
| Static route | Yes |
| Loop protection | Yes |
| ARP inspection | Yes |
| MIB support | Yes |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Number of VLANs | 4000 |
| Forwarding rate | 26.8 Mpps |
| Number of static routes | 32 |
| Cloud-managed | Yes |
| Link aggregation | Yes |
| Fanless | Yes |
| Heat dissipation | 41.97 BTU/h |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Rate limiting | Yes |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| Multicast support | Yes |
| Number of IP interfaces | 16 |
| Multicast Listener Discovery (MLD) snooping | Y |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| SFP module slots quantity | 2 |
| Management protocols | SNMPv1/v2c/v3, SNTP |
