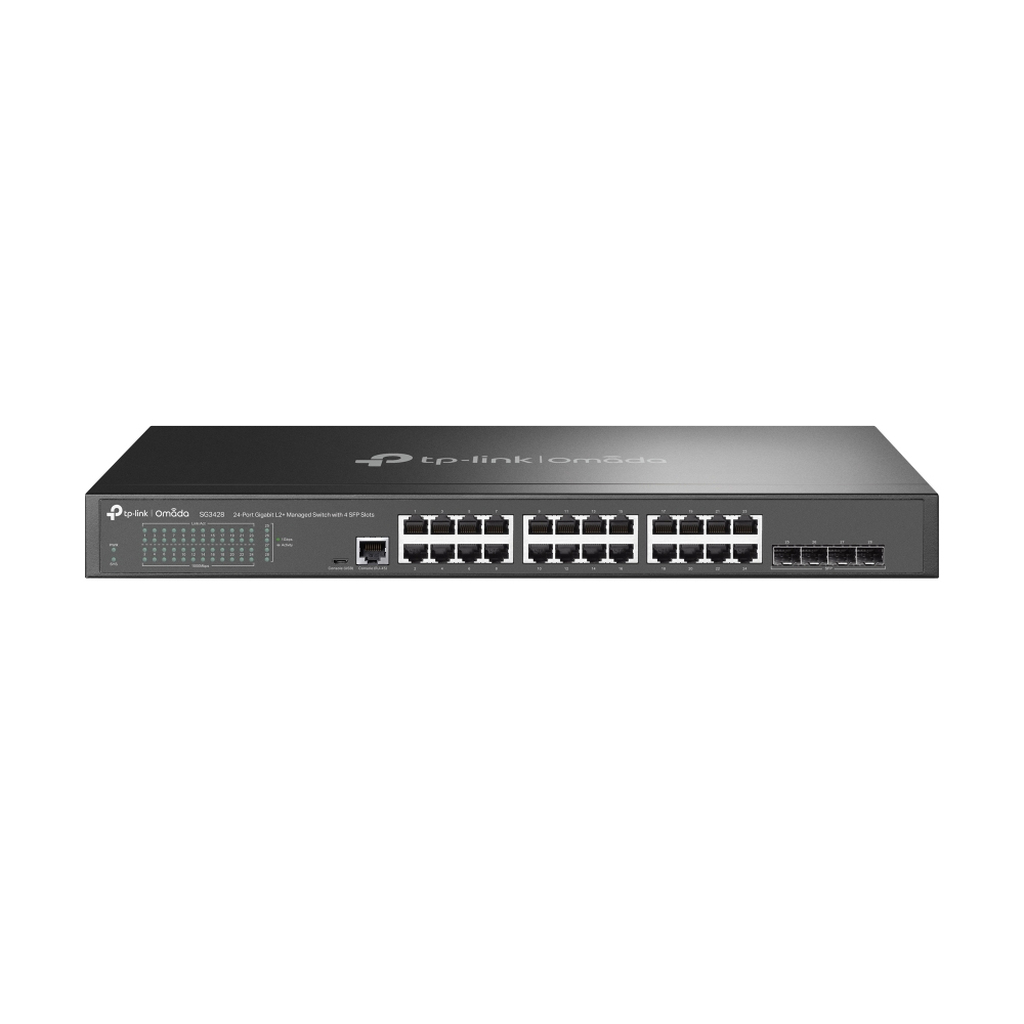

TP-Link Omada 24-Port Gigabit L2+ Managed Switch with 4 SFP Slots
24× 10/100/1000 Mbps RJ45, 4× 100/1000 Mbps SFP, RJ45/Micro-USB Console, 56Gbps, 8K MAC, 9KB Jumbo, 440×180×44 mm
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-ofService (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ managed Switches provide a reliable, secure solution for enterprise, campus and ISP networks.
Additional information
| Weight | 2.84 lbs |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| 10G support | No |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| MAC address table | 16000 entries |
| Switching capacity | 56 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 12 MB |
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Power consumption (max) | 20.6 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 0 – 45 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 5 – 90% |
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Switch layer | L2/L3 |
| Web-based management | Yes |
| Console port | RJ-45/Micro-USB |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Number of fans | 0 fan(s) |
| Power source | AC |
| Power supply included | No |
| Cables included | LAN (RJ-45) |
| Quick start guide | Yes |
| Form factor | 1U |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50/60 Hz |
| System event log | Yes |
| Static route | Yes |
| Loop protection | Yes |
| ARP inspection | Yes |
| MIB support | Yes |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Number of VLANs | 4000 |
| Forwarding rate | 41.66 Mpps |
| Number of static routes | 48 |
| Authentication type | AAA, RADIUS, TACACS+ |
| Cloud-managed | Yes |
| Link aggregation | Yes |
| Head-of-line (HOL) blocking | Yes |
| Heat dissipation | 70.3 BTU/h |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Configuring Location Settings (CLI) | Yes |
| Rate limiting | Yes |
| MAC address filtering | Yes |
| Static port security | Yes |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| IP-MAC-Port binding | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| Multicast support | Yes |
| IPv4 routes | 48 |
| IPv6 routes | 48 |
| Multicast Listener Discovery (MLD) snooping | Y |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert |
| SFP module slots quantity | 4 |
| IP routing | Yes |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| Policy-based routing | Yes |
