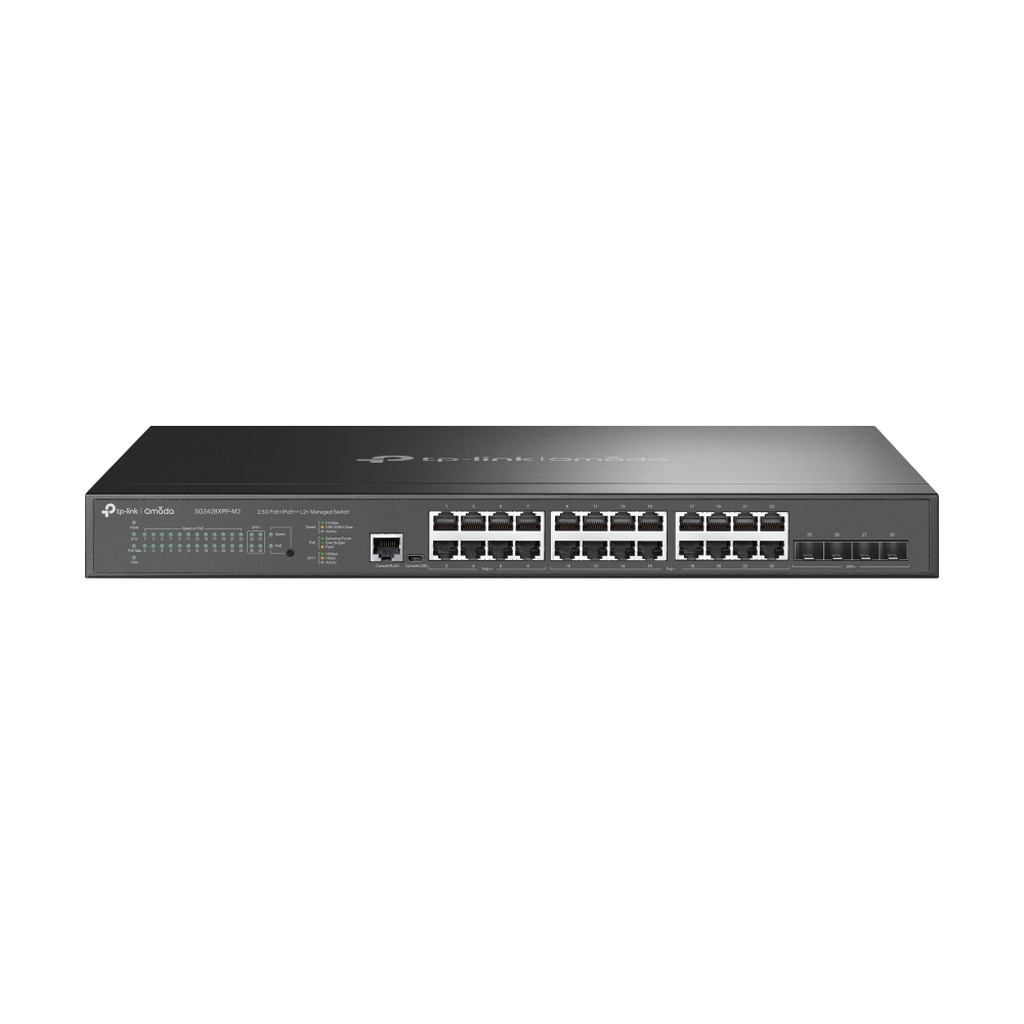

TP-Link Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++
8× 2.5 Gbps RJ45 PoE++, 16× 2.5 Gbps RJ45 PoE+, 4× 10G SFP+ Slots, RJ45/Micro-USB, 200 Gbps, 32 K MAC, 9 KB Jumbo, 440×330×44 mm
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
Additional information
| Weight | 6.24 lbs |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz |
| 10G support | Yes |
| Full duplex | Yes |
| Ethernet LAN data rates | 10,100,1000,2500,10000 Mbit/s |
| MAC address table | 32000 entries |
| Switching capacity | 200 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 16 MB |
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Power consumption (max) | 629.1 W |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 5 – 90% |
| Width | 440 mm |
| Depth | 330 mm |
| Height | 44 mm |
| Switch layer | L2+ |
| Web-based management | Yes |
| 2.5G Ethernet (copper) ports quantity | 24 |
| Console port | RJ-45/Micro-USB |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Number of fans | 3 fan(s) |
| Power source | AC/PoE |
| Power supply included | Yes |
| Cables included | AC |
| Quick start guide | Yes |
| Form factor | 1U |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50/60 Hz |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Sustainability compliance | Yes |
| System event log | Yes |
| Static route | Yes |
| Loop protection | Yes |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 500 W |
| ARP inspection | Yes |
| MIB support | RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925 |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Forwarding rate | 148.8 Mpps |
| Number of static routes | 48 |
| Password protection | Yes |
| Authentication type | AAA, IEEE 802.1x, RADIUS, TACACS+ |
| Memory type | DRAM |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Cloud-managed | Yes |
| Link aggregation | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Half duplex | Yes |
| Head-of-line (HOL) blocking | Yes |
| Heat dissipation | 2153.45 BTU/h |
| Configuring Location Settings (CLI) | Yes |
| SFP+ module slots quantity | 4 |
| Rate limiting | Yes |
| Static port security | Yes |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| IP-MAC-Port binding | Yes |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication |
| Multicast support | Yes |
| Redundant fans support | Yes |
| IPv4 routes | 48 |
| IPv6 routes | 48 |
| Number of queues | 8 |
| Number of IP interfaces | 32 |
| Queue scheduling algorithms | SP, WRR+SP, Weighted Round Robin (WRR) |
| Multicast Listener Discovery (MLD) snooping | MLD v1/v2 |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL), IPv6 ping, IPv6 portal, IPv6 tracert |
| Security algorithms | HTTPS, SSH, SSH-2, SSL/TLS |
| Management protocols | SNMP v1/v2c/v3 |
| Redundant power supply (RPS) support | Yes |
| Rack mount kit | Yes |
