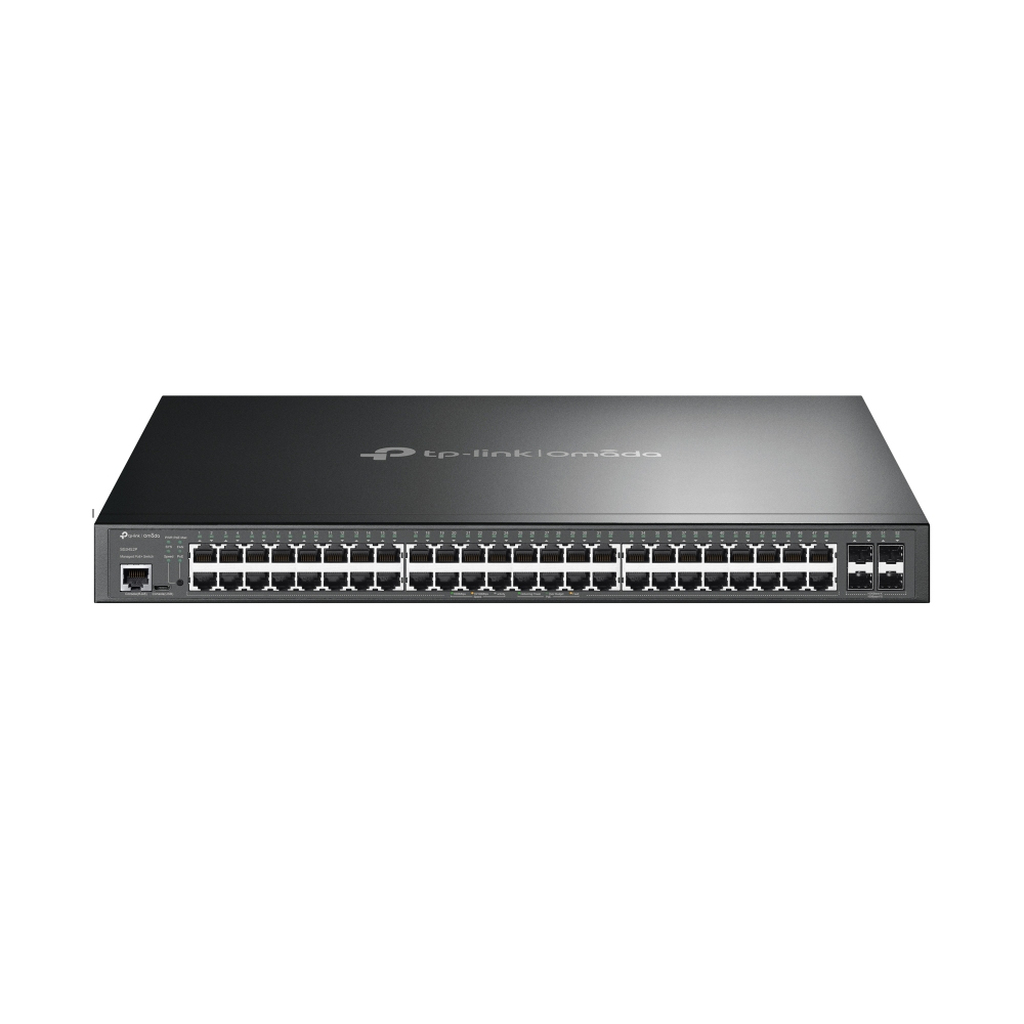

TP-Link Omada 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+
48× Gigabit 802.3af/at PoE+, 4× Gigabit SFP, 1× RJ45 Console, 1× Micro-USB Console, 104 Gbps, 16 K MAC, 9 KB Jumbo, 440 x 330 x 44 mm
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-ofService (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ managed Switches provide a reliable, secure solution for enterprise, campus and ISP networks.
Additional information
| Weight | 4.99 lbs |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x |
| 10G support | No |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| MAC address table | 16000 entries |
| Switching capacity | 104 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 12 MB |
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Power consumption (max) | 464.2 W |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 5 – 90% |
| Width | 440 mm |
| Depth | 330 mm |
| Height | 44 mm |
| Manual | Yes |
| Switch layer | L2/L3 |
| Web-based management | Yes |
| Console port | RJ-45/micro-USB |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Reset button | Yes |
| Number of fans | 3 fan(s) |
| Power source | AC |
| Power supply included | Yes |
| Cables included | AC |
| Quick start guide | Yes |
| Form factor | 1U |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50/60 Hz |
| System event log | Yes |
| Static route | Yes |
| Loop protection | Yes |
| Total Power over Ethernet (PoE) budget | 384 W |
| ARP inspection | Yes |
| MIB support | Yes |
| Power connector | AC-in jack |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Number of VLANs | 4000 |
| Forwarding rate | 77.38 Mpps |
| Number of static routes | 48 |
| Password protection | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Cloud-managed | Yes |
| Link aggregation | Yes |
| Package type | Box |
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Head-of-line (HOL) blocking | Yes |
| Heat dissipation | 1584.08 BTU/h |
| Rate limiting | Yes |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| Multicast support | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| SFP module slots quantity | 4 |
| IP routing | Yes |
| Active link detection | Yes |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| Policy-based routing | Yes |
