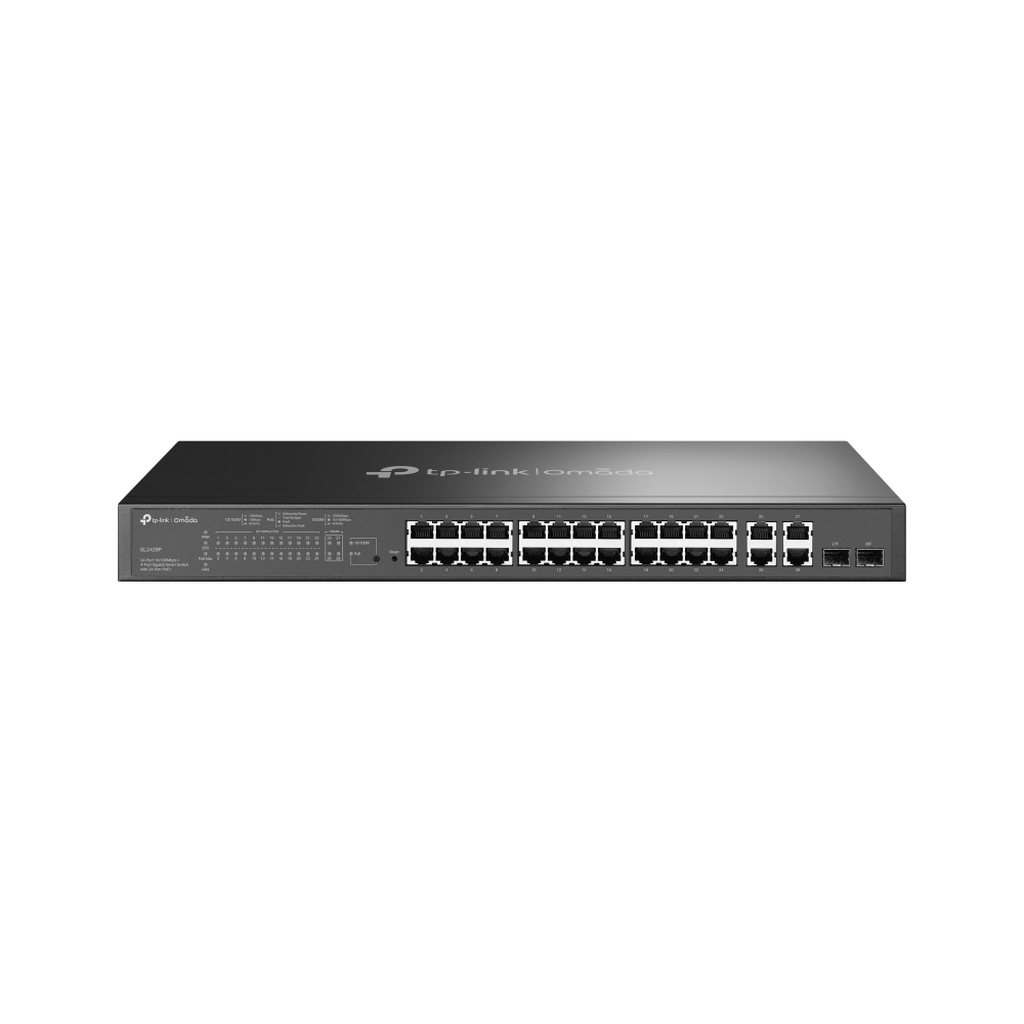

TP-Link Omada SL2428P network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black
24× 10/100 Mbps RJ45, 2× 10/100/1000Mbps RJ45, 2× Gigabit Combo RJ45/SFP, 12.8 Gbps, 8K MAC, 9 KB Jumbo, 440×180×44
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
Additional information
| Weight | 3.04 lbs |
|---|---|
| Brand compatibility | 9.5 Mpps |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| MAC address table | 8000 entries |
| Switching capacity | 12.8 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 4.1 MB |
| Rack mounting | Yes |
| Product colour | Black |
| Power consumption (max) | 291.6 W |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 5 – 90% |
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Switch layer | L2 |
| Web-based management | Yes |
| Combo SFP ports quantity | 2 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Number of fans | 2 fan(s) |
| Firmware upgradeable | Yes |
| Power source | AC |
| Cables included | AC |
| Quick start guide | Yes |
| Certification | CE, FCC, RoHS |
| Form factor | 1U |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50/60 Hz |
| System event log | Yes |
| Total Power over Ethernet (PoE) budget | 250 W |
| ARP inspection | Yes |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Number of VLANs | 512 |
| Link aggregation | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Heat dissipation | 995.09 BTU/h |
| Gigabit Ethernet (copper) ports quantity | 4 |
| Configuring Location Settings (CLI) | Yes |
| Rate limiting | Yes |
| SSH/SSL support | Yes |
| Multicast support | Yes |
| Number of queues | 4 |
| Security algorithms | SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS |
| Management protocols | SNMP v1/v2c/v3, RMON, SNTP, TFTP |
| Cable types supported | Cat5, Cat5e |
| Rack mount kit | Yes |
| Fast Ethernet (copper) ports quantity | 24 |
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux |
