TP-Link LS1005G network switch Unmanaged Gigabit Ethernet (10/100/1000) Black

In Stock

LS1005G, IEEE 802.3i/802.3u/ 802.3ab/802.3x, 5x 1G RJ-45, 10 Gbps, 7.4 Mpps, 90x72x23 mm

  • We give you a dedicated account manager with every order.
  • We welcome single and bulk orders. Get fast delivery each time.
  • We can offer installation and configuration on orders.
  • We care, get great pricing and great customer service.
  • Any further questions, get in touch on 01933 837600.
SKU: LS1005G
Brand:

Description

Let LiteWave Bring You Lighter Network Life
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.

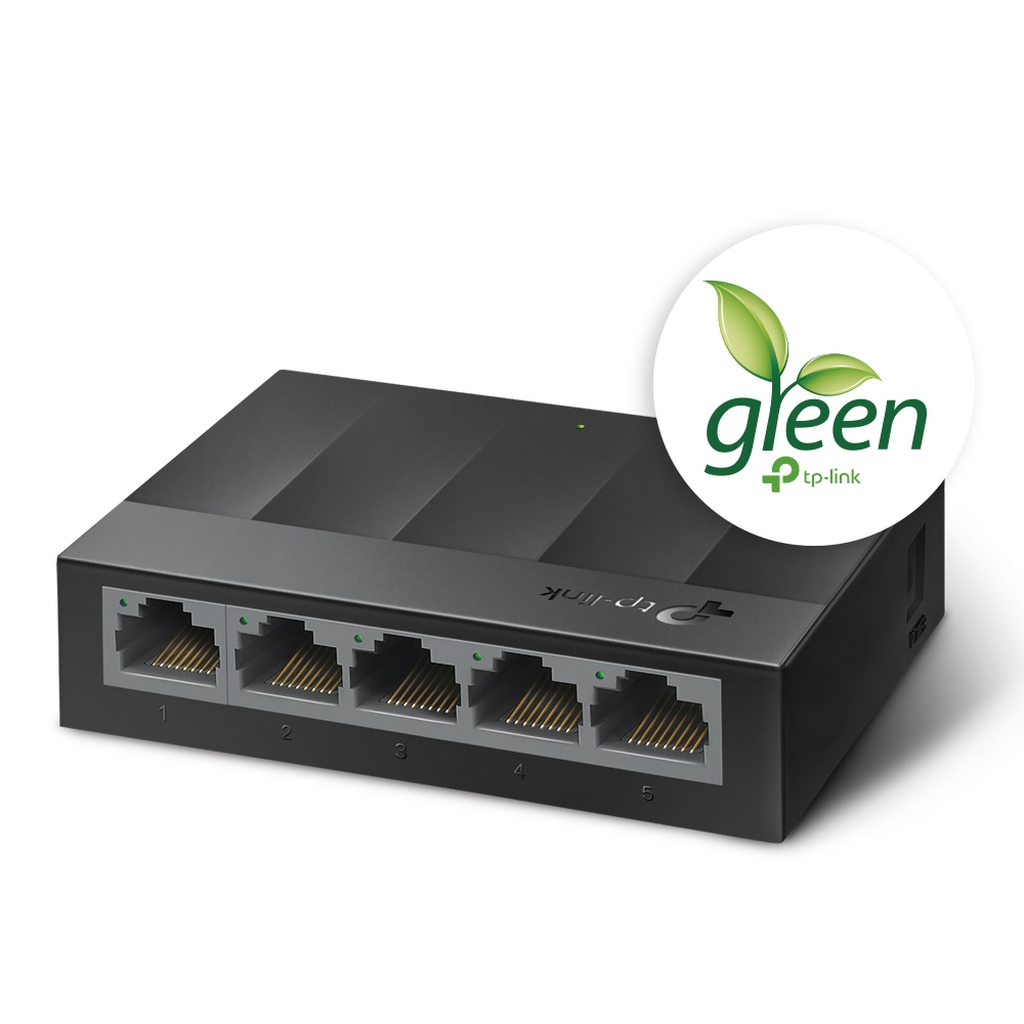

Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!

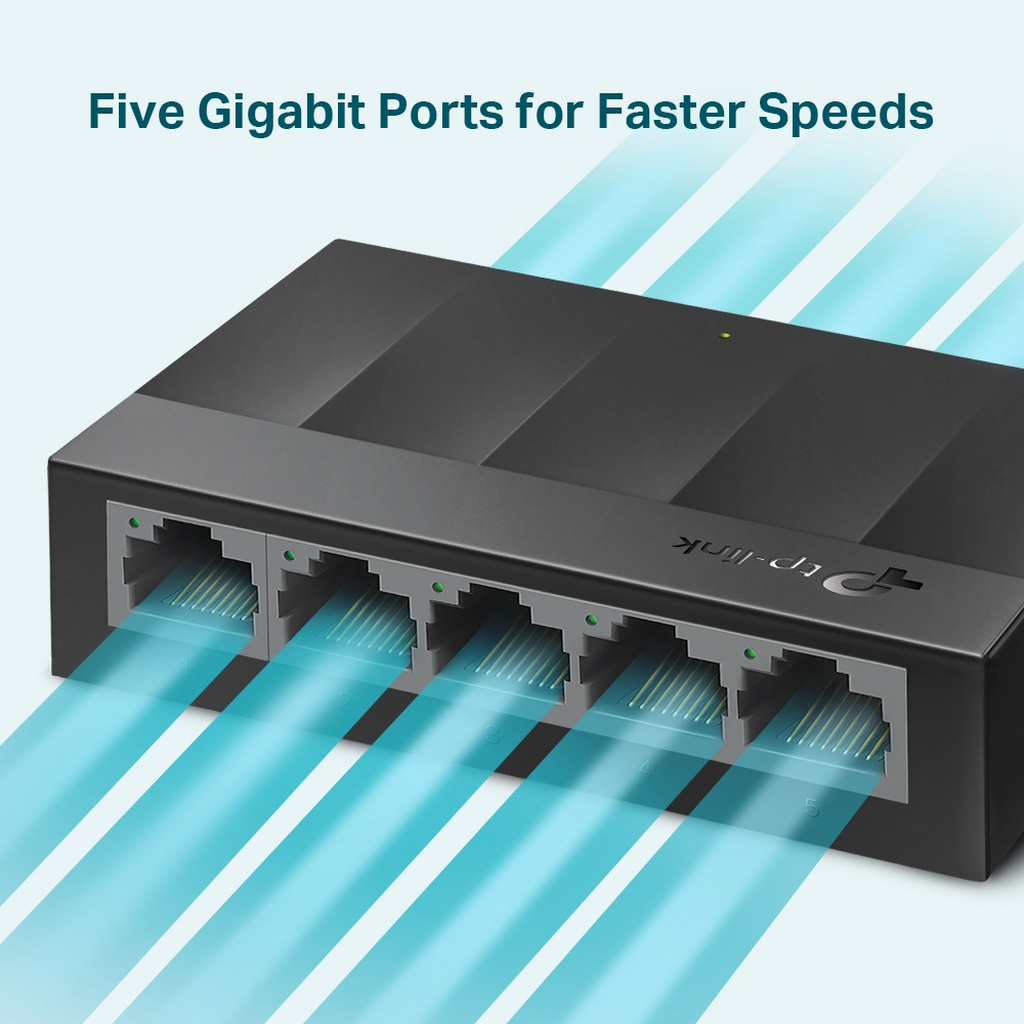

Gigabit Ports For Faster Speeds
Increase the speed of your network with the LS1005G 5-port Gigabit desktop switch. Non-blocking, 5× 10/100/1000Mbps ports enable instant transferring of large, bandwidth intensive files without interference.

Use Where You Need, However You Need
The LS1005G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.

Additional information

Weight 0.18 lbs
Switch type

Unmanaged

Basic switching RJ-45 Ethernet ports quantity

5

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Networking standards

IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

10G support

No

Auto MDI/MDI-X

Yes

MAC address table

2000 entries

Switching capacity

10 Gbit/s

Store-and-forward

Yes

Jumbo frames support

Yes

Jumbo frames

16000

Packet buffer memory

1.5 MB

Rack mounting

No

Product colour

Black

Housing material

Plastic

LED indicators

Yes

DC input voltage

5 V

Input current

0.6 A

Power consumption (max)

3.7 W

Power over Ethernet (PoE)

No

Operating temperature (T-T)

0 – 40 °C

Storage temperature (T-T)

-40 – 70 °C

Operating relative humidity (H-H)

10 – 90%

Storage relative humidity (H-H)

5 – 90%

Width

90 mm

Depth

72 mm

Height

23 mm

Harmonized System (HS) code

85176990

Flow control support

Yes

Auto-negotiation

Yes

Power supply included

Yes

Quick start guide

Yes

Certification

CE, FCC, RoHS

Forwarding rate

7.4 Mpps

Wall mountable

Yes

Package type

Box

Heat dissipation

12.617 BTU/h

International Protection (IP) code

IP20, IP40
