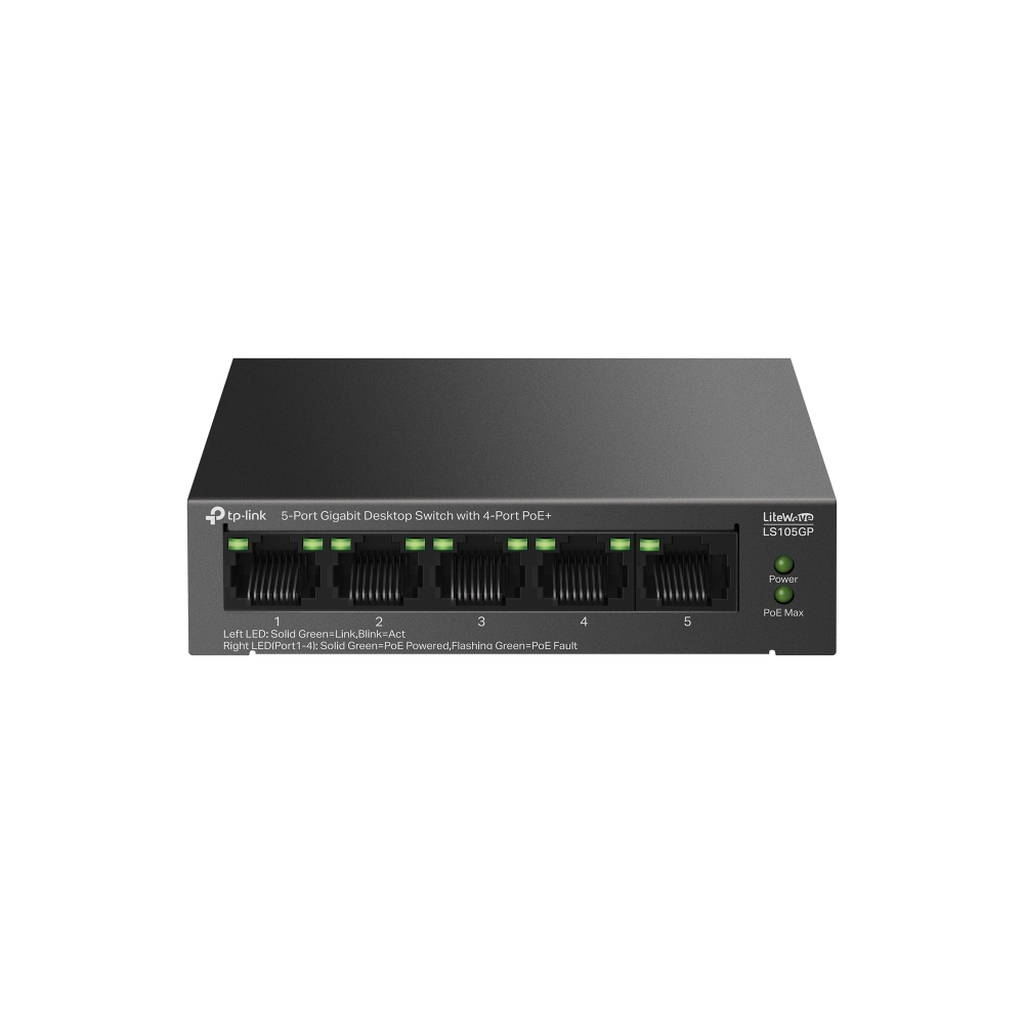

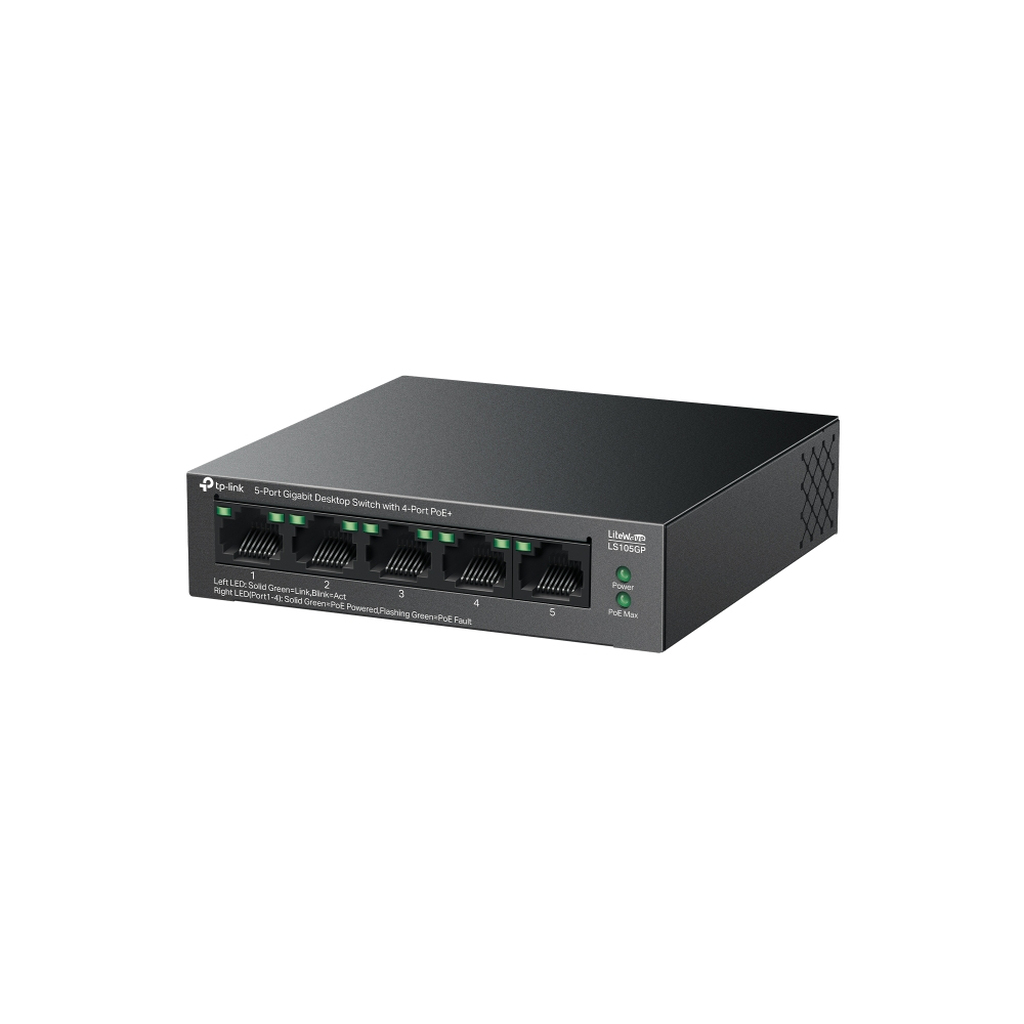

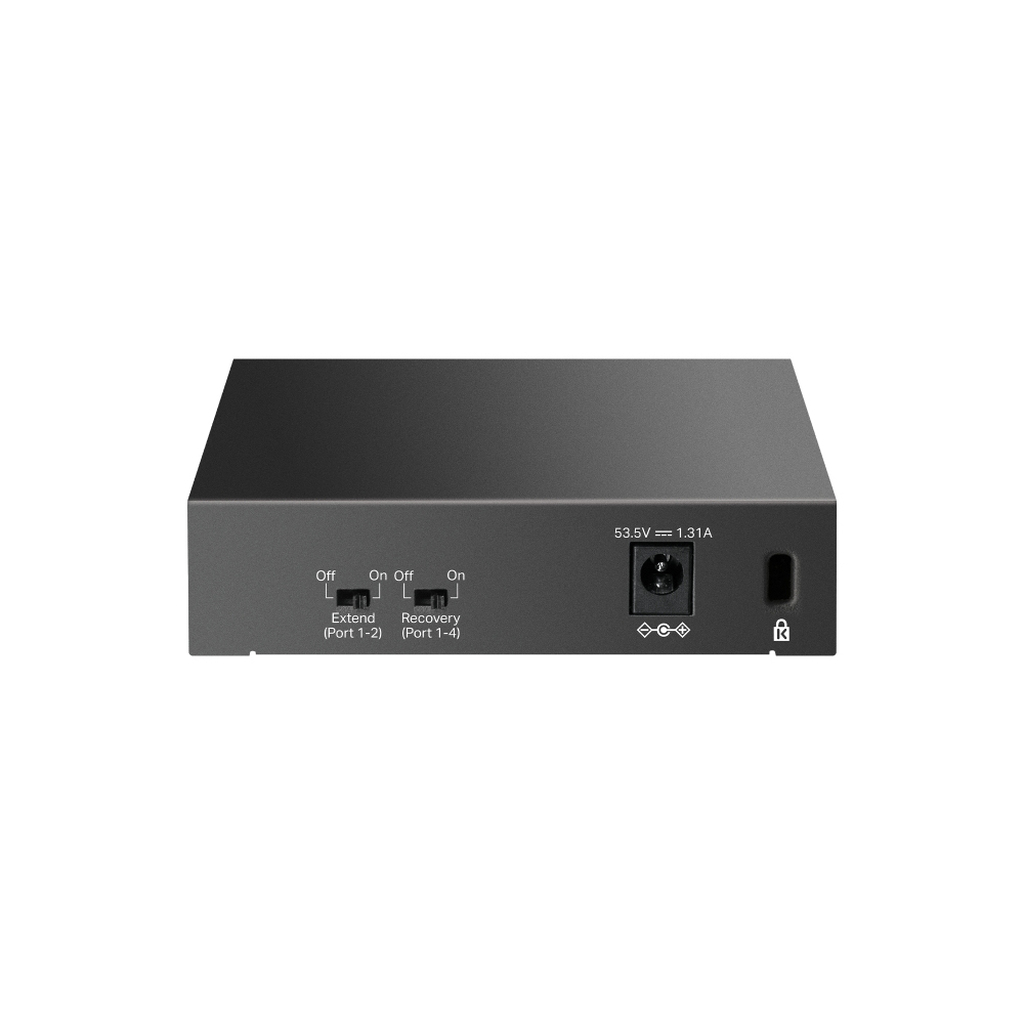

TP-Link LiteWave 5-Port Gigabit Desktop Switch with 4-Port PoE+
5× 10/100/1000 Mbps RJ45, PoE+ 65W, 10 Gbps, 7.44 Mpps, 2K MAC, 16 KB Jumbo, 99.8x98x25 mm
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Overview
The TP-Link LiteWave Series PoE Switches require no configuration and provide PoE (Power over Ethernet) ports. They can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Additional information
| Weight | 0.7 lbs |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| MAC address auto-learning supported | Yes |
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames | 16000 |
| Product colour | Black |
| LED indicators | Yes |
| DC input voltage | 53.5 V |
| Power consumption (max) | 74.46 W |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 5 – 90% |
| Width | 99.8 mm |
| Depth | 98 mm |
| Height | 25 mm |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| IGMP snooping | Yes |
| Power source | DC/PoE |
| Power supply included | Yes |
| Certification | CE, FCC, RoHS |
| AC input voltage | 220 V |
| AC input frequency | 50 Hz |
| Total Power over Ethernet (PoE) budget | 65 W |
| Forwarding rate | 7.44 Mpps |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| User guide | Yes |
| Package type | Box |
| Heat dissipation | 253.16 BTU/h |
| Cable types supported | Cat3, Cat5e, Cat4, Cat5 |
| MAC address auto-aging supported | Yes |
