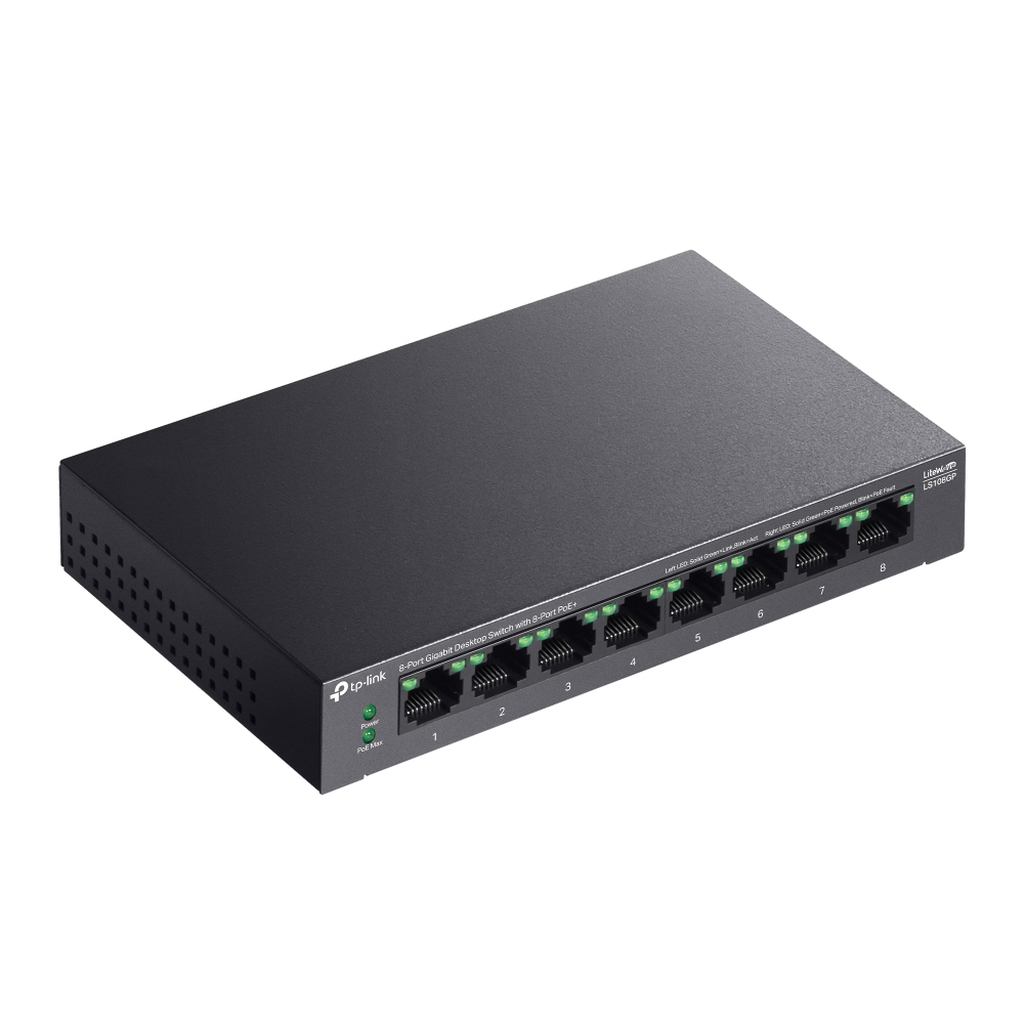

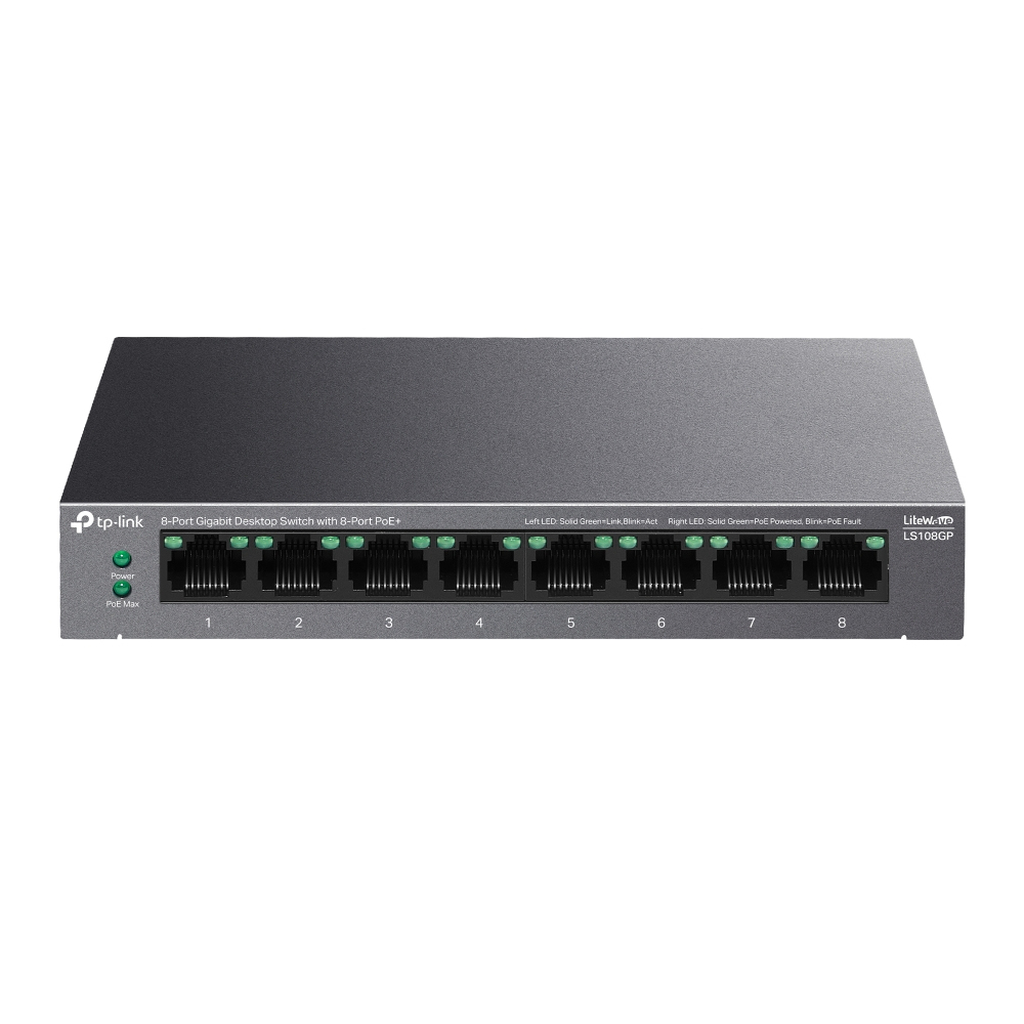

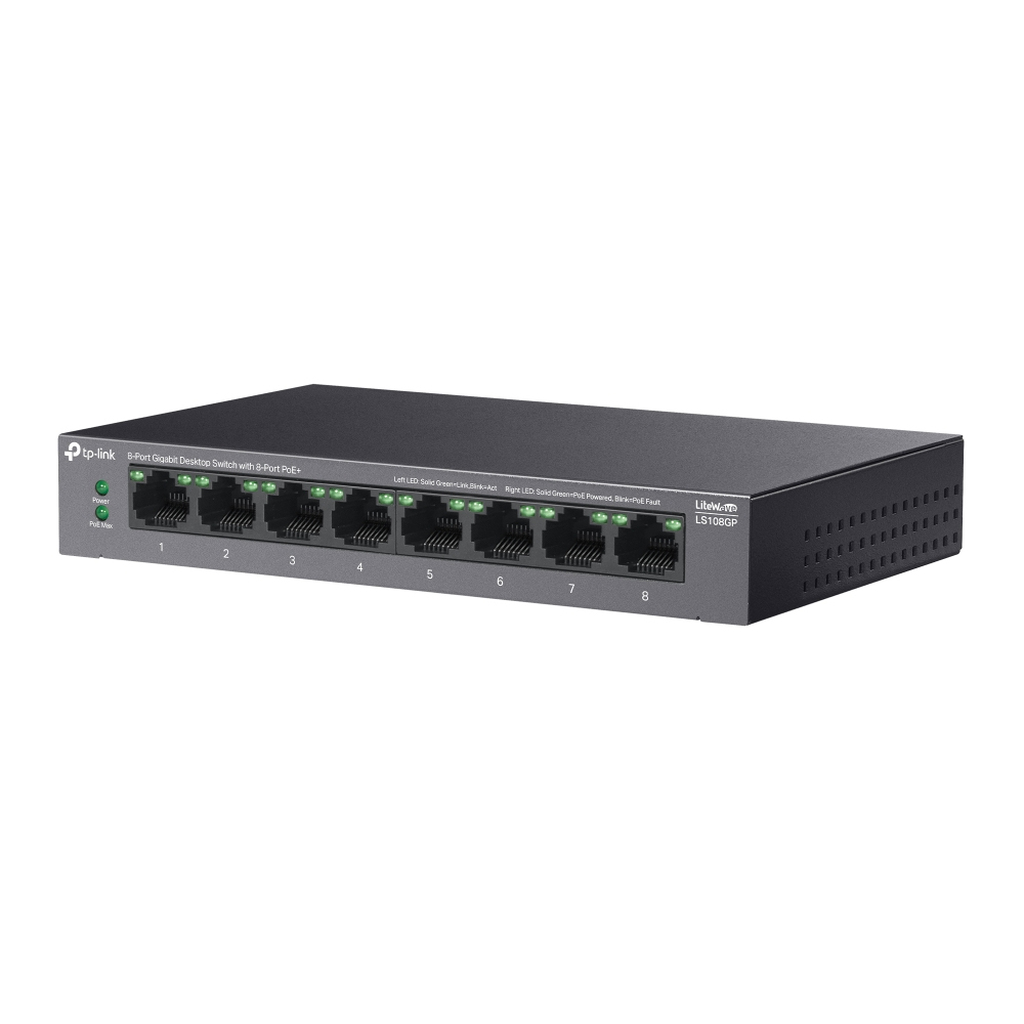

TP-Link LiteWave 8-Port Gigabit Desktop Switch with 8-Port PoE+
8× 10/100/1000Mbps RJ45 PoE+, 16 Gbps, 4K MAC, 16 KB Jumbo, 158×99×25 mm
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The TP-Link LiteWave Series PoE Switches require no configuration and provide PoE (Power over Ethernet) ports. They can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Additional information
| Weight | 0.8 lbs |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| MAC address table | 4000 entries |
| Switching capacity | 16 Gbit/s |
| Jumbo frames | 16000 |
| Product colour | Black |
| LED indicators | Yes |
| DC input voltage | 53.5 V |
| Input current | 1.31 A |
| Power consumption (max) | 71.61 W |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 5 – 90% |
| Width | 158 mm |
| Depth | 99 mm |
| Height | 25 mm |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| Power source | DC/PoE |
| Power supply included | Yes |
| Certification | CE, FCC, RoHS |
| AC input voltage | 220 V |
| AC input frequency | 50 Hz |
| Total Power over Ethernet (PoE) budget | 62 W |
| Power connector | DC-in jack |
| Forwarding rate | 11.9 Mpps |
| Power over Ethernet (PoE) power per port | 30 W |
| User guide | Yes |
| Package type | Box |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Heat dissipation | 243.47 BTU/h |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
