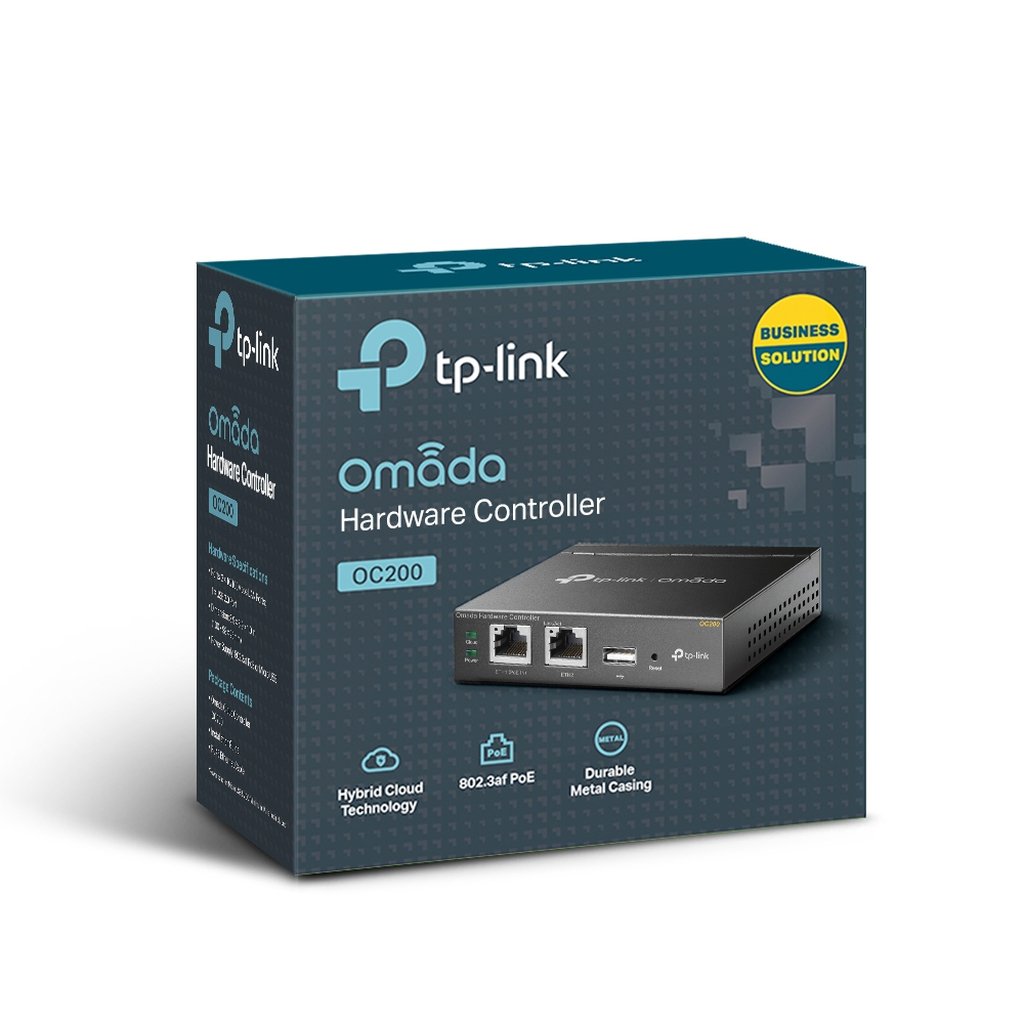

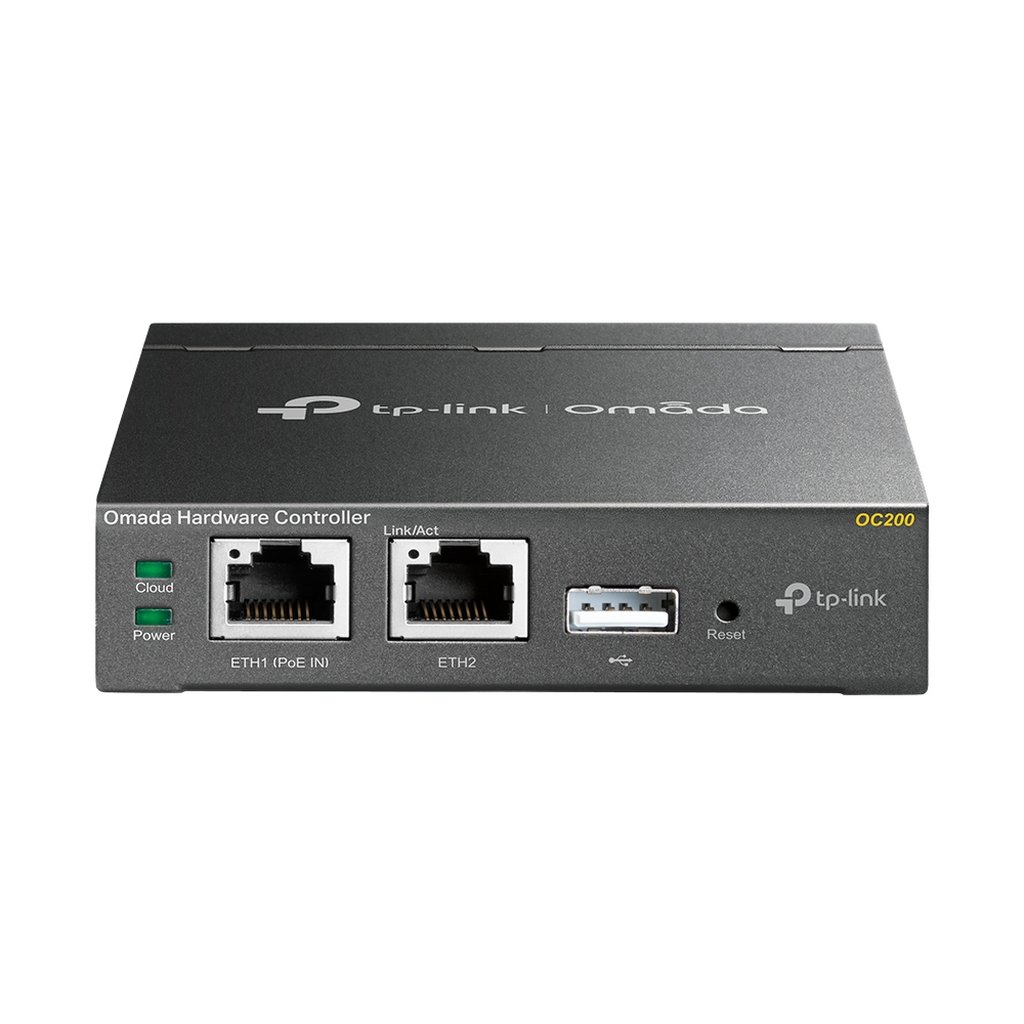

TP-Link Omada Hardware Controller
2× 10/100 Mbps, USB 2.0, Micro USB, 802.3af/at PoE, 100×98×25 mm
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Centralized Management for
Access Points, Switches, and Routers
OC200, the professional on-premises hardware controller for the Omada Software Defined Networking (SDN) platform, provides 100% centralized management of Omada access points, Omada switches, and Omada routers—all controlled from a single interface.
Hybrid Cloud for Maximum Convenience
Featuring hybrid cloud technology, the Omada Hardware Controller OC200 allows you to remotely control the whole network wherever you are in the world with cloud access. Locally manage devices with the ultimate security and stability.
Industry-Leading Hardware Design
Equipped with an advanced design and the latest chipset, OC200 has enough processing power to support the massive management of your business network.
Easy and Intelligent Network Monitoring
The easy-to-use dashboard makes it easy to see your real-time network status; check network usage and traffic distribution; receive network condition logs, abnormal event warnings, and notifications; or even track key data for better business results. Network topology helps IT admins quickly see and troubleshoot connections at a glance.
WiFi Heatmap Simulator
Generate a Wi-Fi solution by simulating the wireless coverage effect of APs in the actual site. Determine the appropriate number and location of APs according to the coverage requirements.
Visualizable Network Report for Conveniently Summary
Help service providers easily report network service quality to their customers through reports. IT administrators also easily report network operation status through reports.
Batch Management, Multi-Site Management, and Remote Firmware Updates
Improve network maintenance without needing to configure on-site or manage devices one by one.
Powerful Scheduling
Maintain your network easily with more agile and effective processing. No manual tasks required.
Additional information
| Weight | 0.46 lbs |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
| Control display unit | No |
| Built-in processor | Yes |
| Internal memory | 1024 MB |
| Internal memory type | DDR3 |
| Flash memory | 4000 MB |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 2 |
| Reset button | Yes |
| Width | 100 mm |
| Depth | 98 mm |
| Height | 25 mm |
| Cables included | LAN (RJ-45) |
| Quick installation guide | Yes |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 5 – 90% |
| Antenna type | Internal |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Security algorithms | SSID, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Quality of Service (QoS) support | Yes |
| Number of processors installed | 1 |
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
| Web-based management | Yes |
| Power consumption (max) | 11.3 W |
| Certification | CE, FCC, RoHS |
| Processor frequency | 1200 MHz |
| VLAN support | Yes |
| USB 2.0 ports quantity | 1 |
| Power over Ethernet (PoE) | Yes |
| Harmonized System (HS) code | 85176990 |
| Cable lock slot type | Kensington |
