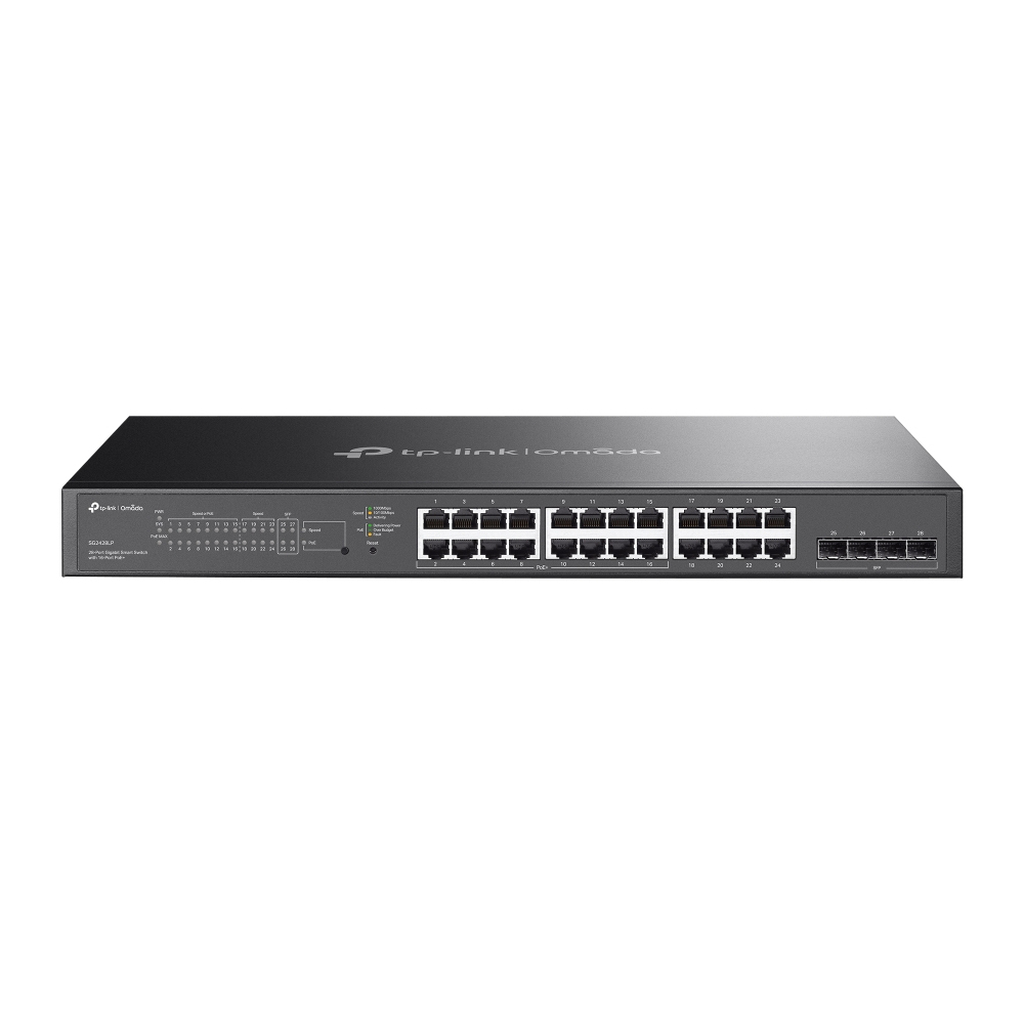

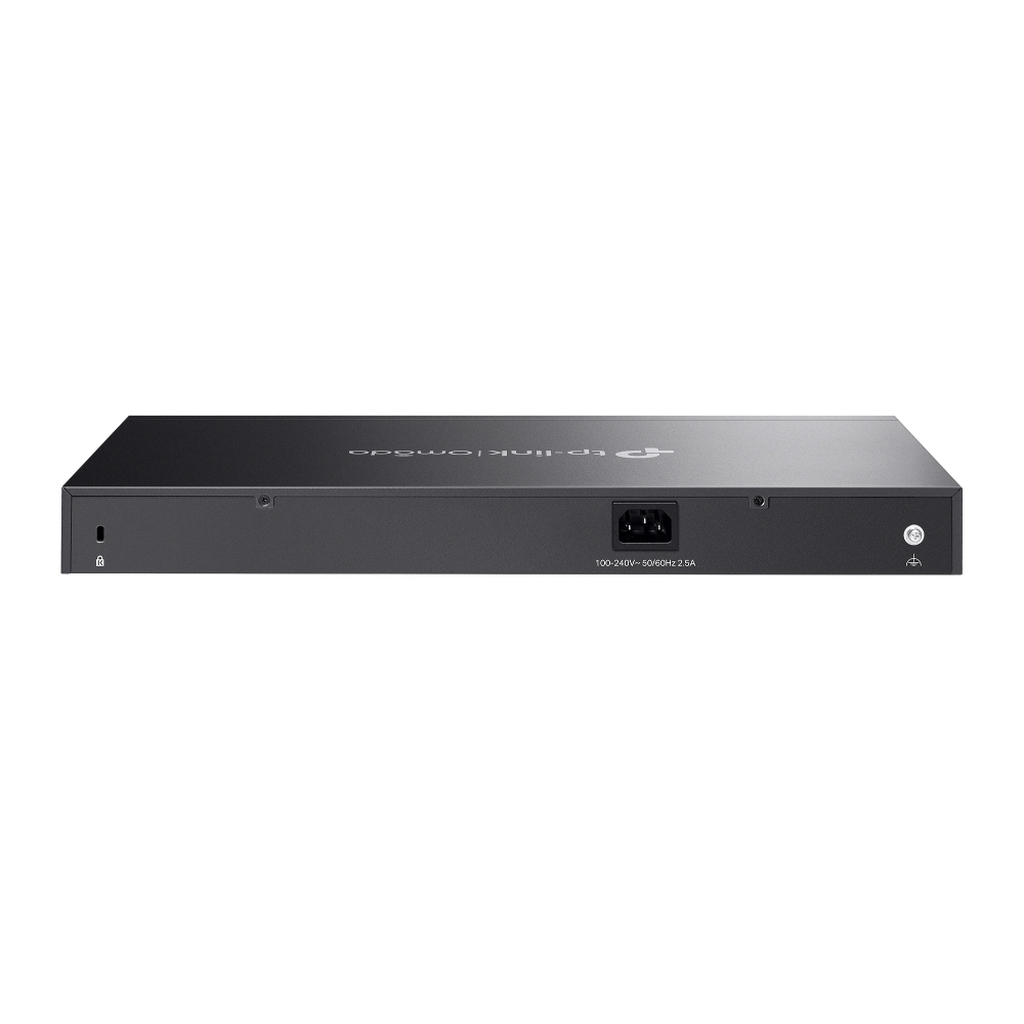

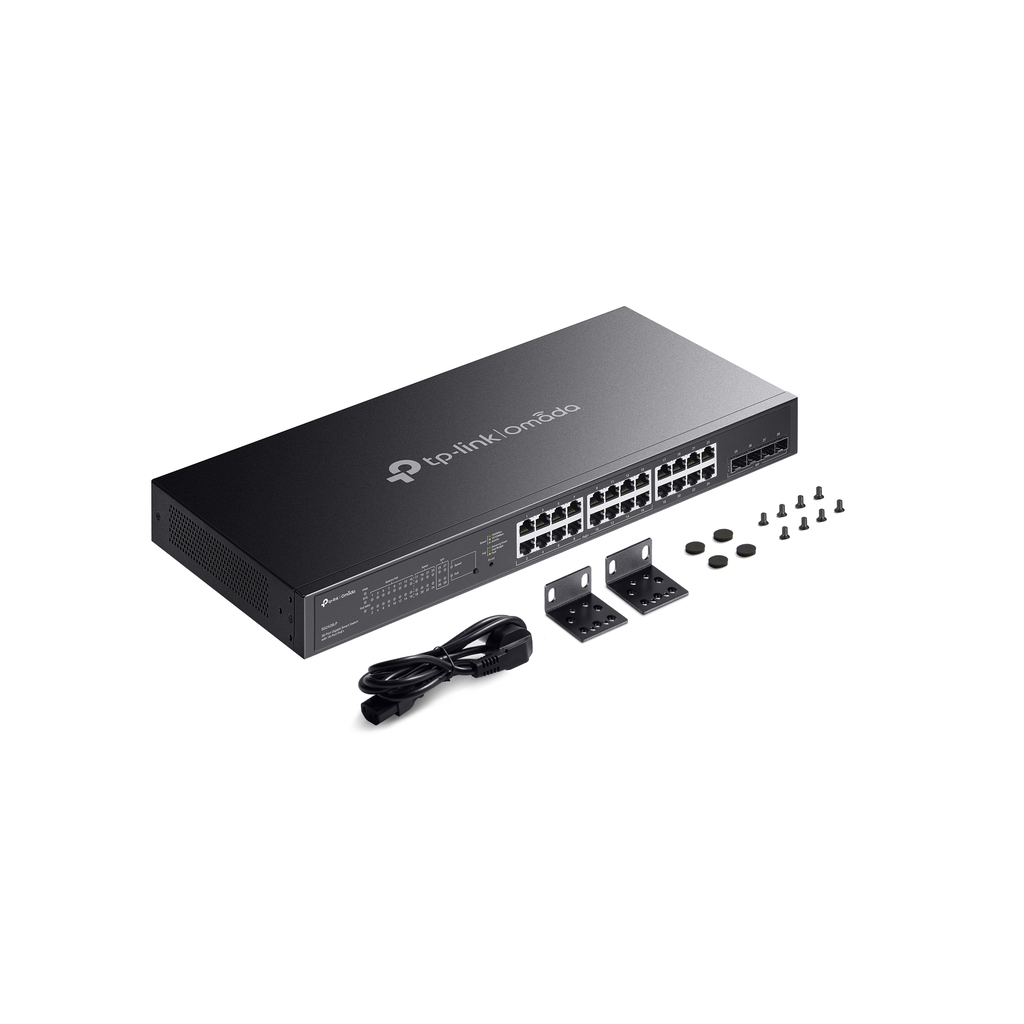

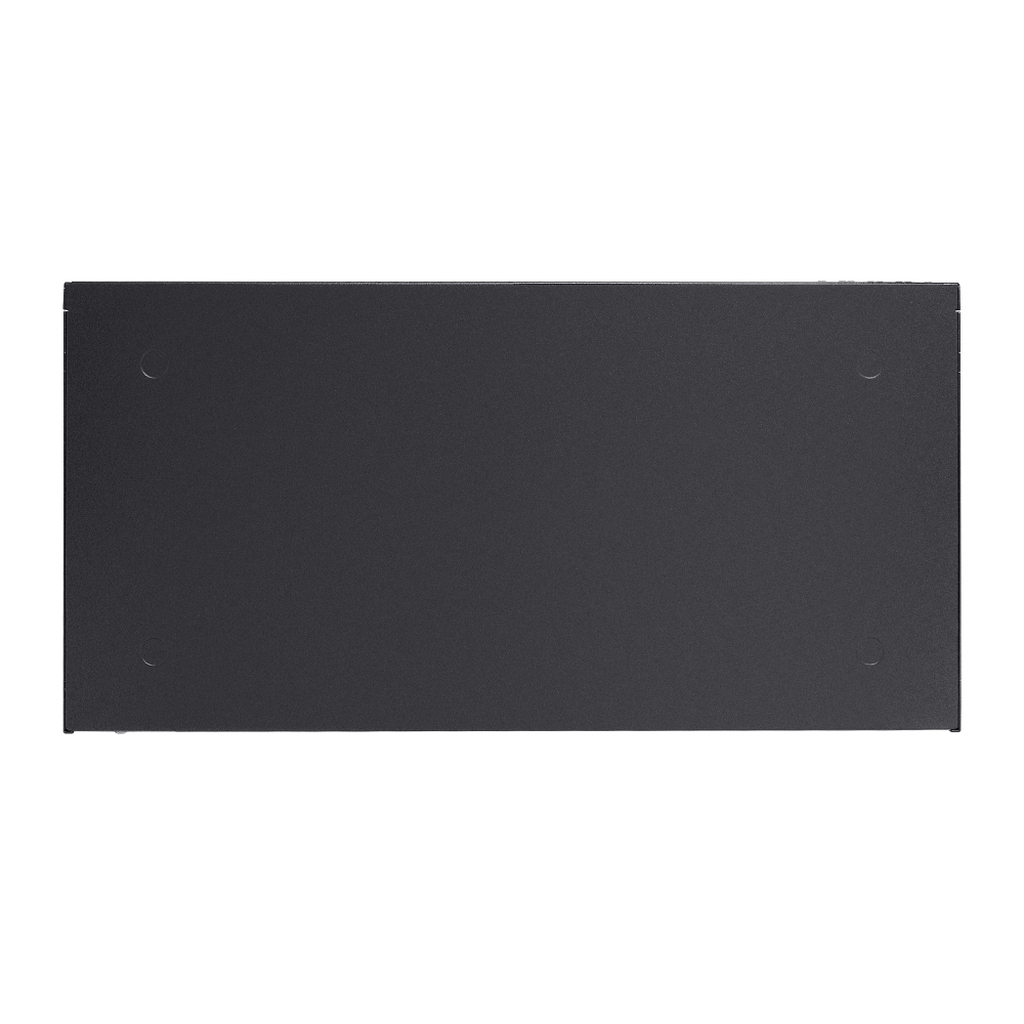

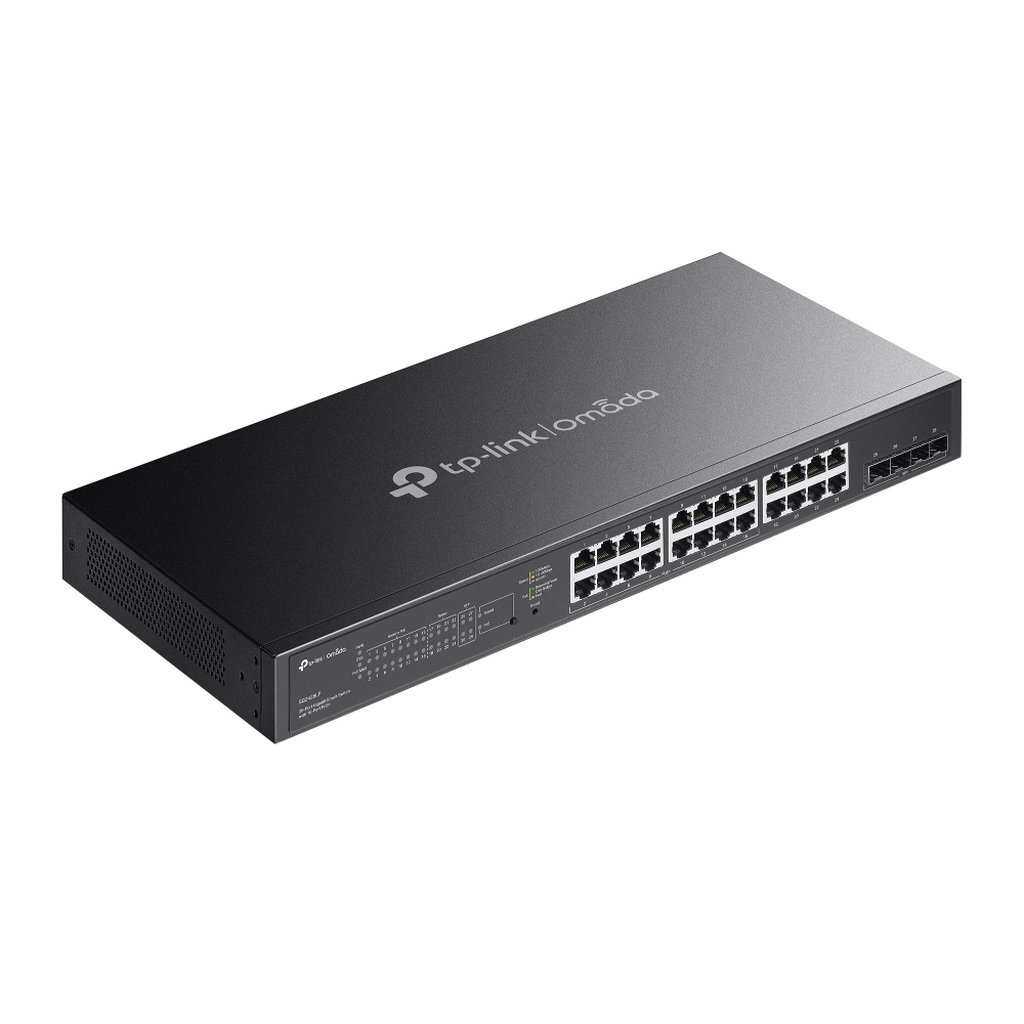

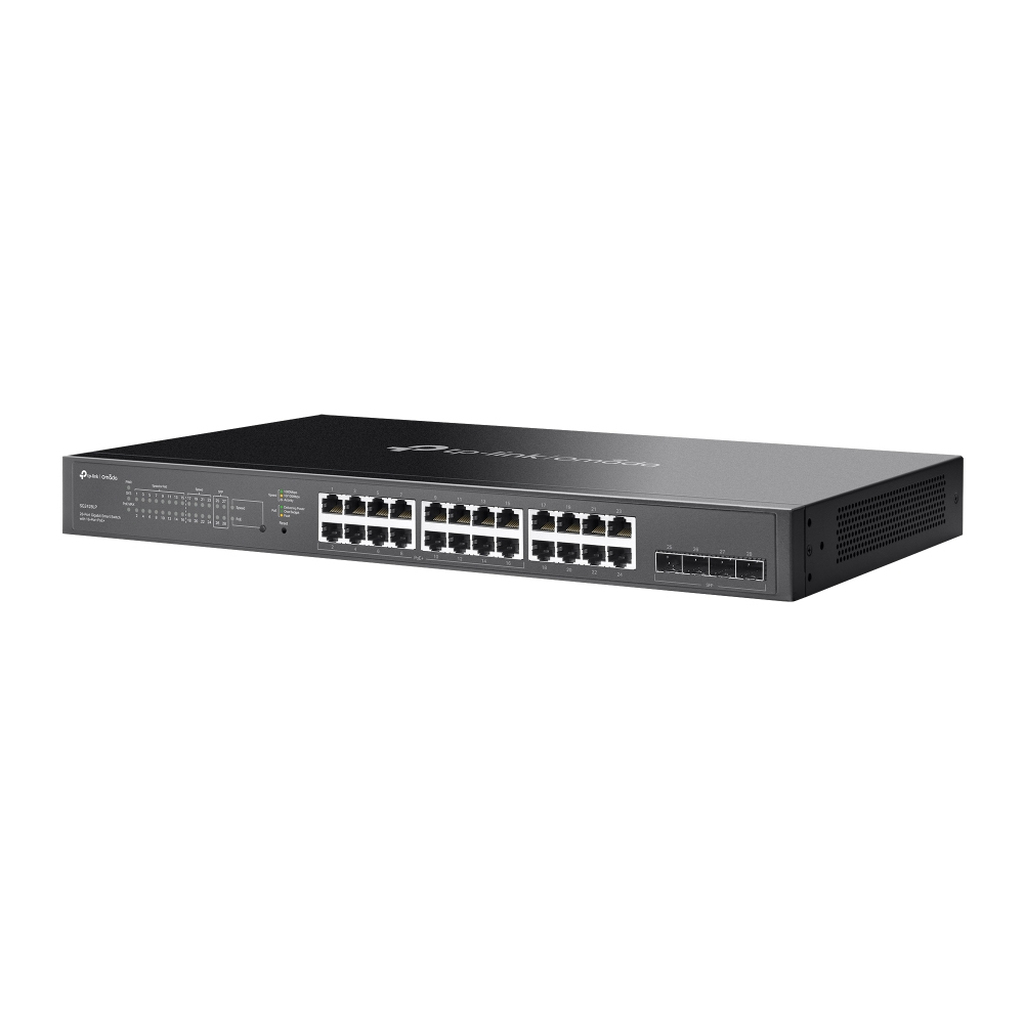

TP-Link Omada 28-Port Gigabit Smart Switch with 16-Port PoE+
16× 10/100/1000 Mbps PoE+ RJ45, 8× 10/100/1000 Mbps RJ45, 4× Gigabit SFP Slots, 56 Gbps, 41.66 Mpps, 440 x 220 x 44 mm
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
– 24× Gigabit Ports (16× PoE+), 4× Gigabit SFP Slots
– 150 W Total PoE Budget
– Fanless Design for Silent Operation
– Zero-Touch Provisioning
– Centralized Management
– Omada App
– Static Routing
– Traffic Separation
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
Multiple Application Scenarios
Surveillance
Works with IP Cameras
Conference Call
Works with IP Phones
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
Additional information
| Weight | 4 lbs |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| 10G support | No |
| MAC address table | 8000 entries |
| Switching capacity | 56 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 4.1 MB |
| Rack mounting | Yes |
| Product colour | Grey |
| LED indicators | Yes |
| Power consumption (max) | 184.7 W |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 5 – 90% |
| Width | 440 mm |
| Depth | 220 mm |
| Height | 44 mm |
| Switch layer | L2/L2+ |
| Web-based management | Yes |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| DHCP features | DHCP relay, DHCP server |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Power source | AC/PoE |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50/60 Hz |
| Total Power over Ethernet (PoE) budget | 150 W |
| ARP inspection | Yes |
| Number of VLANs | 4000 |
| Forwarding rate | 41.66 Mpps |
| Password protection | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Cloud-managed | Yes |
| Link aggregation | Yes |
| Fanless | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Heat dissipation | 628 BTU/h |
| MAC address filtering | Yes |
| Multicast support | Yes |
| SFP module slots quantity | 4 |
