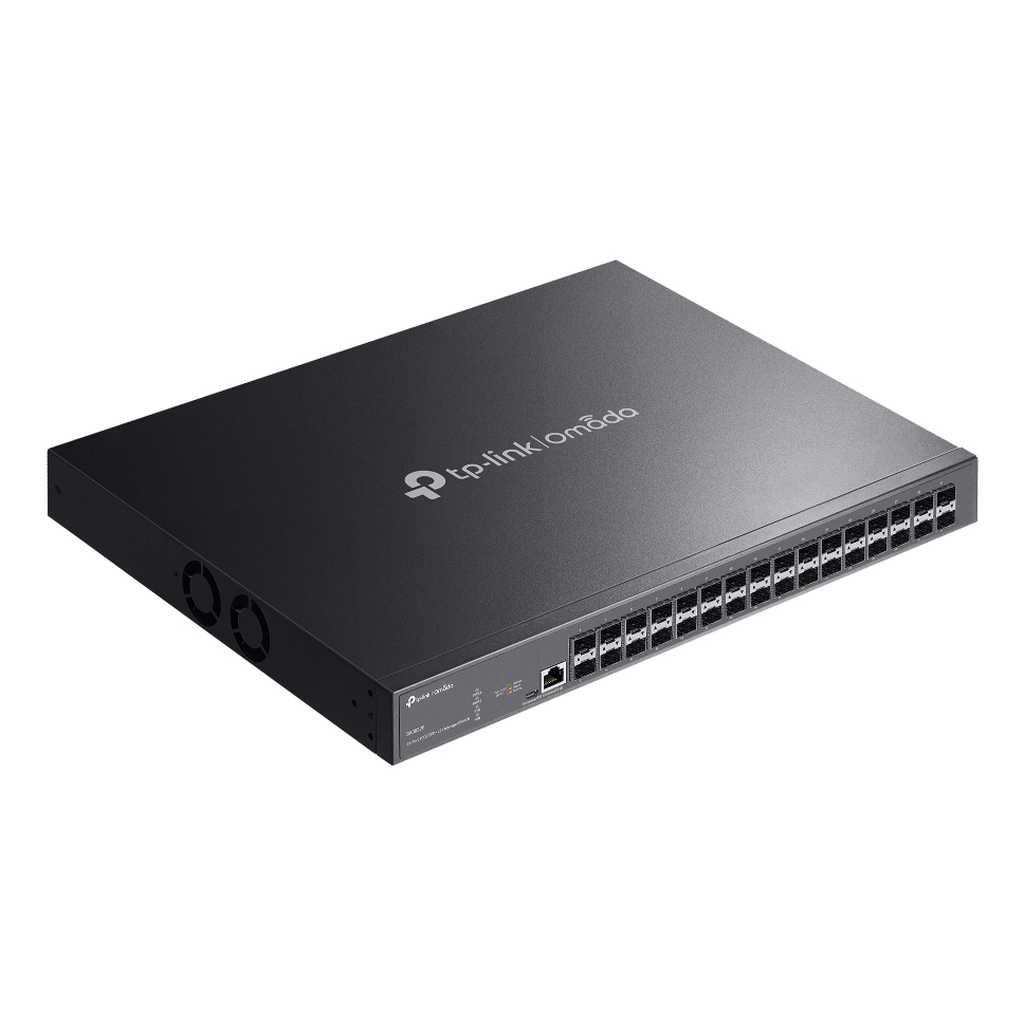

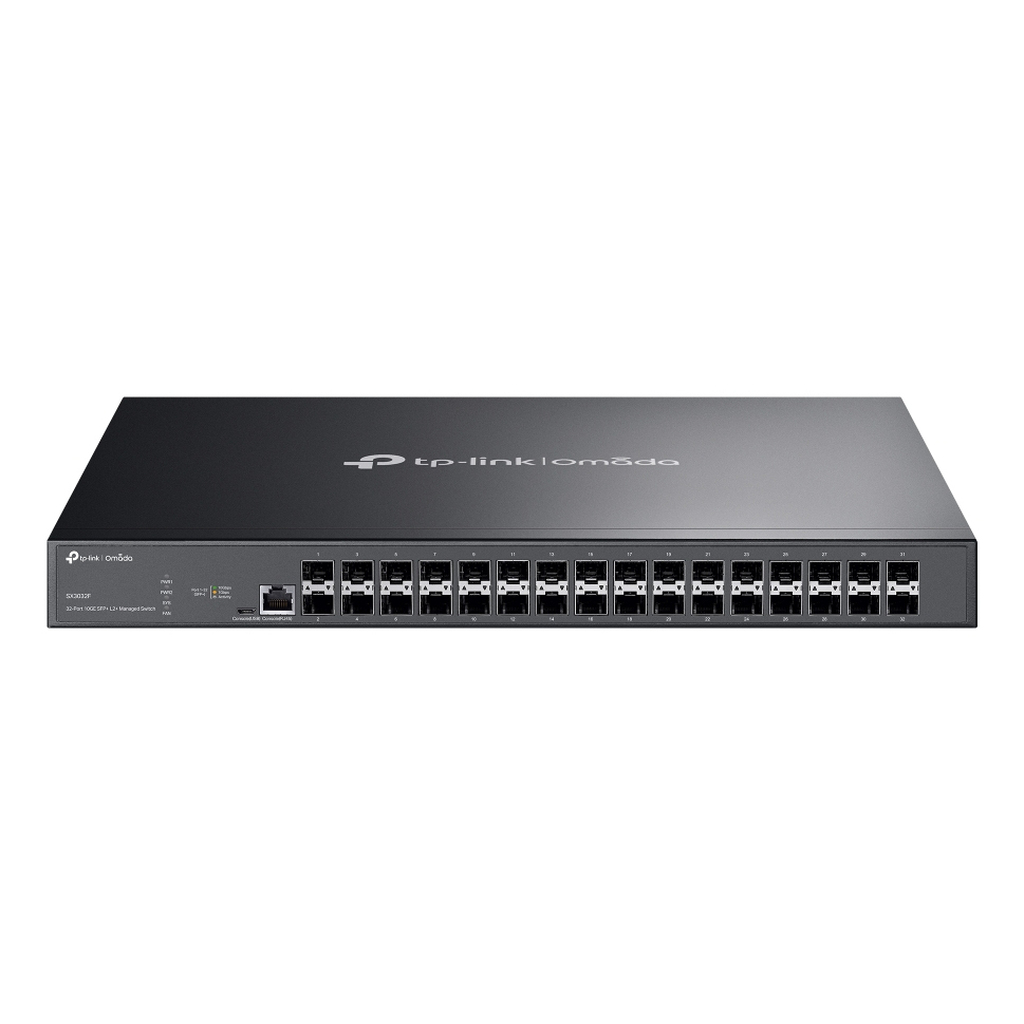

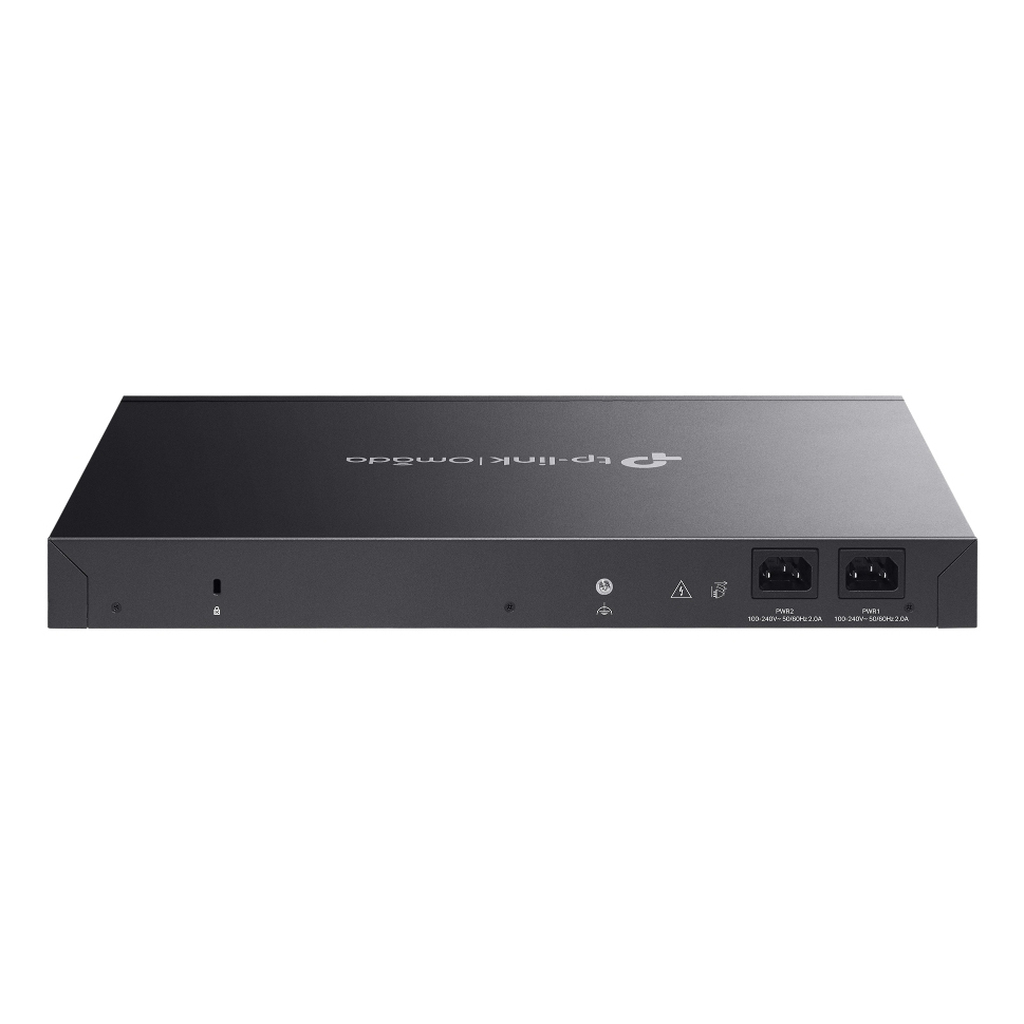

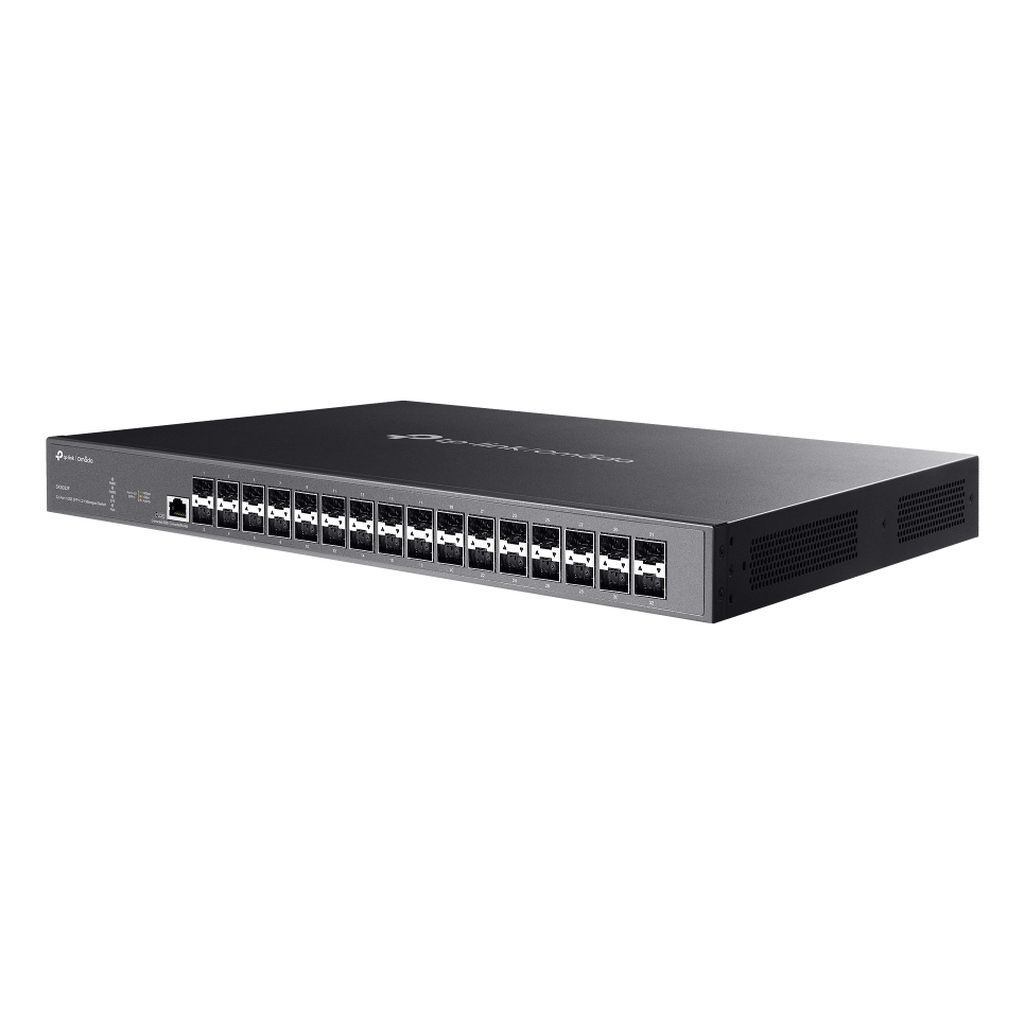

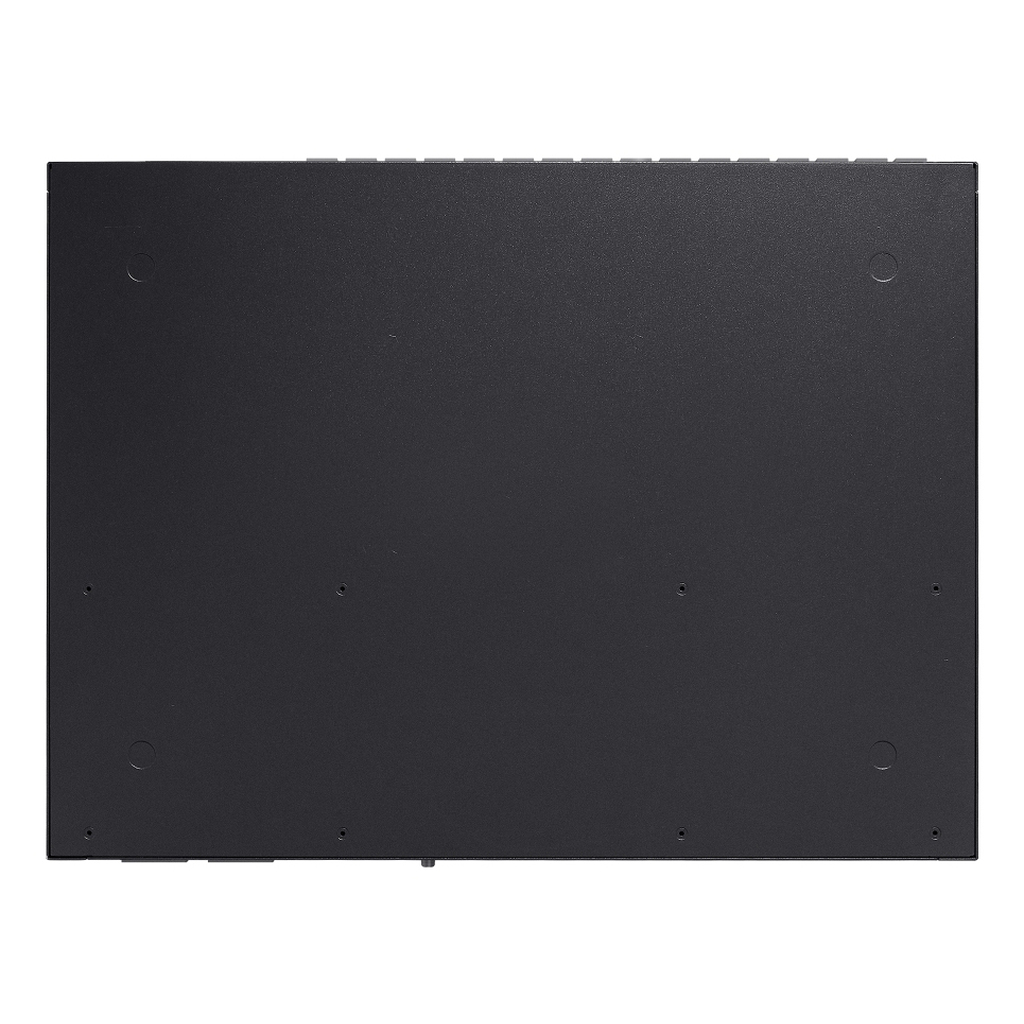

TP-Link Omada 32-Port 10GE SFP+ L2+ Managed Switch
L2+, 32× 10-Gbit/s-SFP+, 640 Gbit/s, 32 K MAC, 9 KB Jumbo, 440 x 330 x 44 mm
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Omada 32-Port 10GE SFP+ L2+ Managed Switch
Easily Build a Whole 10G Multi-gigabit Network
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
Additional information
| Weight | 6.16 lbs |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 1 |
| Installed SFP+ modules quantity | 32 |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3x |
| MAC address table | 32000 entries |
| Switching capacity | 640 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9 |
| Packet buffer memory | 24 MB |
| Rack mounting | Yes |
| Product colour | Black |
| Power consumption (max) | 49.4 W |
| Operating temperature (T-T) | -5 – 45 °C |
| Storage temperature (T-T) | 40 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 5 – 90% |
| Width | 440 mm |
| Depth | 330 mm |
| Height | 44 mm |
| Switch layer | L2+ |
| Console port | RJ-45/Micro-USB |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Protocol-based VLAN, SSID-based VLAN assignment, Tagged VLAN, VLAN mapping, Voice VLAN |
| DHCP features | DHCP relay, DHCP server, DHCPv6 snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Number of fans | 2 fan(s) |
| Power source | AC |
| Power supply included | Yes |
| Cables included | Power |
| Quick start guide | Yes |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50/60 Hz |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Static route | Yes |
| Loop protection | Yes |
| ARP inspection | Yes |
| MIB support | • MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Ac |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Number of VLANs | 30 |
| Forwarding rate | 240 Mpps |
| Number of static routes | 128 |
| Password protection | Yes |
| Authentication type | AAA, TACACS+ |
| Cloud-managed | Yes |
| Link aggregation | Yes |
| Configuring Location Settings (CLI) | Yes |
| Rate limiting | Yes |
| Static port security | Yes |
| SSH/SSL support | Yes |
| IP-MAC-Port binding | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| Multicast support | Yes |
| Redundant fans support | Yes |
| IPv4 routes | 48 |
| IPv6 routes | 48 |
| Number of queues | 8 |
| Number of IP interfaces | 128 |
| Queue scheduling algorithms | Priority queuing (PQ), SP, Weighted Round Robin (WRR) |
| Number of multicast groups filtered | 4000 |
| Multicast Listener Discovery (MLD) snooping | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6, ICMPv6, IPv6 TFTP |
| IP Source Guard (IPSG) | Yes |
