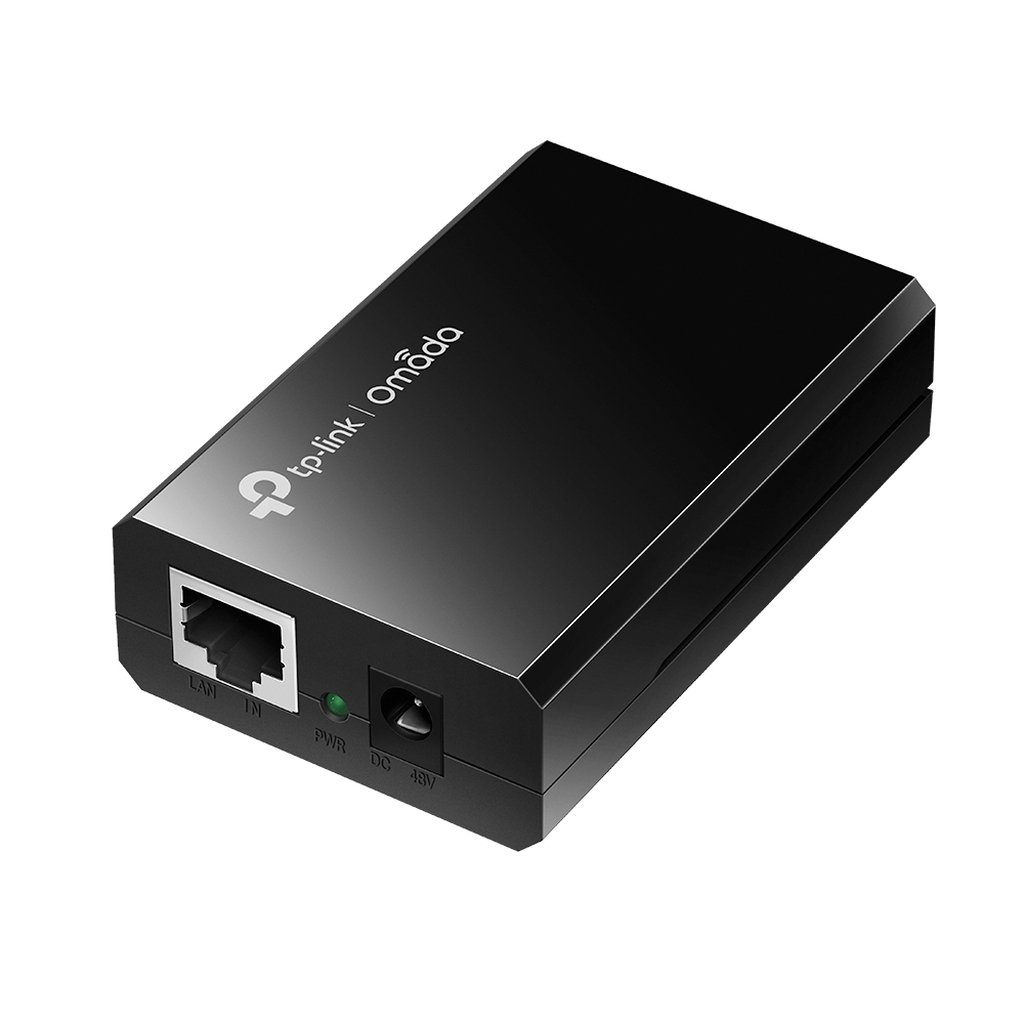

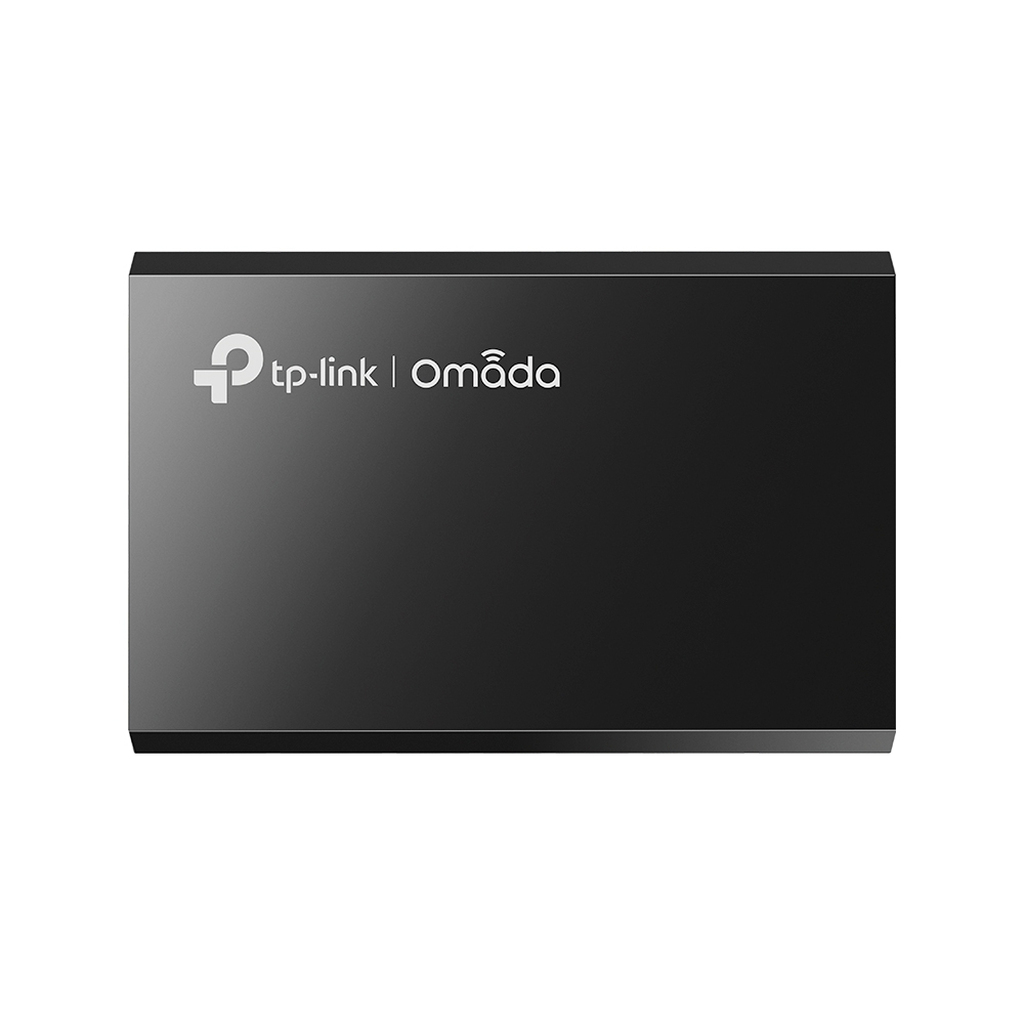

TP-Link Omada IEEE 802.3af PoE Injector
In Stock
IEEE 802.3af PoE Injector
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

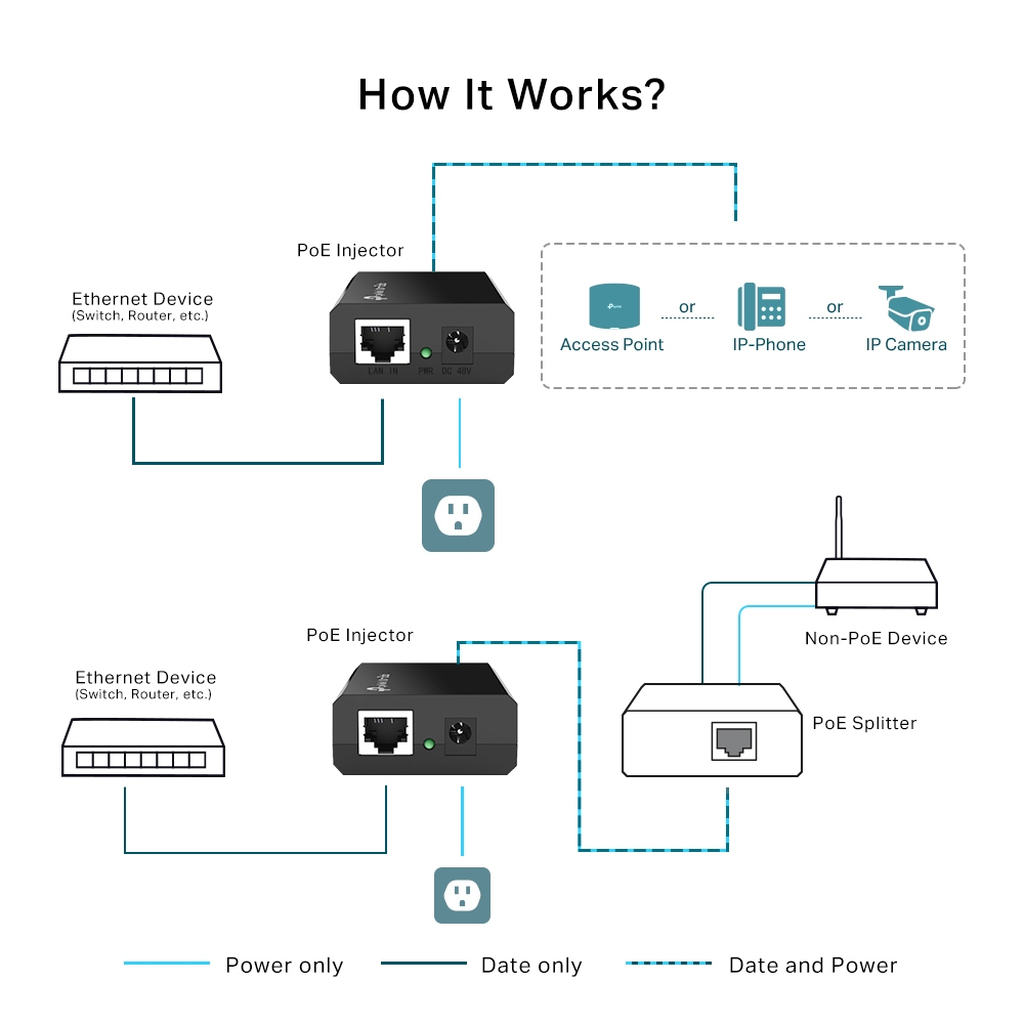

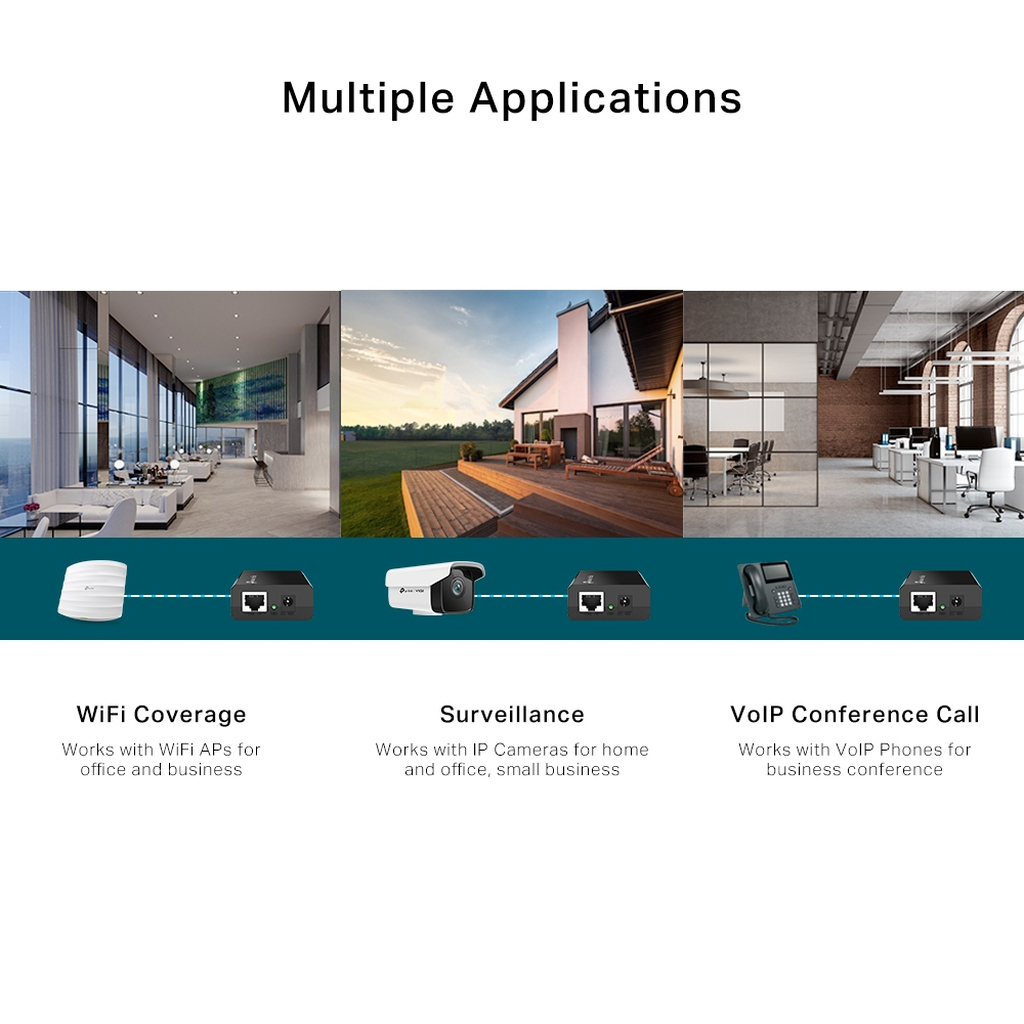

The PoE Injector POE150S (TL-POE150S) fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-LINK’s POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
Additional information
| Weight | 0.42 lbs |
|---|---|
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000 |
| Power over Ethernet (PoE) | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u |
| Product colour | Black |
| Maximum operating distance | 100 m |
| LED indicators | Yes |
| Auto-negotiation | Yes |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| DC-in jack | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -40 – 70 °C |
| Width | 80.8 mm |
| Depth | 54 mm |
| Height | 24 mm |
| Quick installation guide | Yes |
| Package width | 65 mm |
| Package depth | 198 mm |
| Package height | 65 mm |
| Package weight | 350 g |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Plug and Play | Yes |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage relative humidity (H-H) | 5 – 90% |
| Number of products included | 1 pc(s) |
| AC adapter included | Yes |
| Input voltage | 48 V |
| Auto-sensing | Yes |
