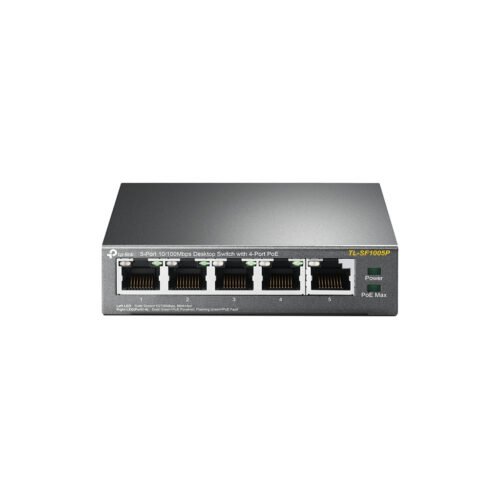

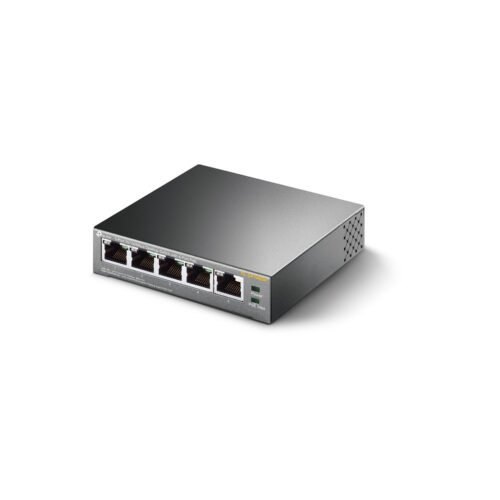

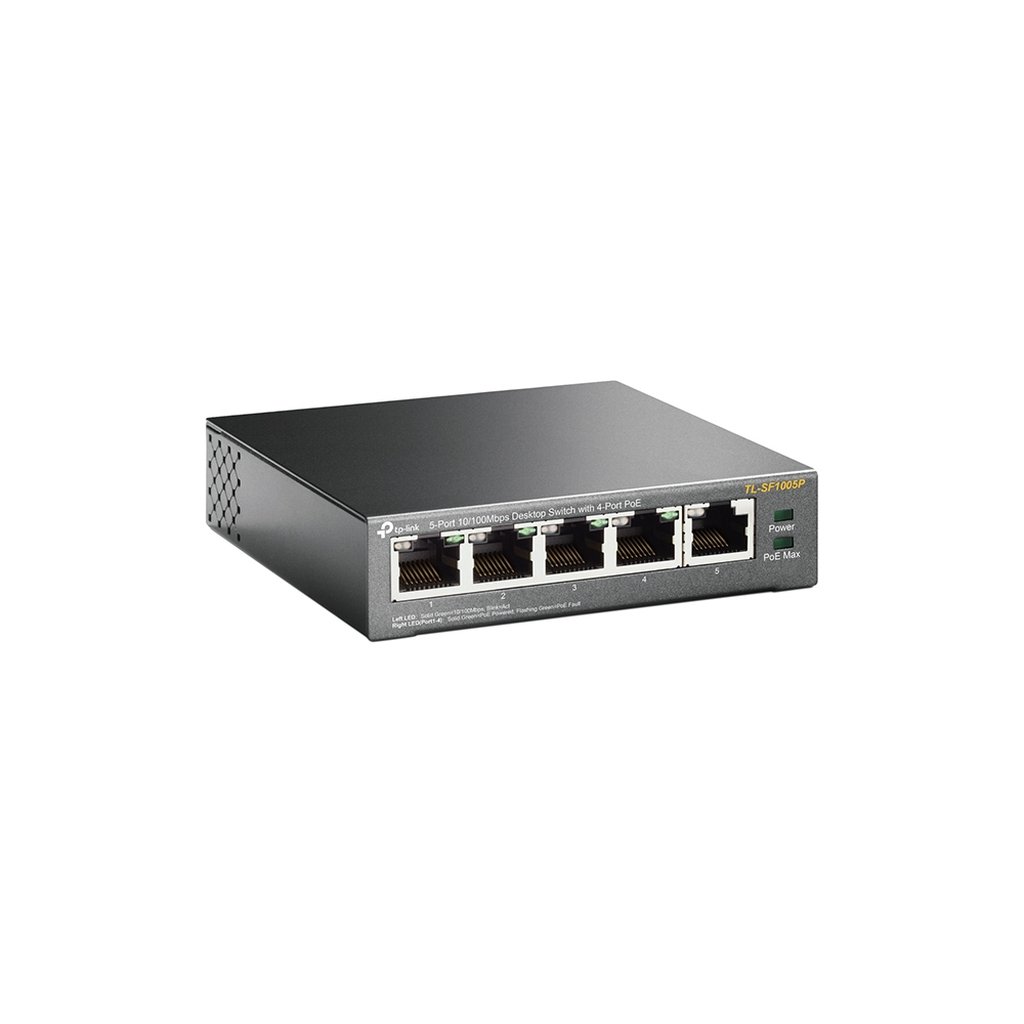

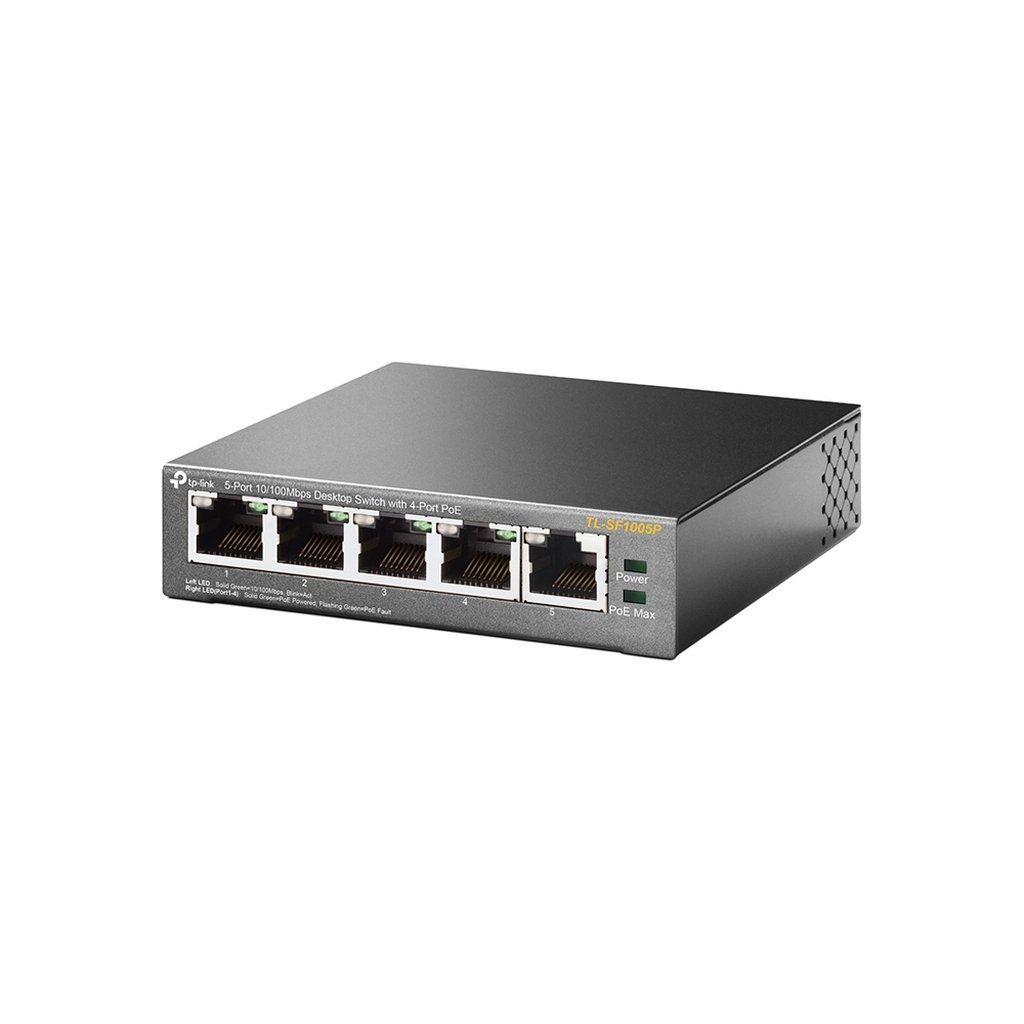

TP-Link TL-SF1005P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
5x 10/100Mbps RJ-45, PoE, 1 Gbps, 99.8x98x25 mm
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
TL-SF1005P is a 5 10/100Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Overload Arrangement
TL-SF1005P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 58W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Port Priority Function
Priority (port-1=port-2=port-3>port-4): This function will help to ensure the normal operation of the system, it means Port 4 will be cut off when all total PoE PDs power consumption exceed 58W. For an example, Port 1, 2 and 4 is using 15.4W (maximum power for per port is 15.4W); the system power is 46.2W in total. If there is an additional PD inserted to Port 3 with 12W, and then the system will cut off the power of Port 4 because of the overloaded power, this means Port 1, 2 will use 15.4W, and Port3 will use 12W, no power will be supplied to Port 4.
Easy To Use
TL-SF1005P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-Link’s TL-SF1005P 5-Port 10/100Mbps Desktop Switch with 4-Port PoE is an ideal choice for expanding your home or office network.
Additional information
| Weight | 0.88 lbs |
|---|---|
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Networking standards | IEEE 802.3af, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| MAC address auto-learning supported | Yes |
| MAC address table | 2000 entries |
| Switching capacity | 1 Gbit/s |
| Store-and-forward | Yes |
| Rack mounting | No |
| Product colour | Black |
| LED indicators | Yes |
| Power consumption (max) | 63.51 W |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 5 – 90% |
| Width | 99.8 mm |
| Depth | 98 mm |
| Height | 25 mm |
| Harmonized System (HS) code | 85176990 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| Power supply included | Yes |
| Certification | FCC, CE, RoHS |
| Total Power over Ethernet (PoE) budget | 58 W |
| Power over Ethernet (PoE) ports quantity | 4 |
| User guide | Yes |
| Package type | Box |
| Heat dissipation | 5.73 BTU/h |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| MAC address auto-aging supported | Yes |
