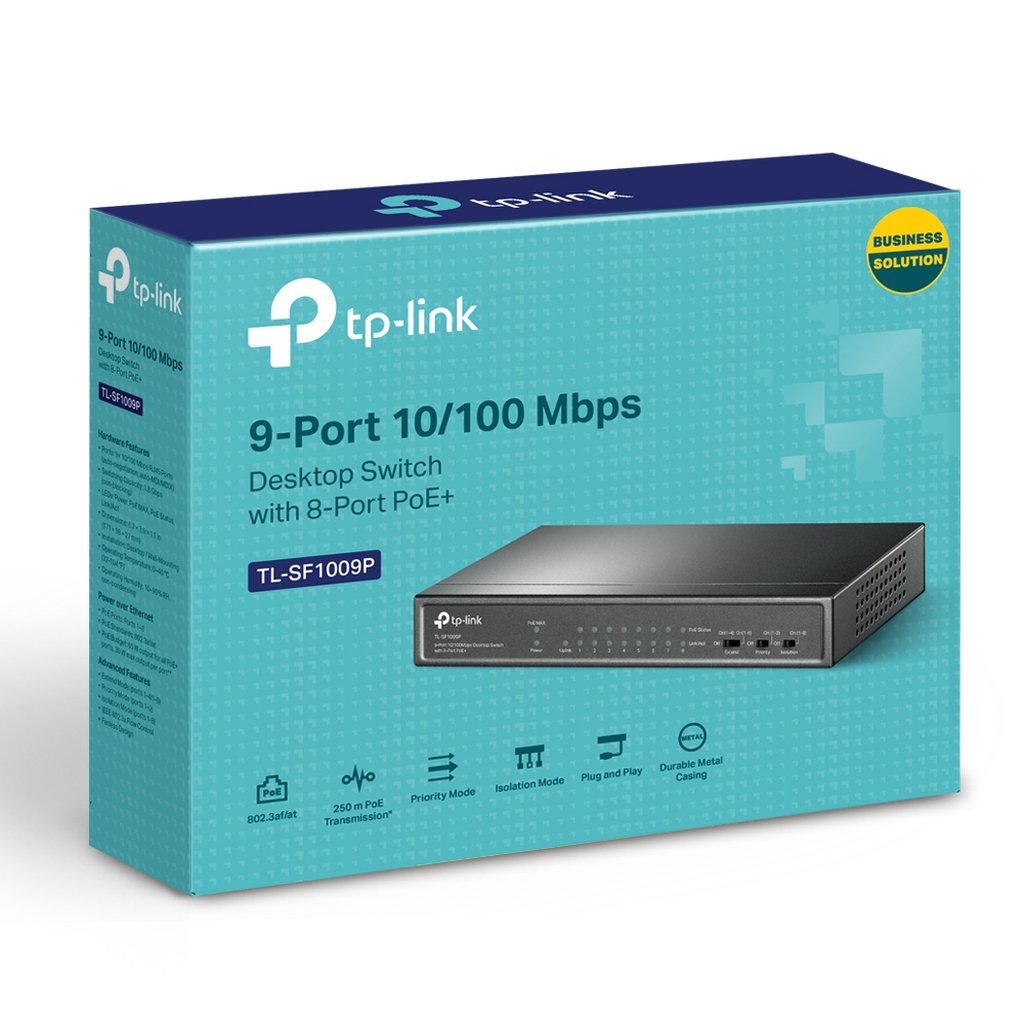

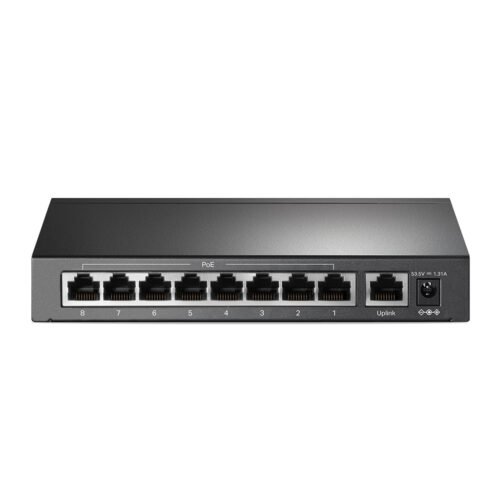

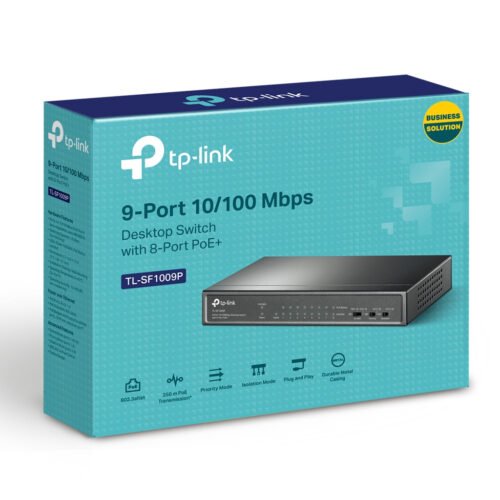

TP-Link 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
9x 10/100 Mbps RJ-45, PoE, 1.8 Gbps, 171x98x27 mm
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Professional 9-Port Unmanaged Switch with 8 PoE+ Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m
Professional 9-Port Switch with 8-Port PoE+ (65 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Ideal for IP Surveillance
—Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
Ideal for IP Surveillance
—Higher Performance and Security
Priority Mode and Isolation Mode make surveillance smoother and safer.
Intelligent Power Management
When total power consumption exceeds 65 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SF1009P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1009P delivers switching performance you can depend on.
Additional information
Weight | 1 lbs |
---|---|
Switch type | Unmanaged |
Basic switching RJ-45 Ethernet ports quantity | 9 |
Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
10G support | No |
Full duplex | Yes |
Auto MDI/MDI-X | Yes |
MAC address auto-learning supported | Yes |
MAC address table | 2000 entries |
Switching capacity | 1.6 Gbit/s |
Store-and-forward | Yes |
Rack mounting | No |
Product colour | Black |
Housing material | Metal |
LED indicators | Activity, Link, PoE, Power |
DC input voltage | 53.5 V |
Input current | 1.31 A |
Power consumption (max) | 77.08 W |
Power over Ethernet (PoE) | Yes |
Operating temperature (T-T) | 0 – 40 °C |
Storage temperature (T-T) | -40 – 70 °C |
Operating relative humidity (H-H) | 10 – 90% |
Storage relative humidity (H-H) | 5 – 90% |
Width | 171 mm |
Depth | 98 mm |
Height | 27 mm |
Harmonized System (HS) code | 85176990 |
Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
Flow control support | Yes |
Auto-negotiation | Yes |
Power source | DC/PoE |
Power supply included | No |
AC adapter included | Yes |
Package weight | 980 g |
Certification | FCC, CE, RoHS |
Stackable | No |
AC input voltage | 220 V |
AC input frequency | 50 Hz |
Compliance certificates | Federal Communications Commission (FCC), CE, RoHS |
Sustainability compliance | Yes |
Total Power over Ethernet (PoE) budget | 65 W |
Power connector | DC-in jack |
Forwarding rate | 1.3392 Mpps |
Power over Ethernet (PoE) power per port | 30 W |
Wall mountable | Yes |
Fanless | Yes |
User guide | Yes |
Package type | Box |
Power over Ethernet plus (PoE+) ports quantity | 8 |
Half duplex | Yes |
Heat dissipation | 262.84 BTU/h |
Package width | 223 mm |
Package depth | 280 mm |
Package height | 68 mm |
Cable types supported | Cat3, Cat4, Cat5, Cat5e |
Fast Ethernet (copper) ports quantity | 9 |
MAC address auto-aging supported | Yes |
