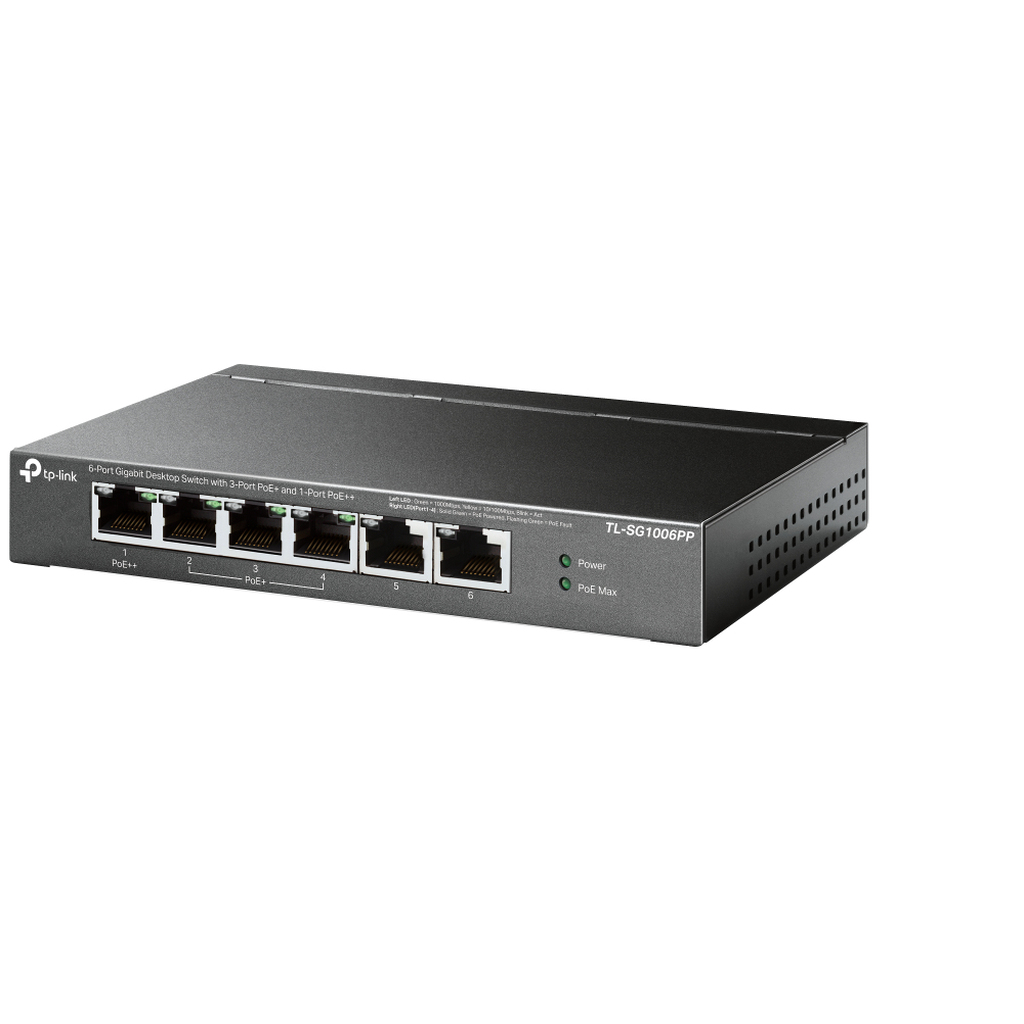

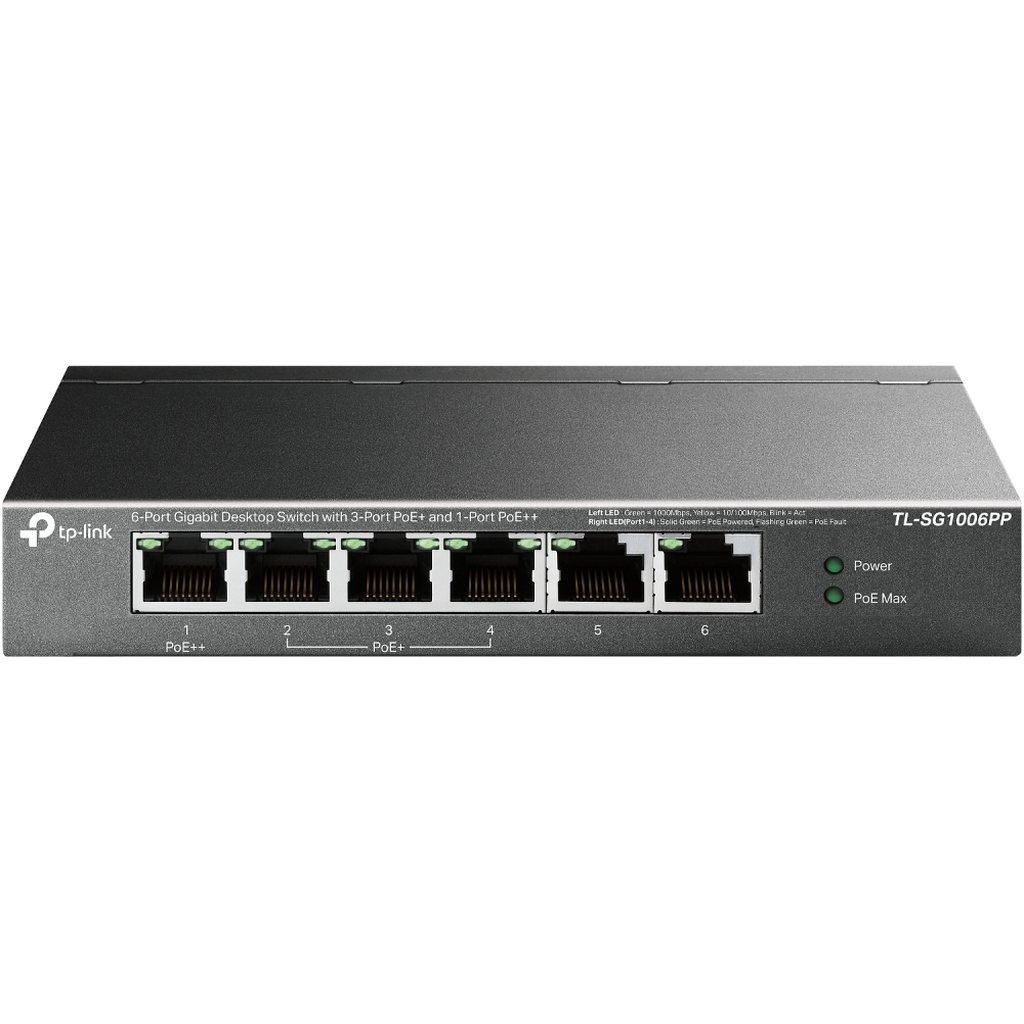

TP-Link 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++
6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

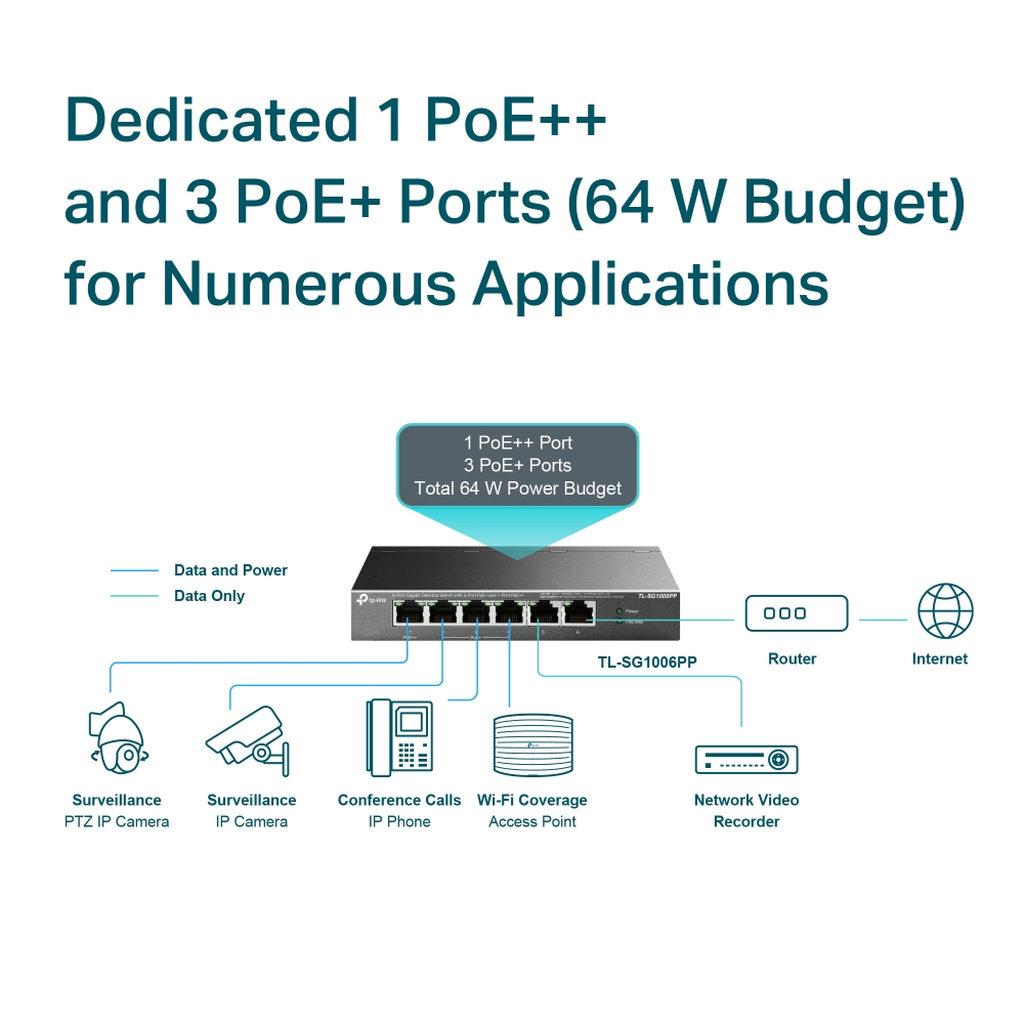

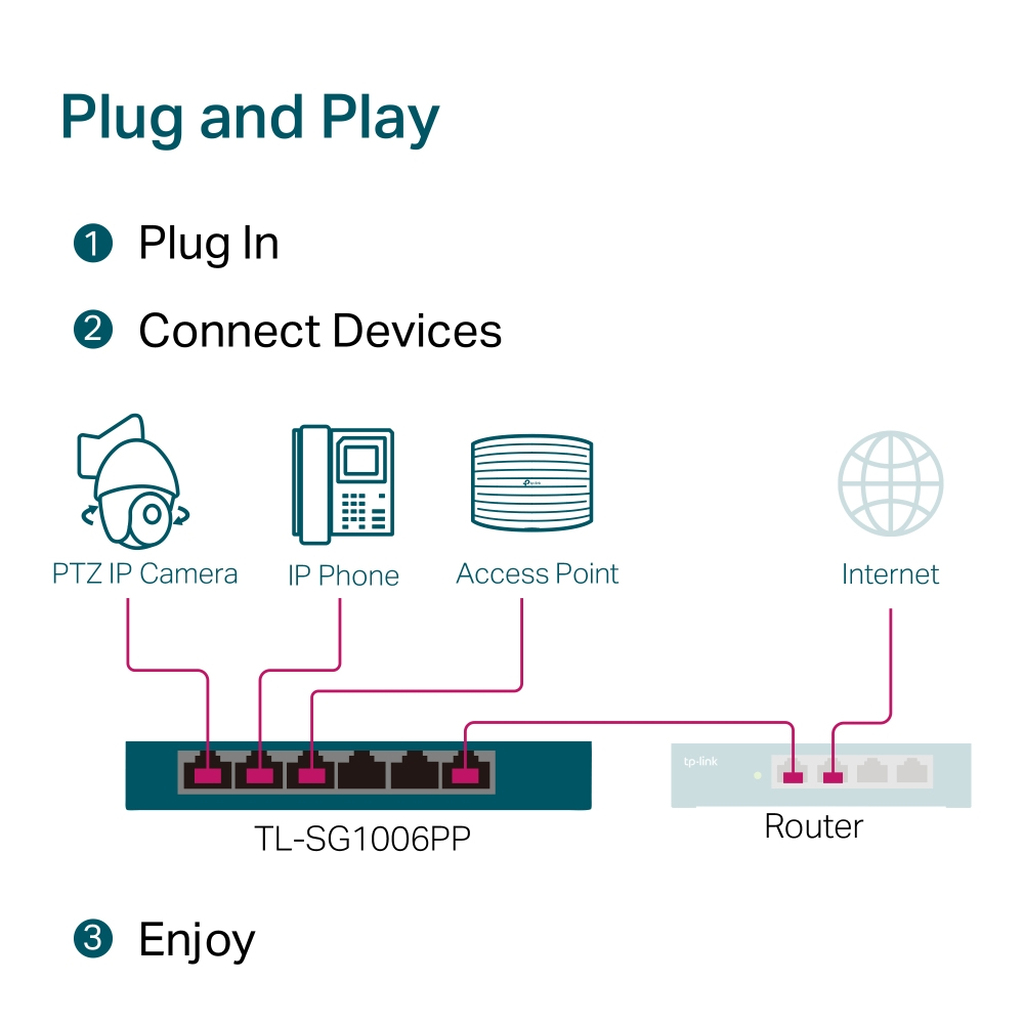

TL-SG1006PP is an unmanaged switch with 6 Gigabit ports that requires no configuration and provides
4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE
802.3af/at/bt compliant Powered Devices (PDs) at port 1 and IEEE 802.3af/at compliant Powered
Devices (PDs) at port 2-4. In this situation, the electrical power is transmitted along with data in one
single cable allowing you to expand your network to where there are no power lines or outlets, where
you wish to fix devices such as APs, IP Cameras or IP Phones, etc
Additional information
| Weight | 0.88 lbs |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| MAC address auto-learning supported | Yes |
| MAC address table | 4000 entries |
| Switching capacity | 12 Gbit/s |
| Store-and-forward | Yes |
| Rack mounting | Yes |
| Product colour | Grey |
| LED indicators | Yes |

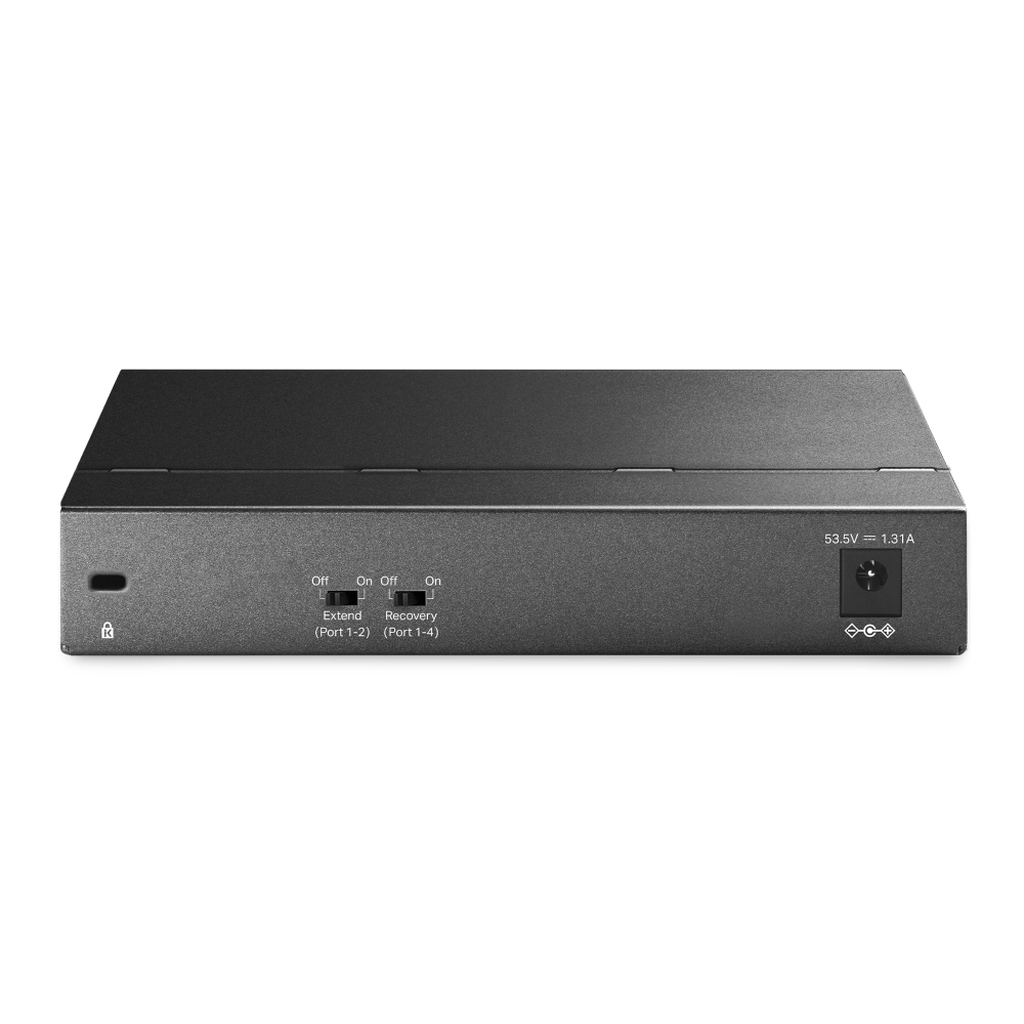

| DC input voltage | 53.5 V |
| Input current | 1.31 A |
| Power consumption (max) | 71.46 W |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 5 – 90% |
| Width | 158 mm |
| Depth | 101 mm |
| Height | 25 mm |
| Power consumption (typical) | 4.75 W |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| IGMP snooping | Yes |
| Power source | DC/PoE |
| Power supply included | Yes |
| Quick start guide | Yes |
| Certification | FCC, CE, RoHS |
| Stackable | Yes |
| Total Power over Ethernet (PoE) budget | 64 W |
| Forwarding rate | 8.928 Mpps |
| Power over Ethernet (PoE) ports quantity | 4 |
| Fanless | Yes |
| Package type | Box |
| Heat dissipation | 16.2 BTU/h |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| MAC address auto-aging supported | Yes |
