TP-Link 10-Port Gigabit Easy Smart Switch with 8-Port PoE+

In Stock

10-Port Gigabit Easy Smart Switch with 8-Port PoE+

  • We give you a dedicated account manager with every order.
  • We welcome single and bulk orders. Get fast delivery each time.
  • We can offer installation and configuration on orders.
  • We care, get great pricing and great customer service.
  • Any further questions, get in touch on 01933 837600.
SKU: TL-SG1210MPE
Brand:

Description

What This Product Does

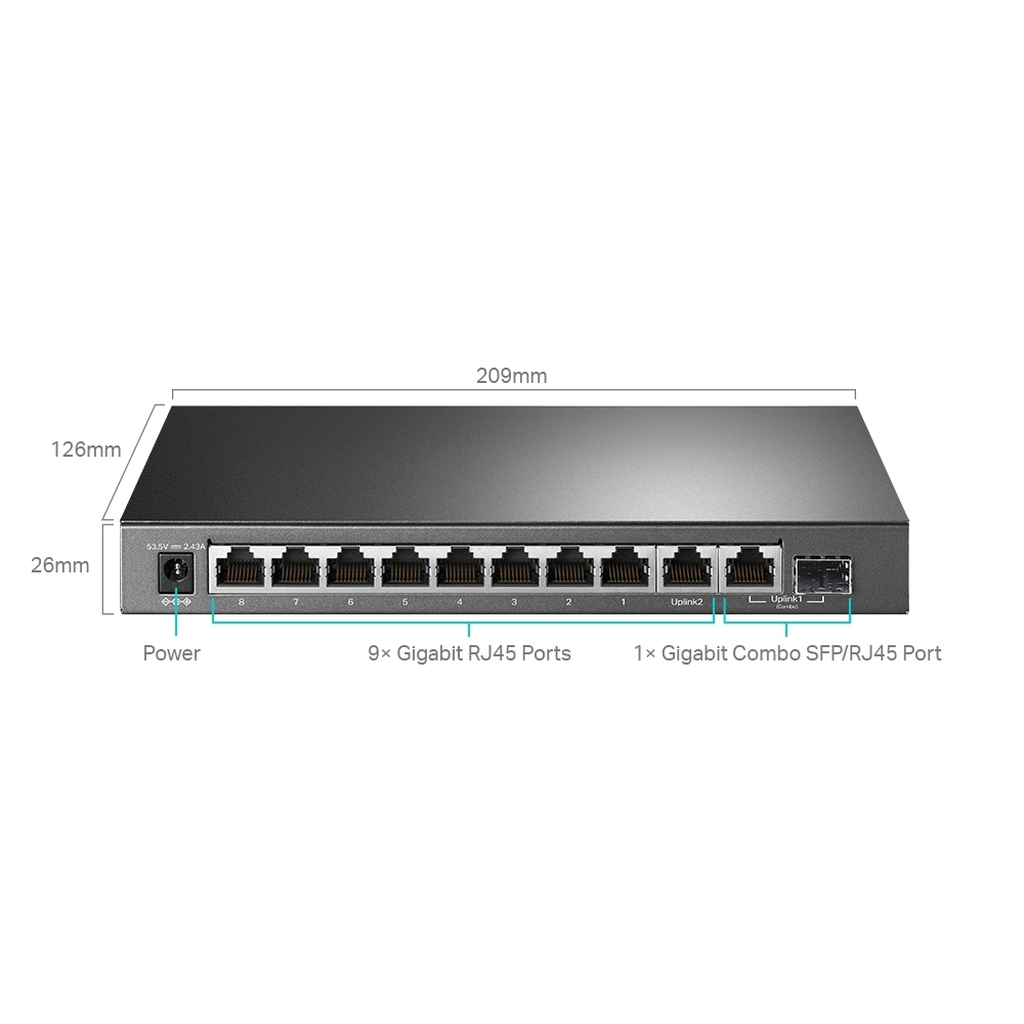

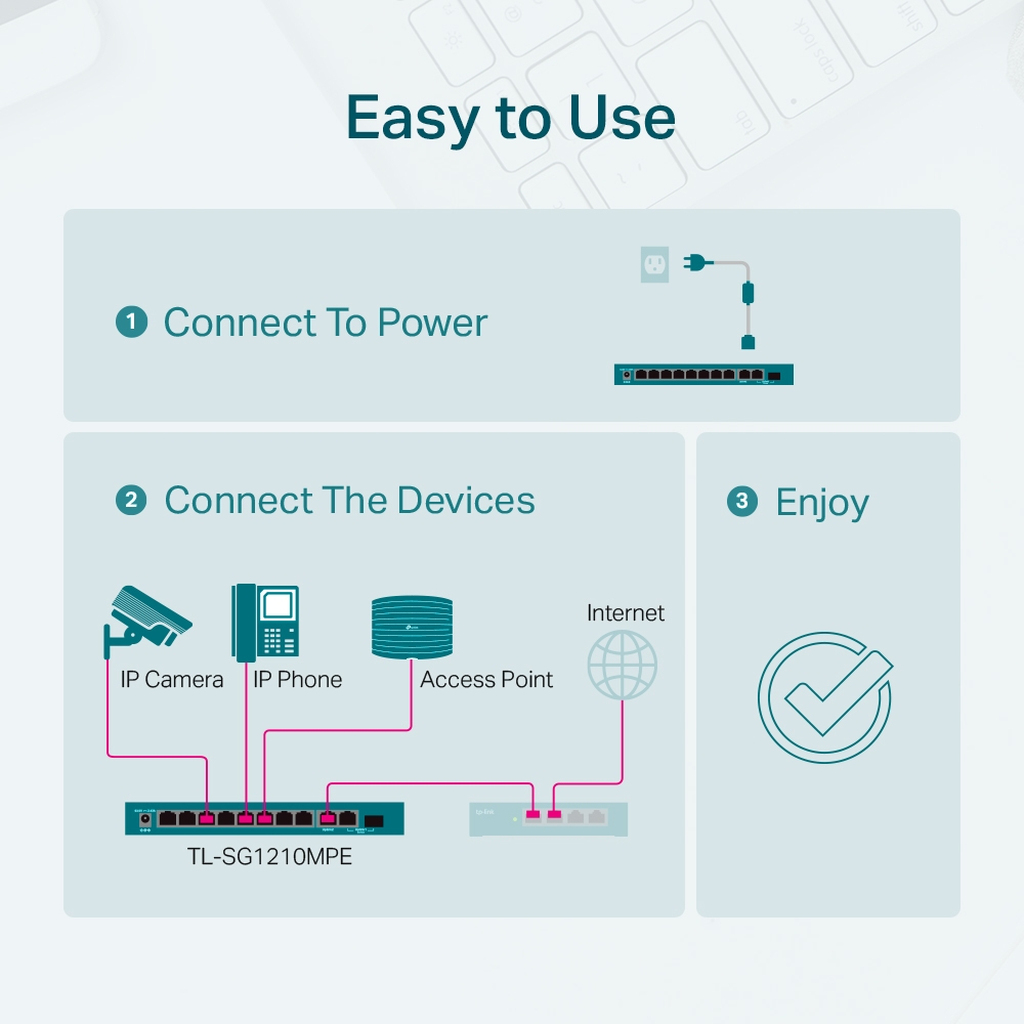

TP-Link TL-SG1210MPE is an easy smart switch with 9× gigabit RJ45 ports and 1× gigabit combo SFP/RJ45 port that requires no configuration. With 8× PoE (Power over Ethernet) ports, it can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

Professional 10-Port Switch with 8-Port PoE+ (123 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 123 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

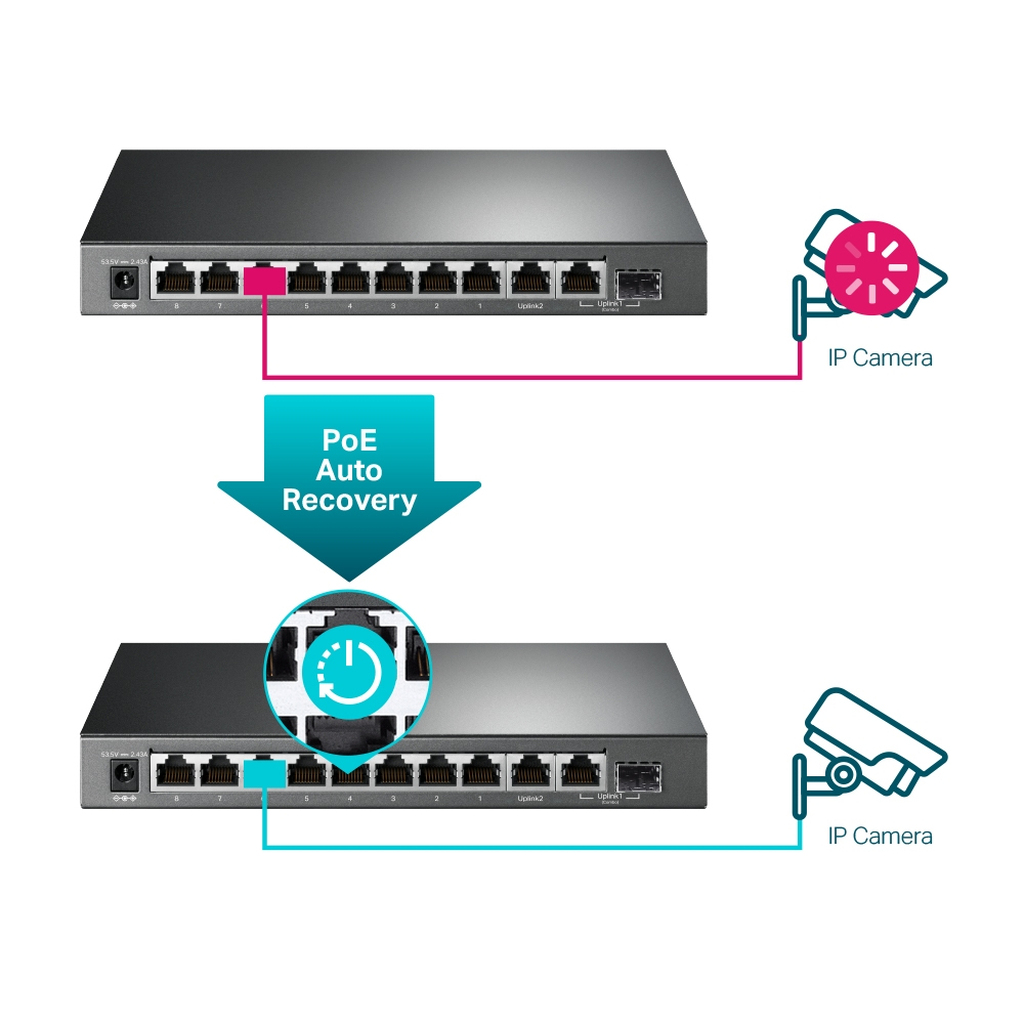

System Self-Healing with PoE Auto Recovery
The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without the need for manual monitoring and restart.

Intelligent Power Management
When total power consumption exceeds 123 W, the intelligent power management will cut the lower priority port power. This ensures the high-priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Durable Metal Casing
The interior components of TL-SG1210MPE are protected by high-quality metal casing to ensure a long product life. Its fanless design delivers zero added noise in its locations. Having passed an array of stringent reliability tests, TL-SG1210MPE delivers switching performance you can depend on.

Additional information

Weight 1.62 lbs
Switch type

Managed

Quality of Service (QoS) support

Yes

Basic switching RJ-45 Ethernet ports quantity

9

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Networking standards

IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10G support

No

MAC address table

4000 entries

Switching capacity

20 Gbit/s

Store-and-forward

Yes

Jumbo frames support

Yes

Jumbo frames

16000

Rack mounting

No

Product colour

Black

LED indicators

Yes

DC input voltage

53.5 V

Input current

2.43 A

Power over Ethernet (PoE)

Yes

Operating temperature (T-T)

0 – 40 °C

Storage temperature (T-T)

-40 – 70 °C

Operating relative humidity (H-H)

10 – 90%

Storage relative humidity (H-H)

5 – 95%

Width

209 mm

Depth

126 mm

Height

26 mm

Manual

Yes

Harmonized System (HS) code

85176990

Switch layer

L2

IGMP snooping

Yes

Power supply included

Yes

Package weight

1.58 kg

Loop protection

Yes

Power connector

DC-in jack

Port mirroring

Yes

Broadcast storm control

Yes

Forwarding rate

14.88 Mpps

Power over Ethernet (PoE) power per port

30 W

Power over Ethernet plus (PoE+) ports quantity

8

Package width

240 mm

Package depth

315 mm

Package height

70 mm

Rate limiting

Yes

Fiber ports quantity

1

Fiber optic connector

SFP
