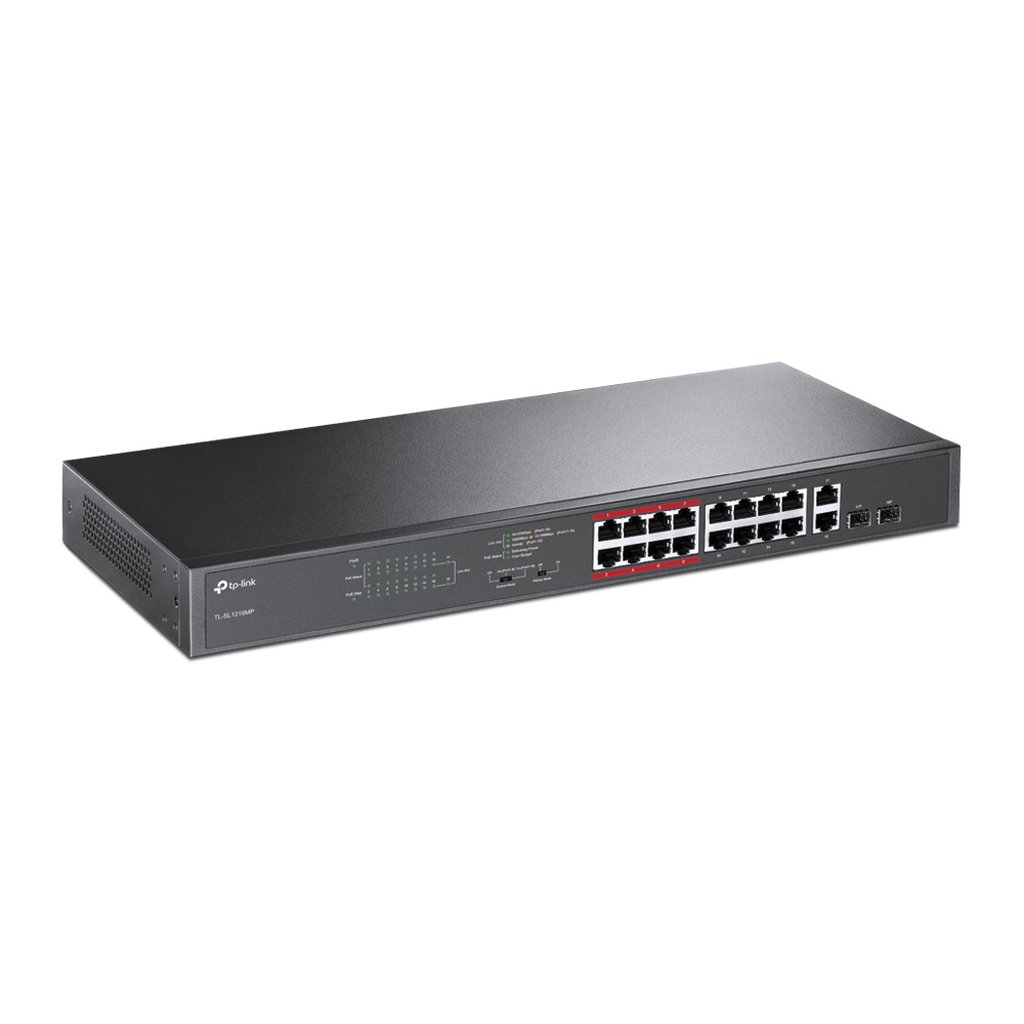

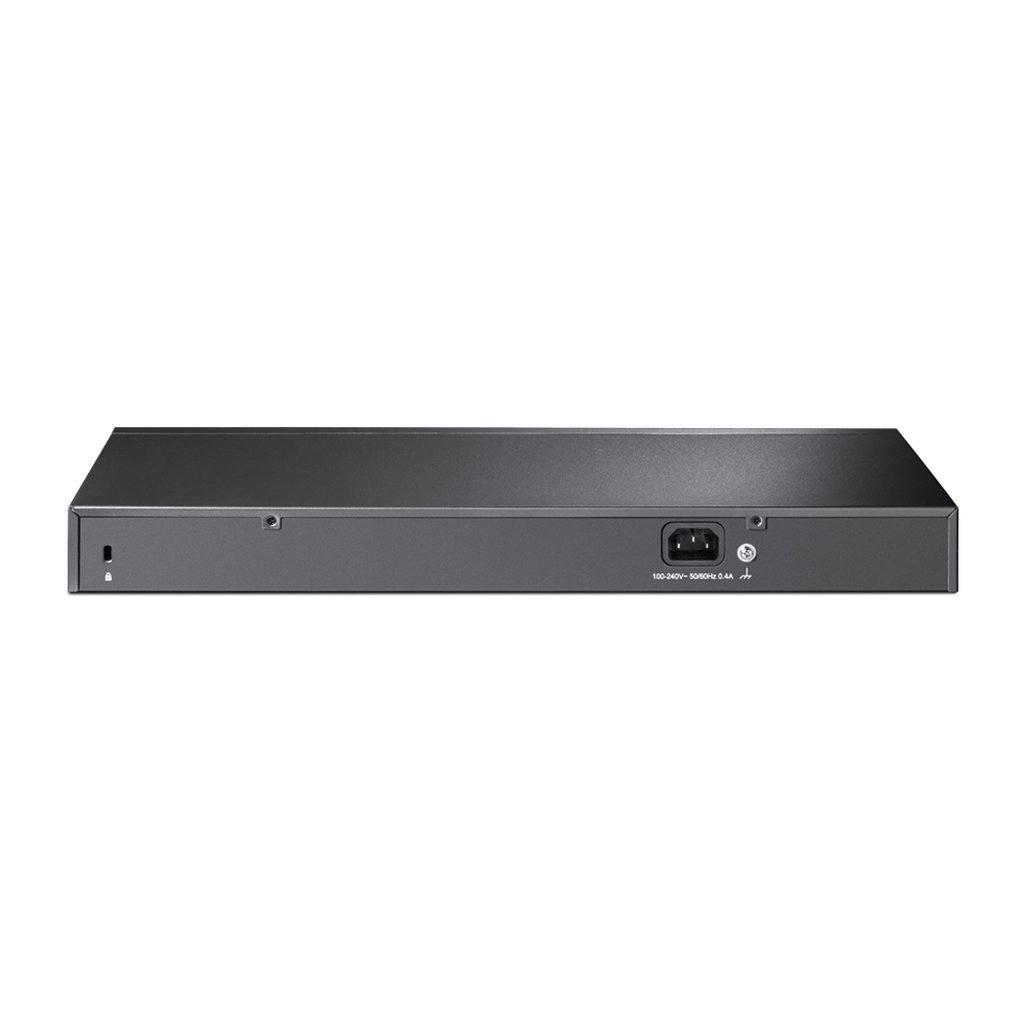

TP-Link 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch
16 PoE, 10/100Mbps RJ45, 2 Combo Gigabit SFP Slots, 2 Fans, 100-240V AC, 50/60 Hz, 7.2 Gbps
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Easy to Use PoE Switch with Innovative Design
Up To 250m Data and Power Transmission for Surveillance
High PoE Power Budget
TL-SL1218MP complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget of up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.
Up to 250m Transmission for Surveillance
TL-SL1218MP is a special designed PoE switch for IP surveillance applications. PoE switch makes surveillance installation simpler, safer and less expensive. With the extend mode, the PoE transmission distance reaches up to 250m* which makes it perfect for IP Camera deployment in large area coverage.
Video Quality Guaranteed
Priority mode guarantees the important data, such as video surveillance, delivered with the best priority passing the data fabric even when the traffic load is heavy. Hardware switch for easy configuration with no login required.
Additional information
| Weight | 2.98 lbs |
|---|---|
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| MAC address table | 8000 entries |
| Switching capacity | 7.2 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 4.1 MB |
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | LAN, PoE, Status |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 5 – 90% |
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Manual | Yes |
| Harmonized System (HS) code | 85176990 |
| Power consumption (typical) | 18.7 W |
| Combo SFP ports quantity | 2 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Flow control support | Yes |
| Number of fans | 2 fan(s) |
| Power source | AC |
| Power supply included | Yes |
| Cables included | LAN (RJ-45) |
| Quick start guide | Yes |
| Stackable | No |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Total Power over Ethernet (PoE) budget | 192 W |
| User guide | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Heat dissipation | 741.15 BTU/h |
| Gigabit Ethernet (copper) ports quantity | 2 |
| MAC address filtering | Yes |
| Fast Ethernet (copper) ports quantity | 16 |
