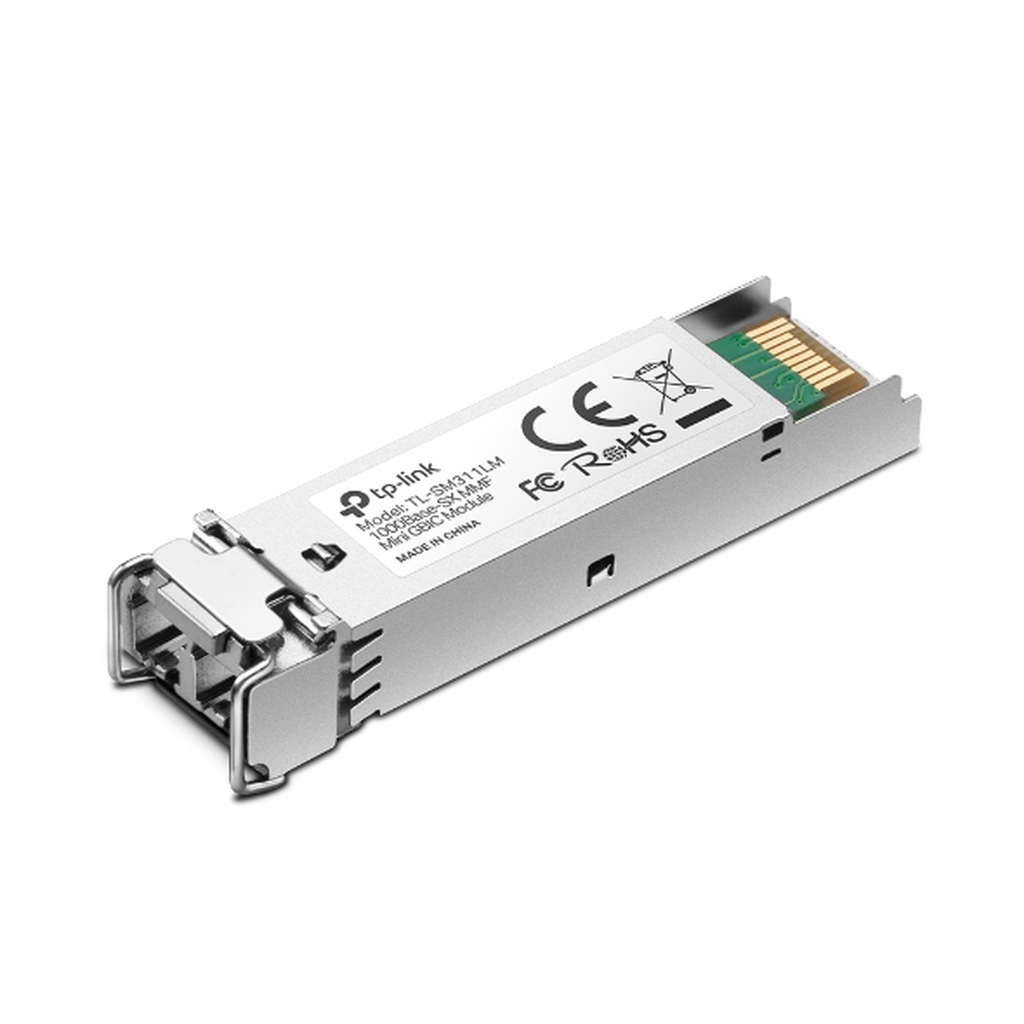

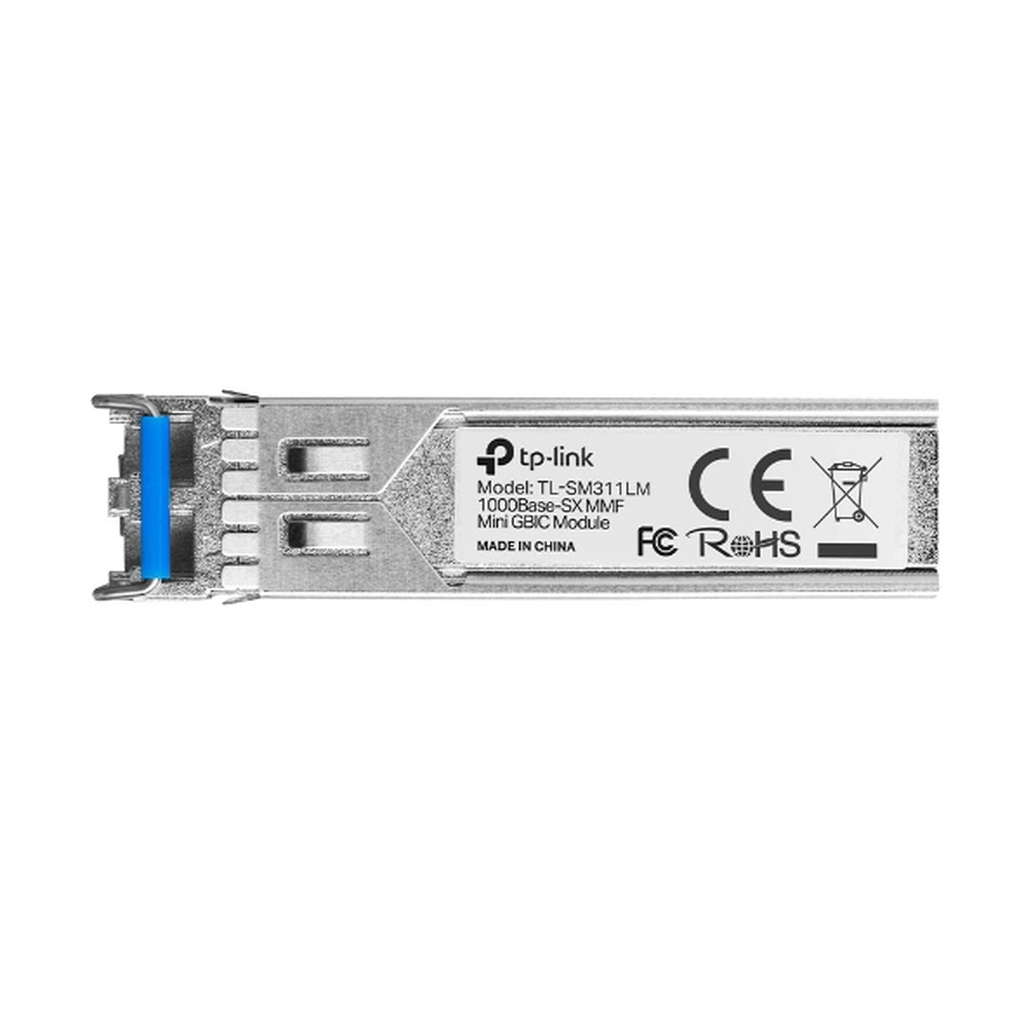

TP-Link Omada SFP 1000BASE-SX LC MiniGBIC Mm
In Stock
SFP 1000BASE-SX LC MiniGBIC Mm
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
What This Product Does

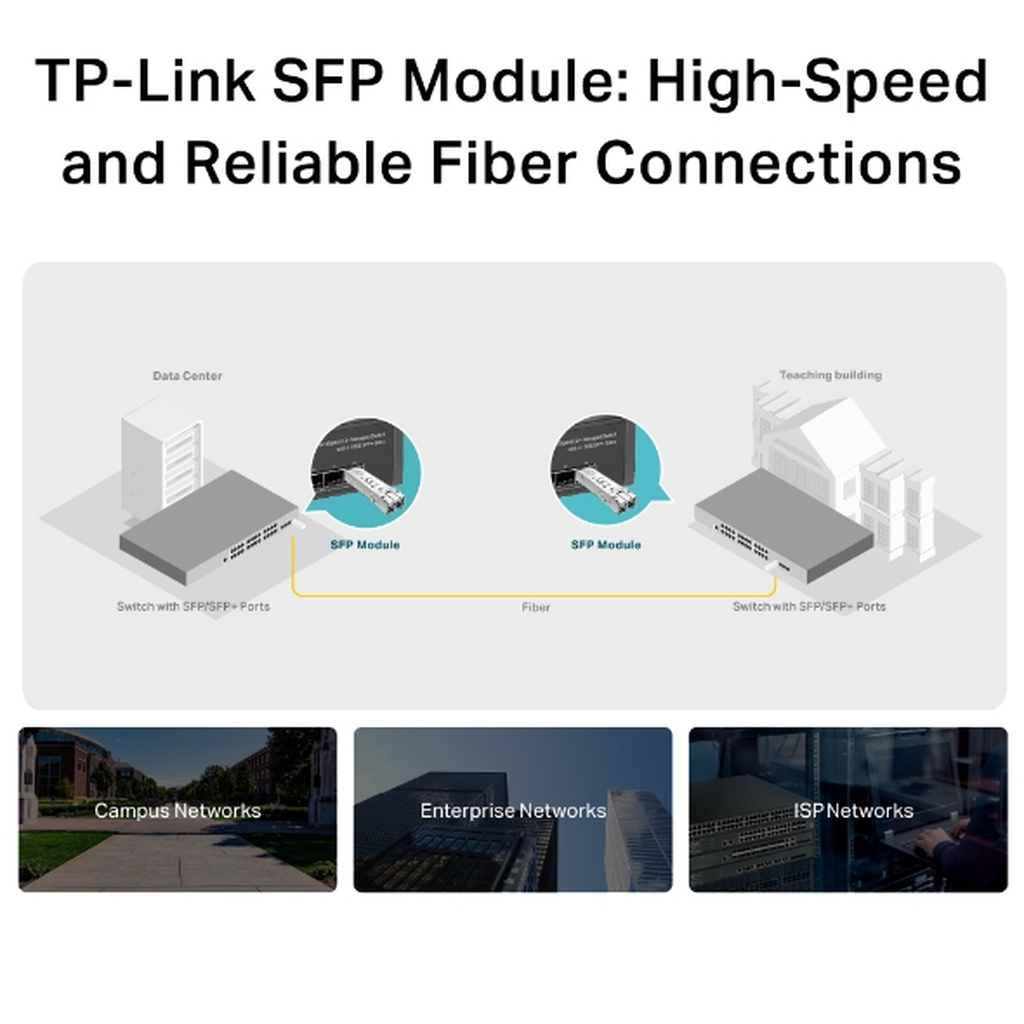

The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
Additional information
| Weight | 0.06 lbs |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | mini-GBIC/SFP |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | Yes |

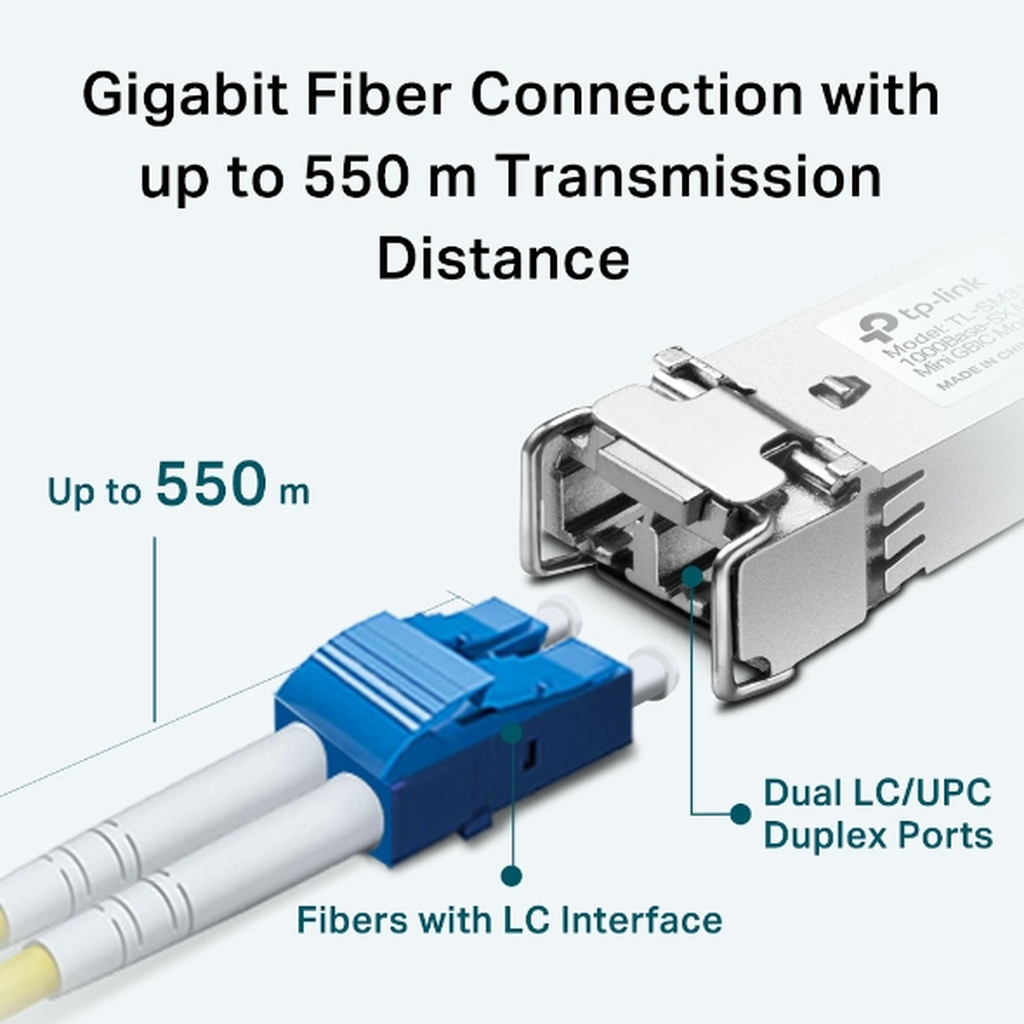

| Fiber optic connector | LC (UPC) |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Networking standards | IEEE 802.3z |
| Product colour | Metallic |
| Certification | FCC, CE |

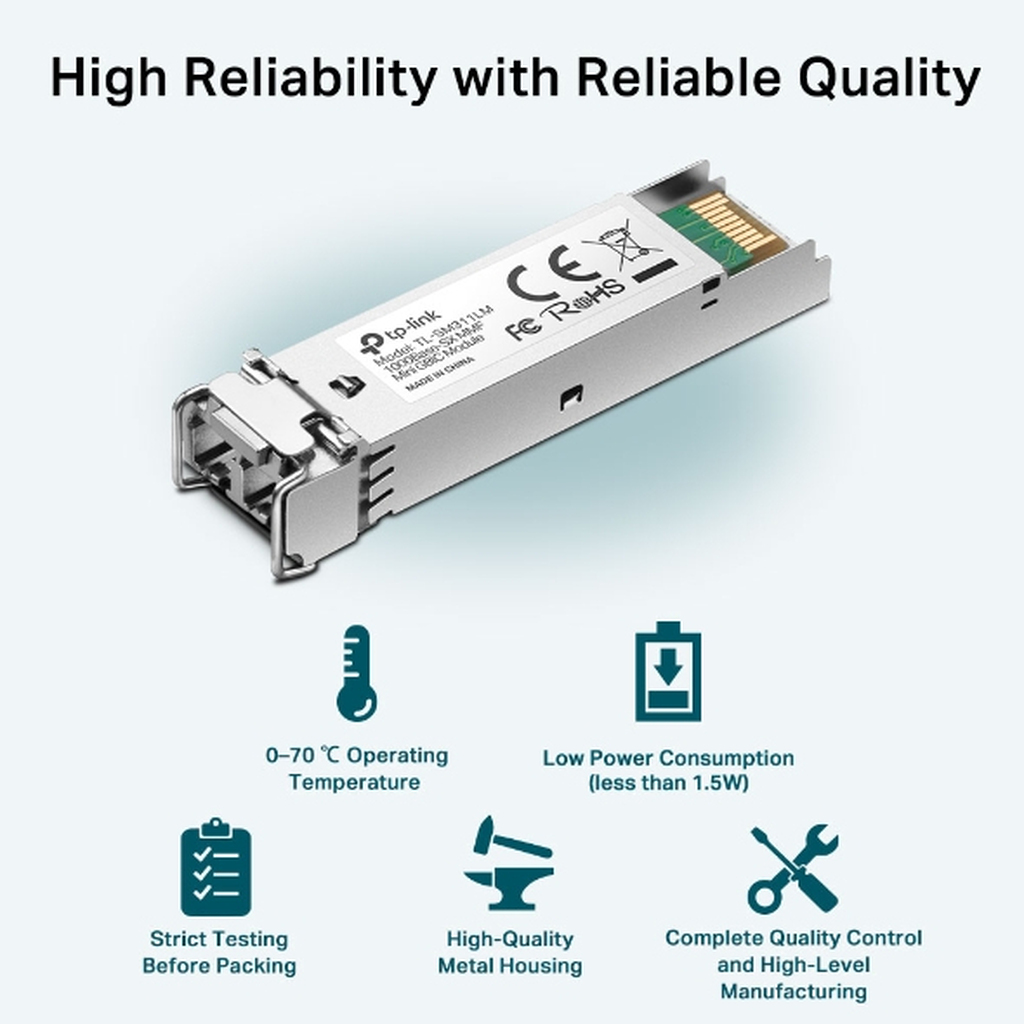

| Operating temperature (T-T) | 0 – 70 °C |
| Storage temperature (T-T) | -40 – 80 °C |
| Package width | 38 mm |
| Package depth | 207 mm |
| Package height | 38 mm |
| Package weight | 110 g |
| Harmonized System (HS) code | 85369010 |
| Quantity per pack | 1 pc(s) |
| Compliance certificates | RoHS |
| Width | 55.4 mm |
| Depth | 13.7 mm |
| Height | 12.9 mm |
| Operating relative humidity (H-H) | 10 – 90% |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Input voltage | 3.3 V |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Storage relative humidity (H-H) | 5 – 90% |
| User guide | Yes |
