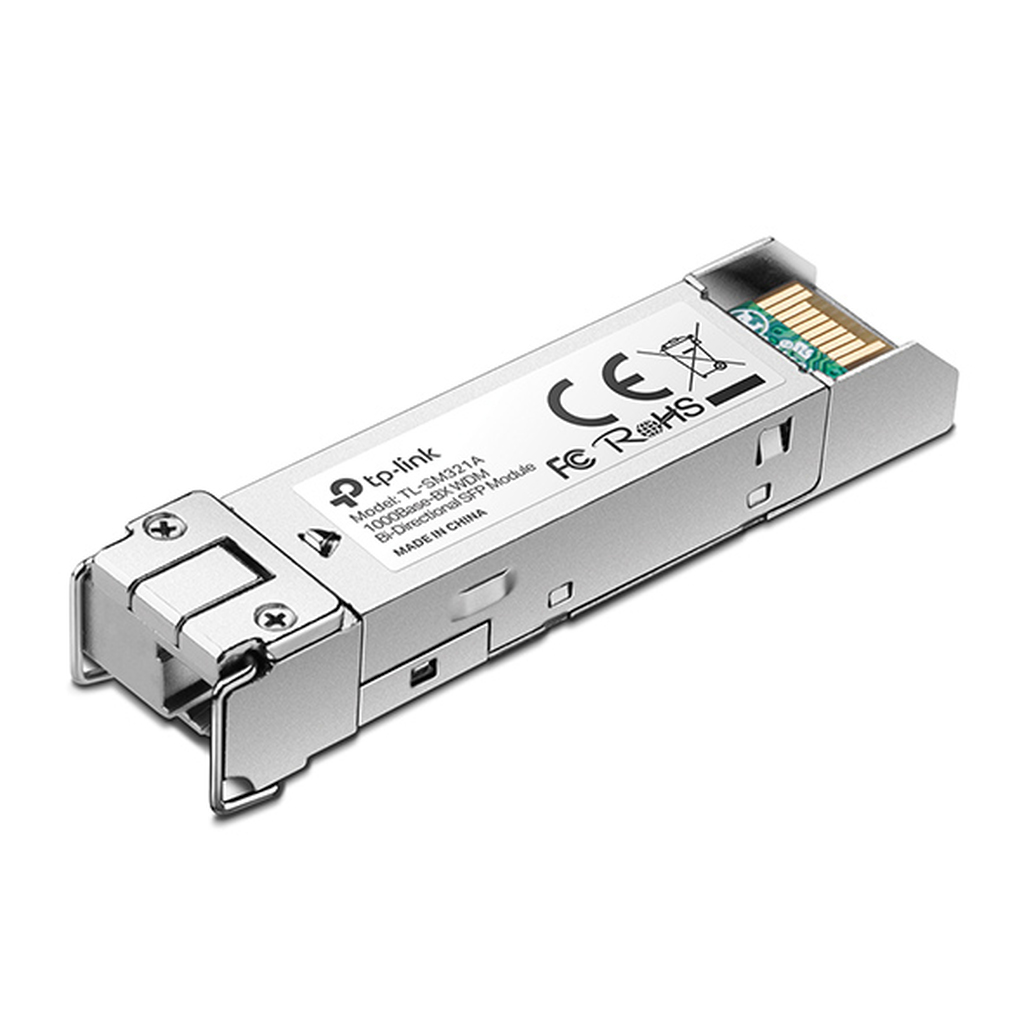

TP-Link Omada Gigabit Single-Mode WDM Bi-Directional SFP Module
In Stock
Gigabit Single-Mode WDM Bi-Directional SFP Module
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

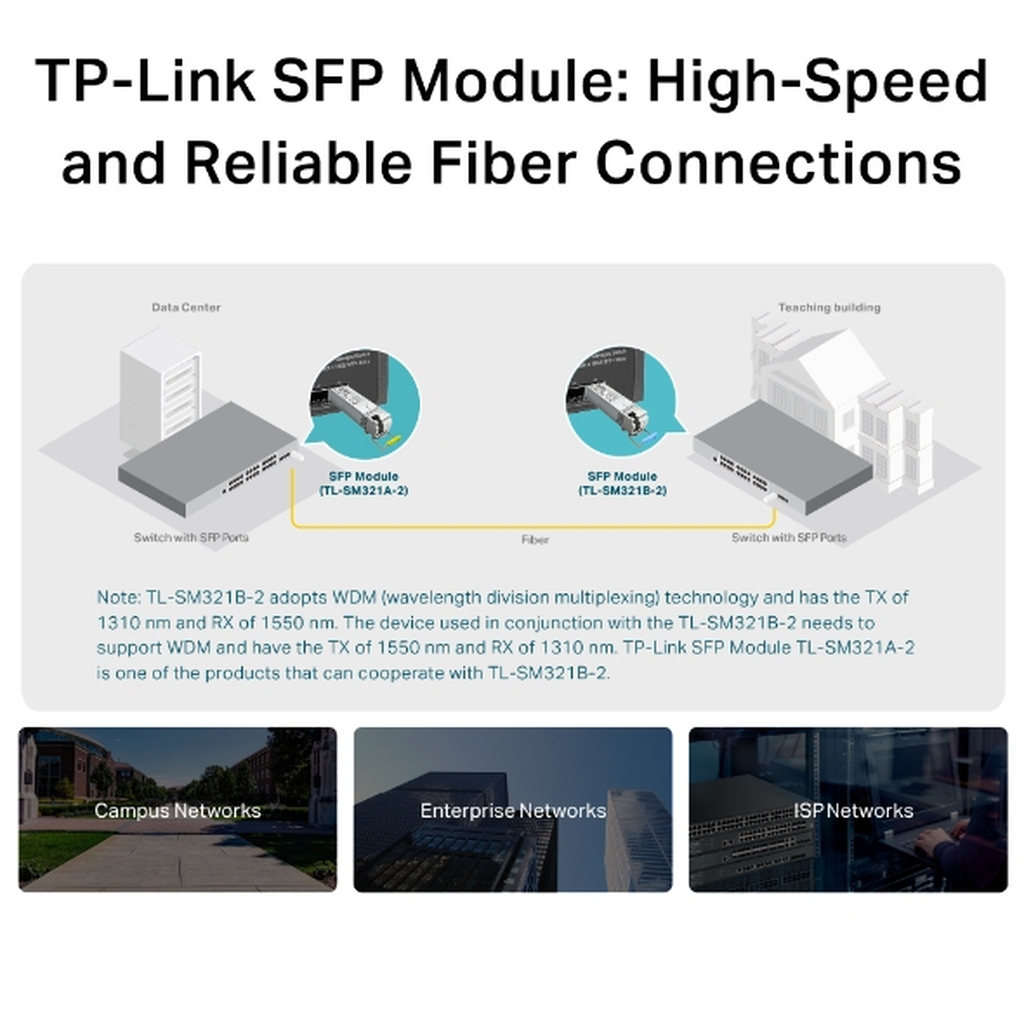

TP-LINK´s TL-SM321B adopts the latest standard 1000Base-BX, transmission over a single strand of fiber, with one different wavelength going in each direction. You can extend the network distance up to 10Km(6.2 miles) with TP-LINK´s Routers, Switches, Media Converters to provide high speed and stability.
Additional information
| Weight | 0.06 lbs |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | LC |
| SFP transceiver standard | BX |
| Maximum transfer distance | 1000 m |
| Networking standards | IEEE 802.3z |
| Product colour | Metallic |
| Certification | FCC, CE |
| Operating temperature (T-T) | 0 – 70 °C |
| Storage temperature (T-T) | -40 – 80 °C |
| Package width | 81.5 mm |
| Package depth | 122.5 mm |
| Package height | 38.5 mm |
| Package weight | 60 g |
| Harmonized System (HS) code | 85369010 |
| Quantity per pack | 1 pc(s) |
| Compliance certificates | RoHS |
| Width | 55.4 mm |
| Depth | 14.6 mm |
| Height | 12.9 mm |
| Tx wavelength (max) | 1310 nm |
| Rx wavelength (max) | 1550 nm |
| Wavelength-division multiplexing (WDM) | Yes |
| Operating relative humidity (H-H) | 10 – 90% |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Storage relative humidity (H-H) | 5 – 90% |
| User guide | Yes |
