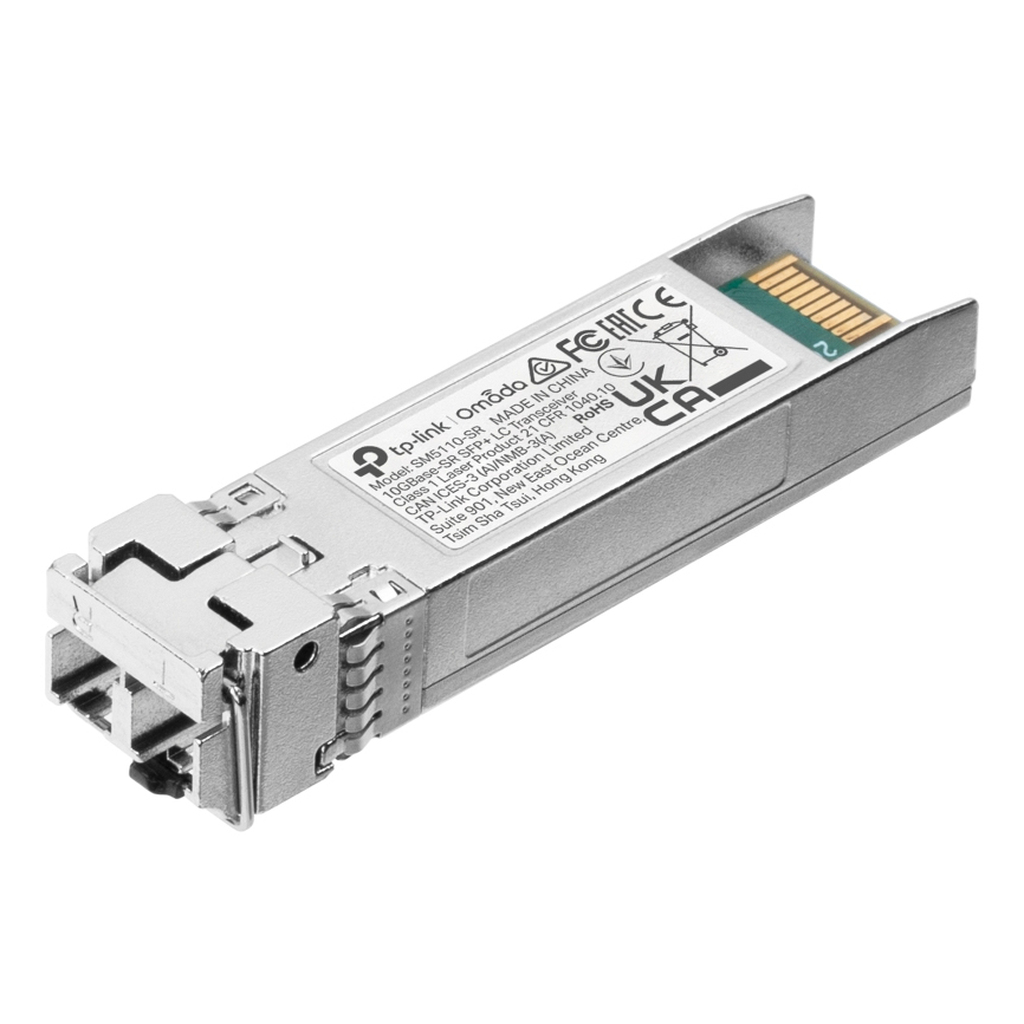

TP-Link Omada 10Gbase-SR SFP+ LC Transceiver SPEC: 850nm Multi-mode, LC Duplex Connector, Up to 300m Distance
In Stock
10Gbase-SR SFP+ LC Transceiver SPEC: 850nm Multi-mode, LC Duplex Connector, Up to 300m Distance
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The SM5110-SR (TL-SM5110-SR) is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.
Additional information
| Weight | 0.064 lbs |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC (UPC) |
| Maximum transfer distance | 300 m |
| Wavelength | 850 nm |
| Product colour | Silver |
| Hot-swap | Yes |
| Certification | FCC, CE |
| Operating temperature (T-T) | 0 – 70 °C |
| Storage temperature (T-T) | -40 – 80 °C |
| Package width | 220 mm |
| Package depth | 270 mm |
| Package height | 275 mm |
| Package weight | 60 g |
| Quantity per pack | 1 pc(s) |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Width | 61.3 mm |
| Depth | 14.5 mm |
| Height | 12.2 mm |
| Operating relative humidity (H-H) | 10 – 90% |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Input voltage | 3.3 V |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Storage relative humidity (H-H) | 5 – 90% |
