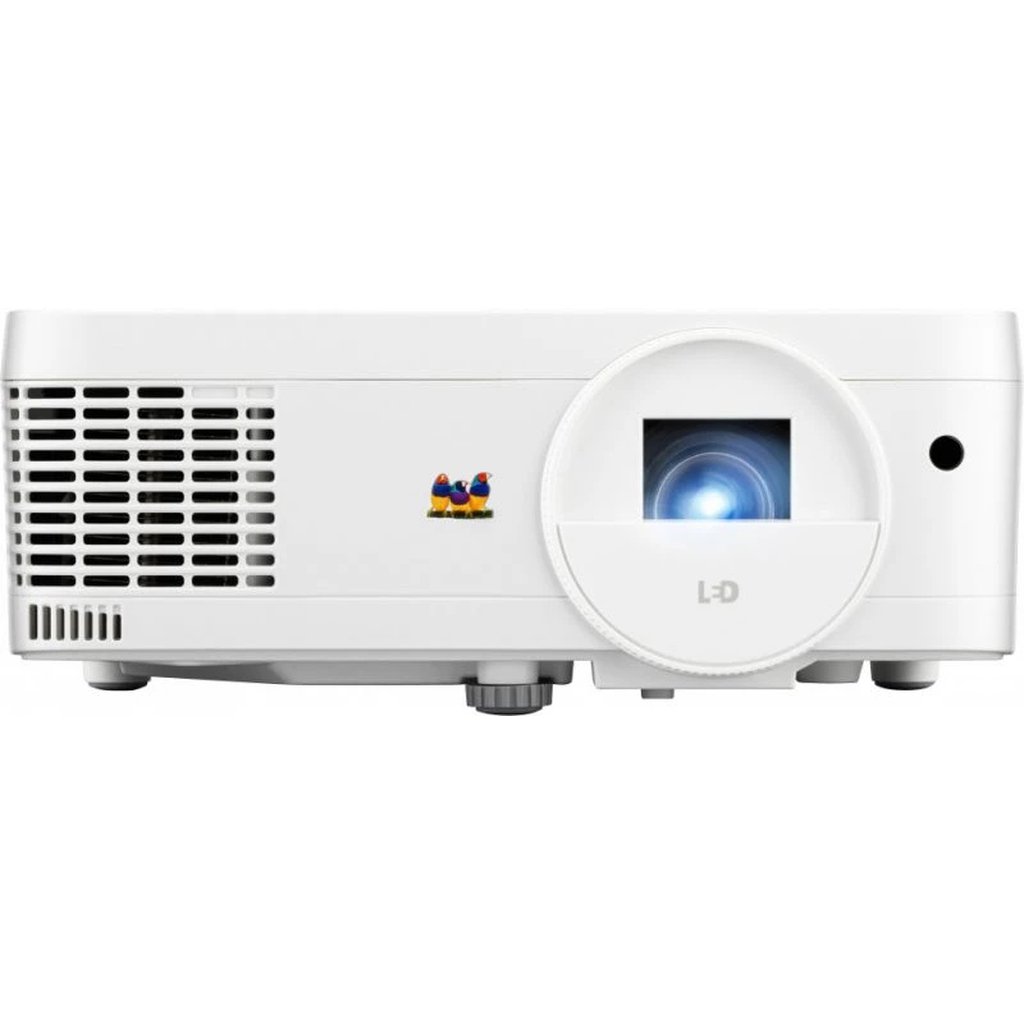

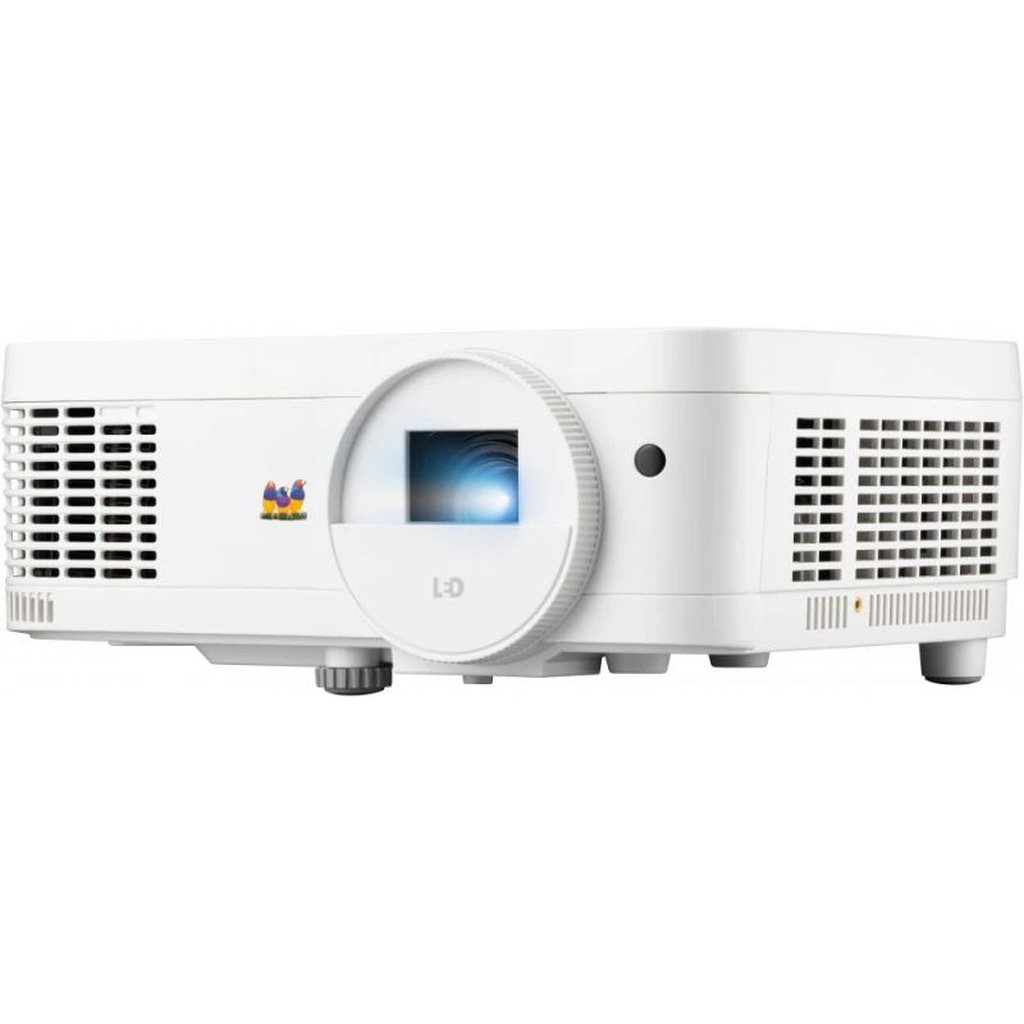

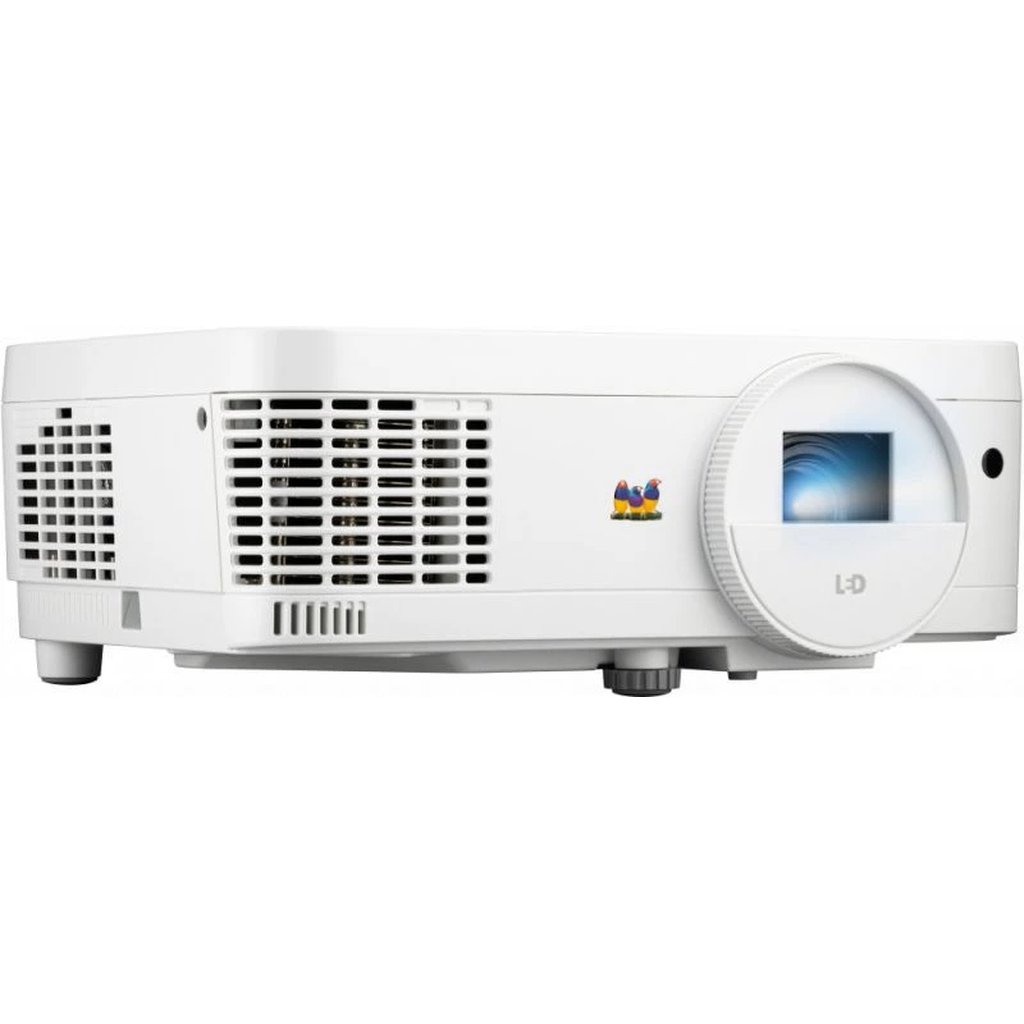

Viewsonic LS510W data projector Standard throw projector 3000 ANSI lumens LED WXGA (1280×800) White
0.65” WXGA, 1280 x 800, LED, 3000 lm, 30”~300”, HDMI, 293 x 221 x 115 mm, 240 W
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The LS510W is ViewSonic’s lamp-free high brightness WXGA projector for business and education. Adopting industry-leading 3rd generation LED technology, the LS510W delivers 3,000 ANSI Lumens while eliminating the use of toxic mercury, reducing the cost and effort of frequent lamp replacement and lowering the total cost of ownership. The lamp-free light source offers enhanced sustainability for a greener environment while delivering a wider color gamut for bright and vivid images in a meeting room, classroom, or any other environment. The projector boasts efficient use with instant power on/off, convenient projector software update, and vertical keystone correction along with 360° tilt angle projection for flexible applications.
3rd Generation LED Technology for Greater Sustainability
With the 3rd generation LED technology, the LS510W frees users from frequent lamp replacement and toxic mercury. Offering consistently impressive brightness for 30,000 hours, the projector saves the cost of time, manpower and money for maintenance, while providing a greener and more sustainable future.
Saving More with the Advanced LED Technology
Adopting ams OSRAM’s Ostar Projection Power LED technology, the LED projector is both energy saving and cost efficient, consuming less energy than competing lamp-based projectors.

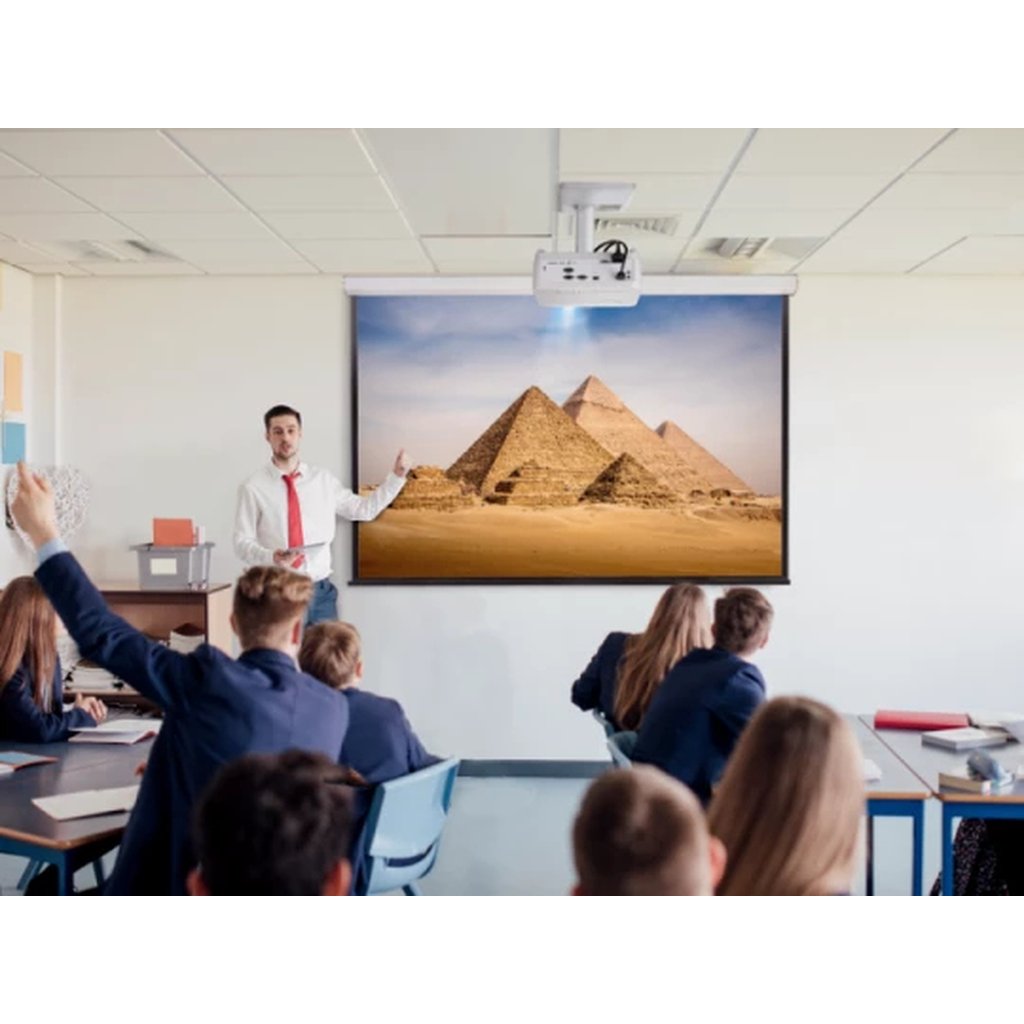

Enhanced Brightness for Business/Education Environments
Thanks to the latest LED technology, the LS510W achieves a major brightness breakthrough to 3,000 ANSI Lumens. With extreme-high contrast ratio of 3,000,000:1, the projector ensures bright and detailed images in dim or lit environments.
Present the Best with Vibrant Colors
Impress any audience with ViewSonic’s exclusive color technology, covering wide color gamut, Bring your presentation with a true-to-life color experience.
Efficient Instant Power On/Off
Eliminate waiting times before and after use with instant power on/off capability, delivering immediate full brightness for timely starts with no cooling period required.
Versatile Application
The projector can freely rotate at any angle vertically to aid with creative applications, allowing projection onto ceilings, walls, or floors.
A Simpler Way to Update Projector Software
Skip trips to the service center by keeping software up to date easily via USB cable connection with your laptop.
USB Type A Power Supply
The built-in 5V/2A USB output conveniently delivers power to HDMI wireless dongles, eliminating the need for separate power adapters when streaming multimedia content.
Non-stop 24/7 Operation

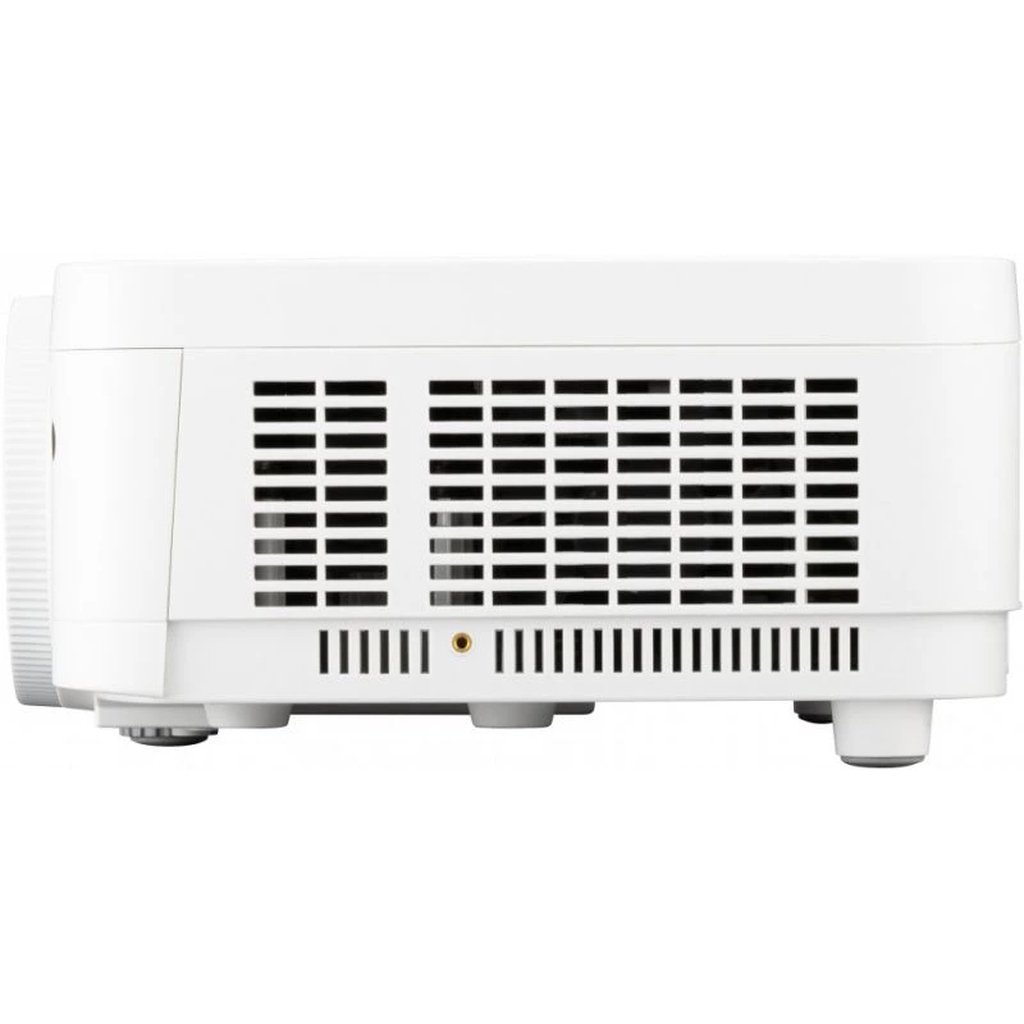

The advanced cooling design enables 24/7 operation without degradation of image quality or work performance, making the projector ideal for applications that require continuous use.
Sealed Optical Engine with IP5X
Maintain crystal-clear image quality and product longevity with an advanced sealed optical engine that prevents dust from entering and affecting the thermal system.
Additional information
| Weight | 4 lbs |
|---|---|
| Projector brightness | 3000 ANSI lumens |
| Projection technology | LED |
| Projector native resolution | WXGA (1280×800) |
| Contrast ratio (typical) | 3000000:1 |
| Smart projector | No |
| Screen size compatibility | 762 – 7620 mm (30 – 300") |
| Projection distance | 1 – 10.98 m |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 – 102 kHz |
| Vertical scan range | 23 – 120 Hz |
| Keystone correction, vertical | +/- 40° |
| Light source type | LED |
| Service life of light source | 30000 h |
| Zoom capability | Yes |
| Throw ratio | 1.55 – 1.70 |
| Offset | 1000% |
| Full HD | No |

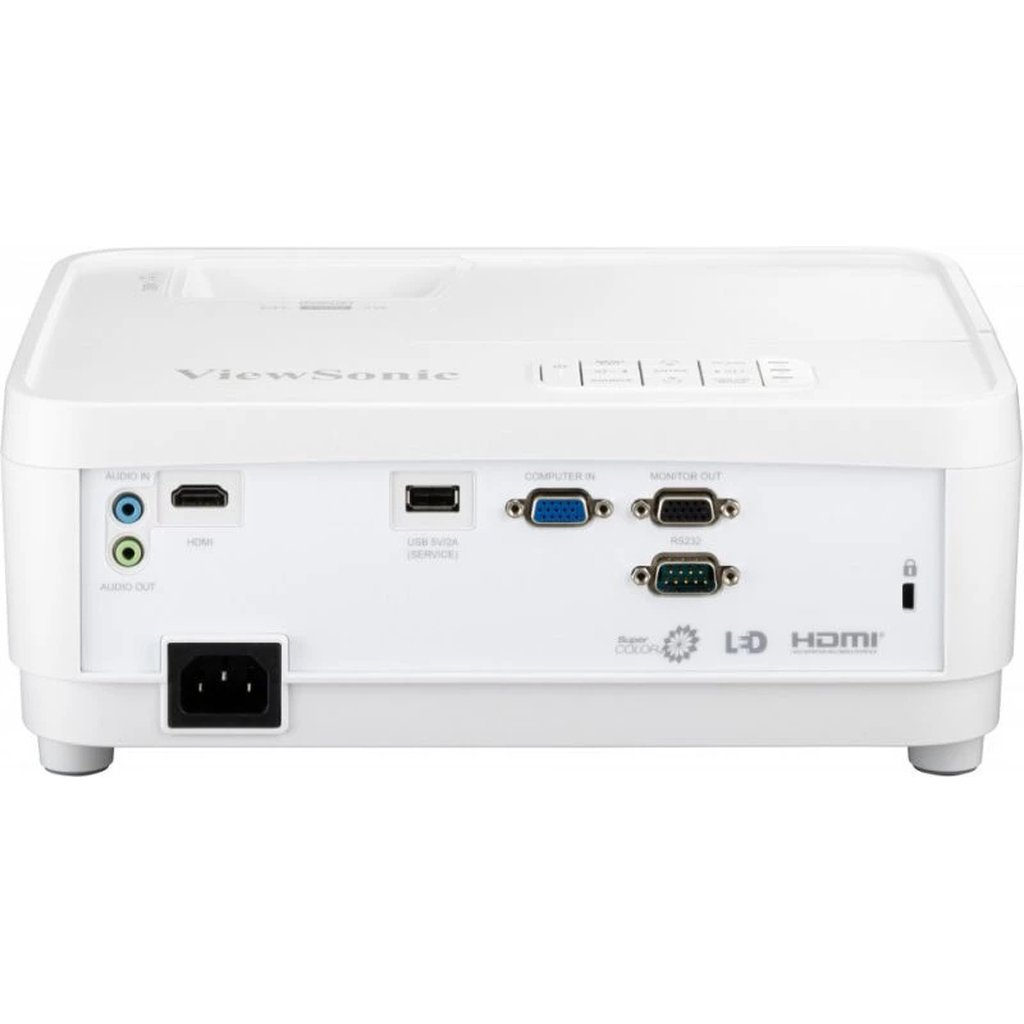

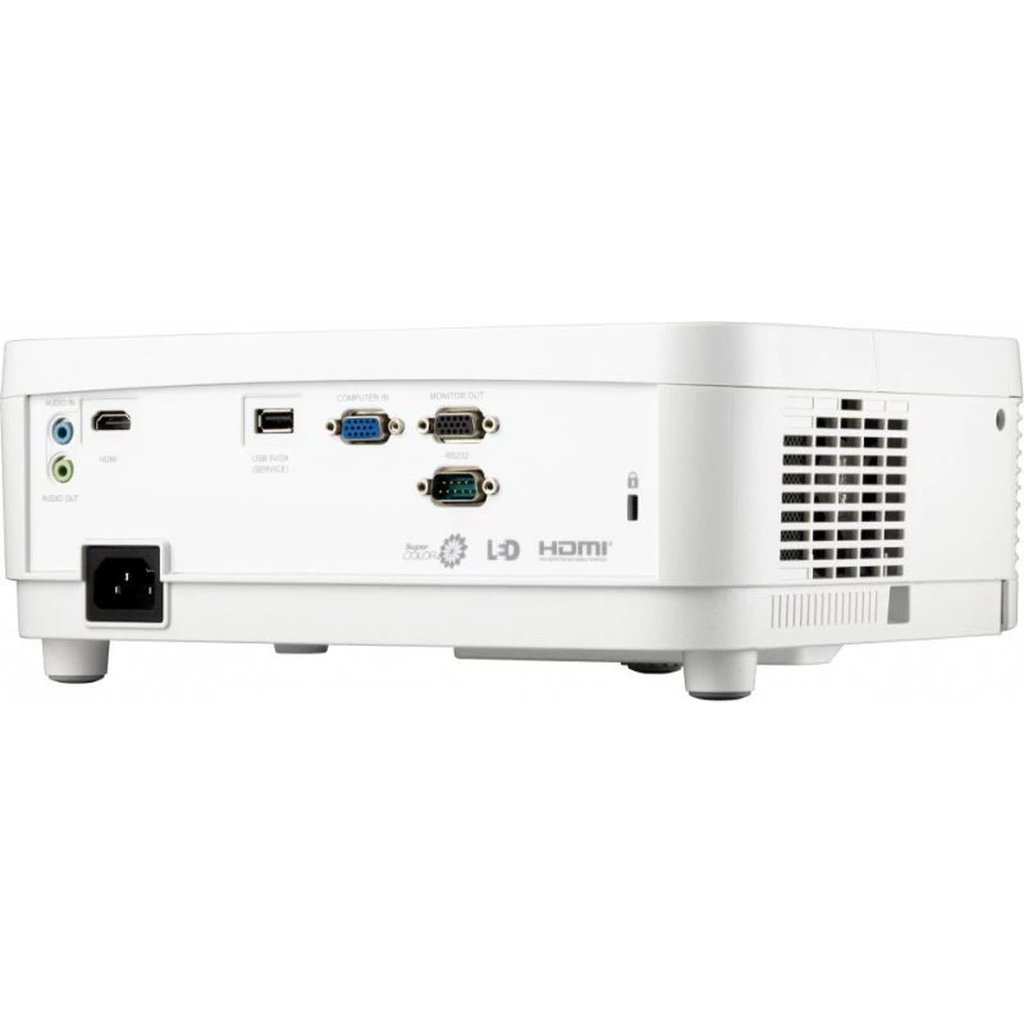

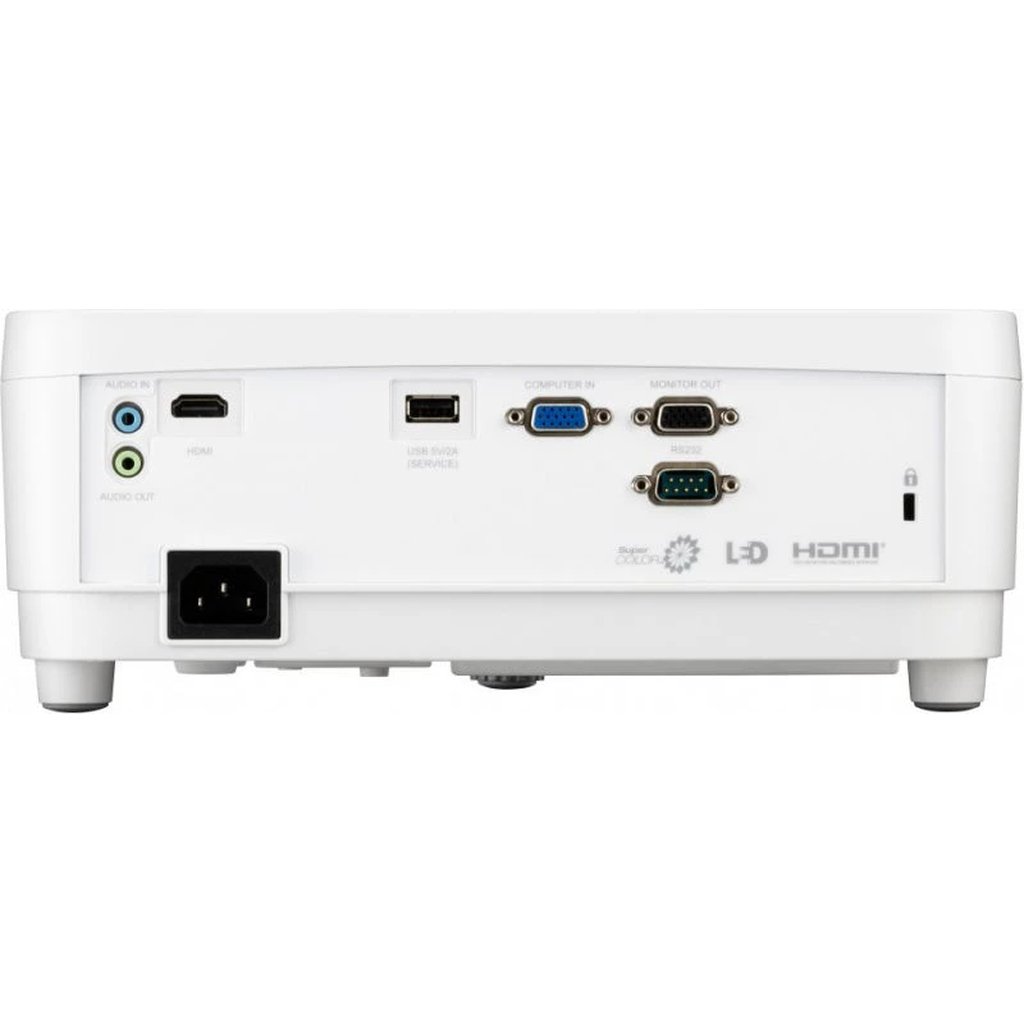

| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Ethernet LAN | No |
| Wi-Fi | No |
| Card reader integrated | No |
| Noise level | 34 dB |
| Interactive | No |
| Noise level (economic mode) | 28 dB |
| HDCP | Yes |
| On Screen Display (OSD) | Yes |
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
| Number of built-in speakers | 1 |
| Product colour | White |
| Built-in display | No |
| Power source | AC |
| Power consumption (typical) | 240 W |
| Power consumption (standby) | 0.5 W |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight | 2.65 kg |
| Width | 293 mm |
| Depth | 221 mm |
| Height | 115 mm |

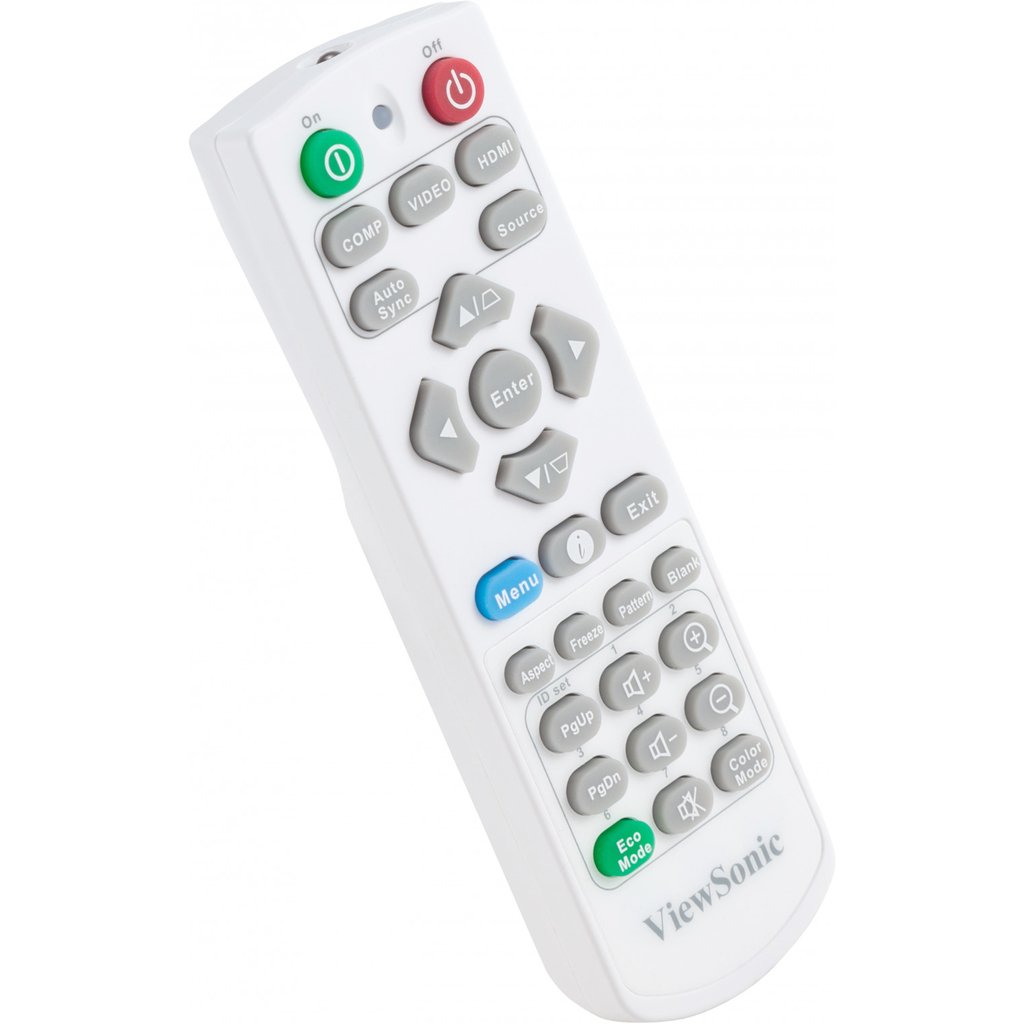

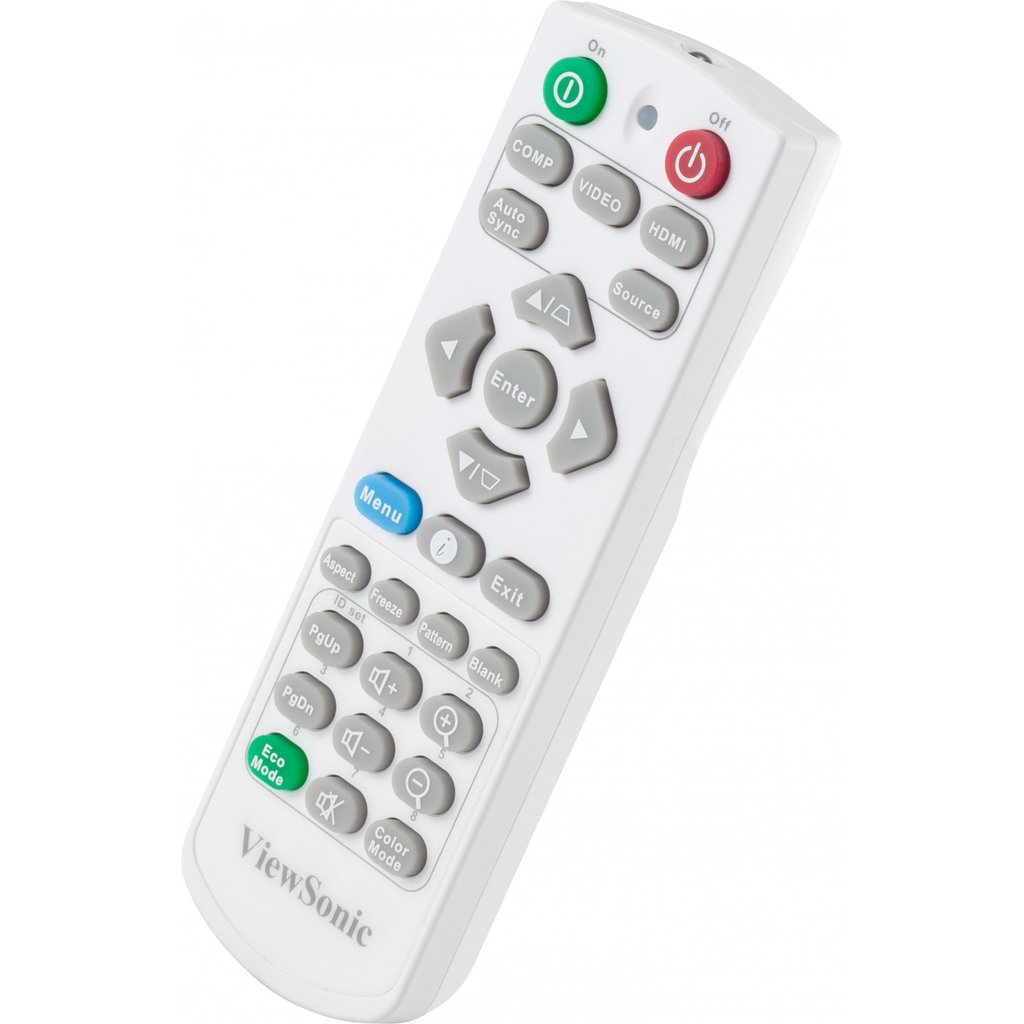

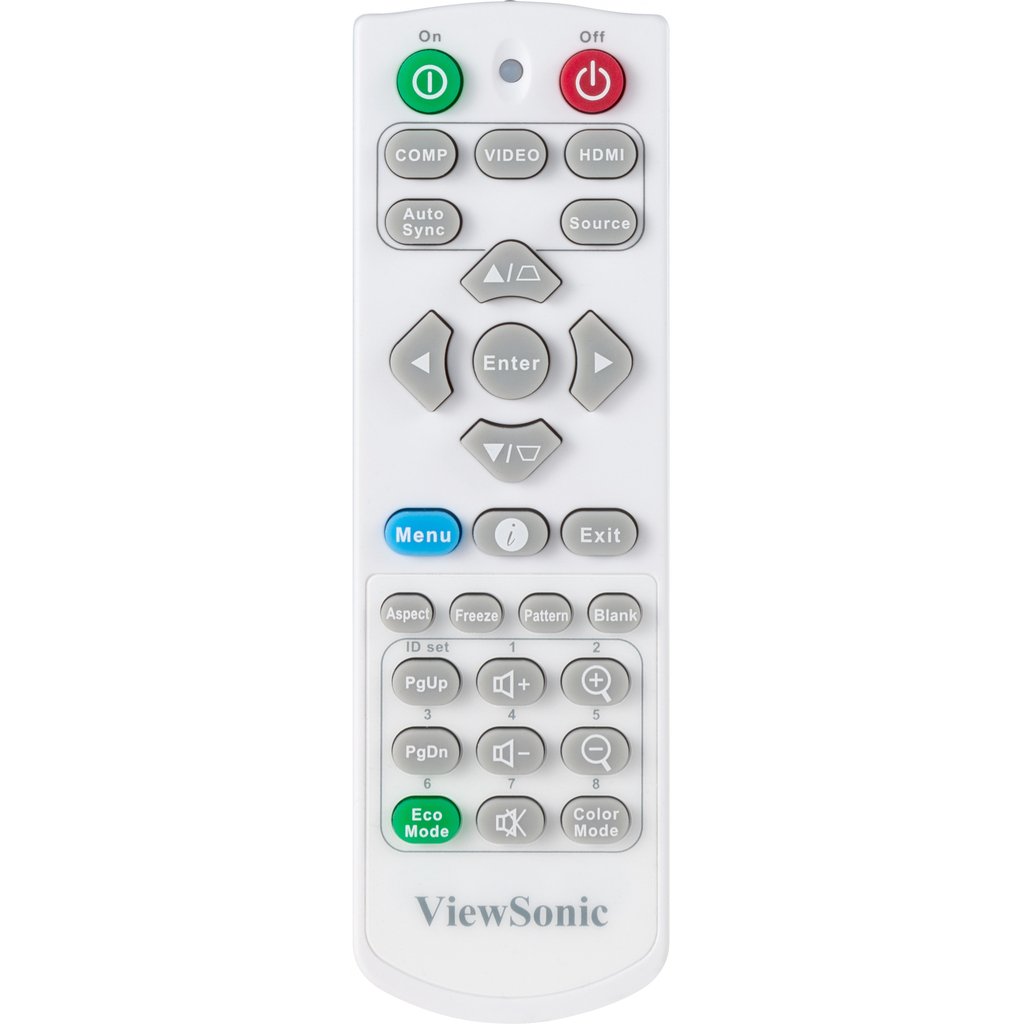

| Remote control included | Yes |
| Cables included | AC |
| 3D | No |
| USB 2.0 ports quantity | 1 |
| Smart TV | No |
| Product type | Standard throw projector |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Serial interface type | RS-232 |
| Aperture range (F-F) | 2.56 – 2.68 |
| HDMI connector type | Full-size |
| Audio (L/R) in | 1 |
| Storage temperature (T-T) | -20 – 60 °C |
| AC (power) in | Yes |
| Operating relative humidity (H-H) | 0 – 90% |
| Storage relative humidity (H-H) | 0 – 90% |
| Manual | Yes |
| Matrix size | 1.65 cm (0.65") |
| Matrix type | DMD |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, S |
| Number of OSD languages | 24 |
| Focal length range | 22 – 24.1 mm |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1080 (HD 1080) |
| Package width | 365 mm |
| Package depth | 300 mm |
| Package height | 188 mm |
| Package weight | 2.85 kg |
| IR input ports quantity | 1 |
| Audio (L/R) out | 1 |
| LED indicators | Yes |
| Cable lock slot | Yes |
| Operating altitude | 0 – 3000 m |
