Viewsonic TD2465 Signage Display Interactive flat panel 61 cm (24″) LED 250 cd/m² Full HD Black Touchscreen
24″, 1920 x 1080p, FHD, 3000:1, LED, 250cd/m2, 16:9, 60Hz, HDMI 1.4, DisplayPort, USB 3.2 Type-A x2, USB 3.2 Type-B, VGA
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The ViewSonic’s TD2465 is the ideal solution for commercial and industrial spaces. Designed for wet hands touch, glove touch, and for any conductive stylus’ tip touch including pencil. The TD2465 delivers an intuitive 10-point PCAP touch technology for maximum interactivity. Featuring ViewSonic Touch Controller software, allowing you to control the device intuitively. Connection options include HDMI and DisplayPort inputs for effortless sharing capabilities. Equipped with VESA mounting design for any surface and Kiosk, the touch screen is the perfect display for various.
Designed For Versatile Installation Options
The 24″ touch monitor is your one-stop solution for industrial, retail, and commercial applications. Whether a self-ordering kiosk or industrial automation control unit, the TD2465 delivers versatile installation options and an intuitive 10-point touch response technology.
Intuitive and Responsive Touch
Experience a smooth, and responsive touchscreen with the high-sensitive Projective Capacitive (PCAP) Touch Technology. With up to 10 touch point simultaneous input, each touch response is read with accuracy and precision.
Made for tough conditions
The TD2465 is able to register fingerprints even when your hands are wet. Ideal for those situations where you often get your hands wet, and you need your equipment to keep up.
Glove Touch Mode
Different tasks require different accessories, and gloves are no exception. Glove touch successfully eliminates the hassle of removing your gloves every time you need to perform an action onscreen.
Water Tolerant Surface
Designed to work when you need it. Work in humid conditions without an issue with the TD2465’s Water-Resistant Touch mode.
Stylus Compatibility
The TD2465 is equipped with palm rejection and full support for multiple types of pen. Passive, active pen can be used without the hassle of installing drivers. Click functions are even enabled for pencils.
Advanced Ergonomics

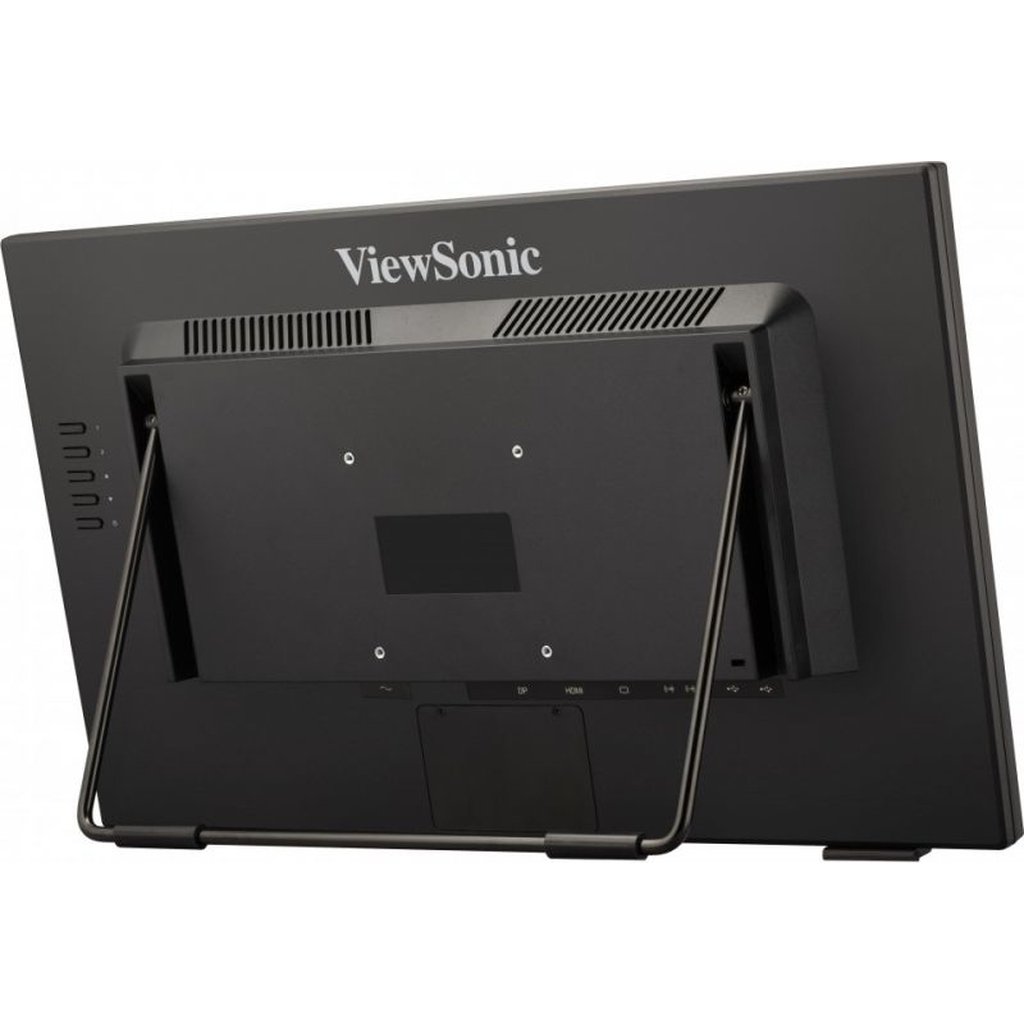

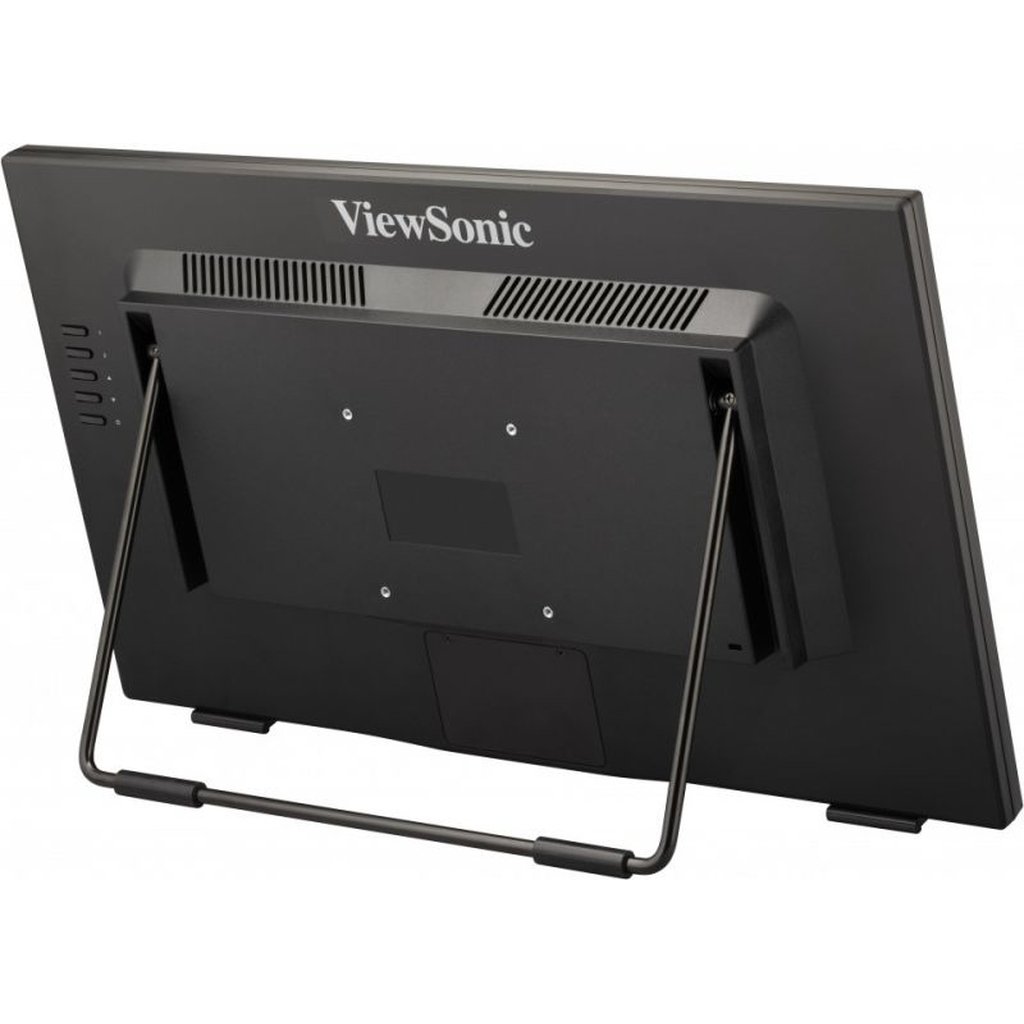

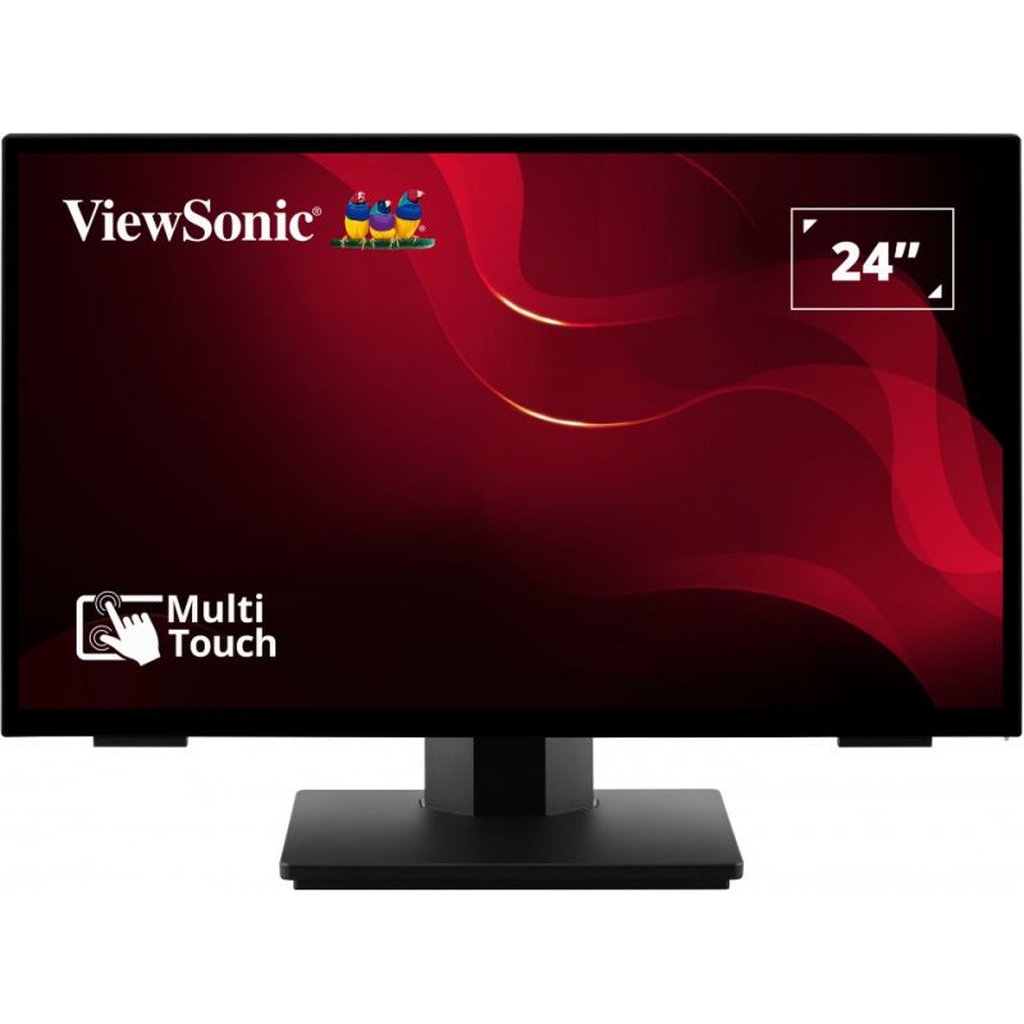

The TD2465 comes complete with two types of monitor stands to ensure you have the setup you need no matter the situation. The book stand is designed with an advanced hinge, allowing the display to be tilted and adjusted between 15 ° ~70°, making it great for diverse applications. The classic stand is perfect for more conventional uses, with a tilt angle of up to 20°.
Easy Kiosk Integration
The 4-sides frameless design of the TD2465 display allows for seamless and secure attachment to your preferred kiosk design, allowing it to be installed and integrated to best suit any application you require.
Touch Controller Software
Intuitive interface design offers shortcuts for an easy way to adjust volume, brightness, contrast, and touch modes.
Additional information
| Weight | 7.1 lbs |
|---|---|
| Display diagonal | 61 cm (24") |
| Display technology | LED |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 250 cd/m² |
| LED backlight | Yes |
| Contrast ratio (typical) | 3000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Panel life | 30000 h |
| HDMI ports quantity | 1 |
| USB port | Yes |
| Ethernet LAN | No |
| Wi-Fi | No |
| HDMI version | 1.4 |
| USB ports quantity | 3 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-A, USB Type-B |
| Audio (L/R) out | 1 |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 4 W |
| Product design | Interactive flat panel |
| Product colour | Black |
| Purpose | Commercial |
| Power consumption (typical) | 24 W |
| AC input voltage | 100 – 240 V |
| Display width | 550 mm |
| Display depth | 49 mm |
| Display height | 326 mm |
| Weight (with stand) | 5.7 kg |
| Package width | 647 mm |
| Package weight | 5.7 kg |
| HD type | Full HD |
| Touchscreen | Yes |
| Native aspect ratio | 16:9 |
| Native refresh rate | 60 Hz |
| Power consumption (standby) | 0.5 W |
| Display weight | 4.7 kg |
| Operating temperature (T-T) | 0 – 40 °C |
| Width (with stand) | 550 mm |
| Depth (with stand) | 401 mm |
| Height (with stand) | 198 mm |
| Package depth | 138 mm |
| Package height | 426 mm |
| Response time | 7 ms |
| DisplayPorts quantity | 1 |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Operating relative humidity (H-H) | 20 – 90% |
| Contrast ratio (dynamic) | 20000000:1 |
| Surface hardness | 7H |
| RGB colour space | sRGB |
| Built-in processor | No |
| Harmonized System (HS) code | 8528521000 |
| Energy efficiency class (SDR) | D |
| Energy consumption (SDR) per 1000 hours | 14 kWh |
| Energy efficiency scale | A to G |
| Audio (L/R) in | 1 |
| Maximum frame rate | 60 fps |
| Tilt angle | 20° |
| Tilt adjustment | Yes |
| Weight | 4.7 kg |
| Pallet gross length | 100 cm |
| Pallet gross width | 120 cm |
| Products per master (outer) case | 1 pc(s) |
| Pallet gross height | 2.1 m |
