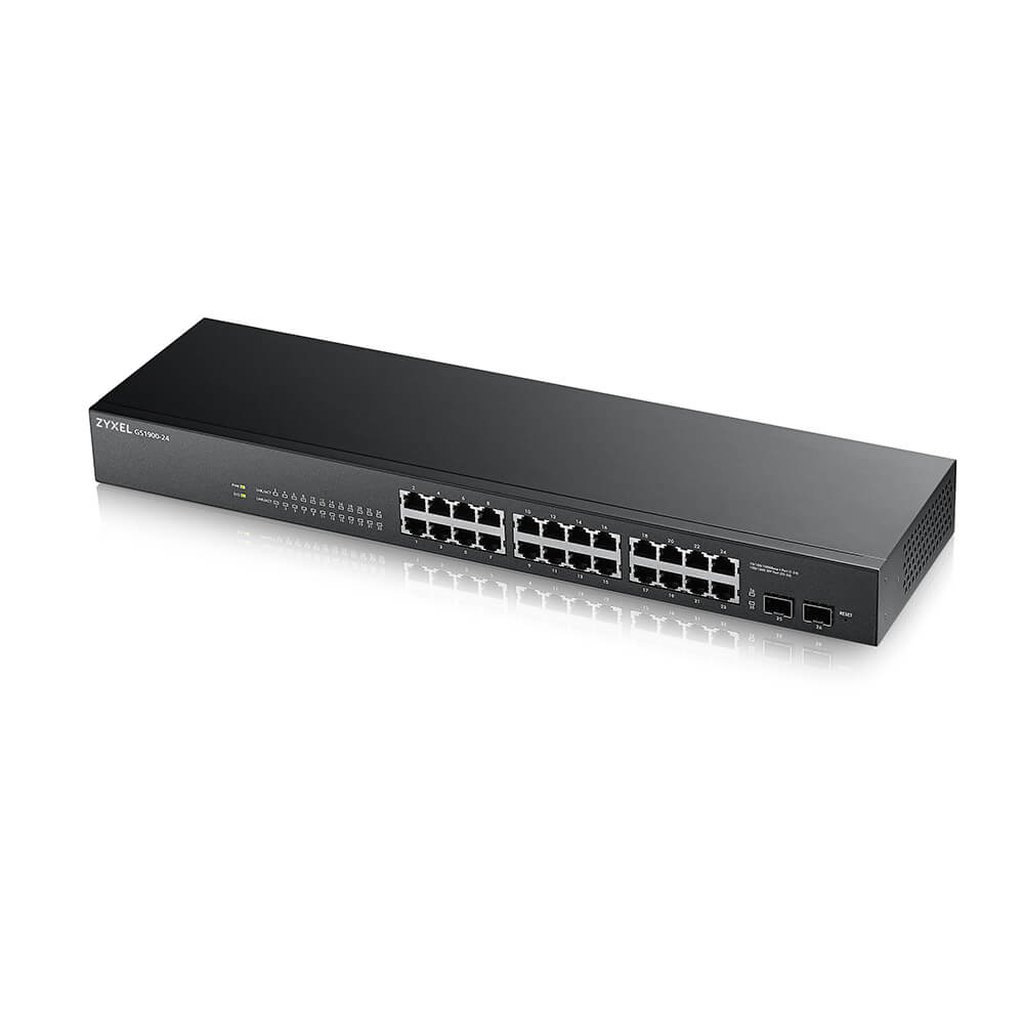

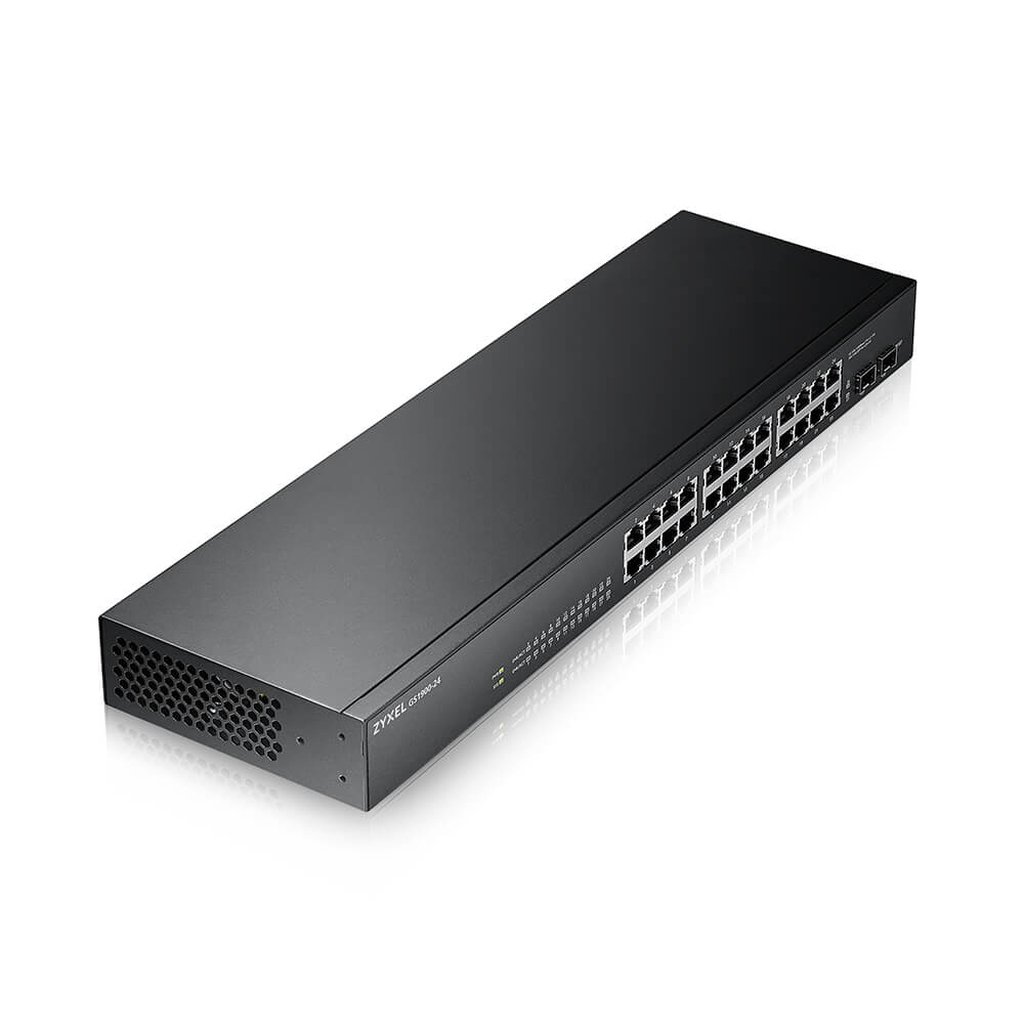

Zyxel GS-1900-24 v2 Managed L2 Gigabit Ethernet (10/100/1000) 1U Black
24-port GbE, Total 26, 100/1000 Mbps, SFP 100/1000 Mbps 2, 52 Gbps, 39 Mpps, 525 K byte, 8 K MAC, 9 K byte, 100 – 240 V AC, 50/60 Hz, 16 W, 440 x 131 x 44 mm, 2.09 kg, GB
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Near silent operation
The GS1900 Series includes both fan-less and built-in smart fan models. The smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the switch is operating. It is ideal for your office environment.
Intelligent PoE+ powers more devices
PoE models (8HP/10HP/24EP/24HPv2/48HPv2) come with default PoE consumption mode which delivers only the actual power required by your networked devices, reserves the rest and optimizes its power budget. That means a single switch can power more APs, IP cameras and VoIP phones, ensuring a better ROI for your business. All of them support the IEEE 802.3at providing a maximum of 30W per port.
Speedy Gigabit performance—built for SMBs
The GS1900 is a series of switches with full non-blocking bandwidth of up to 1 Gbps per port. An ideal upgrade from an unmanaged switch, it’s a great choice for SMBs that want to enjoy high-speed business network applications at full wired non-blocking speed.
Easy and intuitive management
The Smart Managed GS1900 Series switch feature with web-based interface to manage advanced functions such as VLAN, QoS, IGMP Snooping, Link Aggregation (LAG), IPv6 and DoS prevention easily. Also, the user-friendly wizard helps to walk through setup, configuration and even advanced settings quickly.
Additional information
| Weight | 2.68 lbs |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| MAC address auto-learning supported | Yes |
| MAC address table | 8000 entries |
| Switching capacity | 52 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 0.525 MB |
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Mean time between failures (MTBF) | 432.673 h |
| Power consumption (max) | 16 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 10 – 95% |
| Storage relative humidity (H-H) | 10 – 95% |
| Width | 440 mm |
| Depth | 131 mm |
| Height | 44 mm |
| Weight | 2.09 kg |
| Harmonized System (HS) code | 85176990 |
| Switch layer | L2 |
| Web-based management | Yes |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN, VLAN Identifier ( VLAN ID), Voice VLAN |
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Reset button | Yes |
| Power source | AC |
| Power supply included | Yes |
| Cables included | AC |
| Package weight | 2.85 kg |
| Certification | EMC■ CE, FCC, C-Tick, Class A(GS1900-24/24EP/24HPv2/48/48HPv2)■ CE, FCC, C-Tick, Class B(GS1900-8/8HP/10HP/16/24E)■ BSMI CNS13438• Safety■ LVD EN60950-1■ BSMI CNS14336-1■ CB IEC60950-1(G |
| Stackable | Yes |
| Form factor | 1U |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| System event log | Yes |
| MIB support | RFC 1213 MIB II, RFC 2819 RMON (group 1, 2, 3, 9), RFC 1215, RFC 1493 |
| Power connector | AC-in jack |
| Port mirroring | Yes |
| Forwarding rate | 39 Mpps |
| Password protection | Yes |
| Authentication type | RADIUS, TACACS+ |
| Link aggregation | Yes |
| Package type | Box |
| Heat dissipation | 55 BTU/h |
| Package width | 561 mm |
| Package depth | 217 mm |
| Package height | 82 mm |
| MAC address filtering | Yes |
| Static port security | Yes |
| SSH/SSL support | Yes |
| SFP module slots quantity | 2 |
| Security algorithms | 802.1x RADIUS |
| Rack mount kit | Yes |
