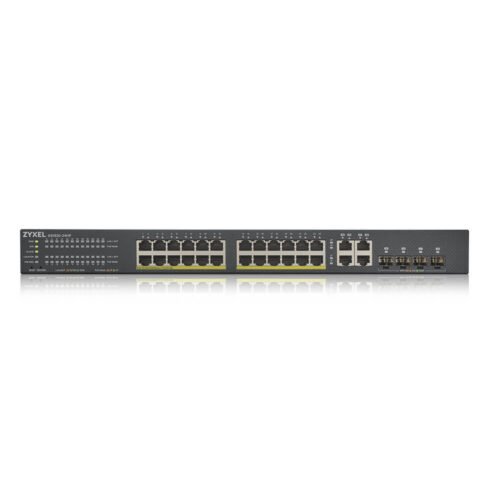

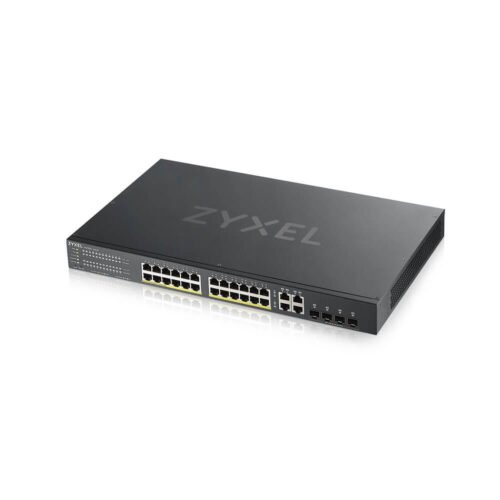

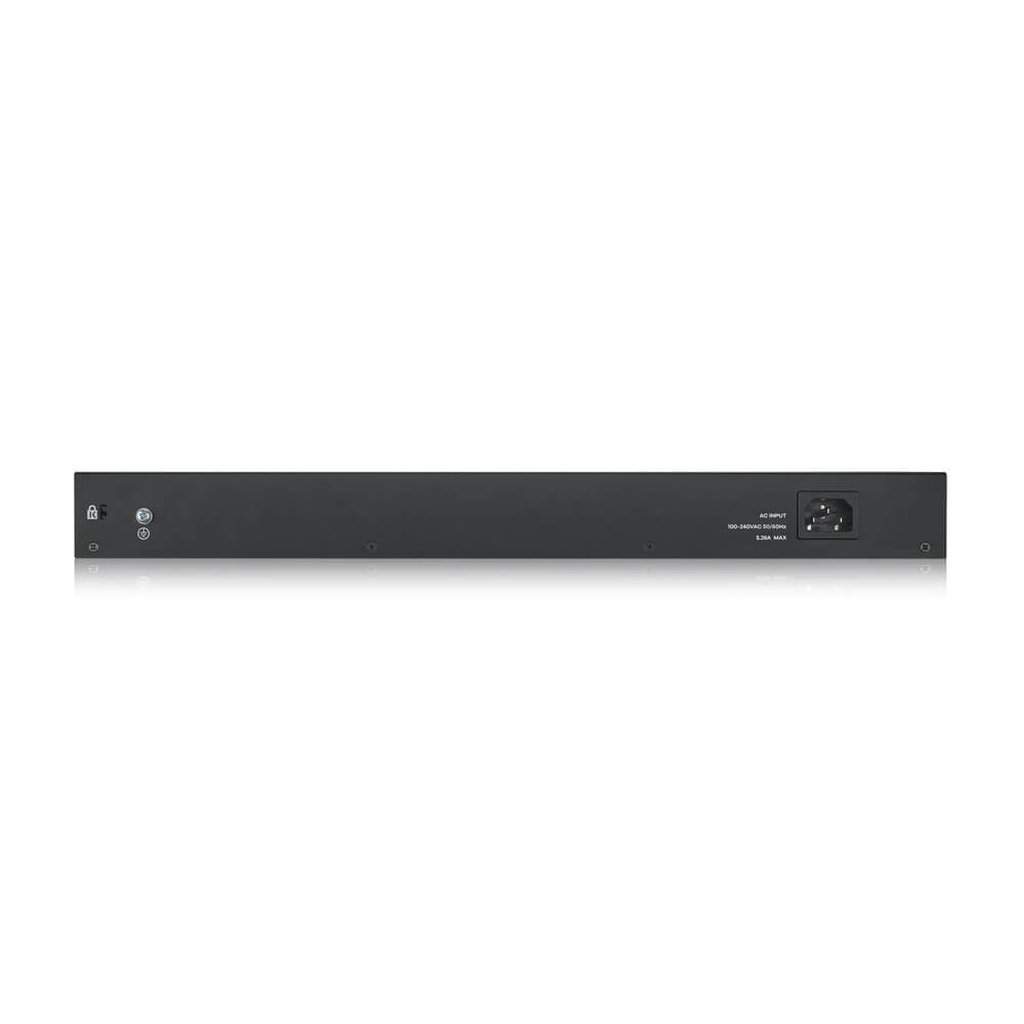

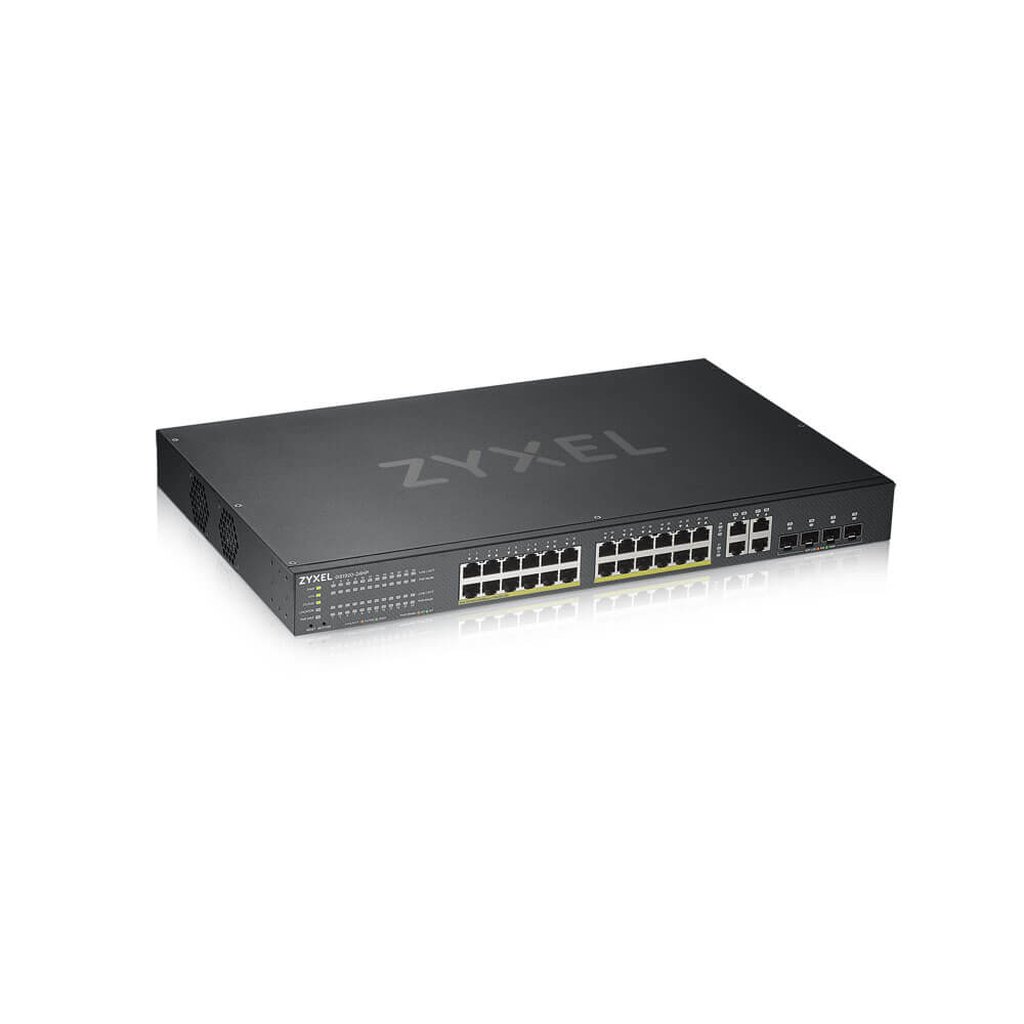

Zyxel GS1920-24HPv2 Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
GS1920-24HPv2 – 24-port GbE Smart Managed PoE
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
A new-look smart managed switch with a refreshed design inside and out!
The GS1920v2 series extends the success of the best-selling GS1920 series with a stylish new look and enables cloud manageability with Zyxel NebulaFlexTM technology.
Manage it your way!
The GS1920v2 series introduces Zyxel NebulaFlexTM, which allows you to easily switch between standalone mode and our license-free Nebula cloud management platform anytime with just a few simple clicks.
Maximum flexibility for your Gig
The GS1920v2 series is ideal for SMB deployment in multiple scenarios, with its unique port combinations futureproofing your network to ensure easy growth down the road.
Designed for the long haul
A web smart managed switch with an enterprise-grade hardware design. Built-in state-of-the-art hardware technology brings high quality and robustness to SMB networks.
Additional information
| Weight | 4.9 lbs |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| MAC address table | 16000 entries |
| Switching capacity | 56 Gbit/s |
| Packet buffer memory | 1.5 MB |
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Mean time between failures (MTBF) | 638691 h |
| Power consumption (max) | 463.5 W |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 10 – 95% |
| Storage relative humidity (H-H) | 10 – 95% |
| Width | 441 mm |
| Depth | 270 mm |
| Height | 44 mm |
| Weight | 3.8 kg |
| Harmonized System (HS) code | 85176990 |
| Switch layer | L2/L3/L4 |
| Combo SFP ports quantity | 4 |
| Copper ethernet cabling technology | 100BASE-TX, 1000BASE-T |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | IP subnet–based VLAN, MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN |
| DHCP features | DHCP client, DHCP relay, DHCP snooping, DHCPv6 relay |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Electromagnetic compatibility | FCC 15 A, CE A, BSMI EMC |
| Cables included | AC |
| Package weight | 4.97 kg |
| Certification | RoHS |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| System event log | Yes |
| Total Power over Ethernet (PoE) budget | 375 W |
| ARP inspection | Yes |
| MIB support | RFC 1066, RFC 1213, RFC 1157, RFC 1493, RFC 1643, RFC 1757, RFC 2011.2012,2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819,2925, RFC 3621, RFC 4022, RFC 4113, RFC 4292, RFC 4293 |
| Forwarding rate | 42 Mpps |
| Password protection | Yes |
| Authentication type | IEEE 802.1x, RADIUS |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Power over Ethernet (PoE) ports quantity | 24 |
| Package type | Box |
| Noise level | 27.2 dB |
| Heat dissipation | 1580.54 BTU/h |
| Package width | 616 mm |
| Package depth | 355 mm |
| Package height | 107 mm |
| Rate limiting | Yes |
| IP-MAC-Port binding | Yes |
| Authentication | Guest VLAN, Port-based authentication |
| Multicast support | Yes |
| Queue scheduling algorithms | SPQ, WFQ, Weighted Round Robin (WRR) |
| Security algorithms | 802.1x RADIUS, SNMP, SNMPv3 |
| Rack mount kit | Yes |
| Fiber optic connector | SFP |
