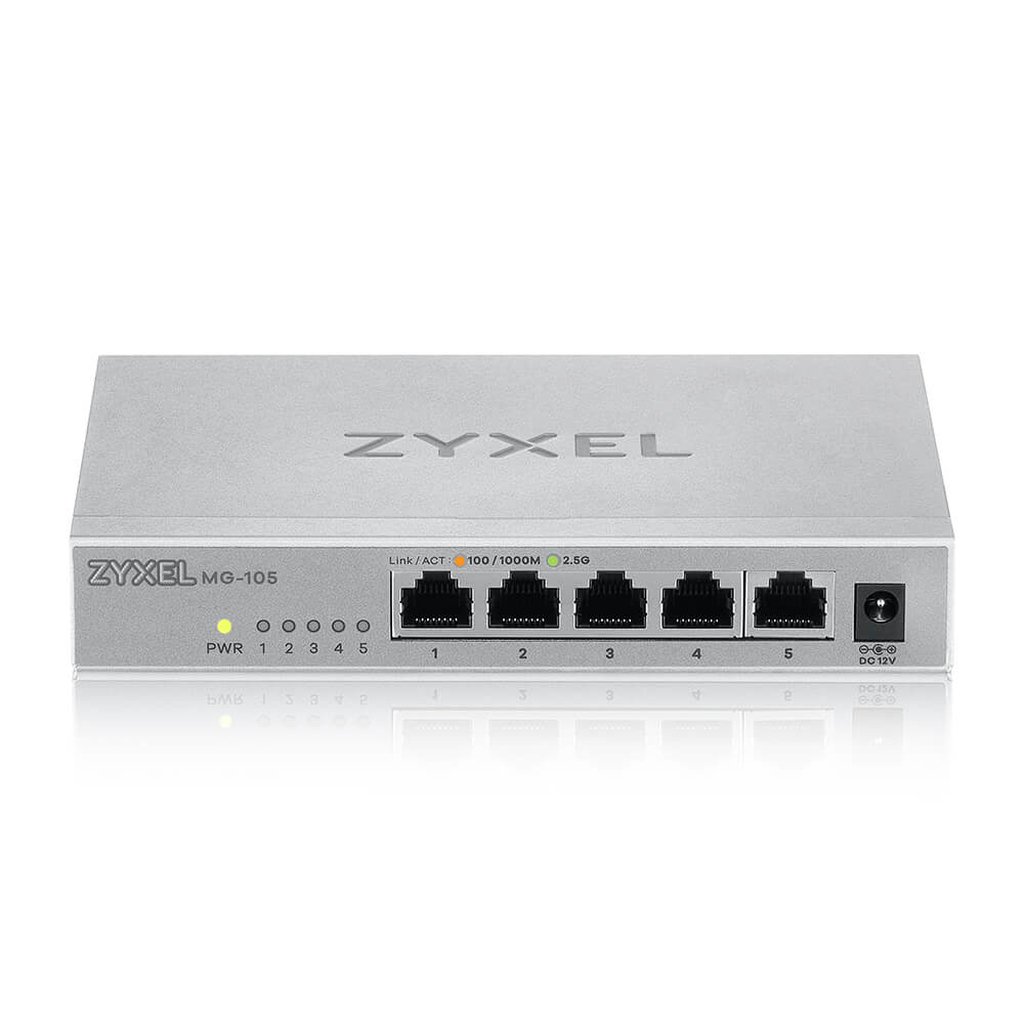

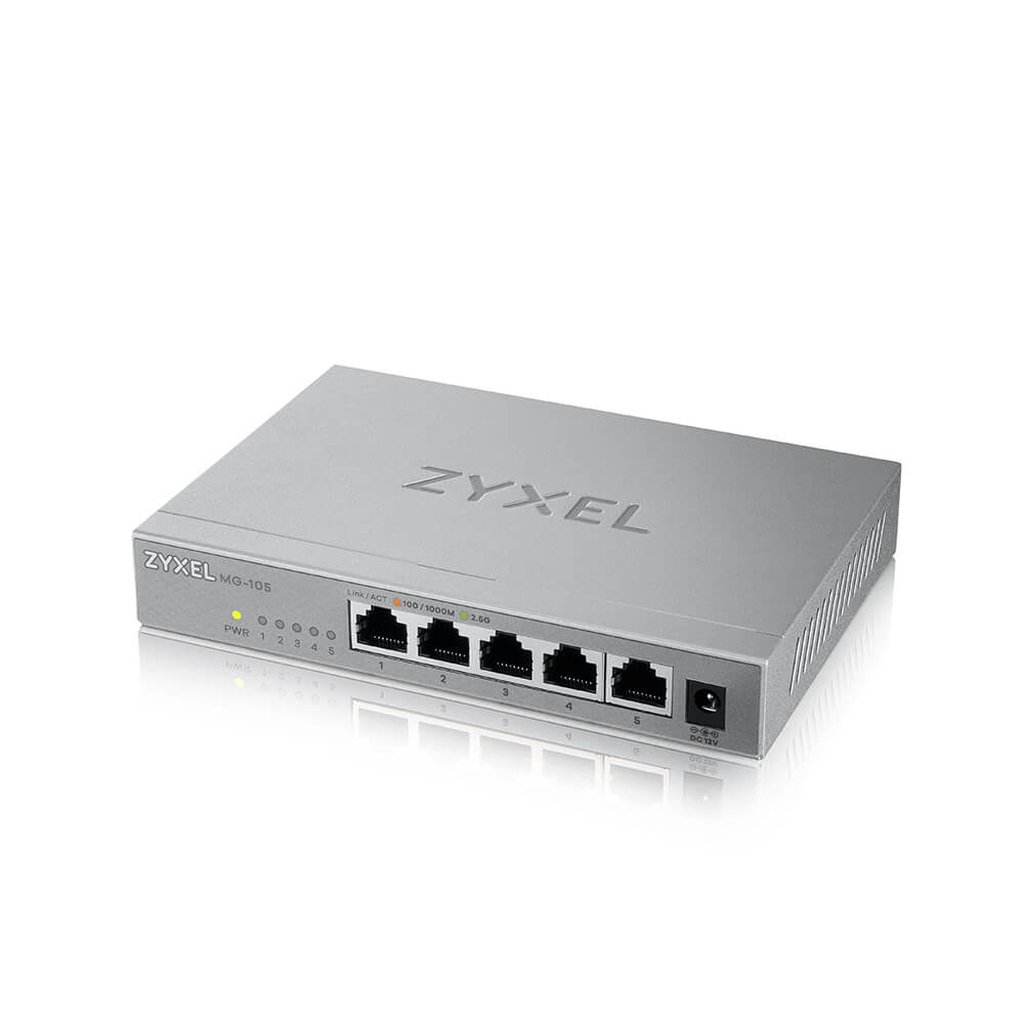

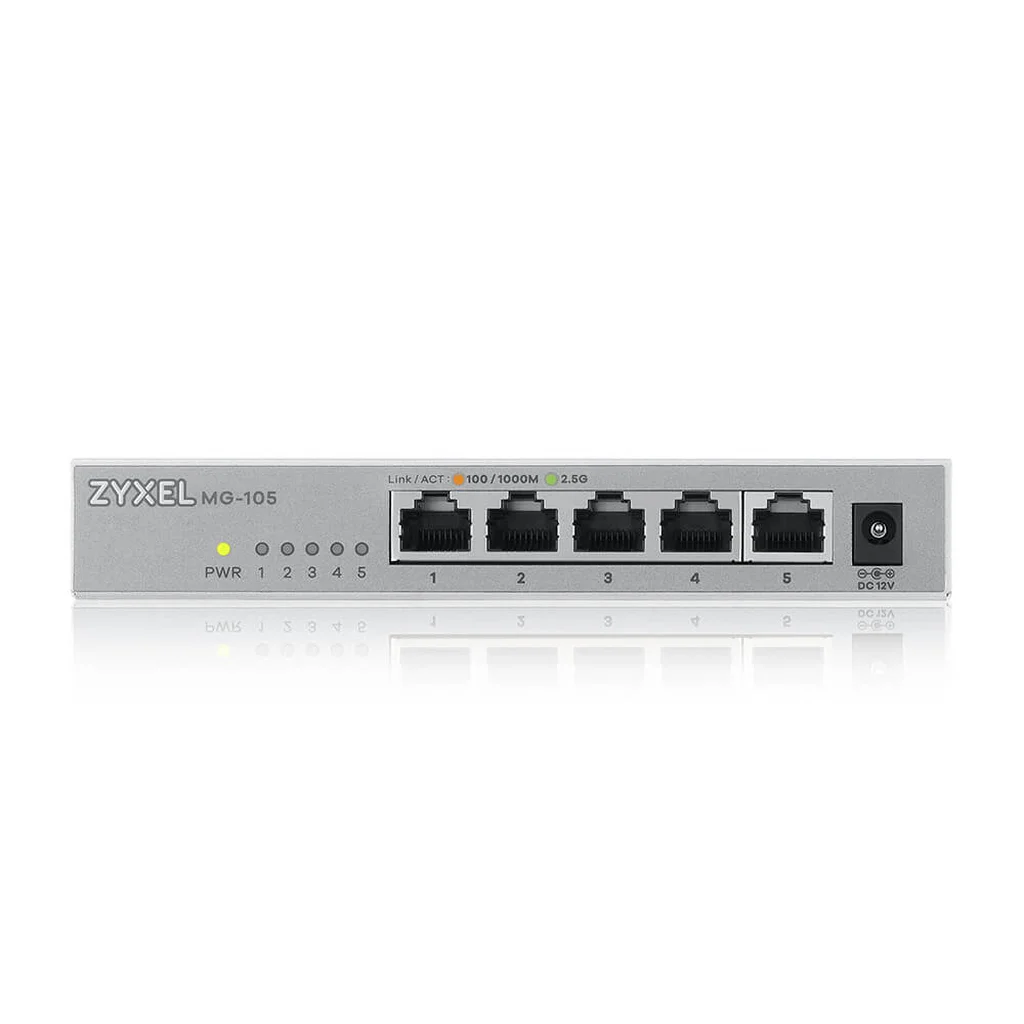

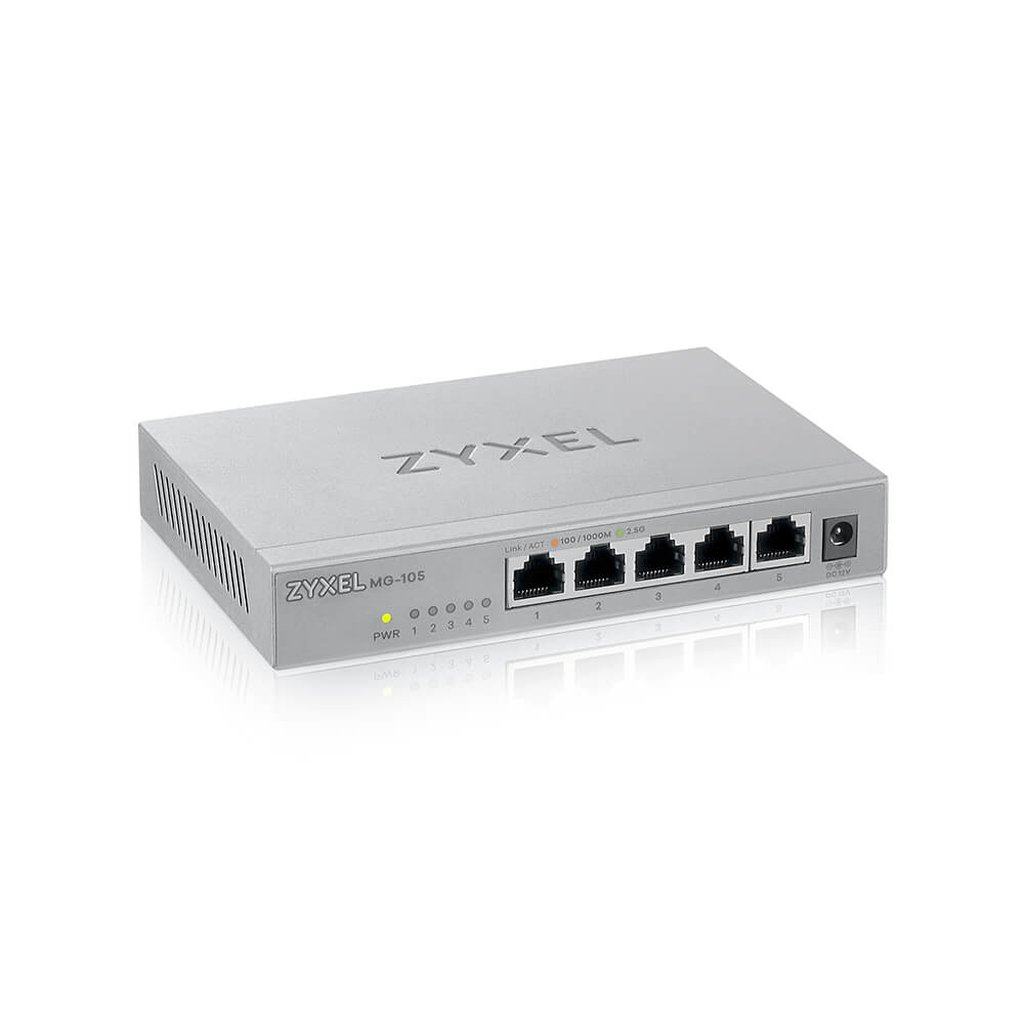

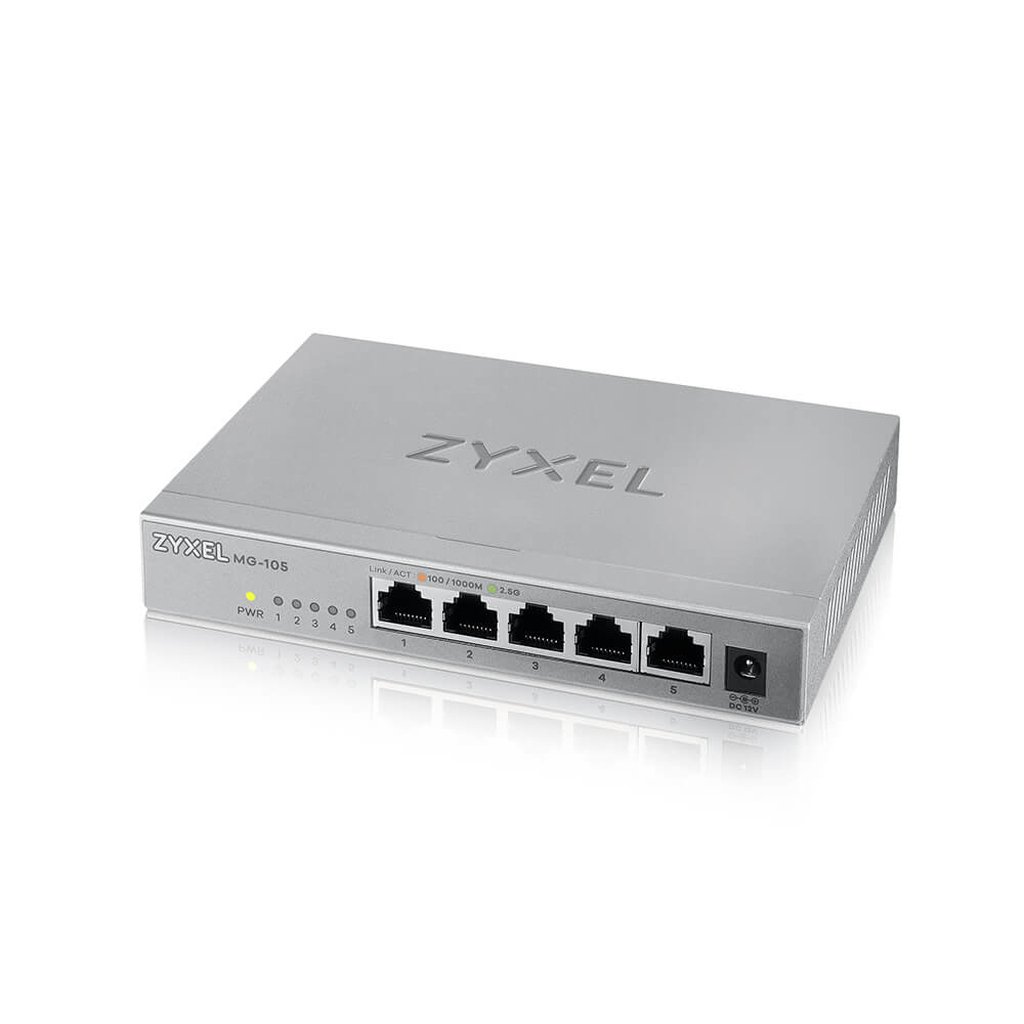

Zyxel MG-105 Unmanaged 2.5G Ethernet (100/1000/2500) Steel
25 Gbps, 18.6 Mpps, 5x 2.5 RJ-45, QoS, 100-240V AC, 50/60 Hz, 160x110x26 mm
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.

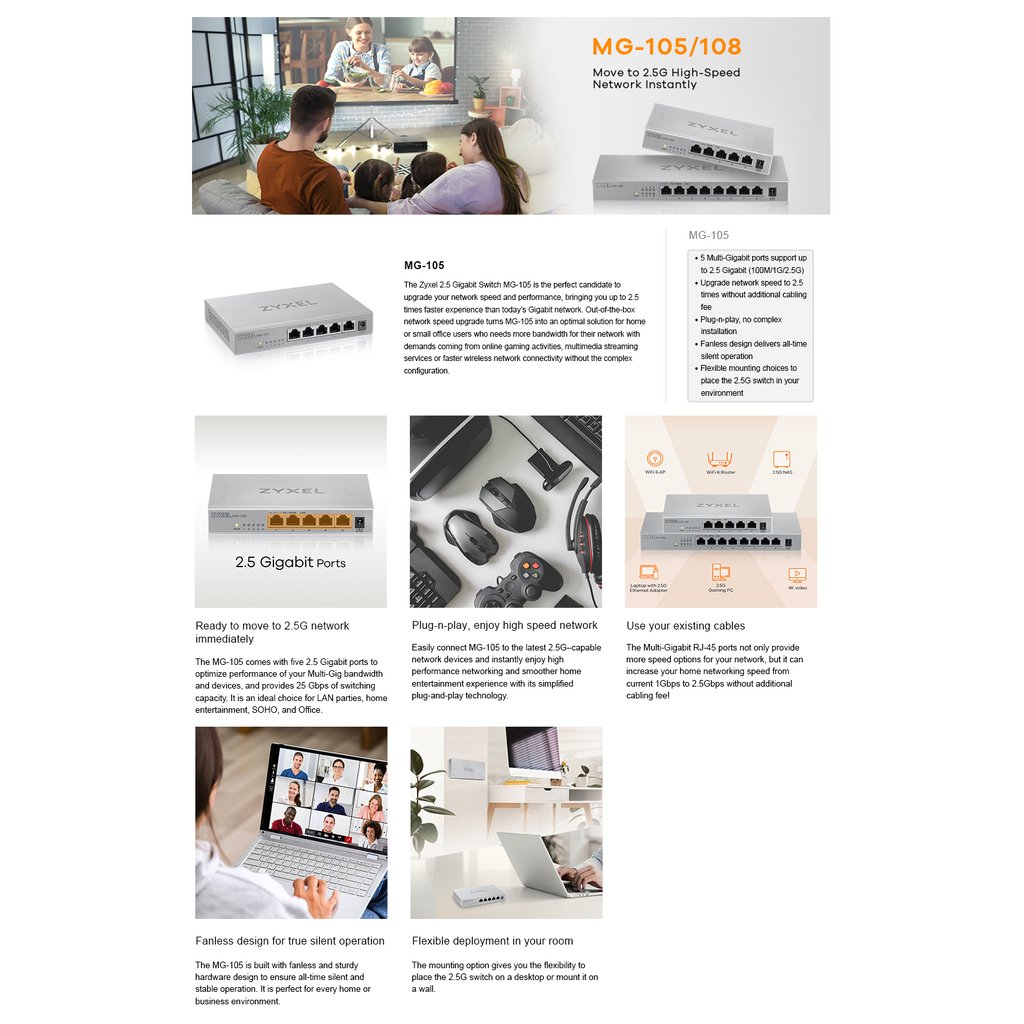

Description

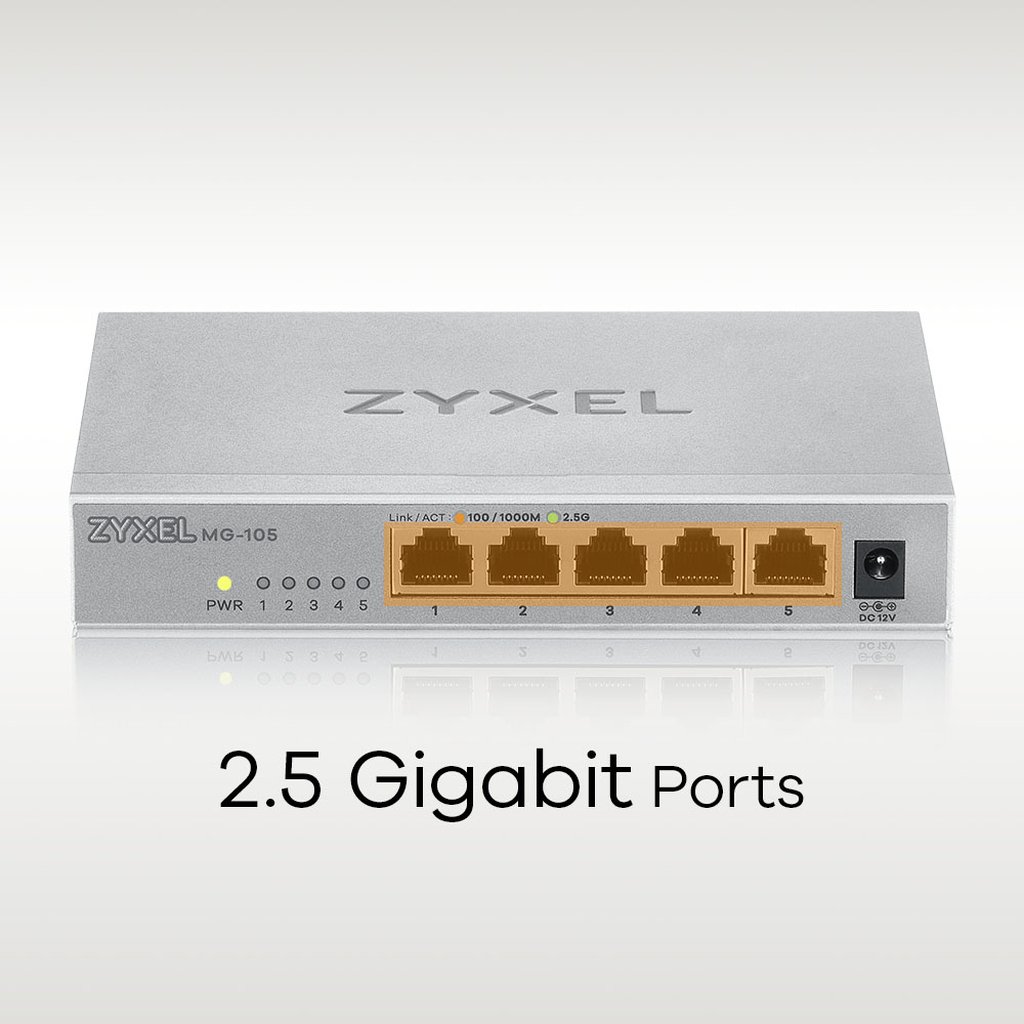

Upgrade Network to Multi-Gig
MG-105 and MG-108 come with five/eight 2.5 Gigabit ports to optimize performance of your Multi-Gig bandwidth and devices, and provide 25/40 Gbps of switching capacity. They are an ideal choice for LAN parties, home entertainment, SoHo and offices.
Plug-n-Play, Enjoy High Speed Network

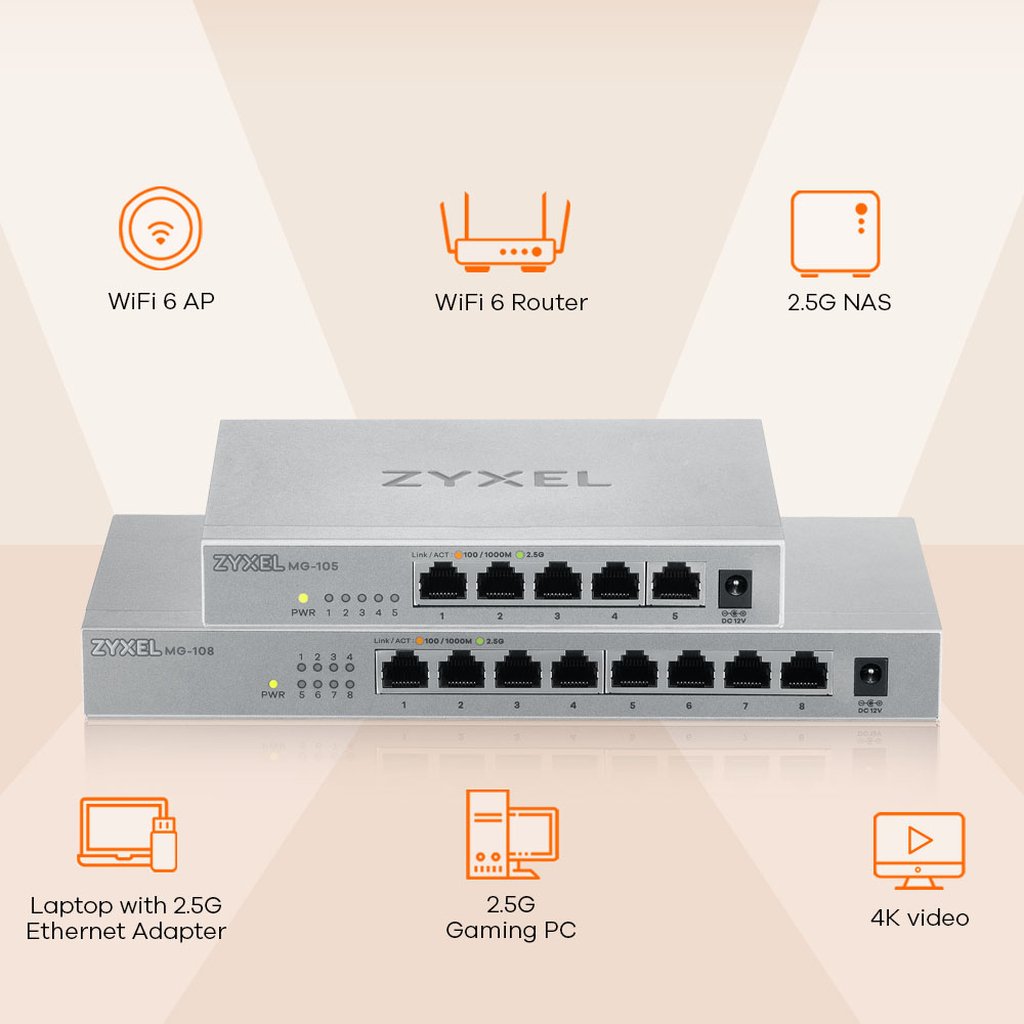

Easily connect MG-105 or MG-108 to the latest 2.5G-capable network devices such as 2.5G NAS, 2.5G PCIe adapter, gaming console, VR gaming, WiFi 6 AP, 4K video, desktop, and more and more to instantly enjoy high performance networking and smoother home entertainment experience with its simplified plug-and-play technology.
Use your existing cables
The Multi-Gigabit RJ-45 ports not only provide more speed options for your network, but it can increase your home networking speed from current 1Gbps to 2.5Gbps without additional cabling fee!
Fanless Design For True Silent Operation
MG-105 and MG-108 are built with fanless and sturdy hardware design to ensure all-time silent and stable operation. They are perfect for every home or business environment.

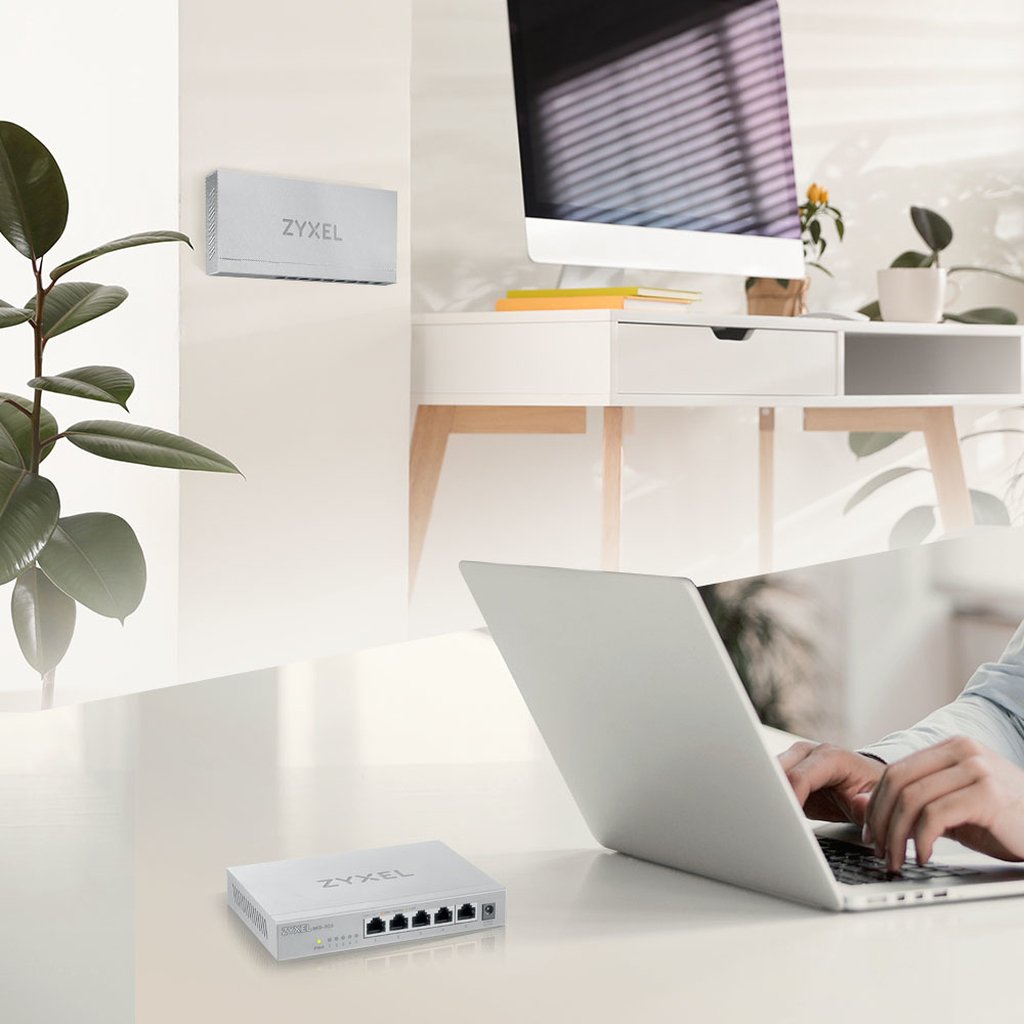

Flexible Deployment In Your Room
The mounting option gives you the flexibility to place the 2.5G switch on a desktop or mount it to a wall.
Additional information
| Weight | 0.8 lbs |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| MAC address table | 16000 entries |
| Switching capacity | 25 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet buffer memory | 12 MB |
| Rack mounting | No |
| Product colour | Steel |
| LED indicators | Yes |
| Power consumption (max) | 9.34 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 5 – 95% |
| Width | 160 mm |
| Depth | 110 mm |
| Height | 26 mm |
| Weight | 460 g |
| Harmonized System (HS) code | 85176990 |
| Copper ethernet cabling technology | 2.5GBASE-T, 100BASE-TX, 1000BASE-T |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| Power supply included | Yes |
| Package weight | 919.6 g |
| Certification | CE, EAC, FCC, BSMI |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Compliance certificates | CE |
| Forwarding rate | 18.6 Mpps |
| Wall mountable | Yes |
| Fanless | Yes |
| User guide | Yes |
| Package width | 215 mm |
| Package depth | 133 mm |
| Package height | 79 mm |
