Zyxel XGS1010-12-ZZ0102F network switch Unmanaged Gigabit Ethernet (10/100/1000) Grey
XGS1010-12,8-Port Gigabit Unmanaged Switch with 8-Port 1G + 2-Port 2.5G + 2-Port SFP+
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
12-Port 10G SFP+ Unmanaged Multi-Gigabit Switch provides high performance and simplified controls
The Zyxel XGS1010-12 comes with two 10G SFP+ uplink ports, two 2.5G Multi-Gigabit ports, and eight Gigabit Ethernet ports with plug-and play design. It has been designed specifically for customers who require an affordable 10GbE network connectivity over a variety of mixed environments from the home to the office.
Maximums the flexibility for your network.
The XGS1010-12 features with 1G ports, 2.5G Multi-Gigabit ports, as well as 10G fiber ports. This port combination is capable of servicing a range of network devices such as gaming pc, NAS, workstation, or WiFi 6 AP.
Experience hyper-fast 2.5G networking!
Equipped with two 2.5G Multi-Gigabit ports, the switch gives your wired connection a boost, with speeds that are 2.5 times faster than standard Gigabit connections. It is the most ideal option to work with new motherboard for speedy file transfers, lag-free gaming, and high-res video streaming.
10G SFP+ Ultra Speed Uplink.
Provide two SFP+ ports compatible with 10GbE, which offers higher transmission speeds, instantly upgrade to a hybrid high-speed network environment at a cost-effective price.
QoS for Better Traffic Control.
The Zyxel XGS1010-12 comes with two high-priority and two medium p-priority ports, which provides enhanced download quality, all while giving you a better surfing, gaming, and streaming experience on other devices.
Easy to Use, No Setup Required.
Its easy plug-and-play design allows you to connect the XGS1010-12 to VoIP, media players, game consoles, set-top box, and any other web browsing devices to your home or studio network without any configuration.
Saving energy and space.

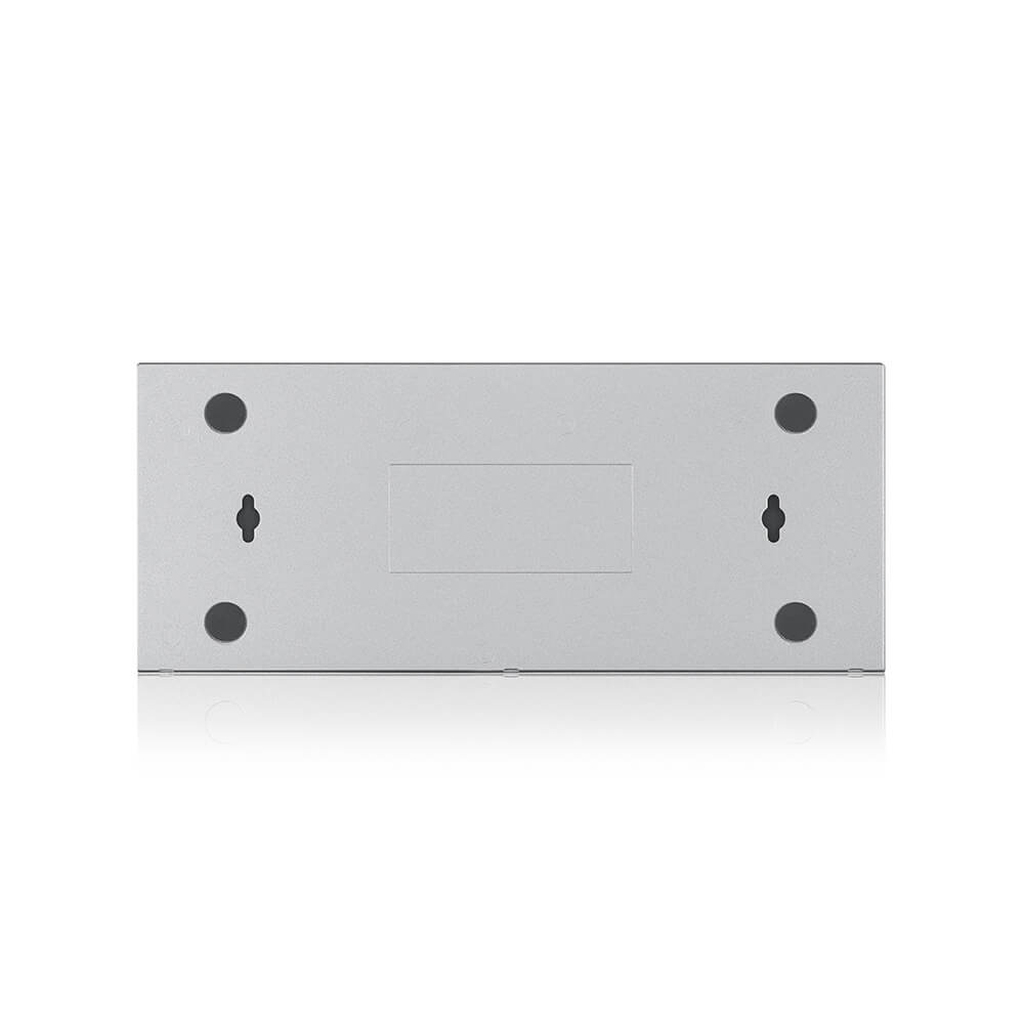

The fanless design ensures noiseless operation. Also, its built-in Energy Efficient Ethernet function automatically adjusts power consumption to dynamically reduce power usage during low link utilization. The wall-mount installation design provides more flexibility for wired home or office networks.
Additional information
| Weight | 1.24 lbs |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| MAC address table | 16000 entries |
| Switching capacity | 66 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet buffer memory | 1.5 MB |
| Rack mounting | No |
| Product colour | Grey |
| LED indicators | Yes |
| DC input voltage | 12 V |
| Input current | 1.5 A |
| Power consumption (max) | 15.61 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 10 – 90% |
| Width | 250 mm |
| Depth | 104 mm |
| Height | 24 mm |
| Weight | 768 g |
| Harmonized System (HS) code | 85176990 |
| 2.5G Ethernet (copper) ports quantity | 2 |
| Flow control support | Yes |
| Access Control List (ACL) | Yes |
| Reset button | Yes |
| Power source | AC/DC |
| Power supply included | Yes |
| Package weight | 1.22 kg |
| AC input voltage | 100 – 240 V |
| Forwarding rate | 49 Mpps |
| Package width | 306 mm |
| Package depth | 225 mm |
| Package height | 64 mm |
| SFP+ module slots quantity | 2 |
