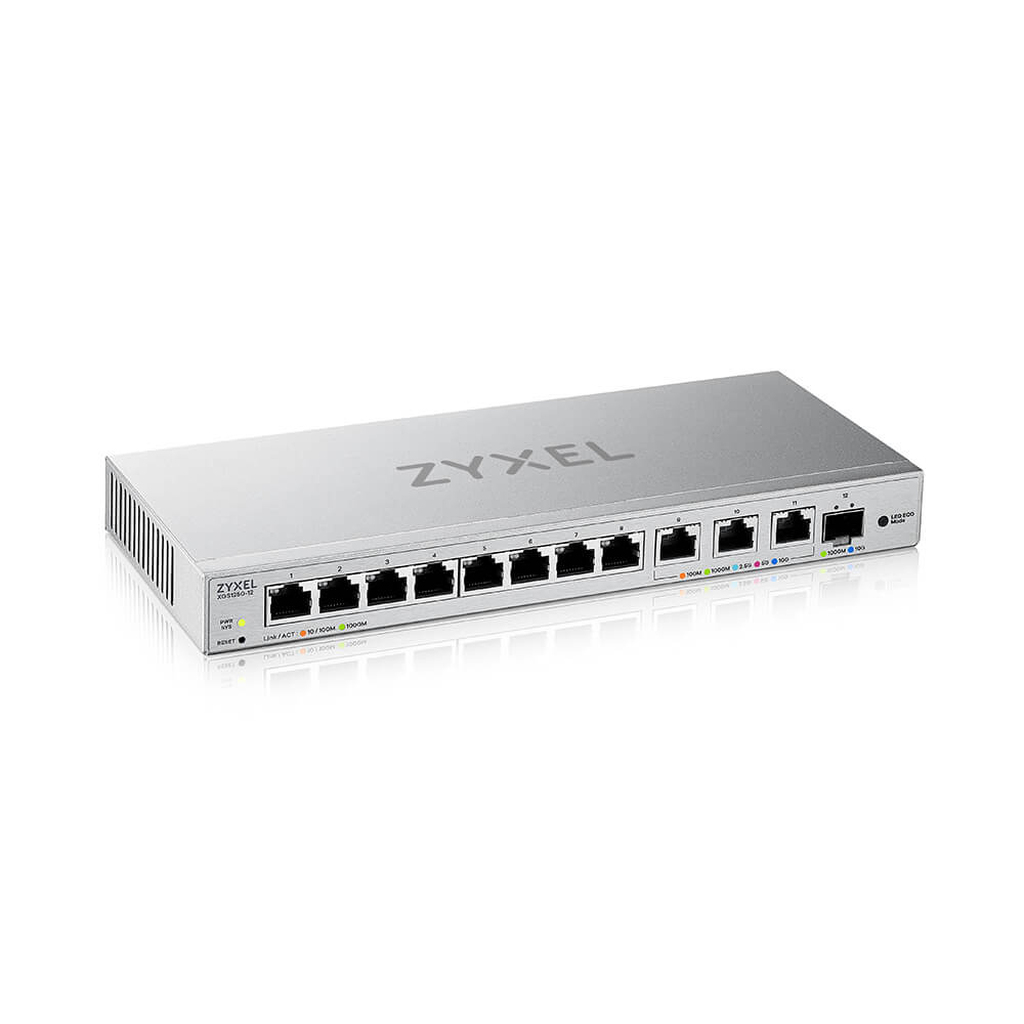

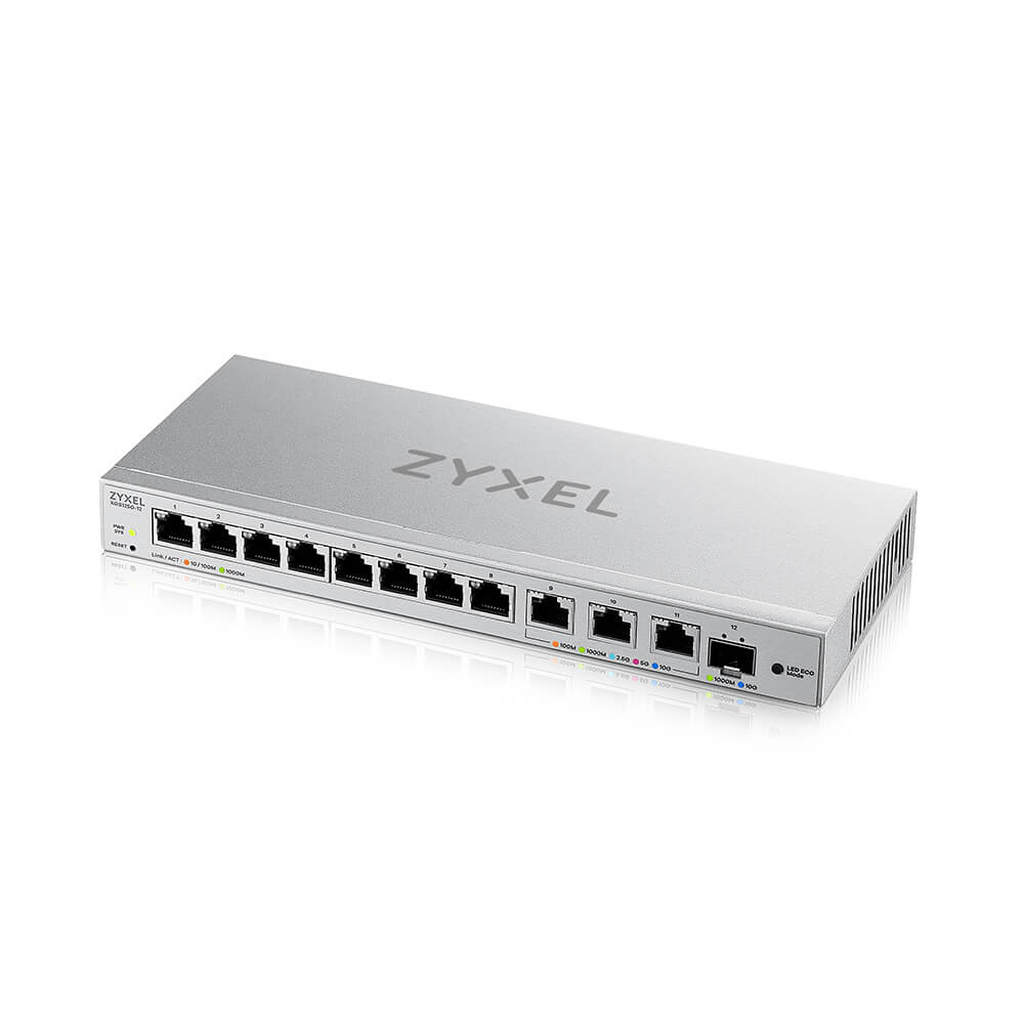

Zyxel XGS1250-12 Managed L2 10G Ethernet (100/1000/10000) Grey
12-Port Web-Managed Multi-Gigabit Switch includes 3-Port 10G and 1-Port 10G SFP+
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Double the 10G Capability!
XS1250-12 features with three Multi-Gigabit ports supporting up to 10G and one additional 10G fiber port on top of the two 10G copper ports provided by the other vendors. With our additional fiber port and 10G connectivity boost the flexibility to adopt more 10G devices in your daily work.
Agile Network Applications

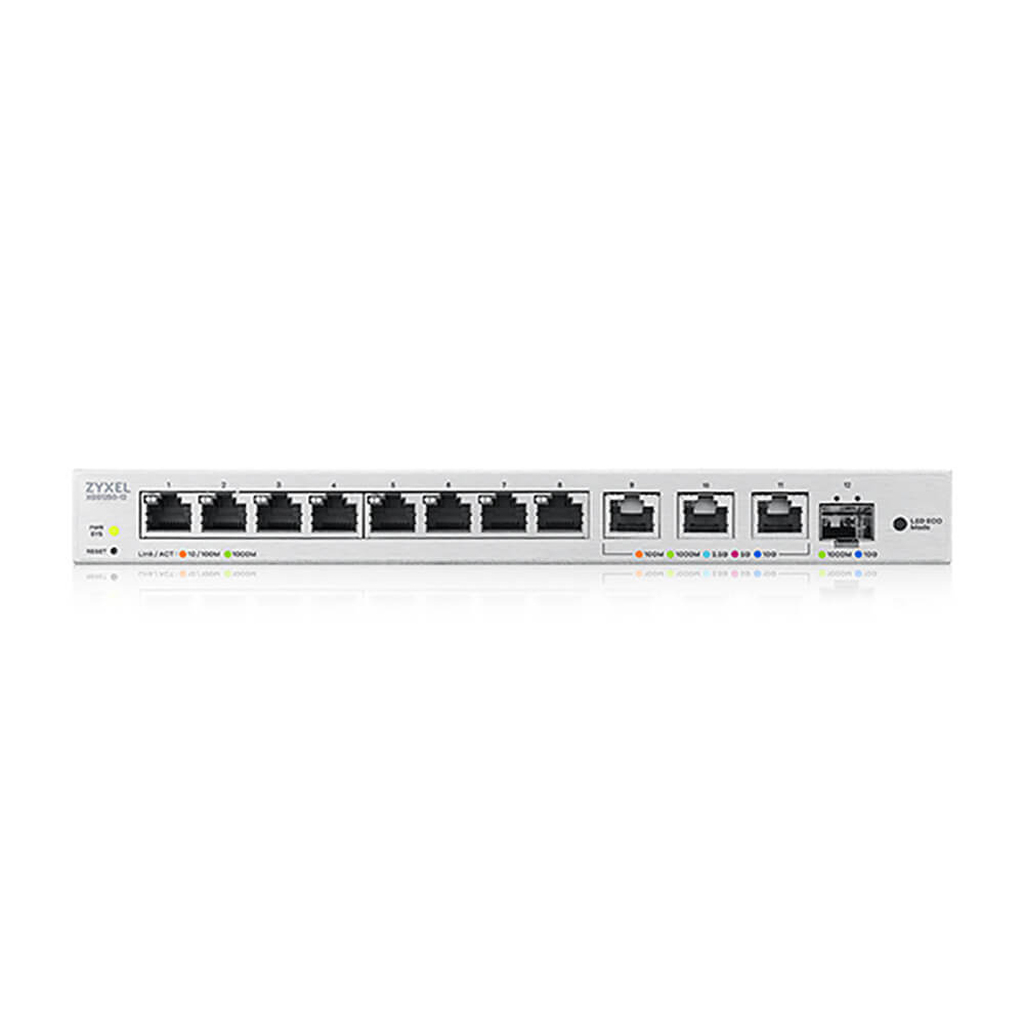

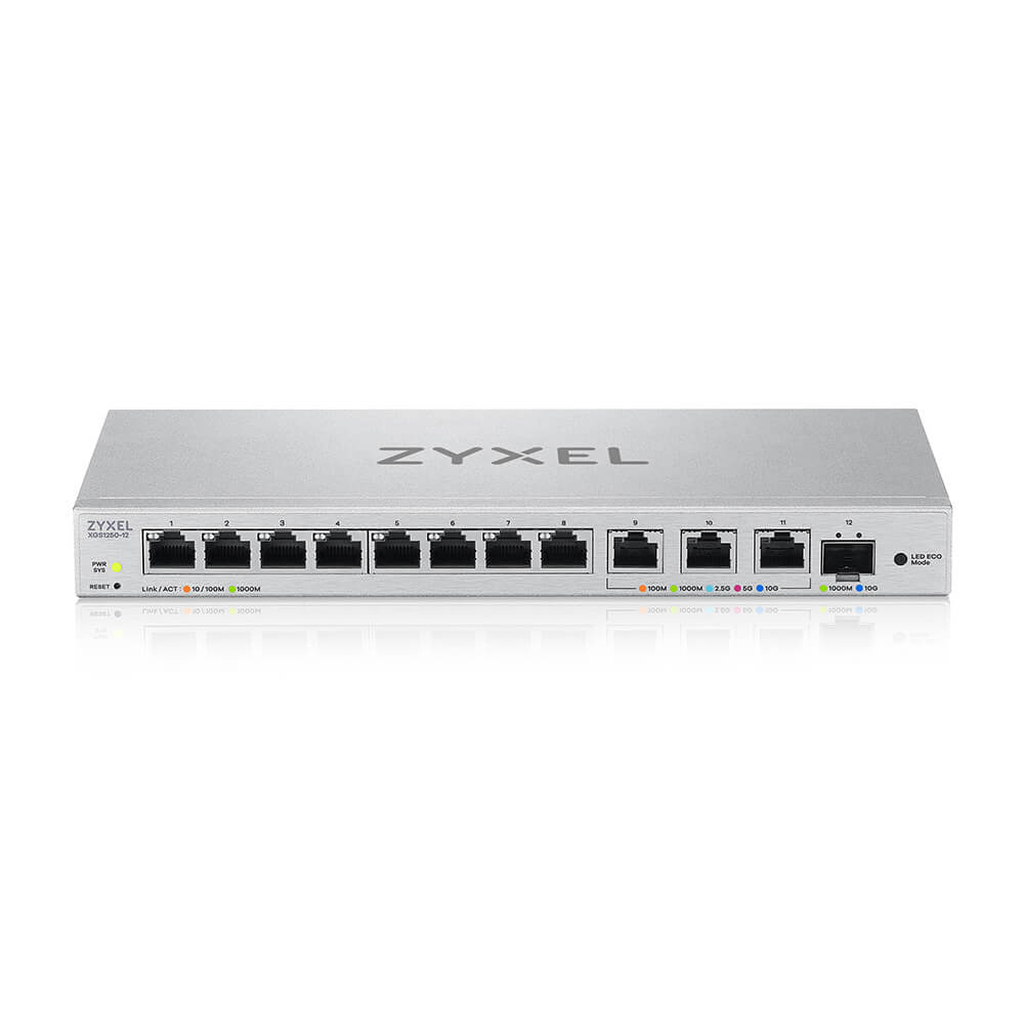

Featured with 1G ports, 10G Multi-Gigabit ports, as well as 10G fiber port, this port combination is capable of servicing a range of network devices such as iMac Pro, 10G NAS, servers, WiFi 6 APs, or new 2.5G motherboards. The unique 5-color LED on the front panel is designed for you to check the link speed instantly.
Why Multi-Gigabit?
Increasing new applications raise the demand for higher network speed requirement. The Multi-Gigabit RJ-45 ports provide more speed options for your network. Before upgrading the network, you should figure out network speed of motherboard, PC, or WiFi 6 AP, and you need to pick up the right network cable to achieve the maximum speed.
Using Your Current Cabling Is Fine!
The Multi-Gigabit support is able to leverage existing Cat 5e cable infrastructure to upgrade network speed up to 5 times for cost efficient network setup.
Whisper-silent, Energy-saving at Work
With the built-in smart fan which is designed to automatically adjust speeds based on the device temperature, you can barely hear the sound while the switch is in operation. Also, you can deactivate the Ethernet port LEDs for distraction-free operation by switching to LED ECO mode through the front panel button* or the web-based interface.
Additional information
| Weight | 1.39 lbs |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 11 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000,2500,10000 Mbit/s |
| MAC address table | 16000 entries |
| Switching capacity | 96 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Rack mounting | No |
| Product colour | Grey |
| Housing material | Aluminium, Iron |
| LED indicators | Yes |
| Power consumption (max) | 20.06 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 10 – 90% |
| Width | 250 mm |
| Depth | 104 mm |
| Height | 27 mm |
| Weight | 783 g |
| Harmonized System (HS) code | 85176990 |
| Switch layer | L2 |
| Web-based management | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Reset button | Yes |
| Number of fans | 1 fan(s) |
| Power source | AC |
| Power supply included | Yes |
| Stackable | No |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50/60 Hz |
| MIB support | Y |
| Power connector | DC-in jack |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Forwarding rate | 71.42 Mpps |
| Link aggregation | Yes |
| Wall mountable | Yes |
| SFP+ module slots quantity | 1 |
| Multicast support | Yes |
| Redundant fans support | Yes |
| DIN rail mounting | No |
